US Motors 1390 Dimensional Sheet

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CAT. NO. DESCRIPTION / REMARKS

K48HXSTZ-3519

4 LEADS, #18, .031 THICK INSUL. (2) YEL & (2) ORG FOR REVERSING ROTATION TO EXTEND BEYOND MOTOR

4.000 +2.000 -0.000

STANDARD

4.910

AUTOMATIC THERMAL PROTECTOR

1/4

2.8 60 1050/3

115

SEE ASSM. INST. #2

CCWLE REVERSIBLE

4.812

NAMEPLATE

1390

9.694

4.337 ±.047

.572 ±.031 TYP.

REV.

T O P

8-32 THREAD

2.500

.453

.468

.5000

.4997

30°

60°

ASSEMBLE BRACKET ASM ON STATOR SCREW EXTENSION AND FASTEN WITH SERRATED NUT (4 PLACEDS)

BRACKET ASM

#16 GRN/YEL GROUND LEAD TO BE

12.000±.250 BETWEEN CENTERS OF TERMS. TERM. TO FIT #10 SCREW

2 LEADS, #18, .031 THICK INSULATION TO EXTEND BEYOND MOTOR 12.000±1.0 AND TO HAVE .250 FLAG TYPE Q.C. TERMS WITH INSULATION GRIP. (BRN & BRN/WHT)

4 LEADS #18, .031 THICK INSULATION TO EXTEND BEYOND MOTOR: 33.000±1.0 AND SKINNED .500 (WHITE, BLACK BLUE AND RED)

ENDSHIELDS OPEN (BOTH ENDS)

4.464OB.C.

NIDEC MOTOR CORPORATION 10-Jul-18

CHANGED TO CORRECT VIEW OF BRACKET OLE

ISSUED BY :

C. LUGO

REVISION RECORD FOR:

ENGINEER APPROVED :

ECO E31734

P. RODRIGUEZ

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

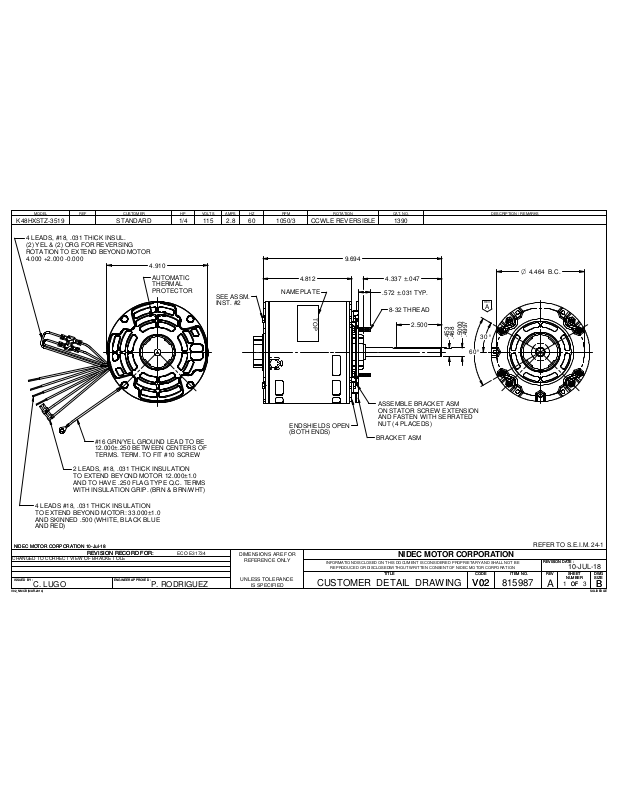

CUSTOMER DETAIL DRAWING

NIDEC MOTOR CORPORATION

TITLE

CODE ITEM NO.

V02

815987

REFER TO S.E.I.M. 24-1

REVISION DATE :

10-JUL-18

REV

1 3

SHEET

NUMBER

DWG

DWG SIZE

SIZE

SOLIDEDGEV02_NMCB (MAR-2014)
