MODEL REF
K55HXRGB-1938
CUSTOMER
WHOLESALE HAC
1386
HP VOLTS AMPS HZ RPM
1/6
115
2.61
60
1075 CCW LE REVERSIBLE
ROTATIONCUSTOMER PN
DESCRIPTION / REMARKS
AUTOMATIC THERMAL
PROTECTOR
°
3
±
°
5
4
3.000 ±.062
SEAM
WELD
2 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLK=36.000 +2.0 -0.0
WHT=36.000 +2.0 -0.0
NIDEC MOTOR CORPORATION 12-Nov-18
NIDEC MOTOR CORPORATION 12-Nov-18
REVISION RECORD FOR:
NEW DRAWING CREATED.
ISSUED BY :
ISSUED BY :
REVISION RECORD FOR:
I. GUTIERREZ
(4) LEADS, (2) YELLOW
& (2) ORANGE FOR
REVERSING ROTATION
2
+
0
.
4
30°
ENGINEER APPROVED :
ENGINEER APPROVED :
P. RODRIGUEZ
0
-
STRIP 0.500"
CONNECTOR
WARNING
LABEL
DRAIN HOLES
ECO E32160
9.652 ±.062
5.812
NAMEPLATE
BX
.344
1.375 1.375
2.500
6.562
CAP.
7.5 MFD 370V
ROTATION: CCW LEAD END REVERSIBLE,
TO REVERSE ROTATION INTERCHANGE ORANGE AND
YELLOW LEADS.
DIMENSIONS ARE FOR
REFERENCE ONLY
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
UNLESS TOLERANCE
IS SPECIFIED

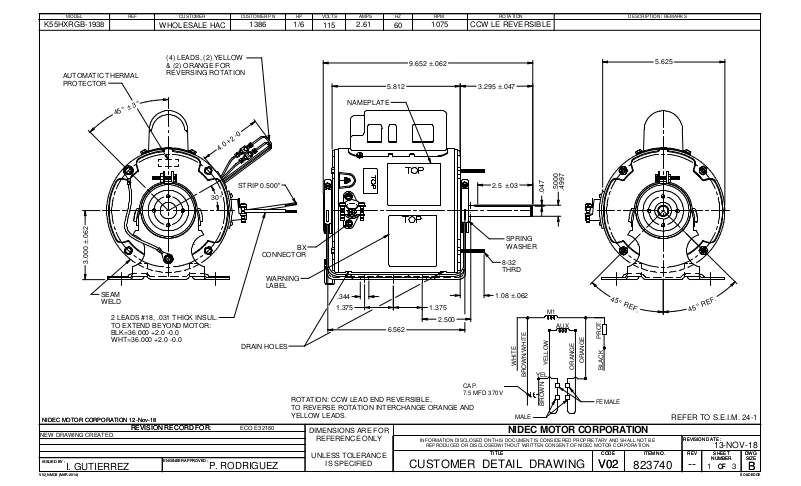

CUSTOMER DETAIL DRAWING
3.295 ±.047
2.5 ±.03
SPRING
WASHER
8-32
THRD
1.08 ±.062
NIDEC MOTOR CORPORATION
TITLE
TITLE
E
T
I
H
W
MALE
5.625
.5000
.4997
.047
4
5
°
R
E
F
M1
AUX
YELLOW
YEL
BROWN/WHITE
BROWN
ORANGE
ORANGE
.
T
O
R
P
K
C
A
L
B
FEMALE
.
4
.
F
E
R
°
5
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
13-NOV-18
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823740
REV
REV
--
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
