5 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YELLOW=36.000 +3 -0
RED=36.000 +3 -0
BLACK=36.000 +3 -0
BLUE=36.000 +3-0
ORANGE=36.000 +3-0
23.472
AUTOMATIC
THERMAL
PROTECTOR
6.695
3.500
SPLIT IN
MRG RING
6.611
.500 ±.062
SKINNED
REV.
B
7.500
4.312
NAMEPLATE
.344
.844
+.0000
-.0005
7.500
.4398
.041 TYP.
TOP
.844
OPEN ENDSHIELD
(BOTH ENDS)
#16 GREEN GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
NIDEC MOTOR CORPORATION 14-Nov-17
MODEL REF
K48HXNDB-1156 A26628
SHEET
NUMBER
1 1
REV
OF
B
REVISION DATE
CHANGE DRAWING TO SHOW THAT THE GROUND WIRE IS ROUTED FROM INSIDE THE BASE
REVISION RECORD FOR:
15-NOV-17
ISSUED BY
REVIEWED BY ENGINEER APPROVED
J. ALVARADO
R. CRUZ
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
WHOLESALE - HAC
ECO: E29762
H. O. NAVARRO
1/4 208-230 1.2
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

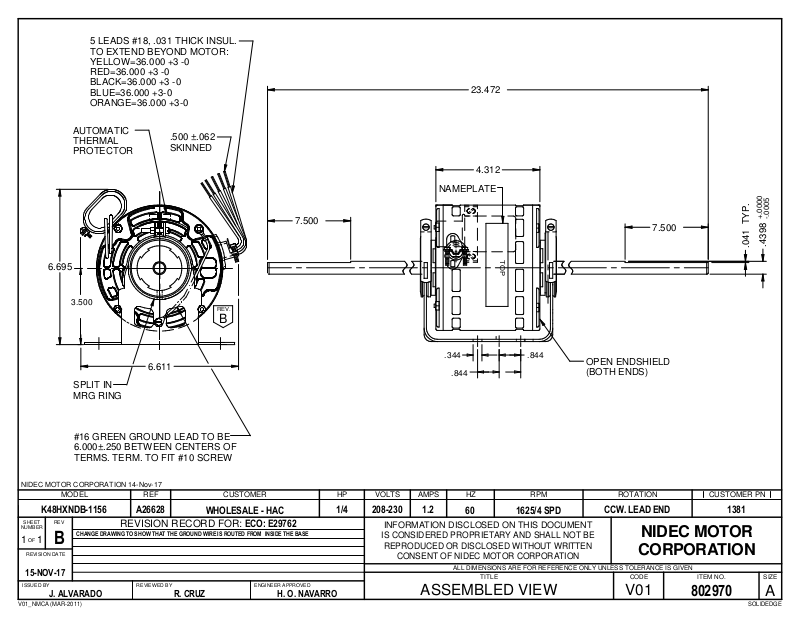

ASSEMBLED VIEW
60 1625/4 SPD
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
CCW. LEAD END 1381
CUSTOMER PN
NIDEC MOTOR
CORPORATION
V01
802970
A
SOLIDEDGEV01_NMCA (MAR-2011)
