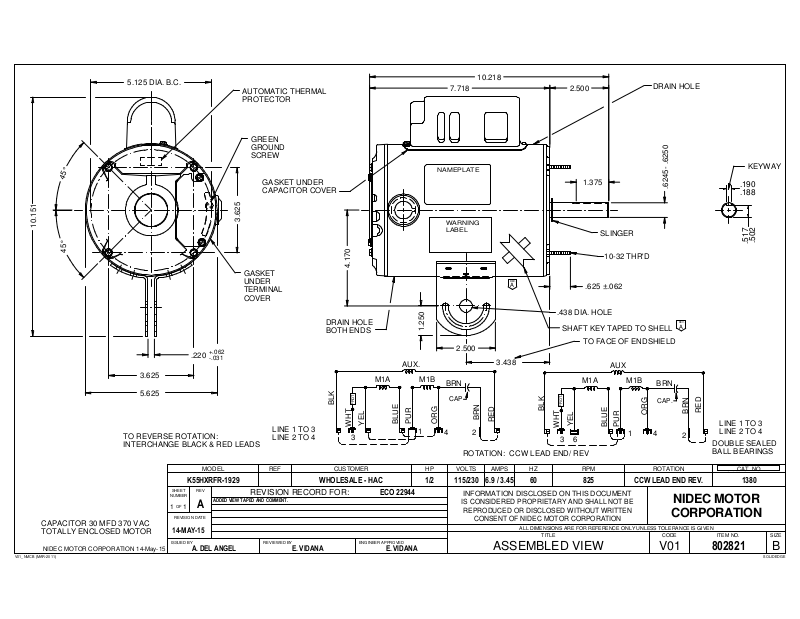

US Motors 1380 Dimensional Sheet
5.125 DIA. B.C.
A
AUTOMATIC THERMAL
7.718
10.218
2.500
DRAIN HOLE
PROTECTOR
GREEN
GROUND
SCREW
°
5
4
GASKET UNDER
CAPACITOR COVER
NAMEPLATE
1.375
.6245- .6250
KEYWAY
.190
.188
10.151
45°
3.625
5.625
TO REVERSE ROTATION:
INTERCHANGE BLACK & RED LEADS
CAPACITOR 30 MFD 370 VAC
TOTALLY ENCLOSED MOTOR
NIDEC MOTOR CORPORATION 14-May-15
3.625
WARNING
LABEL
SLINGER
10-32 THR'D
4.170
GASKET
UNDER
TERMINAL
REV.
.625 ±.062
COVER
.438 DIA. HOLE
BRN
CAP.
REV.
A
RED
BRN
2
DOUBLE SEALED
BALL BEARINGS
+.062
.220
-.031
MODEL REF
LINE 1 TO 3
LINE 2 TO 4
DRAIN HOLE
BOTH ENDS
PROT.
BLK
YEL
WHT
3
1.250
AUX.
M1A M1B
PUR
BLUE
1
2.500
3.438
BRN
CAP
BRN
ORG
4
RED
2
SHAFT KEY TAPED TO SHELL
TO FACE OF ENDSHIELD
AUX
M1A M1B
PROT.
BLK
YEL
WHT
6
3
PUR
BLUE
ORG
1 4
ROTATION: CCW LEAD END/ REV
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXRFR-1929 WHOLESALE - HAC 1/2 115/230 6.9 / 3.45 60 825 CCW LEAD END REV. 1380
SHEET
REV
NUMBER
OF
1
REVISION DATE
ADDED VIEW TAPED AND COMMENT.
A
1
14-MAY-15
ISSUED BY
A. DEL ANGEL E. VIDANA E. VIDANA
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
ECO 22944
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
NIDEC MOTOR
CORPORATION
V01
802821
.517
LINE 1 TO 3
LINE 2 TO 4
CUSTOMER PN
CAT. NO.
.502
B
SOLIDEDGEV01_NMCB (MAR- 2011)
