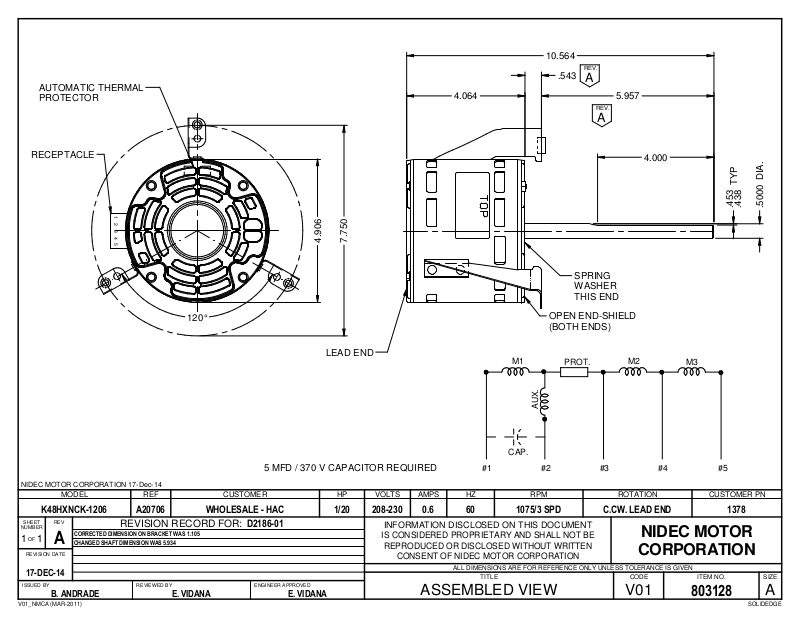

US Motors 1378 Dimensional Sheet

AUTOMATIC THERMAL

A

PROTECTOR

4.064

10.564

REV.

.543

5.957

REV.

A

RECEPTACLE

4.000

TYP

.453

.438

.5000 DIA.

54321

4.906

7.750

SPRING
WASHER
THIS END

120°

OPEN END-SHIELD
(BOTH ENDS)

LEAD END

M1 M2

PROT.

.
X
U
A

M3

NIDEC MOTOR CORPORATION 17-Dec-14

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

SHEET

NUMBER

1 1

REV

OF

A

REVISION DATE

CORRECTED DIMENSION ON BRACKET WAS 1.105
CHANGED SHAFT DIMENSION WAS 5.934

17-DEC-14

ISSUED BY

B. ANDRADE E. VIDANA E. VIDANA

5 MFD / 370 V CAPACITOR REQUIRED

A20706K48HXNCK-1206

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

WHOLESALE - HAC

D2186-01

CAP.

#1 #2 #3 #4 #5

0.6208-2301/20

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

1075/3 SPD60

ASSEMBLED VIEW

C.CW. LEAD END

NIDEC MOTOR

CORPORATION

V01

803128

1378

A
