MODEL REF CUSTOMER
K55HXCMV-1654 C37129
#16 GRN/YEL GROUND LEAD TO BE
REV.
6.000u.250 BETWEEN CENTER OF
A
TERMINALS, TERMS. TO FIT #10 SCREW
WHOLESALE HAC
56°
SEAM WELD
HP VOLTS
208-230/460
1
2 WELDS PLATES
180v u5v APART
AMPS HZ
6.1/3.1
60
6.312u.062
RPM
1125
11.312u.062
ROTATION
CCW. LEAD END REV.
5.000u.047
2.500
.125
CUSTOMER PN
1376
DESCRIPTION / REMARKS
K55 HUB MTD, BALL BRG., OPEN
5.625
5.125
NIDEC MOTOR CORPORATION 21-Sep-16
I CHANGED THE GROUND LEAD LENGTH FROM 7.000 TO 6.000 I NCHES.
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
ENGINEER APPROVED :
A. VILLANUEVA
NAMEPLATE
(10) .250 STRAIGHT
Q.C. TERMINALS
(10) LEAD #18 GA., .062 THICK INSUL
TO EXTEND BEYOND MOTOR
BLACK=98.0 +/-2.0 WHITE= 98.0+/-2.0
PURPLE=98.0+/-2.0 BLUE= 98.0+/-2.0
(2) BROWN 98.0 +/-2.0 BROWN / WHT 98.0+/-2.0
ORANGE=98.0+/-2.0 YEL=98.0 +/-2.0
RED=98.0 +/-2.0
ECO E26823
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
2.500
.6250
.6245
.190
.188
TOP
.517
.502
"BUNA N" RUBBER (THIS SIDE)
WATER SLINGER
BOLT HEADS (THIS END)
LACE TO WDG.
SPRING WASHER (THIS END)
M1A
PROT.
BRN/WHT
CAP
R
U
BLU
P
BLK
BRN
WHT
AUX.
ORG
RED
COIL END SLEEVING
AT THESE LOCATIONS
M1B
YEL
TO REVERSE ROTATION INTERCHANGE BLACK AND RED LEADS.
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

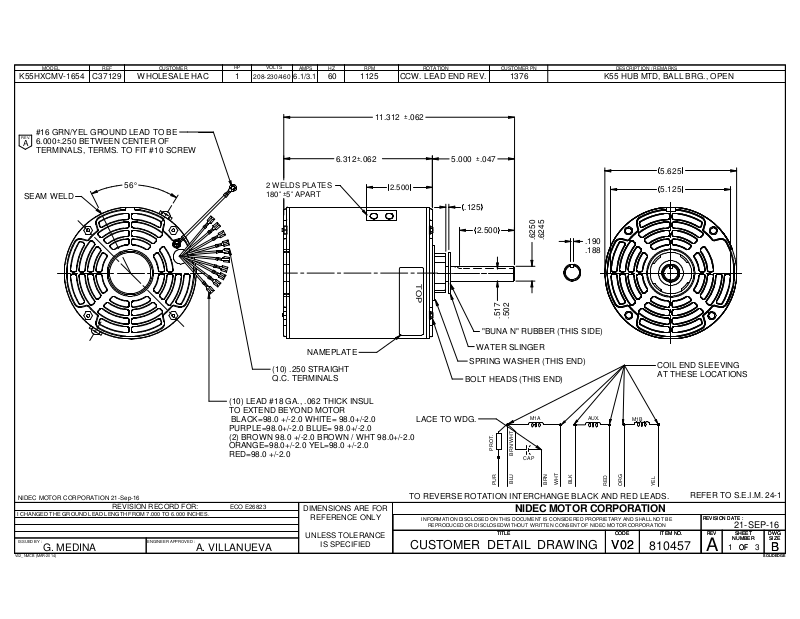

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
810457
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
21-SEP-16
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
