US Motors 1374 Dimensional Sheet

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN DESCRIPTION / REMARKS

K48ZZTT-1374

STANDARD

1/30

115

.50

1100/3 SPD

CW LEAD END

1374

SUPPLIED DETACHED

1.) (2) INSTR. FROMS

MOTOR TO BASE GREEN/YELLOW GROUND WIRE

AUTOMATIC THERMAL PROTECTOR

4.38

1.75 1.75

SEE ASSM. INST. #1

SEE ASSM. INST. #2

13.65 ±.062

4.06

.84 .84

1.84 8.73

8.50 ±.047

NIDEC MOTOR CORPORATION 23-May-17

NEW DRAWING.

ISSUED BY :

B. ANDRADE

REVISION RECORD FOR:

ENGINEER APPROVED :

45°

4 LEADS .031 INSUL TO EXTEND BEYOND MOTOR BLACK= 37.000+3-0, RED= 37.000+3-0 WHITE= 37.000+3-0, BLUE=37.000+3-0 LEADS TO BE TIE WRAPPED EVERY 10.000

E28697

H. NAVARRO

3.50

T O

NAMEPLATE

.375 SKINNED

INCLUDES 5.0 MFD 370-VAC CAPACITOR

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

4.000

.4995

.438

.5000

.453

OIL SLING TO BE PLACED IN OPERATING POSITION AGAINST FACE OF BEARING HUB

OPEN SHIELD (BOTH ENDS)

THERMAL

PROTECTOR

AUX.

MAIN 1

T H

K L B

BRN

MAIN 2

U L B

MAIN 3

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

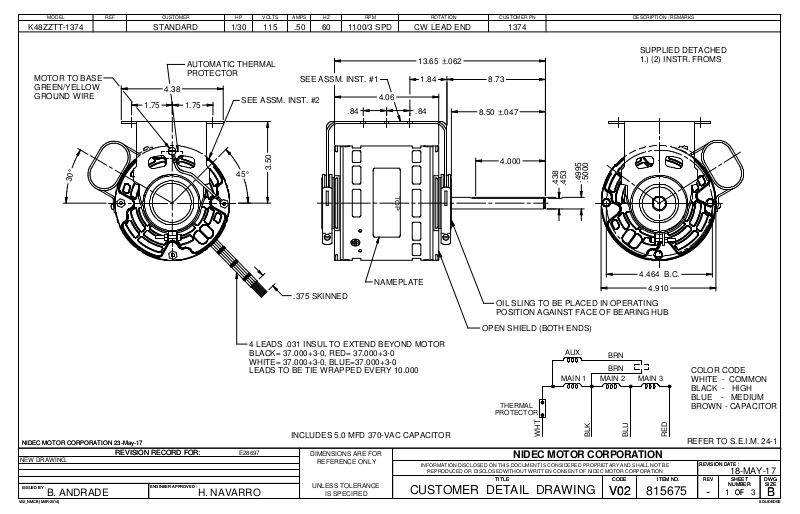

CUSTOMER DETAIL DRAWING

TITLE

CODE ITEM NO.

V02

4.464 B.C.

4.910

D E R

815675

COLOR CODE WHITE - COMMON BLACK - HIGH BLUE - MEDIUM BROWN - CAPACITOR

REFER TO S.E.I.M. 24-1

REVISION DATE :

REV

18-MAY-17

SHEET

NUMBER

1 3

SOLIDEDGEV02_NMCB (MAR-2014)

DWG

SIZE
