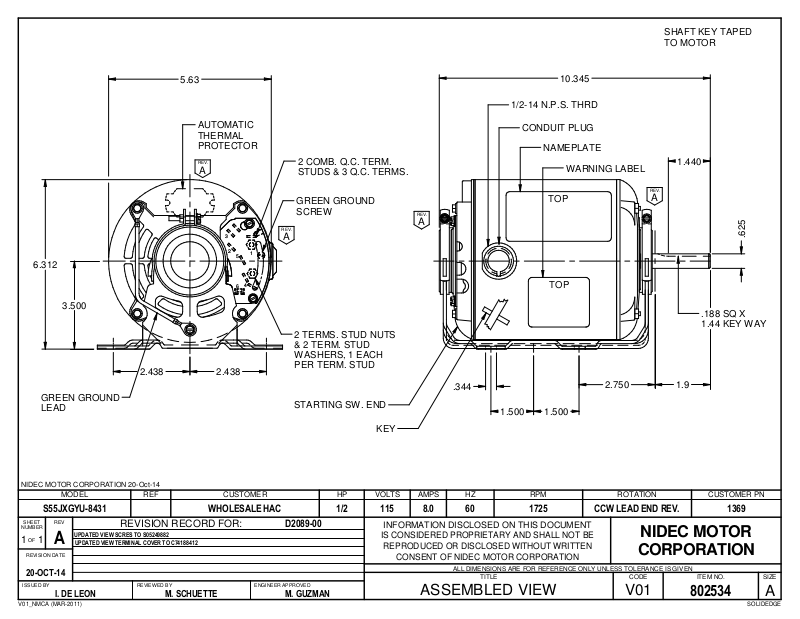

US Motors 1369 Dimensional Sheet
SHAFT KEY TAPED
A
A
TO MOTOR
6.312
3.500
GREEN GROUND
LEAD
5.63
AUTOMATIC
THERMAL
PROTECTOR
REV.
A
3
3
2
2
2.438 2.438
10.345
1/2-14 N.P.S. THRD
CONDUIT PLUG
NAMEPLATE
2 COMB. Q.C. TERM.
STUDS & 3 Q.C. TERMS.
GREEN GROUND
SCREW
REV.
REV.
WARNING LABEL
TOP
A
1
1
5
5
4
4
6
6
TOP
1.440
REV.
.625
.188 SQ X
1.44 KEY WAY
2 TERMS. STUD NUTS
& 2 TERM. STUD
WASHERS, 1 EACH
PER TERM. STUD
STARTING SW. END
.344
2.750
1.500 1.500
1.9
KEY
NIDEC MOTOR CORPORATION 20-Oct-14
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
S55JXGYU-8431
SHEET
NUMBER
1 1
REV
OF
A
REVISION DATE
UPDATED VIEW SCRES TO S05249882
UPDATED VIEW TERMINAL COVER TO C74188412
20-OCT-14
ISSUED BY
I. DE LEON M. SCHUETTE M. GUZMAN
WHOLESALE HAC 1/2 115 8.0 60 1725 CCW LEAD END REV. 1369
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
D2089-00
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
NIDEC MOTOR
CORPORATION
V01
802534
A
SOLIDEDGEV01_NMCA (MAR-2011)
