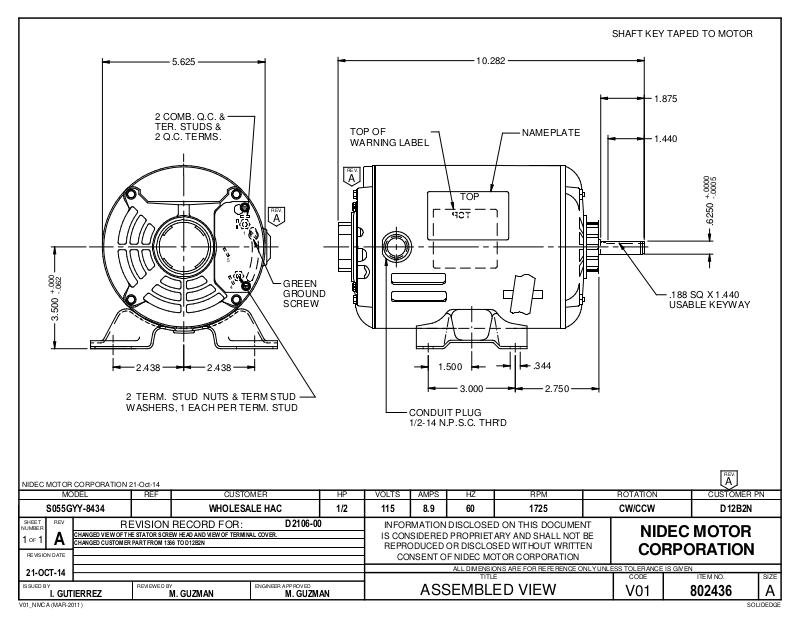

US Motors 1366 Dimensional Sheet

SHAFT KEY TAPED TO MOTOR

A

A

5.625

10.282

1.875

2 COMB. Q.C. &
TER. STUDS &
2 Q.C. TERMS.

REV.

TOP OF
WARNING LABEL

REV.

TOP

NAMEPLATE

1.440

+.0000

-.0005

.6250

1

5

+.000

-.062

4

GREEN
GROUND
SCREW

.188 SQ X 1.440
USABLE KEYWAY

3.500

NIDEC MOTOR CORPORATION 21-Oct-14

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

S055GYY-8434

SHEET

NUMBER

1 1

REV

OF

A

REVISION DATE

CHANGED VIEW OF THE STATOR SCREW HEAD AND VIEW OF TERMINAL COVER.
CHANGED CUSTOMER PART FROM 1366 TO D12B2N

21-OCT-14

ISSUED BY

I. GUTIERREZ M. GUZMAN M. GUZMAN

2.438 2.438

2 TERM. STUD NUTS & TERM STUD
WASHERS, 1 EACH PER TERM. STUD

WHOLESALE HAC 1/2 115 8.9 60 1725 CW/CCW D12B2N

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

D2106-00

1.500

3.000

.344

2.750

CONDUIT PLUG
1/2-14 N.P.S.C. THR'D

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

NIDEC MOTOR

CORPORATION

V01

802436

REV.

A

A

SOLIDEDGEV01_NMCA (MAR-2011)
