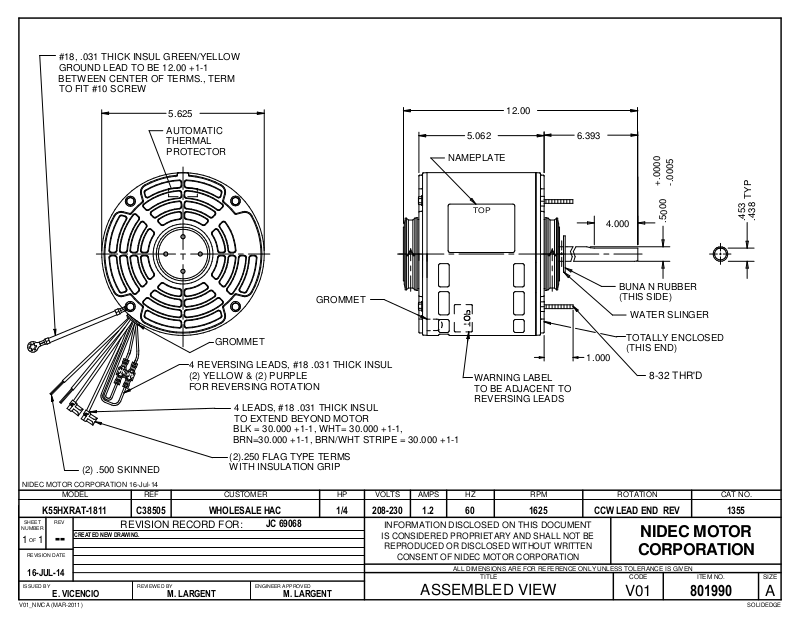

US Motors 1355 Dimensional Sheet

#18, .031 THICK INSUL GREEN/YELLOW
GROUND LEAD TO BE 12.00 +1-1
BETWEEN CENTER OF TERMS., TERM
TO FIT #10 SCREW

(2) .500 SKINNED

NIDEC MOTOR CORPORATION 16-Jul-14

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CAT NO.

K55HXRAT-1811 C38505

SHEET

NUMBER

1 1

REV

OF

--

REVISION DATE

CREATED NEW DRAWING.

16-JUL-14

ISSUED BY

E. VICENCIO M. LARGENT M. LARGENT

5.625

AUTOMATIC
THERMAL
PROTECTOR

GROMMET

4 REVERSING LEADS, #18 .031 THICK INSUL
(2) YELLOW & (2) PURPLE

FOR REVERSING ROTATION

4 LEADS, #18 .031 THICK INSUL
TO EXTEND BEYOND MOTOR
BLK = 30.000 +1-1, WHT= 30.000 +1-1,

BRN=30.000 +1-1, BRN/WHT STRIPE = 30.000 +1-1

(2).250 FLAG TYPE TERMS
WITH INSULATION GRIP

WHOLESALE HAC

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

JC 69068

GROMMET

1/4 208-230 1.2

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

12.00

5.062

NAMEPLATE

TOP

WARNING LABEL
TO BE ADJACENT TO
REVERSING LEADS

60 1625

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

6.393

0

5

0

0

0

0

0

0

.

.

+

-

0
0
0
5

4.000

BUNA N RUBBER
(THIS SIDE)

WATER SLINGER

TOTALLY ENCLOSED
(THIS END)

.

1.000

8-32 THR'D

CCW LEAD END REV 1355

NIDEC MOTOR

CORPORATION

V01

801990

P
Y
T

8

3

3

5

4

4

.

.

A

SOLIDEDGEV01_NMCA (MAR-2011)
