AUTOMATIC THERMAL
B
PROTECTOR
8.417
SEAM WELD
6.978
#18 GREEN/YELLOW STRIPES
GROUND LEAD TO BE 16.000±1.000
BETWEEN CENTERS OF TERMS.
TERMINALS TO FIT .250 EYELET
NIDEC MOTOR CORPORATION 06-Sep-17
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXRAE-1799
SHEET
NUMBER
1 1
REV
OF
B
REVISION DATE
DELETED THE STAMPING IN THE WHITE, BLK & RED LEADS ON DIAGRAM OF CONNECTION.
06-SEP-17
ISSUED BY
G. MEDINA J. I. SALAZAR
(4) LEADS #18, 2/64 THICK INSUL.
(2) YELLOW & (2) PURPLE FOR
REVERSING ROTATION.
(4) LEADS #18, 2/64 THICK TO
EXTEND BEYOND MOTOR: BRN=45.000 +1-1,
WHITE=45.000 +1-1, BLACK=45.000 +1-1,
RED=45.000 +1-1 WITH 1/4 FLAG Q.C.
TERMINALS
C38438-2
WHOLESALE - HAC
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
4
.
ECO E29630
M. LARGENT
8-32 THR'D
+
0
2
0
0
-
0
GROMMET
1/3 208-230 2.0
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
4.812
NAMEPLATE
TOP
5.580
REV.
E
T
I
PUR
H
W
CAP
N
R
R
U
B
P
60 1075/2 SPD
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

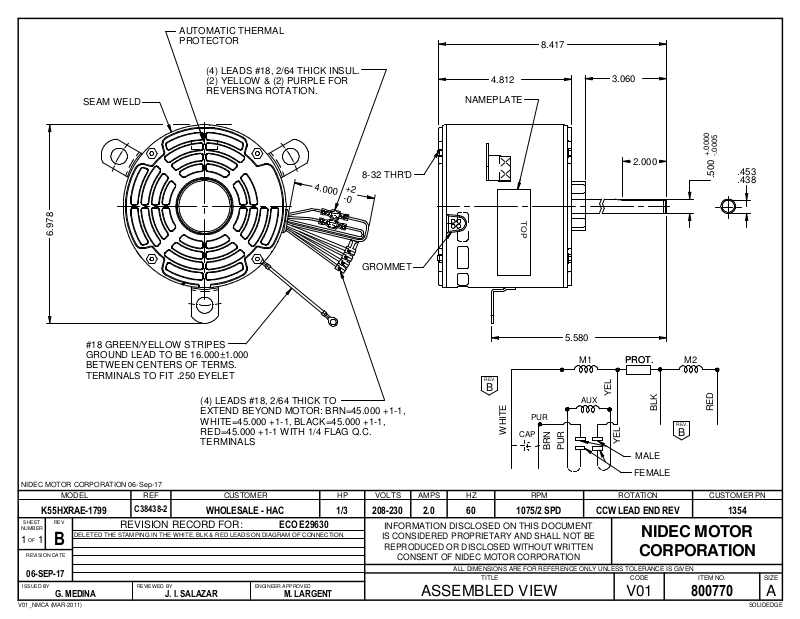

ASSEMBLED VIEW
3.060
2.000
M1 M2PROT.
AUX
L
E
Y
PROT.
L
E
Y
FEMALE
MALE
K
L
B
REV.
B
CCW LEAD END REV 1354
NIDEC MOTOR
CORPORATION
V01
800770
+.0000
-.0005
.453
.500
.438
D
E
R
A
SOLIDEDGEV01_NMCA (MAR-2011)
