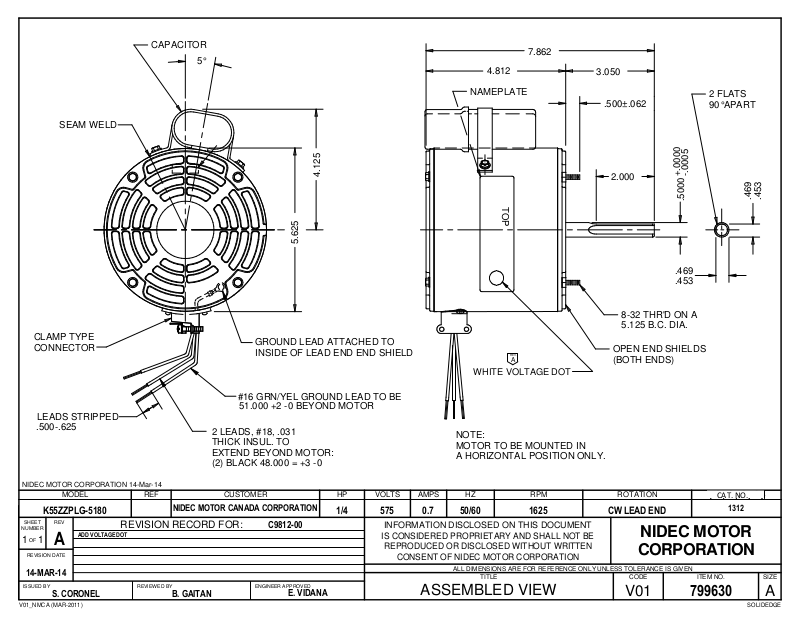

US Motors 1312 Dimensional Sheet

CAPACITOR

5°

4.812

7.862

3.050

SEAM WELD

CLAMP TYPE
CONNECTOR

5
2
1

.
4

5
2
6

.
5

GROUND LEAD ATTACHED TO

INSIDE OF LEAD END END SHIELD

NAMEPLATE

T
O

P

REV.

A

WHITE VOLTAGE DOT

.500±.062

0
0
0
0

.

2.000

+

.469
.453

8-32 THR'D ON A

5.125 B.C. DIA.

OPEN END SHIELDS
(BOTH ENDS)

5
0
0
0

.

-

0
0
0
5

.

2 FLATS
90°APART

3

9

5

6

4

4

.

.

LEADS STRIPPED

.500-.625

NIDEC MOTOR CORPORATION 14-Mar-14

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

K55ZZPLG-5180

SHEET

NUMBER

1 1

REV

OF

A

REVISION DATE

ADD VOLTAGE DOT

14-MAR-14

ISSUED BY

S. CORONEL B. GAITAN

#16 GRN/YEL GROUND LEAD TO BE

51.000 +2 -0 BEYOND MOTOR

2 LEADS, #18, .031
THICK INSUL. TO
EXTEND BEYOND MOTOR:
(2) BLACK 48.000 = +3 -0

NIDEC MOTOR CANADA CORPORATION

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

C9812-00

E. VIDANA

1/4 575 0.7

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

NOTE:
MOTOR TO BE MOUNTED IN
A HORIZONTAL POSITION ONLY.

50/60 1625

CW LEAD END

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

CAT. NO.

799630

1312

A

SOLIDEDGEV01_NMCA (MAR-2011)
