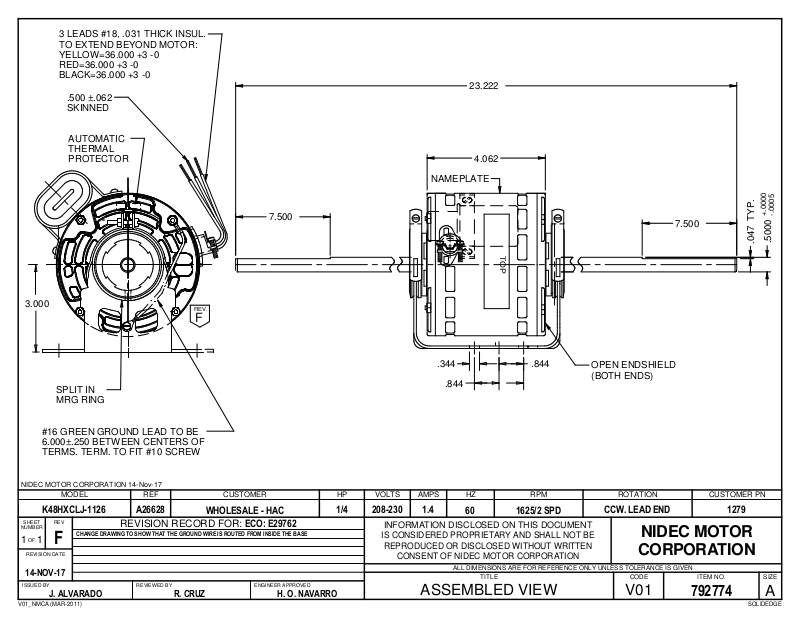

US Motors 1279 Dimensional Sheet

3 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YELLOW=36.000 +3 -0
RED=36.000 +3 -0
BLACK=36.000 +3 -0

.500 ±.062
SKINNED

AUTOMATIC
THERMAL
PROTECTOR

7.500

23.222

4.062

NAMEPLATE

+.0000

-.0005

7.500

.5000

.047 TYP.

TOP

3.000

SPLIT IN
MRG RING

#16 GREEN GROUND LEAD TO BE

6.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW

NIDEC MOTOR CORPORATION 14-Nov-17

MODEL REF

K48HXCLJ-1126 A26628

SHEET

NUMBER

1 1

REV

OF

F

REVISION DATE

CHANGE DRAWING TO SHOW THAT THE GROUND WIRE IS ROUTED FROM INSIDE THE BASE

REVISION RECORD FOR:

14-NOV-17

ISSUED BY

REVIEWED BY ENGINEER APPROVED

J. ALVARADO

REV.

F

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

WHOLESALE - HAC

ECO: E29762

R. CRUZ H. O. NAVARRO

1/4 208-230 1.4

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

.344

.844

OPEN ENDSHIELD
(BOTH ENDS)

.844

60 1625/2 SPD

CCW. LEAD END 1279

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

CUSTOMER PN

792774

A
