#16 GRN/YEL GROUND LEAD TO BE
B
6.000±.250 BETWEEN CENTERS
OF TERMINALS.
DRAIN HOLE
AUTOMATIC THERMAL
WITH PLUGS
PROTECTOR
TERMINAL TO FIT #10 SCREW.
(2) .250 STRAIGHT
Q.C. TERMINALS WITH
INSULATION GRIP
ON BRWON LEADS
NAMEPLATE
.625
T
O
P
10.357
T
O
P
5.000±.047
.545
.062
4.000
0
5
0
0
0
0
0
0
.
.
+
-
0
3
0
5
5
4
.
.
5.125 B.C. DIA.
NIDEC MOTOR CORPORATION 19-May-14
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXPUJ-1682
SHEET
NUMBER
1 1
REV
OF
B
REVISION DATE
CHANGED LABELS
CHANGED GROMMETCHANGED GROMMET
20-MAY-14
ISSUED BY
S. CORONEL A. WIEGMANN
4
.
0
0
+
0
2
0
5.625
C38243
WHOLESALE HAC 1/4 575 0.7 60 825 CCW. LEAD END REV 1276
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
.750 STRIP
ON WHITE &
BLACK LEADS
REVERSING
LEADS
ENCLOSED ENDSHIELD
(BOTH ENDS)
(4) LEADS #18 .031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHITE=48.0+2-0, BLACK=48.0+2-0,
BROWN=48.0+2-0, BRN/WHT=48.0+2-0
D1121-01
A. WIEGMANN
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

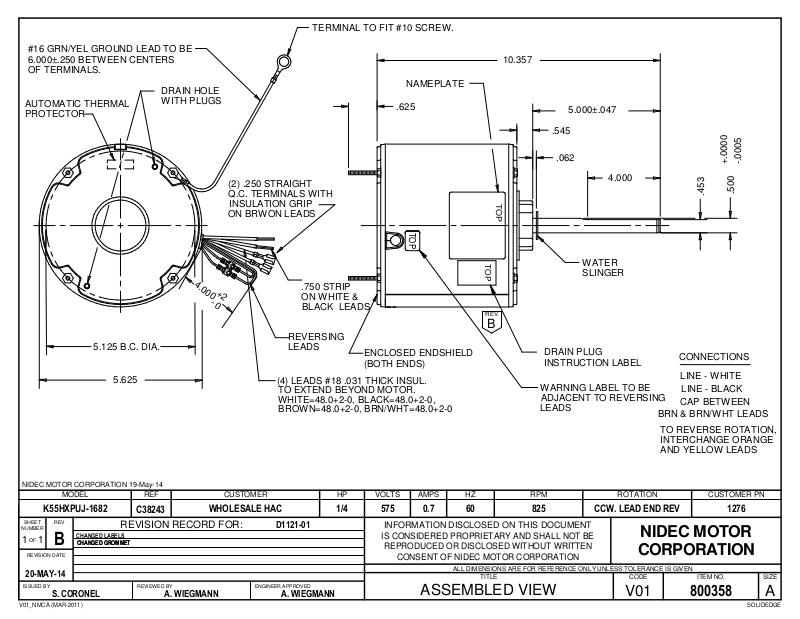

ASSEMBLED VIEW
TOP
WATER
SLINGER
REV.
DRAIN PLUG
INSTRUCTION LABEL
CONNECTIONS
LINE - WHITE
WARNING LABEL TO BE
ADJACENT TO REVERSING
LEADS
LINE - BLACK
CAP BETWEEN
BRN & BRN/WHT LEADS
TO REVERSE ROTATION,
INTERCHANGE ORANGE
AND YELLOW LEADS
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
800358
A
SOLIDEDGEV01_NMCA (MAR-2011)
