5 LEADS, #18, .062 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHT=40.000=3-0; BLK=40.000+3-0;
YEL=40.000+3-0; BLU=40.000+3-0;
RED=40.000=3-0
AUTOMATIC THERMAL
PROTECTOR
REV.
C
4.906
3.500
.500 STRIPPED
1.750 1.750
4.750
BROWN & BRN/WTH LEADS
.062 THICK INSUL.
REV.
SLOTTED SIDE
OF BASE
MOTOR TO BASE
GREEN/YELLOW
GROUND WIRE
10.085
7.060
REV.
NAMEPLATES
25.574
1.688
10.085
BOTH ENDS
7.060
+.0000
-.0005
.5000
T
O
P
REV.
.047
OPEN ENDSHIELD
(BOTH ENDS)
NIDEC MOTOR CORPORATION 24-Feb-15
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K48HXSNT-1270
SHEET
NUMBER
1 1
REV
OF
C
REVISION DATE
INTERCHANGED VIEW SCREW AND NUT.
CORRECTED SCREW VIEW OF CLAMP.
05-MAR-15
ISSUED BY
B. ANDRADE J. I. SALAZAR B. GAITAN
NIDEC MOTOR CANADA CORP.
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
D2801-01
RUN CAPACITOR: 5.0 MFD, 370 VOLTS
1/20 115 .90
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

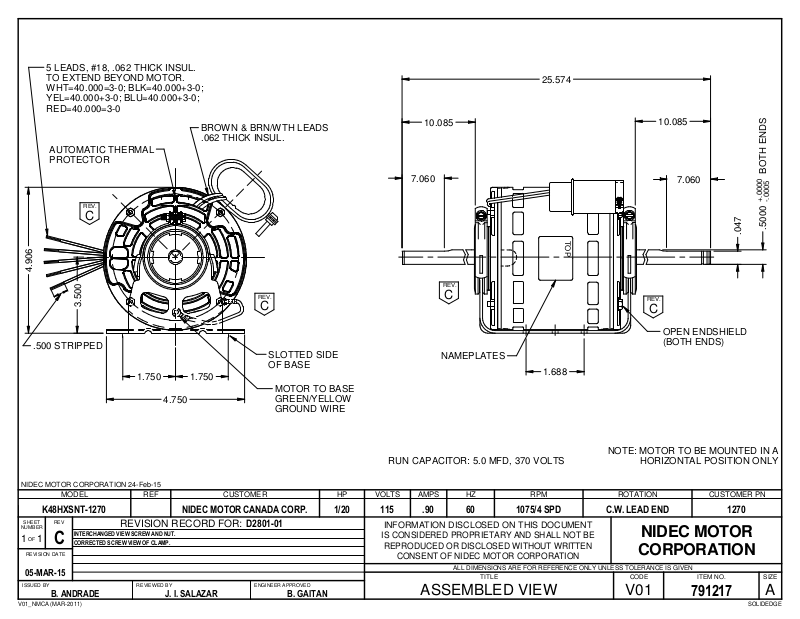

ASSEMBLED VIEW
NOTE: MOTOR TO BE MOUNTED IN A
HORIZONTAL POSITION ONLY
60 1075/4 SPD
C.W. LEAD END 1270
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
791217
A
SOLIDEDGEV01_NMCA (MAR-2011)
