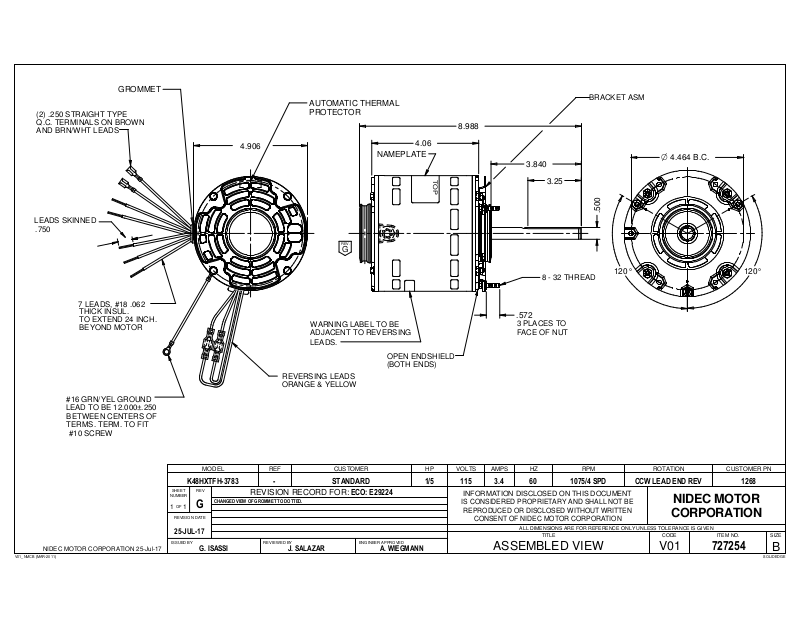

US Motors 1268 Dimensional Sheet

GROMMET

(2) .250 STRAIGHT TYPE Q.C. TERMINALS ON BROWN AND BRN/WHT LEADS

4.906

AUTOMATIC THERMAL PROTECTOR

NAMEPLATE

4.06

BRACKET ASM

8.988

3.840

T O

3.25

4.464 B.C.

LEADS SKINN

.75

7 LEADS, #18 .062 THICK INSUL. TO EXTEND 24 INCH.

BEYOND MOTOR

#16 GRN/YEL GROUND

LEAD TO BE 12.000±.250

BETWEEN CENTERS OF TERMS. TERM. TO FIT

#10 SCREW

NIDEC MOTOR CORPORATION 25-Jul-17

MODEL REF

K48HXTFH-3783 -

SHEET

REV

NUMBER

1 1

REVISION DATE

CHANGED VIEW OF GROMMET TO DOTTED.

25-JUL-17

ISSUED BY

G. ISASSI

REV.

WARNING LABEL TO BE ADJACENT TO REVERSING LEADS.

REVERSING LEADS ORANGE & YELLOW

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

J. SALAZAR A. WIEGMANN

ECO: E29224

OPEN ENDSHIELD (BOTH ENDS)

1/5 115 3.4

.500

8 - 32 THREAD

120°

.572

3 PLACES TO FACE OF NUT

60 1075/4 SPD

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

120°

CUSTOMER PN

CCW LEAD END REV 1268

NIDEC MOTOR

CORPORATION

V01

727254

SOLIDEDGEV01_NMCB (MAR-2011)
