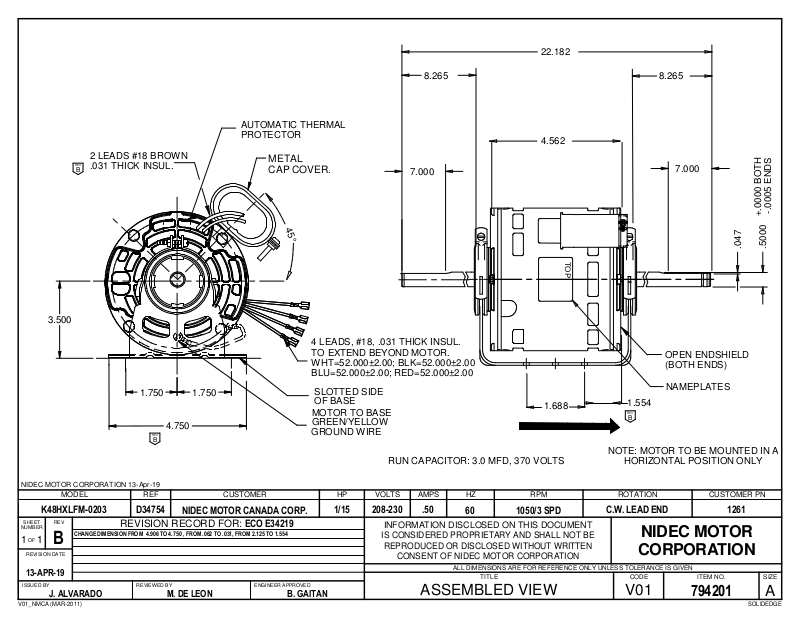

US Motors 1261 Dimensional Sheet

22.182

3.500

2 LEADS #18 BROWN

REV.

.031 THICK INSUL.

B

1.75

0 1.750

4.750

REV.

B

AUTOMATIC THERMAL
PROTECTOR

METAL
CAP COVER.

4

5

°

4 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHT=52.000±2.00; BLK=52.000±2.00
BLU=52.000±2.00; RED=52.000±2.00

SLOTTED SIDE
OF BASE

MOTOR TO BASE
GREEN/YELLOW
GROUND WIRE

8.265

4.562

7.000

1.688

RUN CAPACITOR: 3.0 MFD, 370 VOLTS

8.265

S

H
T

7.000

T
O

P

D
N

O

E

B

5

0

0

0

0

0

0

0

.

.

-

+

0
0

7

0

4

5

0

.

.

OPEN ENDSHIELD
(BOTH ENDS)

NAMEPLATES

1.554

REV.

B

NOTE: MOTOR TO BE MOUNTED IN A
HORIZONTAL POSITION ONLY

NIDEC MOTOR CORPORATION 13-Apr-19

MODEL REF

K48HXLFM-0203 D34754

SHEET

NUMBER

1 1

REV

OF

B

REVISION DATE

CHANGE DIMENSION FROM 4.906 TO 4.750 , FROM .062 TO .031, FROM 2.125 TO 1.554

REVISION RECORD FOR:

13-APR-19

ISSUED BY

REVIEWED BY ENGINEER APPROVED

J. ALVARADO

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

NIDEC MOTOR CANADA CORP.

ECO E34219

M. DE LEON B. GAITAN

1/15 208-230 .50

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

60 1050/3 SPD

C.W. LEAD END 1261

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
