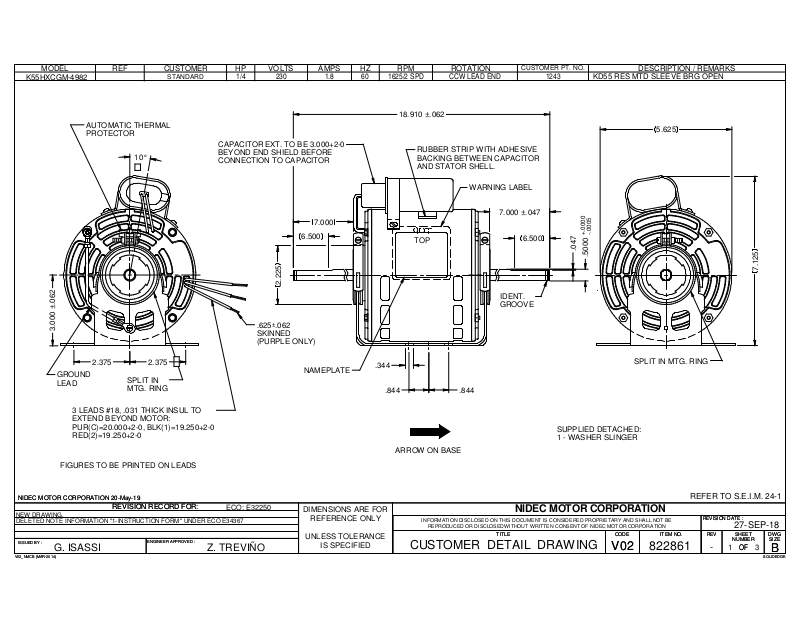

US Motors 1243 Dimensional Sheet

MODEL REF

K55HXCGM-4982

AUTOMATIC THERMAL
PROTECTOR

10°

CUSTOMER

STANDARD

HP

1/4 1243

VOLTS

AMPS

1.8

HZ

60

RPM

1625/2 SPD

ROTATION

CCW LEAD END230

18.910 ±.062

CAPACITOR EXT. TO BE 3.000+2-0
BEYOND END SHIELD BEFORE
CONNECTION TO CAPACITOR

RUBBER STRIP WITH ADHESIVE
BACKING BETWEEN CAPACITOR
AND STATOR SHELL.

WARNING LABEL

7.000 ±.047

7.000

6.500

TOP

2.225
IDENT.

GROOVE

CUSTOMER PT. NO.

6.500
.047

KD55 RES MTD SLEEVE BRG OPEN

DESCRIPTION / REMARKS

5.625

+.0000

-.0005

.5000

7.125

3.000 ±.062

2.375

GROUND
LEAD

2.375

SPLIT IN
MTG. RING

3 LEADS #18, .031 THICK INSUL TO
EXTEND BEYOND MOTOR:
PUR(C)=20.000+2-0, BLK(1)=19.250+2-0
RED(2)=19.250+2-0

FIGURES TO BE PRINTED ON LEADS

NIDEC MOTOR CORPORATION 20-May-19

NIDEC MOTOR CORPORATION 20-May-19

NEW DRAWING.
DELETED NOTE INFORMATION "1-INSTRUCTION FORM" UNDER ECO E34367

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E32250

Z. TREVIÑO

.625u.062
SKINNED
(PURPLE ONLY)

NAMEPLATE

DIMENSIONS ARE FOR

UNLESS TOLERANCE

REFERENCE ONLY

IS SPECIFIED

.344

.844

ARROW ON BASE

CUSTOMER DETAIL DRAWING

SPLIT IN MTG. RING

.844

SUPPLIED DETACHED:
1 - WASHER SLINGER

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

822861

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

27-SEP-18

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
