MODEL REF
KD55HXCHR-4981
CAPACITOR LEAD EXT. TO BE 3.000+2-0
BEYOND END SHIELD BEFORE
CONNECTION TO CAPACITOR.
CUSTOMER
STANDARD
HP
1/4
VOLTS
115
AMPS
3.6
RUBBER STRIP WITH ADHESIVE
BACKING BETWEEN CAPACITOR
AND STATOR SHELL.
HZ
60
RPM
1625/2 SPD
18.902 ±.062
ROTATION
CCW LEAD END
CUSTOMER PT. NO.
1242
OIL PLUG
(BOTH ENDS)
KD55 RES. MTD. SELF-ALIGN SLEEVE BRG. OPEN
DESCRIPTION / REMARKS
SUPPLIED DETACHED:
1-WASHER SLINGER
1-INSTRUCTION FORM
1-BOOKLET
5.625(
O
)
°
0
1
AUTOMATIC
THERMAL
PROTECTOR
3.000 ±.062
2.375
NIDEC MOTOR CORPORATION 08-Jan-19
NIDEC MOTOR CORPORATION 08-Jan-19
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
.625±.062
SKINNED
SPLIT IN
MTG. RING
2.375
3 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
PUR (C)=20.000 +2 -0,
BLK (1)=19.250 +2 -0
RED (2)=19.250 +2 -0
FIGURES TO BE PRINTED
ON LEADS.
ECO: E32641
ENGINEER APPROVED :
ENGINEER APPROVED :
Z. TREVIÑO
7.000( )
6.500( )
4.357( )
TOP
7.000( )
6.500( )
+.0000
-.0005
.500
5.125(
O
B.C.)
.047
7.125
.047
+.0000
-.0005
NAMEPLATE
.500
IDENT.
GROOVE
WARNING LABEL
(OPPOSITE SIDE)
ARROW ON BASE
.344
1.500
SPLIT IN MTG. RING
.844
.844
REFER TO S.E.I.M. 24-1
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

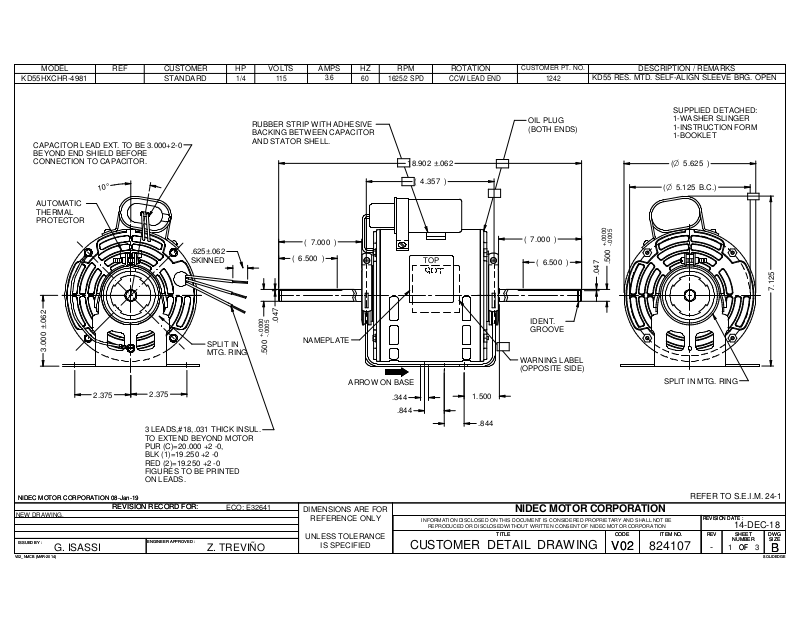

CUSTOMER DETAIL DRAWING
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
824107
REVISION DATE :
REVISION DATE :
REV
REV
-
14-DEC-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
