Page 1
MODEL REF
K55HXHSP-5252
AUTOMATIC THERMAL
PROTECTOR
10°
CUSTOMER
STANDARD
HP
1/6 1240
VOLTS
AMPS
2.9
HZ
60
RPM
1075/3 SPD
ROTATION
CCW LEAD END115
18.660 ±.062
CAPACITOR EXT. TO BE 3.000+2-0
BEYOND END SHIELD BEFORE
CONNECTION TO CAPACITOR
RUBBER STRIP WITH ADHESIVE
BACKING BETWEEN CAPACITOR
AND STATOR SHELL.
CUSTOMER PT. NO.
DESCRIPTION / REMARKS
5.625
5.125(
O
B.C.)
3.000 ±.062
2.38
GROUND
LEAD
2.38
SPLIT IN
MTG. RING
4 LEADS #18, .031 THICK INSUL TO
EXTEND BEYOND MOTOR:
PUR(C)=20.000+2-0, BLK(1)=19.250+2-0
RED(3)=19.250+2-0, BLUE(2)=19.250+2-0,
FIGURES TO BE PRINTED ON LEADS
FIGURES TO BE PRINTED ON LEADS
NIDEC MOTOR CORPORATION 20-May-19
NIDEC MOTOR CORPORATION 20-May-19
NEW DRAWING.
DELETED NOTE INFORMATION "1-INSTRUCTION FORM" UNDER ECO E34367
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32250
Z. TREVIÑO
.750u.062
SKINNED
7.000
6.500
NAMEPLATE
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
7.000 ±.047
TOP
6.500
IDENT.
GROOVE
.344
.84
1.50
WARNING LABEL
(OPPOSITE SIDE)
.84
ARROW ON BASE
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

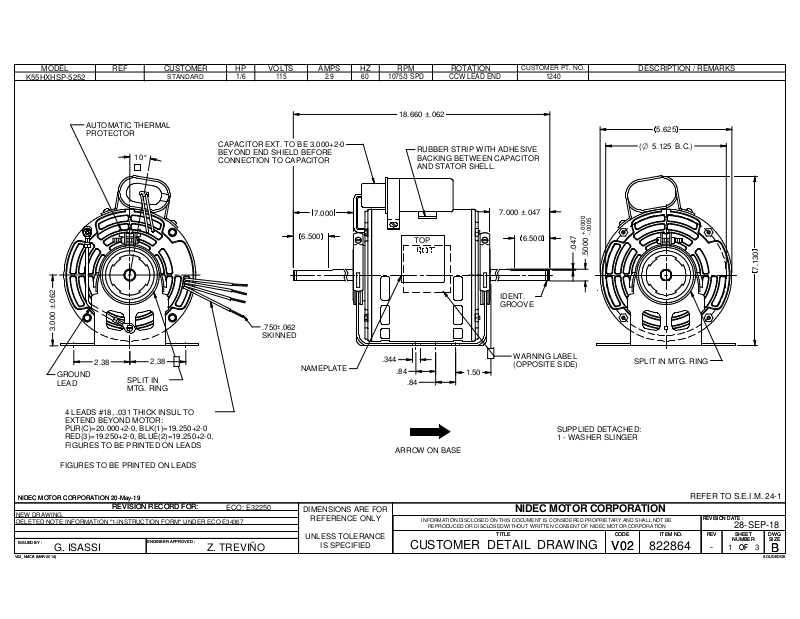

CUSTOMER DETAIL DRAWING
+.0000
-.0005
.047
.5000
SUPPLIED DETACHED:
1 - WASHER SLINGER
CODE ITEM NO.
CODE ITEM NO.
V02
V02
SPLIT IN MTG. RING
REFER TO S.E.I.M. 24-1
822864
REVISION DATE :
REVISION DATE :
REV
REV
-
28-SEP-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
7.130
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
