AUTOMATIC
B
THERMAL
PROTECTOR
14.452
4.062
3.500
REV.
#16, GRN/YEL GRD LEAD TO BE
6.000±.250 BETWEEN CENTERS
OF TERMS., TERM. TO FIT # 10
SCREW.
NIDEC MOTOR CORPORATION 13-Jun-13
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K48HXDSJ-0221
SHEET
NUMBER
1 1
REV
OF
B
REVISION DATE
UPDATED DIM. LEADS OF REVERSING ROTATION
13-JUN-13
ISSUED BY
F. MARTINEZ B. GAITAN J. I. SALAZAR
4.906
SPLIT IN
MTG RING
GROMMET
4 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHITE=41.000+3-0, BLACK=41.000+3-0
BLUE=41.000+3-0, RED=41.000+3-0
SKIN 1/2.
A33532
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
NIDEC MOTOR CANADA CORPORATION
C7812-00
4 LEAD #18, .031 THICK INSUL.
2 YEL & 2 ORG FOR REVERSING
ROTATION
2
+
0
0
0
0
.
4
REV.
B
.500 SKINNED
NAMEPLATE
ROTATION IS COUNTER CLOCKWISE VIEWING
LEAD END WITH ORG TO ORG & YEL TO YEL.
TO REVERSE ROTATION INTERCHANGE ORG
& YEL LEADS
1/20 115 1.0 60 1100/3 SPD CCW LEAD END - REV
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

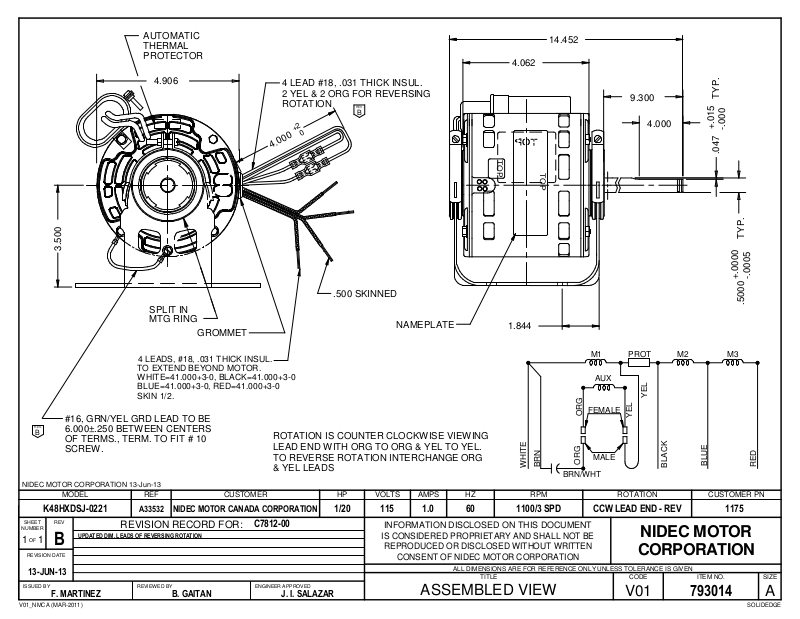

ASSEMBLED VIEW
9.300
4.000
TOP
TOP
+.015
1.844
M1
AUX
G
R
FEMALE
O
E
T
I
N
H
R
B
W
G
R
MALE
O
BRN/WHT
PROT
L
E
Y
L
E
Y
M2
K
C
A
L
B
E
U
L
B
NIDEC MOTOR
CORPORATION
TITLE CODE SIZEITEM NO.
V01
793014
TYP.
.047
-.000
M3
1175
TYP.
-.0005
+.0000
.5000
D
E
R
A
