US Motors 1173 Dimensional Sheet
MODEL
K55HXDSY-1213
REF
C33923
CUSTOMER
WHOLESALE-HAC
HP
VOLTS HZ
RPM
ROTATION
CCW LEAD END-REV CAT 1173
CUSTOMER PT. NO.
DESCRIPTION / REMARKSAMPS
K55 STRAP MTD. BALL BRG OPEN1075602.25751.0
4 LEADS #18 .031 THICK INSUL
(2) YEL & (2) ORANGE = 4.000 +2 -0
FOR REVERSING ROTATION
AUTOMATIC
THERMAL
PROTECTOR
OPEN ENDSHIELDS
(BOTH END)
4 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHITE = 12.000 +2 -0, 1/4 FLAG,
BLK = 12.000 +2 -0, 1/2 SKINNED
(1) BROWN = 6.000 +2 -0 1/4 FLAG
(1) BROWN W/WHITE STRIPE= 6.000
+2 -0 1/4 FLAG
NOTE:
MAIN COILS IMMEDIATELY ADJACENT
TO EITHER SIDE OF DOTTED AREA
ARE TO BE SEPARATED BY A MINIMUM
OF .094 ON BOTH ENDS OF STATOR.
NIDEC MOTOR CORPORATION 24-Jul-19
NIDEC MOTOR CORPORATION 24-Jul-19
CREATED DRAWING
ISSUED BY :
ISSUED BY :
R. PEREZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
CONDUIT
BOX
J. RICE
.125 MIN. REF.
NAMEPLATE
SPRING WASHER
THIS END
CONNECTIONS
WHITE - COM
BLACK - HI
BROWN - CAP
BROWN W/W HITE - CAP
E34932
13.047
7.062
TOP
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
5.985 ±.047
1.172
4.000
DOUBLE FLAT
90v APART
+.0000
-.0005
.6250
.047
WASHER SLINGER & WATER SLINGER
TO BE POSITIONED .125 +.031-.000
FROM FACE OF BRG. CAP
½ M1
SHIPPED DETACHED
1.- CAPACITOR
CONNECTION SHOWN IS FOR
CCW LE ROTATION. TO REVERSE
BROWN W/W HITE
WHITE
AUX
ORANGE
ORG
ROTATION INTERCHANGE ORANGE
AND YELLOW LEADS.
BROWN
MALE
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

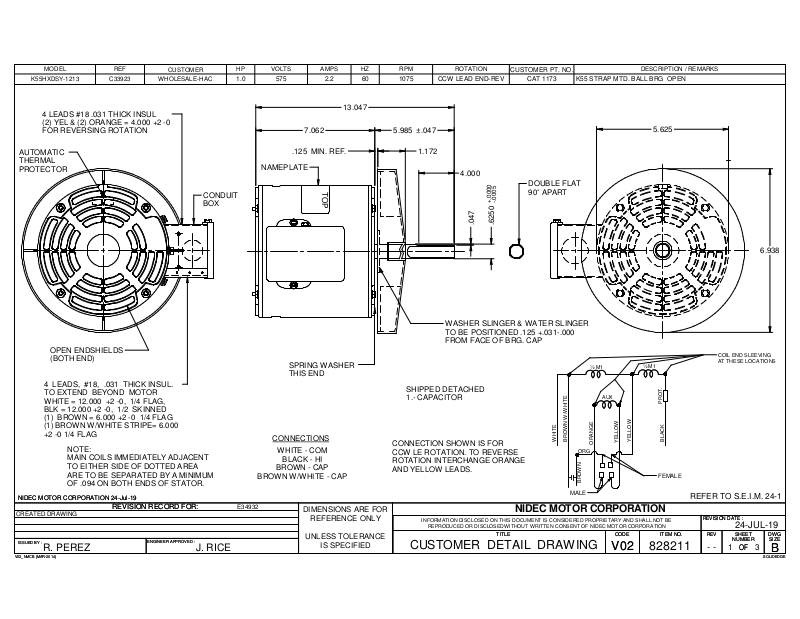

CUSTOMER DETAIL DRAWING
5.625
½ M1
PROT.
YELLOW
YELLOW
CODE ITEM NO.
CODE ITEM NO.
V02
V02
BLACK
FEMALE
828211
6.938
COIL END SLEEVING
AT THESE LOCATIONS
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
- -
24-JUL-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
Loading...
