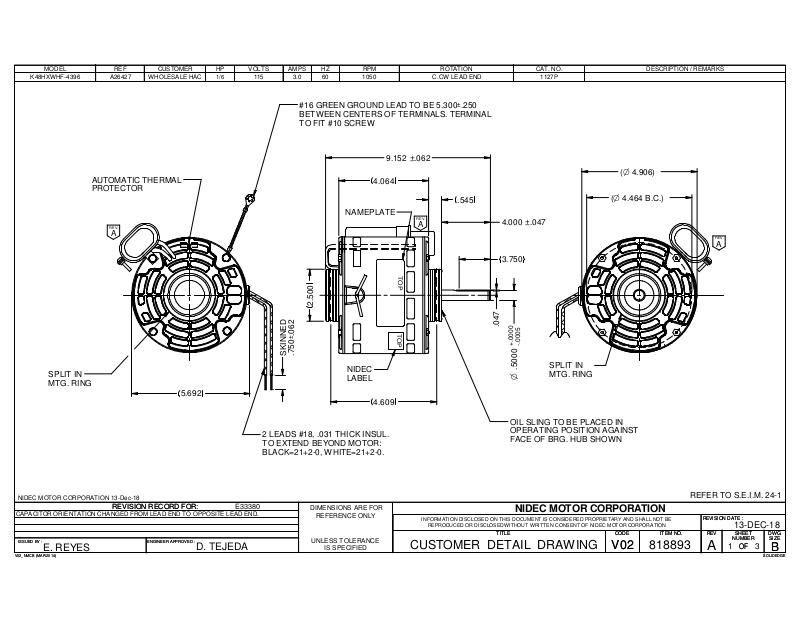

US Motors 1127P Dimensional Sheet
A26427
AUTOMATIC THERMAL
PROTECTOR
REV.
A
HPMODEL REF RPMAMPSCUSTOMER HZVOLTS ROTATION DESCRIPTION / REMARKS
1/6
115
60
1050
C.CW LEAD END 1127PWHOLESALE HACK48HXWHF-4396 3.0
CAT. NO.
#16 GREEN GROUND LEAD TO BE 5.300u.250
BETWEEN CENTERS OF TERMINALS. TERMINAL
TO FIT #10 SCREW
9.152 ±.062
(O 4.906)
4.064
(O 4.464 B.C.)
REV.
NAMEPLATE
REV.
.545
A
4.000 ±.047
3.750
TOP
2.500
A
SPLIT IN
MTG. RING
5.692
NIDEC MOTOR CORPORATION 13-Dec-18
CAPACITOR ORIENTATION CHANGED FROM LEAD END TO OPPOSITE LEAD END.
ISSUED BY :
ISSUED BY :
E. REYES
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E33380
D. TEJEDA
SKINNED
.750u.062
NIDEC
LABEL
4.609
2 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLACK=21+2-0, WHITE=21+2-0.
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
TOP
.047
+.0000
-.0005
.5000
O
SPLIT IN
MTG. RING
OIL SLING TO BE PLACED IN
OPERATING POSITION AGAINST
FACE OF BRG. HUB SHOWN
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
V02
V02
CODE ITEM NO.
CODE ITEM NO.
818893
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
13-DEC-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MA R-2014)
SOLIDEDGEV02_NMCB (MA R-2014)
