US Motors 1124 Dimensional Sheet
MODEL REF
#16 GREEN/YEL GROUND LEAD TO BE
6.000 u.250 BETWEEN CENTER OF
TERMS. TERMINAL TO FIT #10 SCREW
ON EACH END
HP
VOLTS
HZ
RPMAMPS DESCRIPTION / REMARKSCUSTOMER
ROTATION CAT. #
1124STANDARDK48HXTP-1124 1.3 CW LEAD END107560/50208-2301/5
K48, SELF ALIGN, HUBBED
16.50
4.91
AUTOMATIC THERMAL
PROTECTOR
.047
"BUNA N" RUBBER
THIS SIDE
WASHER SLINGER
GROMMET
(BOTH ENDS)
(3) #18 LEADS, .031 THICK INSUL. WITH .250
STRAIGHT TYPE Q.C. TERMS. WITH INSUL GRIP
TO EXTEND BEYOND MOTOR:
BLACK= 32.000 +2-0
BROWN= 25.000 +2-0
PURPLE= 25.000 +2-0
REV.
A
(LEADS TO BE SOLID COLORS)
4.065.674 REF. 5.674 ±.047
NAMEPLATE
.125 .125
T
O
P
3.00 3.00
.500
OIL SLINGER TO BE PLACED IN
OPERATING POSITION
AGAINST FACE OF BEARING
HUB (BOTH ENDS)
USE WITH 5.0 MFD 370 VAC CAPACITOR
.500
.047
IDENTIFICATION
GROOVE
"BUNA N" RUBBER
THIS SIDE
TOTALLY ENCLOSED
(BOTH ENDS)
NIDEC MOTOR CORPORATION 01-Oct-19
NIDEC MOTOR CORPORATION 01-Oct-19
CHANGE LENGTH OF BROWN AND PURPLE LEADS FROM 32.000" TO 25.000" ON
V028238000000
ISSUED BY :
E. MARTINEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
D. TEJEDA
E35438
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTE N CONSENT OF NIDEC MOTOR CORPORATION

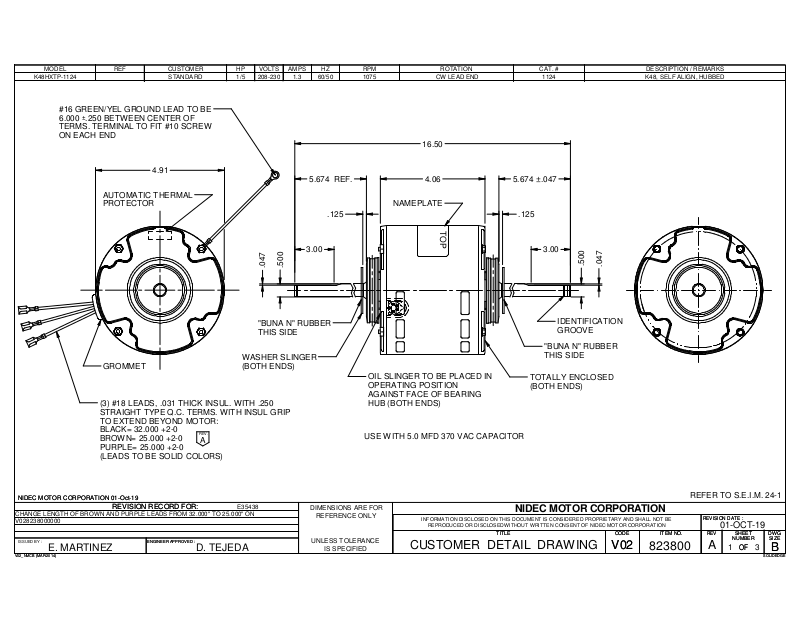

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823800
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
01-OCT-19
REV
REV
A
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
