US Motors 1105 Dimensional Sheet
MODEL
K48HXTUB-0122
REF
--------
CUSTOMER
WHOLESALE-HAC
LEADS TAPED AT 2.750±.125, 6.500 & 11.250±.250
INCHES FROM END OF LEADS
10.500
HP
1/16
VOLTS
AMPS
HZ
RPM
850/700/525
ROTATION
CW. LEAD END115 1.1 60
CUSTOMER PART
1105
K48 S/A BEARING OPEN
DESCRIPTION / REMARKS
123
56
4
AUTOMATIC
THERMAL
SEE CRIT.
PROTECTOR
REQ. #1
1
4
2
5
3
6
SEAM WELD
LOCATION
(1) #16, .031 THICK INSUL.
GRN/YEL GROUND LEAD TO BE
8.000 LONG WITH TERMINALS
TO FIT #10 SCREW
(4) PIN TYPE TERMINALS AMP PT.
#350538-1 WITH INSUL. GRIP
IN AMP PT. #1-480704-0 PLUG
9.250
GROMMET
RUBBER
BOOT
3 HOLES
.312 DIA.
4 LEADS, #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
BLU=16.000+2-0, RED=16.000+2-0,
BLK=16.000+2-0, WHT=16.000+2-0
OIL PLUG
LEAD END
6.312 ±.062
NAMEPLATE
2.250 ±.0474.062
1.250 ±.030
T
O
P
+.0000
-.0005
.5000
.453
.438
OPEN ENDSHIELD
(BOTH ENDS)
3.250
FACES OF 3 MTG. BRACKETS MUST BE IN A PLANE
PERPENDICULAR TO THE SHAFT CENTERLINE WITHIN
.060 T.I.R. WHEN MEASURED AT A 4.625 RADIUS
125
WIRING VIEW
4.906
1
2
0
°
M1 M2PROT
AUX
CAP
WHT (4)
BRN
BRN
BLK (3)
M3
BLU (2)
°
0
2
1
RED (1)
NIDEC MOTOR CORPORATION 12-Feb-19
NIDEC MOTOR CORPORATION 12-Feb-19
UPDATED ASSEMBLY INSTRUCTIONS.
ISSUED BY :
ISSUED BY :
C.ALMAGUER
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E33753
M. DE LEON
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

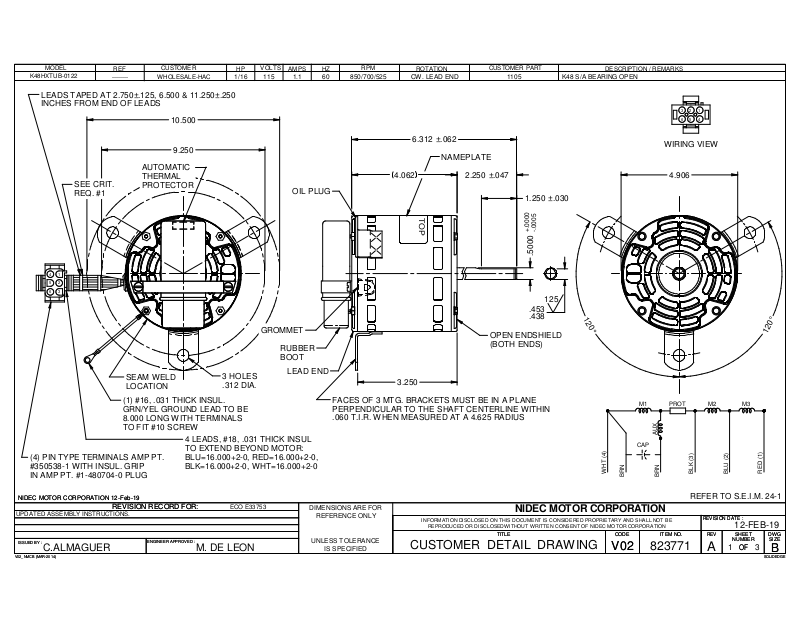

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823771
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
12-FEB-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
