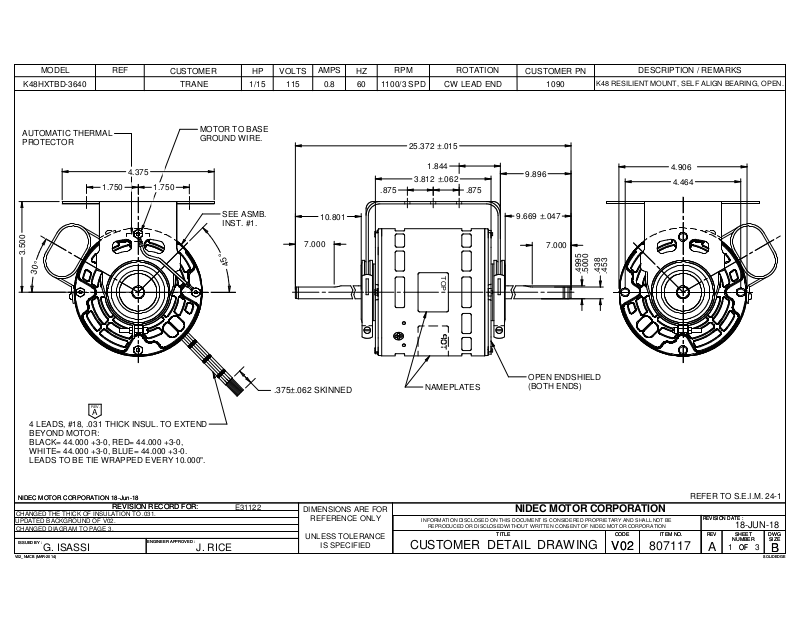

US Motors 1090 Dimensional Sheet
MODEL
K48HXTBD-3640
REF RPMAMPS DESCRIPTION / REMARKS
CUSTOMER HZ
TRANE
HP
1/15
VOLTS
0.8 1100/3 SPD
60115
ROTATION
CW LEAD END
CUSTOMER PN
1090
K48 RESILIENT MOUNT, SELF ALIGN BEARING, OPEN.
AUTOMATIC THERMAL
PROTECTOR
4.375
1.750
1.750
3.500
°
0
3
REV.
A
4 LEADS, #18, .031 THICK INSUL. TO EXTEND
BEYOND MOTOR:
BLACK= 44.000 +3-0, RED= 44.000 +3-0,
WHITE= 44.000 +3-0, BLUE= 44.000 +3-0.
LEADS TO BE TIE WRAPPED EVERY 10.000".
MOTOR TO BASE
GROUND WIRE.
SEE ASMB.
INST. #1.
°
5
4
10.801
7.000
.375±.062 SKINNED
.875
25.372 ±.015
1.844
3.812 ±.062
T
O
P
NAMEPLATES
.875
9.896
9.669 ±.047
7.000
OPEN ENDSHIELD
(BOTH ENDS)
4.906
4.464
.438
.453
.4995
.5000
NIDEC MOTOR CORPORATION 18-Jun-18
NIDEC MOTOR CORPORATION 18-Jun-18
CHANGED THE THICK OF INSULATION TO .031.
UPDATED BACKGROUND OF V02.
CHANGED DIAGRAM TO PAGE 3.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
J. RICE
E31122
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
807117
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
18-JUN-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
