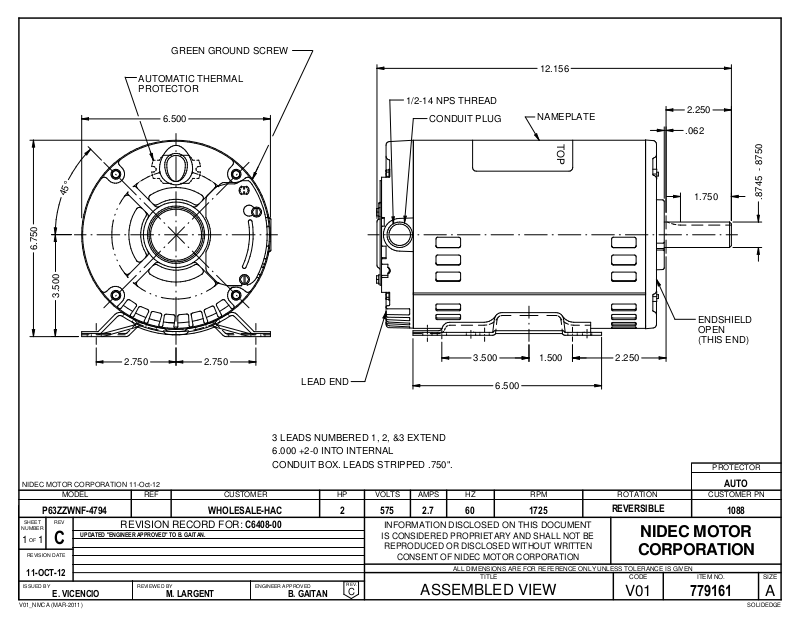

US Motors 1088 Dimensional Sheet

GREEN GROUND SCREW

AUTOMATIC THERMAL

12.156

PROTECTOR

1/2-14 NPS THREAD

6.500

CONDUIT PLUG

NAMEPLATE

2.250

.062

TOP

°

5

4

1.750

.8745 - 8750

6.750

3.500

ENDSHIELD
OPEN
(THIS END)

2.750 2.750

3.500 1.500 2.250

NIDEC MOTOR CORPORATION 11-Oct-12

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

P63ZZWNF-4794

SHEET

NUMBER

1 1

REV

OF

C

REVISION DATE

UPDATED "ENGINEER APPROVED" TO B. GAITAN.

REVISION RECORD FOR:

11-OCT-12

ISSUED BY

REVIEWED BY ENGINEER APPROVED

E. VICENCIO

LEAD END

3 LEADS NUMBERED 1, 2, &3 EXTEND

6.000 +2-0 INTO INTERNAL
CONDUIT BOX. LEADS STRIPPED .750".

WHOLESALE-HAC

C6408-00

M. LARGENT B. GAITAN

2 575 2.7

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

REV.

C

ASSEMBLED VIEW

6.500

60 1725

REVERSIBLE

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

PROTECTOR

779161

AUTO

1088

A

SOLIDEDGEV01_NMCA (MAR-2011)
