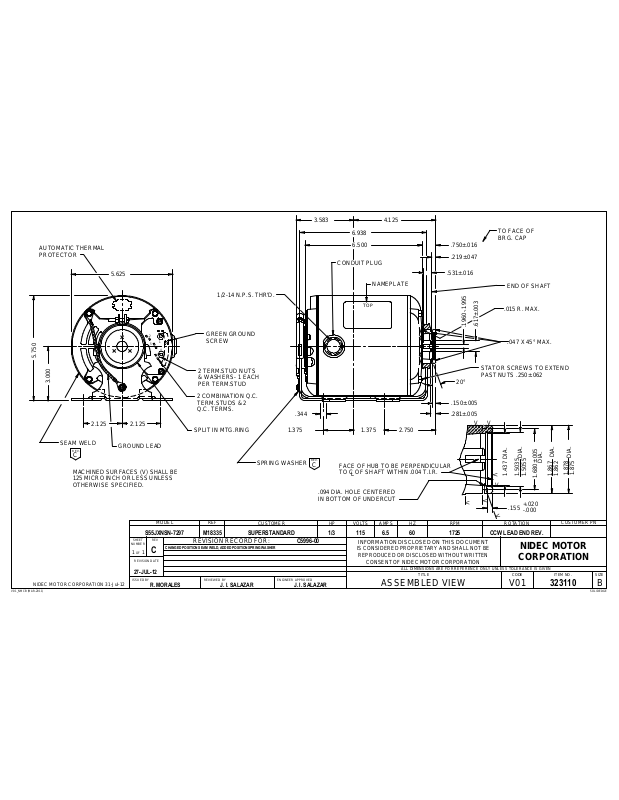

US Motors 1003 Dimensional Sheet
V
AUTOMATIC THERMAL
PROTECTOR
5.625
5.750
3.000
SEAM WELD
REV.
C
MACHINED SURFACES (V) SHALL BE
125 MICRO INCH OR LESS UNLESS
OTHERWISE SPECIFIED.
NIDEC MOTOR CORPORATION 31-Jul-12
2
1
5
4
2.1252.125
GROUND LEAD
MODEL REF
S55JXNSN-7297 M18335
SHEET
REV
NUMBER
C
OF
1
1
REVISION DATE
27-JUL-12
ISSUED BY
R. MORALES
1/2-14 N.P.S. THR'D.
GREEN GROUND
SCREW
2 TERM.STUD NUTS
& WASHERS- 1 EACH
PER TERM.STUD
2 COMBINATION Q.C.
TERM.STUDS & 2
Q.C. TERMS.
SPLIT IN MTG.RING
SPRING WASHER
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
SUPERSTANDARD
CHANGED POSITION SEAM WELD, ADDED POSITION SPRING WASHER
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
J. I. SALAZAR J. I. SALAZAR
CONDUIT PLUG
.344
REV.
C
FACE OF HUB TO BE PERPENDICULAR
TO C OF SHAFT WITHIN .004 T.I.R.
.094 DIA. HOLE CENTERED
IN BOTTOM OF UNDERCUT
1/3 115 6.5
C5996-00
4.1253.583
6.938
6.500
.750±.016
.219±.047
.531±.016
NAMEPLATE
TOP
.1960-.1995
20°
.150±.005
.281±.005
2.7501.375 1.375
L
V
60 1725
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
TO FACE OF
BRG. CAP
END OF SHAFT
.015 R. MAX.
.617±.003
.047 X 45° MAX.
STATOR SCREWS TO EXTEND
PAST NUTS .250±.062
V
V
V
DIA.
DIA.
V
1.437 DIA.
1.5035
1.5055
1.680±.005
V
V
.155
+.020
-.000
CCW LEAD END REV.
NIDEC MOTOR
CORPORATION
V01
DIA.
1.878
1.867
1.862
CUSTOMER PN
323110
DIA.
1.875
B
SOLIDEDGEV01_NMCB (MAR-2011)
