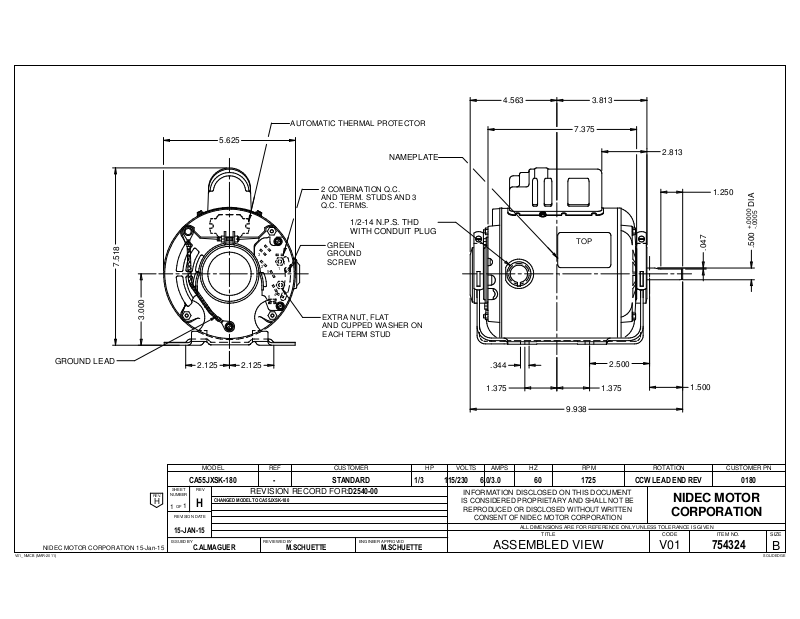

US Motors 0180 Dimensional Sheet
4.563 3.813
GROUND LEAD
AUTOMATIC THERMAL PROTECTOR
7.375
5.625
NAMEPLATE
2 COMBINATION Q.C.
AND TERM. STUDS AND 3
Q.C. TERMS.
1/2-14 N.P.S. THD
WITH CONDUIT PLUG
3
7.518
2
1
5
4
6
3.000
GROUND
SCREW
EXTRA NUT, FLAT
GREEN
TOP
2.813
.047
1.250
DIA
+.0000
-.0005
.500
AND CUPPED WASHER ON
EACH TERM STUD
2.125 2.125
.344
1.375 1.375
2.500
1.500
9.938
MODEL REF
CA55JXSK-180 -
SHEET
REV.
H
NUMBER
OF
1
1
REVISION DATE
REV
CHANGED MODEL TO CA55JXSK-180
H
REVISION RECORD FOR:
15-JAN-15
NIDEC MOTOR CORPORATION 15-Jan-15
ISSUED BY
C.ALMAGUER
REVIEWED BY ENGINEER APPROVED
M.SCHUETTE M.SCHUETTE
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
D2540-00
1/3 115/230 6.0/3.0
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
60 1725
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
CCW LEAD END REV 0180
NIDEC MOTOR
CORPORATION
V01
CUSTOMER PN
754324
B
