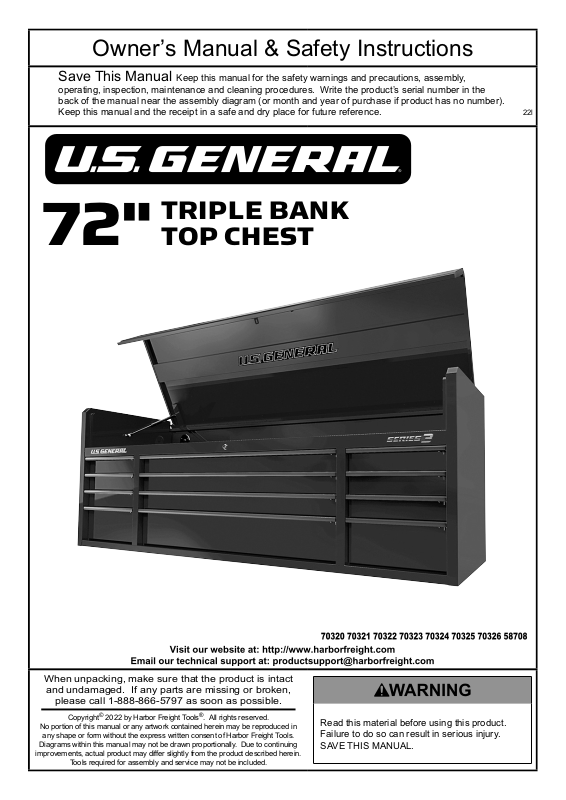

Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 22l
TRIPLE BANK
72"
TOP CHEST
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2022 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2
IMPORTANT SAFETY INFORMATION
Use Precautions
SAFETY OPERATION MAINTENANCESETUP
1. Do not have more than one
drawer open at a time.
2. DO NOT SIT, STAND OR CLIMB ON THIS ITEM.
DO NOT STEP IN OR ON DRAWERS.
3. Do not allow children to play with or near this
item. This item is NOT children’s furniture.
4. Do not exceed drawer weight capacity, 120 lb per
connected pair of slides. Evenly distribute load
from bottom up. Uneven loading causes tipping. Be
aware of dynamic loading! Sudden load movement
may briefly create excess load causing tipping.
5. Close and lock drawers before moving.
Do not pull, push to move.
6. Center securely within lip on top of cabinet.
TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:
7. Place on top of matching cabinet only.
8. Have assistant help place on cabinet.
9. Do not lift while loaded.
10. Close lid when not in use. Lid must be
open for drawers to be unlocked.
11. Use as intended only.
12. Inspect before every use;
do not use if parts are loose or damaged.
13. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Page 2 For technical questions, please call 1-888-866-5797. 72" Top Chest
Page 3
Specifications
Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
Drawer Capacity 120 lb per connected pair of slides
SAFETYOPERATIONMAINTENANCE SETUP
1. Empty all Drawers.
2. Close all Drawers and lock them.
3. If stacked on Bottom Cabinet, to
prevent tipping, push/pull using supplied
handle on Bottom Cabinet only.
4. If using separately from Bottom Cabinet, get
an assistant to help move the Chest.
5. Place only on a flat, level, hard and smooth surface
capable of safely supporting a fully loaded Chest.
6. Unlock Drawers and fill Chest evenly, from bottom
to top. Do not exceed weight capacities.
Page 3For technical questions, please call 1-888-866-5797.72" Top Chest
Page 4
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
SAFETY OPERATION MAINTENANCESETUP
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If any part becomes damaged,
have the problem corrected before further use.
1. PERIODICALLY, inspect the general
condition of the Chest. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts,
• any other condition that may
affect its safe operation.
2. Wipe external surfaces of the Chest with clean cloth.
3. Lubricate Drawer Slides as needed.
Page 4 For technical questions, please call 1-888-866-5797. 72" Top Chest
Page 5
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Parts may not be interchangeable.
Specify UPC number when ordering:
Black: Item 70320, UPC 193175495815
Blue: Item 70321, UPC 193175495822
Gray: Item 70322, UPC 193175495839
Green: Item 70323, UPC 193175495846
Orange: Item 70324, UPC 193175495853
White: Item 70325, UPC 193175495877
Yellow: Item 70326, UPC 193175495884
Red: Item 58708, UPC ,193175444905
SAFETYOPERATIONMAINTENANCE SETUP
Page 5For technical questions, please call 1-888-866-5797.72" Top Chest
Page 6
Parts Lists and Diagrams
Parts List
SAFETY OPERATION MAINTENANCESETUP
Part Description Qty
1 Drawer Trim 8
2 Drawer Latch 8
3 Trim Screw, ST4.8 x 7.2 28
4 Drawer Trim 4
5 Drawer Latch 4
6 Drawer Mat 8
7 Drawer Mat 4
8 Top Tray Mat 1
9 Drawer Slide 15
10 Gas Strut 2
11 Lock 1
Part Description Qty
12 Key 4
13 Lock Link 1
14 Lock Lever 1
15 Grommet Cover 2
16 Grommet 1
17 Grommet Screw, M6 x 20 1
18 Grommet Nut, M6 1
A Drawer 3
B Drawer 6
C Drawer 1
D Drawer 2
Page 6 For technical questions, please call 1-888-866-5797. 72" Top Chest
Page 7
Diagram
SAFETYOPERATIONMAINTENANCE SETUP
10
8
18
15
17
16
6
3
1
2
13
A
14
11
12
4
5
B
7
C
D
9
Page 7For technical questions, please call 1-888-866-5797.72" Top Chest
Page 8
