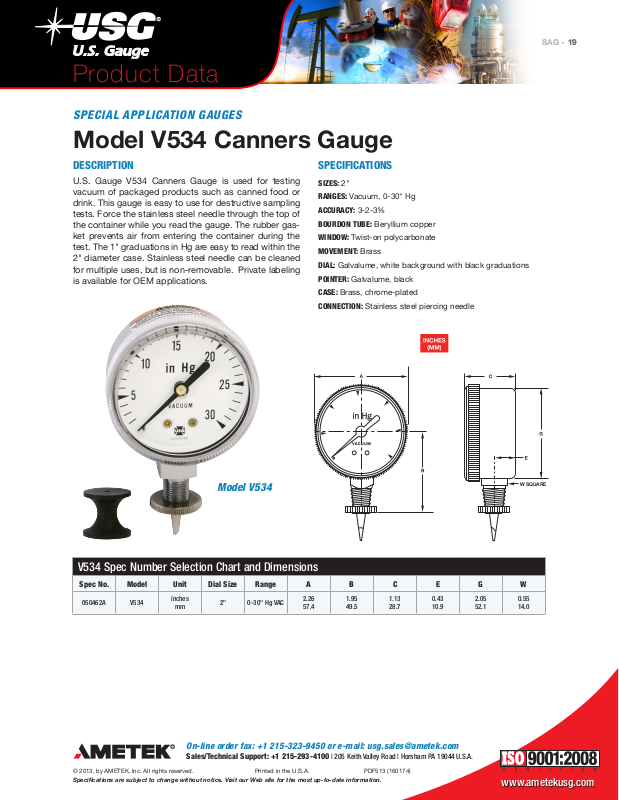

US Gauge V534 Data Sheet

Product Data

W SQUARE

SPECIAL APPLICATION GAUGES

Model V534 Canners Gauge

19SAG - 19SAG -

DESCRIPTION

U.S. Gauge V534 Canners Gauge is used for testing
vacuum of packaged products such as canned food or
drink. This gauge is easy to use for destructive sampling
tests. Force the stainless steel needle through the top of
the container while you read the gauge. The rubber gas­ket prevents air from entering the container during the
test. The 1" graduations in Hg are easy to read within the
2" diameter case. Stainless steel needle can be cleaned
for multiple uses, but is non-removable. Private labeling
is available for OEM applications.

SPECIFICATIONS

SIZES: 2"

RANGES: Vacuum, 0-30" Hg

ACCURACY: 3-2-3%

BOURDON TUBE: Beryllium copper

WINDOW: Twist-on polycarbonate

MOVEMENT: Brass

DIAL: Galvalume, white background with black graduations

POINTER: Galvalume, black

CASE: Brass, chrome-plated

CONNECTION: Stainless steel piercing needle

Model V534

V534 Spec Number Selection Chart and Dimensions

Spec No. Model Unit Dial Size Range A B C E G W

050462A V534

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

inches

mm

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

2" 0-30" Hg VAC

2.26

57.4

1.95

49.5

1.13

28.7

0.43

10.9

2.05

52.1

www.ametekusg.com

0.55

14.0
