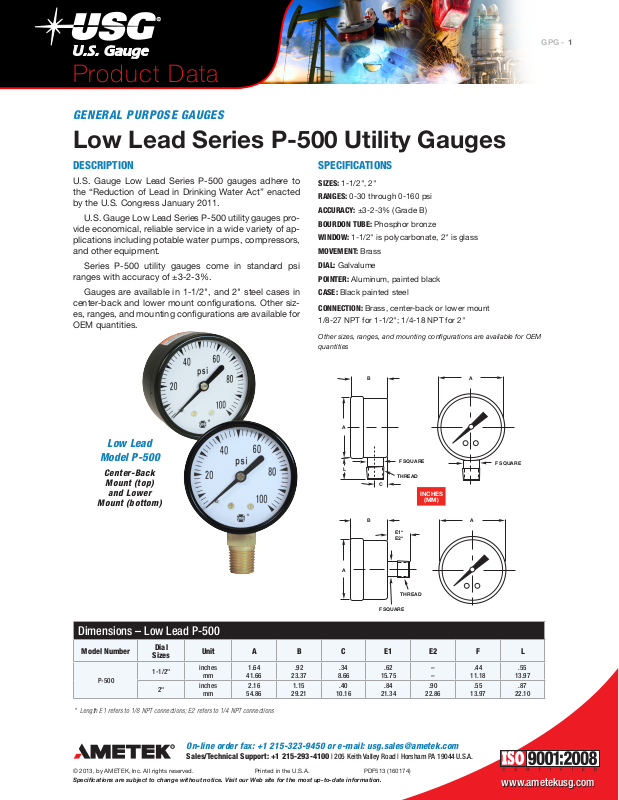

US Gauge Series P-500 Data Sheet

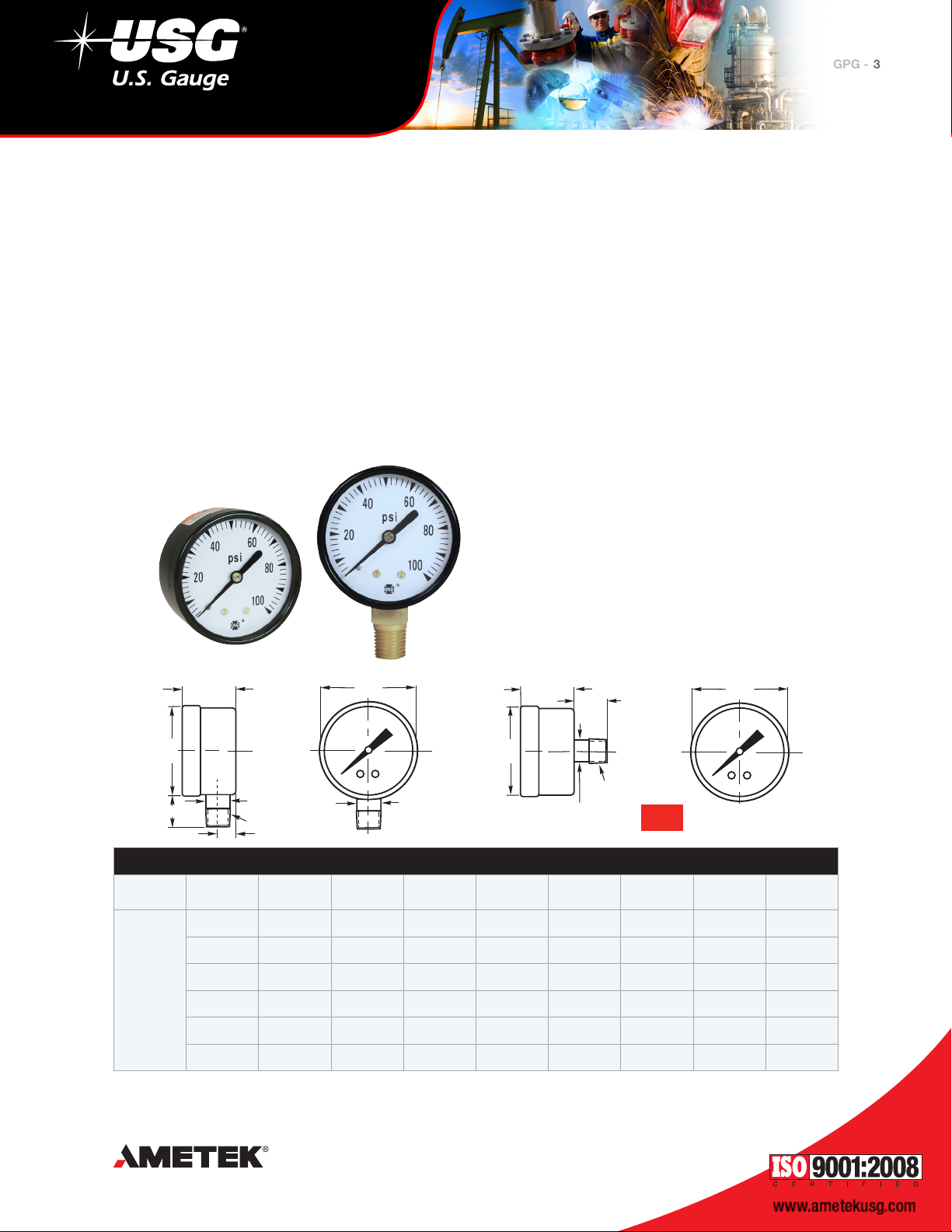

Product Data

GENERAL PURPOSE GAUGES

Low Lead Series P-500 Utility Gauges

1GPG -

DESCRIPTION

U.S. Gauge Low Lead Series P-500 gauges adhere to
the “Reduction of Lead in Drinking Water Act” enacted
by the U.S. Congress January 2011.

U.S. Gauge Low Lead Series P-500 utility gauges pro­vide economical, reliable service in a wide variety of ap­plications including potable water pumps, compressors,
and other equipment.

Series P-500 utility gauges come in standard psi
ranges with accuracy of ±3-2-3%.

Gauges are available in 1-1/2", and 2" steel cases in
center-back and lower mount configurations. Other siz­es, ranges, and mounting configurations are available for
OEM quantities.

Low Lead

Model P-500

Center-Back

Mount (top)

and Lower

Mount (bottom)

SPECIFICATIONS

SIZES: 1-1/2", 2"

RANGES: 0-30 through 0-160 psi

ACCURACY: ±3-2-3% (Grade B)

BOURDON TUBE: Phosphor bronze

WINDOW: 1-1/2" is polycarbonate, 2" is glass

MOVEMENT: Brass

DIAL: Galvalume

POINTER: Aluminum, painted black

CASE: Black painted steel

CONNECTION: Brass, center-back or lower mount

1/8-27 NPT for 1-1/2"; 1/4-18 NPT for 2"

Other sizes, ranges, and mounting configurations are available for OEM
quantities

B

A

L

B

F SQUARE

THREAD

C

E1*
E2*

INCHES

(MM)

A

F SQUARE

A

A

THREAD

F SQUARE

Dimensions – Low Lead P-500

Model Number

P-500

* Length E1 refers to 1/8 NPT connections; E2 refers to 1/4 NPT connections

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

Dial

Sizes

1-1/2"

2"

Unit A B C E1 E2 F L

inches

mm

inches

mm

1.64

41.66

2.16

54.86

.92

23.37

1.15

29.21

.34

8.66
.40

10.16

.62

15.75
.84

21.34

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

–
–

.90

22.86

.44

11.18
.55

13.97

.55

13.97
.87

22.10

www.ametekusg.com

Product Data

GENERAL PURPOSE GAUGES

Low Lead Series P-500 Utility Gauges

2GPG -

Spec Number Selection Chart

Low Lead Series P-500

Connection Ranges

0-30 psi 166327NL

0-60 psi 146002ANL

1/8-27 LM

0-100 psi 166318NL

0-160 psi 146004ANL

0-30 psi 166320NL

0-60 psi 166321NL

1/8-27 CBM

0-100 psi 166322NL

0-160 psi 166323NL

1-1/2"

Spec No.

Spec Number Selection Chart

Low Lead Series P-500

Connection Ranges

0-30 psi 163149NL

0-60 psi 163269NL

1/4-18 LM

0-100 psi 162988NL

0-160 psi 163270NL

0-30 psi 163949NL

0-60 psi 163272NL

1/4-18 CBM

0-100 psi 163273NL

0-160 psi 163274NL

2"

Spec No.

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

www.ametekusg.com

Product Data

GENERAL PURPOSE GAUGES

Series P-500 Low Cost Utility Gauges

3GPG -

DESCRIPTION

U.S. Gauge Series P-500 utility gauges provide eco­nomical, reliable service in a wide variety of applications
including pumps, compressors, and other equipment.

Series P-500 utility gauges come in PSI standard
ranges with accuracy of ±3-2-3%.

Gauges are available in 1-1/2", 2", 2-1/2", 3-1/2", and
4-1/2" steel cases in center-back and lower mount con­figurations.

Low lead offerings that meet “Reduction of Lead in
Drinking Water Act” also available. See Low Lead Series
P-500 products.

Center-Back Mount (left)

B

A

SPECIFICATIONS

SIZES: 1-1/2", 2", 2-1/2", 3-1/2", and 4-1/2"

RANGES: 30" Hg VAC through 0-5000 psi

ACCURACY: ±3-2-3% (Grade B)

BOURDON TUBE: Phosphor bronze

WINDOW: Glass except 1-1/2" is polycarbonate

MOVEMENT: Brass

DIAL: Galvalume

POINTER: Aluminum, painted black

CASE: Black painted steel

CONNECTION: Brass, center-back or lower mount

1/8-27 NPT for 1-1/2" and 2"; 1/4-18 NPT for 2" through
4-1/2"

Other sizes, ranges, and mounting configurations are available for OEM
quantities

Model P-500

and Lower Mount

B

E1*
E2*

A

A

L

F SQUARE

THREAD

C

F SQUARE

A

THREAD

F SQUARE

Dimensions – P-500

Model

Number

P-500

* Length E1 refers to 1/8 NPT connections; E2 refers to 1/4 NPT connections

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

Dial

Sizes

1-1/2"

2"

2-1/2" LM

2-1/2" CBM

3-1/2" LM

4-1/2" LM

Unit A B C E1 E2 F L

inches

mm

inches

mm

inches

mm

inches

mm

inches

mm

inches

mm

1.64

41.66

2.16

54.86

2.73

69.34

2.49

63.25

3.53

89.66

4.80

121.92

.92

23.37

1.15

29.21

1.15

29.21

1.21

30.73

1.17

29.72

1.12

28.45

.34

8.66
.40

10.16
.39

9.91

1.22

30.99
.40

10.16
.38

9.65

.62

15.75
.84

21.34
.48

12.19

–
–

–
–

–
–

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

INCHES

(MM)

–
–

.90

22.86
.25

6.35
.28

7.11
.24

6.10
.45

11.43

.44

11.18
.55

13.97
.82

20.83
.84

21.34
.83

21.08

1.10

27.94

.55

13.97
.87

22.10

–
–

–
–

–
–

–
–

www.ametekusg.com

Product Data

GENERAL PURPOSE GAUGES

Series P-500 Low Cost Utility Gauges

Spec Number Selection Chart

Series P-500

Connection Ranges 1-1/2" Spec No. 2" Spec No. 2-1/2" Spec No. 3-1/2" Spec No. 4-1/2" Spec No.

0-15 psi 146000A 052420A – – –
0-30 psi 166327 163931 059306A – –
0-60 psi 146002A 164005 058129A – –
0-100 psi 166318 163271 049660A – –

1/8-27 LM

1/8-27 CBM

1/4-18 LM

1/4-18 CBM

1/8-27 LM

1/4-18 LM

1/8-27 LM 30"-0 146020A 47225A – – –

1/8-27 CBM 30"-0 146021A – – – –

1/4-18 LM 30"-0 – 163712 171222A 171223A 5333A

0-160 psi 146004A 048302A 048536A – –
0-200 psi 166777 046645A 050852A – –
0-300 psi 146006A 048363A 046647A – –
0-600 psi 146007A – – – –
0-1000 psi 146008A – – – –
0-2000 psi 146009A – – – –
0-15 psi 146010A – – – –
0-30 psi 166320 163930 – – –
0-60 psi 166321 055155A – – –
0-100 psi 166322 046776A – – –
0-160 psi 166323 070791A – – –
0-200 psi 146015A 102673A – – –
0-300 psi 146016A 051805A – – –
0-600 psi 146017A – – – –
0-1000 psi 146018A – – – –
0-2000 psi 146019A – – – –
0-15 psi – 047615A 047102A 5502A 5546A
0-30 psi – 163149 163278 168536 5804A
0-60 psi – 163269 163279 168537 5551A
0-100 psi – 162988 163280 168538 5554A
0-160 psi – 163270 163281 168539 5559A
0-200 psi – 163147 163282 168540 5561A
0-300 psi – 163148 163283 168541 5563A
0-400 psi – 047492A 049611A 5515A 12265A
0-600 psi – 047493A 046648A 5516A 5337A
0-1000 psi – 047494A 047496A 5519A 12266A
0-2000 psi – – 171398A – –
0-3000 psi – – 171400A – –
0-5000 psi – – 143072A – –
0-15 psi – 046987A 052827A – –
0-30 psi – 163949 165213 – –
0-60 psi – 163272 165214 – –
0-100 psi – 163273 163284 – –
0-160 psi – 163274 163285 – –
0-200 psi – 163275 163286 – –
0-300 psi – 163276 163287 – –
0-600 psi – 046991A 050851A – –
0-1000 psi – – 050870A – –
0-2000 psi – – 171399A – –
0-3000 psi – – 171401A – –
30"-0-15 psi – 66662A – – –
30"-0-60 psi – 47925A – – –
30"-0-150 psi – 49609A – – –
30"-0-15 psi – 47000A 47001A 5493A 63754A
30"-0-30 psi – 167218 47105A 5495A 5549A
30"-0-60 psi – 57548A 46646A 5496A 12290A
30"-0-150 psi – 50517A 47411A 5499A 12292A
30"-0-300 psi – – 58156A 15936A –

4GPG -
