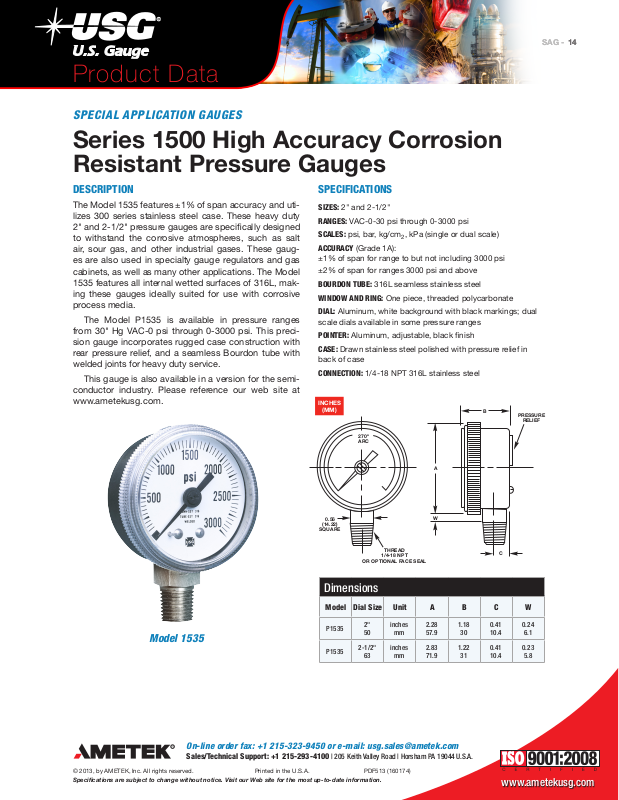

US Gauge Series 1500 Data Sheet

Product Data

OR OPTIONAL FACE SEAL

E

SPECIAL APPLICATION GAUGES

Series 1500 High Accuracy Corrosion
Resistant Pressure Gauges

14SAG - 14SAG -

DESCRIPTION

The Model 1535 features ±1% of span accuracy and uti­lizes 300 series stainless steel case. These heavy duty
2" and 2-1/2" pressure gauges are specifically designed
to withstand the corrosive atmospheres, such as salt
air, sour gas, and other industrial gases. These gaug­es are also used in specialty gauge regulators and gas
cabinets, as well as many other applications. The Model
1535 features all internal wetted surfaces of 316L, mak­ing these gauges ideally suited for use with corrosive
process media.

The Model P1535 is available in pressure ranges
from 30" Hg VAC-0 psi through 0-3000 psi. This preci­sion gauge incorporates rugged case construction with
rear pressure relief, and a seamless Bourdon tube with
welded joints for heavy duty service.

This gauge is also available in a version for the semi­conductor industry. Please reference our web site at
www.ametekusg.com.

SPECIFICATIONS

SIZES: 2" and 2-1/2"

RANGES: VAC-0-30 psi through 0-3000 psi

SCALES: psi, bar, kg/cm2, kPa (single or dual scale)

ACCURACY (Grade 1A):

±1% of span for range to but not including 3000 psi

±2% of span for ranges 3000 psi and above

BOURDON TUBE: 316L seamless stainless steel

WINDOW AND RING: One piece, threaded polycarbonate

DIAL: Aluminum, white background with black markings; dual

scale dials available in some pressure ranges

POINTER: Aluminum, adjustable, black finish

CASE: Drawn stainless steel polished with pressure relief in

back of case

CONNECTION: 1/4-18 NPT 316L stainless steel

INCHES

(MM)

270º
ARC

A

B

PRESSUR

RELIEF

0.56

(14.22)

SQUARE

Dimensions

Model Dial Size Unit A B C W

P1535

Model 1535

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

P1535

2-1/2" 63inches mm2.83

THREAD

1/4-18 NPT

2" 50inches mm2.28

57.9

71.9

W

1.18 300.41

10.4

1.22 310.41

10.4

C

0.24

6.1

0.23

5.8

www.ametekusg.com

Product Data

SPECIAL APPLICATION GAUGES

Series 1500 High Accuracy Corrosion
Resistant Pressure Gauges

Spec Number Selection Chart

Series 1500

Specifications

Bourdon Tube 316L Stainless Steel

Connection 316L Stainless Steel

Sizes 2" 2-1/2"

Ranges Spec No. Spec No.

30"-0-30 psi 148953 –

30"-0-60 psi 149641 –

30"-0-150 psi 149642 –

0-15 psi 148954* 110792*

0-30 psi 148955 110793

0-60 psi 148956 110794

0-100 psi 148957 110690

0-160 psi 148958 110795

0-200 psi 148959 110796

0-300 psi 148960 110797

0-400 psi 148961 110798

0-600 psi 148962 110799

0-1000 psi 148963 110800

0-1500 psi 148964 110801

0-2000 psi 148965 110802

0-3000 psi 148966 148182

Model P1535

1/4-18 NPT Lower Mount

Model P1535

1/4-18 NPT Lower Mount

15SAG - 15SAG -

* Dial graduated on 180º arc
