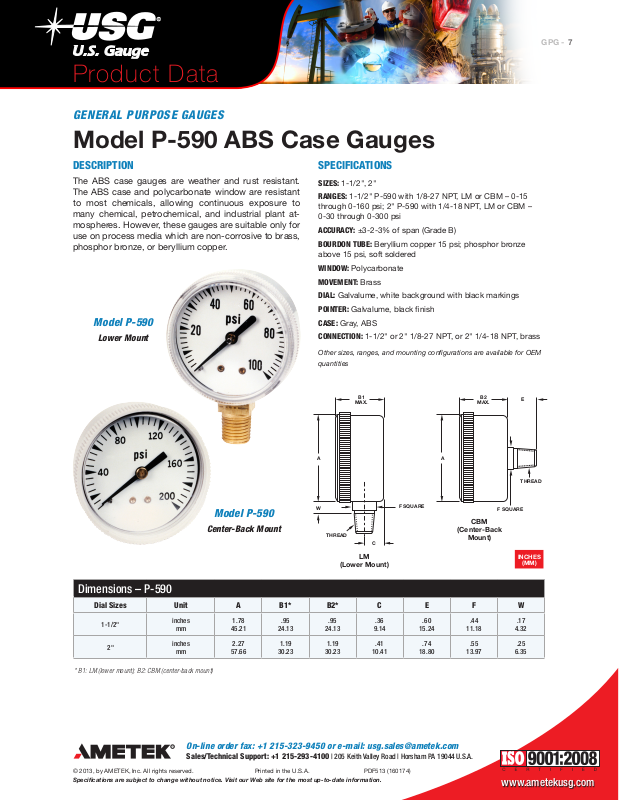

US Gauge P-590 Data Sheet
Product Data
B1
B2
(Lower Mount)
GENERAL PURPOSE GAUGES
Model P-590 ABS Case Gauges
7GPG -
DESCRIPTION
The ABS case gauges are weather and rust resistant.
The ABS case and polycarbonate window are resistant
to most chemicals, allowing continuous exposure to
many chemical, petrochemical, and industrial plant atmospheres. However, these gauges are suitable only for
use on process media which are non-corrosive to brass,
phosphor bronze, or beryllium copper.
Model P-590
Lower Mount
SPECIFICATIONS
SIZES: 1-1/2", 2"
RANGES: 1-1/2" P-590 with 1/8-27 NPT, LM or CBM – 0-15
through 0-160 psi; 2" P-590 with 1/4-18 NPT, LM or CBM –
0-30 through 0-300 psi
ACCURACY: ±3-2-3% of span (Grade B)
BOURDON TUBE: Beryllium copper 15 psi; phosphor bronze
above 15 psi, soft soldered
WINDOW: Polycarbonate
MOVEMENT: Brass
DIAL: Galvalume, white background with black markings
POINTER: Galvalume, black finish
CASE: Gray, ABS
CONNECTION: 1-1/2" or 2" 1/8-27 NPT, or 2" 1/4-18 NPT, brass
Other sizes, ranges, and mounting configurations are available for OEM
quantities
MAX.
A
A
MAX.
E
Model P-590
Center-Back Mount
W
THREAD
LM
F SQUARE
CBM
(Center-Back
C
Mount)
Dimensions – P-590
Dial Sizes Unit A B1* B2* C E F W
1-1/2"
2"
* B1: LM (lower mount); B2: CBM (center-back mount)
inches
inches
mm
mm
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
1.78
45.21
2.27
57.66
.95
24.13
1.19
30.23
.95
24.13
1.19
30.23
.36
9.14
.41
10.41
.60
15.24
.74
18.80
.44
11.18
.55
13.97
THREAD
F SQUARE
INCHES
(MM)
.17
4.32
.25
6.35
www.ametekusg.com
Product Data
GENERAL PURPOSE GAUGES
Model P-590 ABS Case Gauges
Spec Number Selection Chart
Model P-590
Connection Ranges
0-15 psi 146989A –
0-30 psi 146990A – 0-30 psi 160652A
0-60 psi 146991A – 0-60 psi 160653A
1/8-27 LM
1/8-27 CBM
0-100 psi 146992A – 0-100 psi 160654A
0-160 psi 146993A – 0-160 psi 160655A
0-200 psi – – 0-200 psi 160656A
0-300 psi – – 0-300 psi 160657A
0-15 psi 146994A –
0-30 psi 146995A 160650A 0-30 psi 160658A
0-60 psi 146996A – 0-60 psi 160659A
0-100 psi 146997A – 0-100 psi 160660A
0-160 psi 146998A 160651A 0-160 psi 160661A
0-200 psi – – 0-200 psi 160662A
0-300 psi – – 0-300 psi 160663A
1-1/2"
Spec No.
2"
Spec No.
Connection Ranges
1/4-18 LM
1/4-18 CBM
8GPG -
2"
Spec No.
0-15 psi –
0-15 psi –
