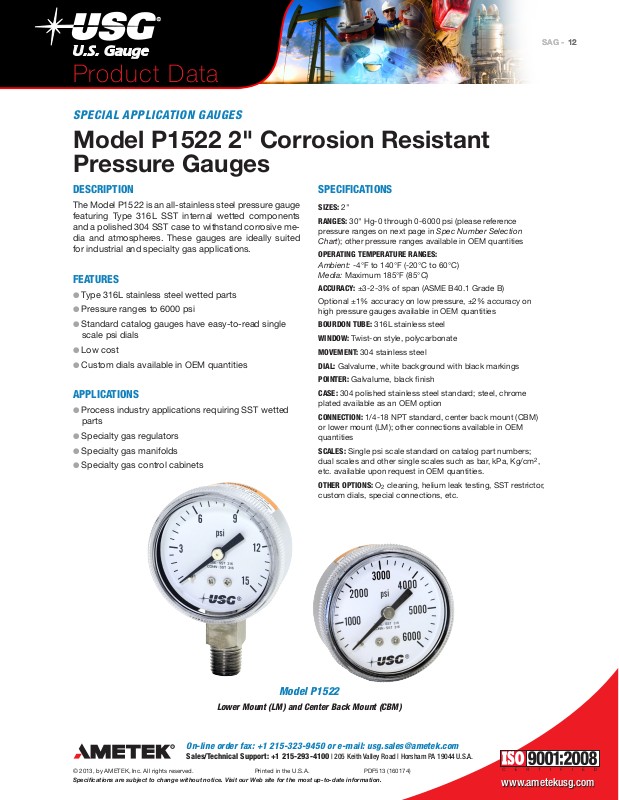

US Gauge P1522 Data Sheet
Product Data
SPECIAL APPLICATION GAUGES
Model P1522 2" Corrosion Resistant
Pressure Gauges
12SAG - 12SAG -
DESCRIPTION
The Model P1522 is an all-stainless steel pressure gauge
featuring Type 316L SST internal wetted components
and a polished 304 SST case to withstand corrosive media and atmospheres. These gauges are ideally suited
for industrial and specialty gas applications.
FEATURES
l Type 316L stainless steel wetted parts
l Pressure ranges to 6000 psi
l Standard catalog gauges have easy-to-read single
scale psi dials
l Low cost
l Custom dials available in OEM quantities
APPLICATIONS
l Process industry applications requiring SST wetted
parts
l Specialty gas regulators
l Specialty gas manifolds
l Specialty gas control cabinets
SPECIFICATIONS
SIZES: 2"
RANGES: 30" Hg-0 through 0-6000 psi (please reference
pressure ranges on next page in Spec Number Selection
Chart); other pressure ranges available in OEM quantities
OPERATING TEMPERATURE RANGES:
Ambient: -4°F to 140°F (-20°C to 60°C)
Media: Maximum 185°F (85°C)
ACCURACY: ±3-2-3% of span (ASME B40.1 Grade B)
Optional ±1% accuracy on low pressure, ±2% accuracy on
high pressure gauges available in OEM quantities
BOURDON TUBE: 316L stainless steel
WINDOW: Twist-on style, polycarbonate
MOVEMENT: 304 stainless steel
DIAL: Galvalume, white background with black markings
POINTER: Galvalume, black finish
CASE: 304 polished stainless steel standard; steel, chrome
plated available as an OEM option
CONNECTION: 1/4-18 NPT standard, center back mount (CBM)
or lower mount (LM); other connections available in OEM
quantities
SCALES: Single psi scale standard on catalog part numbers;
dual scales and other single scales such as bar, kPa, Kg/cm2,
etc. available upon request in OEM quantities.
OTHER OPTIONS: O2 cleaning, helium leak testing, SST restrictor,
custom dials, special connections, etc.
Model P1522
Lower Mount (LM) and Center Back Mount (CBM)
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
www.ametekusg.com
Product Data
1.89
(53.4)
SPECIAL APPLICATION GAUGES
Model P1522 2" Corrosion Resistant
Pressure Gauges
13SAG - 13SAG -
(48.0)
40 60
20
80
100
0
psi
2.26
Ø
(57.6)
Lower Mount
(LM)
Spec Number Selection Chart
Specifications
Bourdon Tube 316 Stainless Steel
Connection 316 Stainless Steel
Sizes 2"
Ranges Spec No. Spec No.
30" Hg 172028A 172050A
30"-0-15 psi 172029A 172051A
30"-0-30 psi 172030A 172052A
30"-0-60 psi 172031A 172053A
30"-0-100 psi 172032A 172054A
0-15 psi 172033A 172055A
0-30 psi 172034A 172056A
0-60 psi 172035A 172057A
0-100 psi 172036A 172058A
0-160 psi 172037A 172059A
0-200 psi 172038A 172060A
0-300 psi 172039A 172061A
0-400 psi 172040A 172062A
0-600 psi 172041A 172063A
0-800 psi 172042A 172064A
0-1000 psi 172043A 172065A
0-1500 psi 172044A 172066A
0-2000 psi 172045A 172067A
0-3000 psi
0-4000 psi 172047A 172069A
0-5000 psi 172048A 172070A
0-6000 psi 172049A 172071A
1.15
(29.4)
0.42
(10.7)
INCHES
(MM)
2.1
Ø
(53.4)
0.55
(SQ.)
(14.0)
1/4-18
NPT
Model P1522
1/4-18 NPT Lower Mount
172046A 172068A
20
0
40 60
psi
1.89
(48.0)
100
80
2.26
Ø
(57.6)
Center Back Mount
(CBM)
Model P1522
1/4-18 NPT Center Mount
1.15
(29.4)
2.07
(52.6)
0.55
(14.0)
1/4-18 NPT
(SQ.)
2.1
Ø
