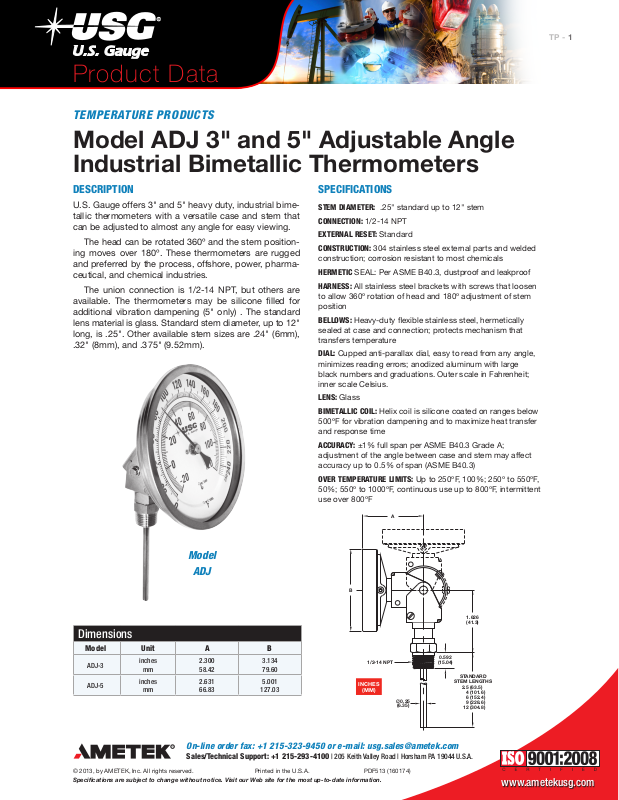

US Gauge ADJ Data Sheet

Product Data

STEM LENGTHS

TEMPERATURE PRODUCTS

Model ADJ 3" and 5" Adjustable Angle
Industrial Bimetallic Thermometers

1TP -

DESCRIPTION

U.S. Gauge offers 3" and 5" heavy duty, industrial bime­tallic thermometers with a versatile case and stem that
can be adjusted to almost any angle for easy viewing.

The head can be rotated 360º and the stem position­ing moves over 180º. These thermometers are rugged
and preferred by the process, offshore, power, pharma­ceutical, and chemical industries.

The union connection is 1/2-14 NPT, but others are
available. The thermometers may be silicone filled for
additional vibration dampening (5" only) . The standard
lens material is glass. Standard stem diameter, up to 12"
long, is .25". Other available stem sizes are .24" (6mm),
.32" (8mm), and .375" (9.52mm).

SPECIFICATIONS

STEM DIAMETER: .25" standard up to 12" stem

CONNECTION: 1/2-14 NPT

EXTERNAL RESET: Standard

CONSTRUCTION: 304 stainless steel external parts and welded

construction; corrosion resistant to most chemicals

HERMETIC SEAL: Per ASME B40.3, dustproof and leakproof

HARNESS: All stainless steel brackets with screws that loosen

to allow 360º rotation of head and 180º adjustment of stem
position

BELLOWS: Heavy-duty flexible stainless steel, hermetically
sealed at case and connection; protects mechanism that
transfers temperature

DIAL: Cupped anti-parallax dial, easy to read from any angle,
minimizes reading errors; anodized aluminum with large
black numbers and graduations. Outer scale in Fahrenheit;
inner scale Celsius.

LENS: Glass

BIMETALLIC COIL: Helix coil is silicone coated on ranges below

500ºF for vibration dampening and to maximize heat transfer
and response time

ACCURACY: ±1% full span per ASME B40.3 Grade A;
adjustment of the angle between case and stem may affect
accuracy up to 0.5% of span (ASME B40.3)

OVER TEMPERATURE LIMITS: Up to 250ºF, 100%; 250º to 550ºF,
50%; 550º to 1000ºF, continuous use up to 800ºF, intermittent
use over 800ºF

A

Model

ADJ

B

Dimensions

Model Unit A B

ADJ-3

ADJ-5

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

inches

mm

inches

mm

2.300

58.42

2.631

66.83

3.134

79.60

5.001

127.03

1/2-14 NPT

INCHES

(MM)

ø0.25

(6.35)

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

0.592

(15.04)

1.626
(41.3)

STANDARD

2.5 (63.5)
4 (101.6)
6 (152.4)
9 (228.6)
12 (304.8)

www.ametekusg.com

Product Data

TEMPERATURE PRODUCTS

Model ADJ 3" and 5" Adjustable Angle
Industrial Bimetallic Thermometers

Spec Number Selection Chart

Model ADJ-3 3" Dial Size

2TP -

Connection

1/2-14 NPT

Model ADJ-5 5" Dial Size

Connection

1/2-14 NPT

* All dials are dual scale, Fahrenheit outer scale, Celsius inner scale

Temperature

Range*

0º to 200º FC 415002 415008 415014 415020 415026

0º to 250º FC 415003 415009 415015 415021 415027

50º to 300º FC 415004 415010 415016 415022 415028

50º to 400º FC 415005 415011 415017 415023 415029

50º to 550º FC 415006 415012 415018 415024 415030

200º to 1000º FC 415007 415013 415019 415025 415031

Temperature

Range*

25º to 125º FC – 415038 415045 – –

0º to 200º FC 415032 415039 415046 415052 415058

0º to 250º FC 415033 415040 415047 415053 415059

50º to 300º FC 415034 415041 415048 415054 415060

50º to 400º FC 415035 415042 415049 415055 415061

50º to 550º FC 415036 415043 415050 415056 415062

200º to 1000º FC 415037 415044 415051 415057 415063

2-1/2" Stem

Length

Spec No. Spec No. Spec No. Spec No. Spec No.

2-1/2" Stem

Length

Spec No. Spec No. Spec No. Spec No. Spec No.

4" Stem

Length

4" Stem

Length

6" Stem

Length

6" Stem

Length

9" Stem

Length

9" Stem

Length

12" Stem

Length

12" Stem

Length
