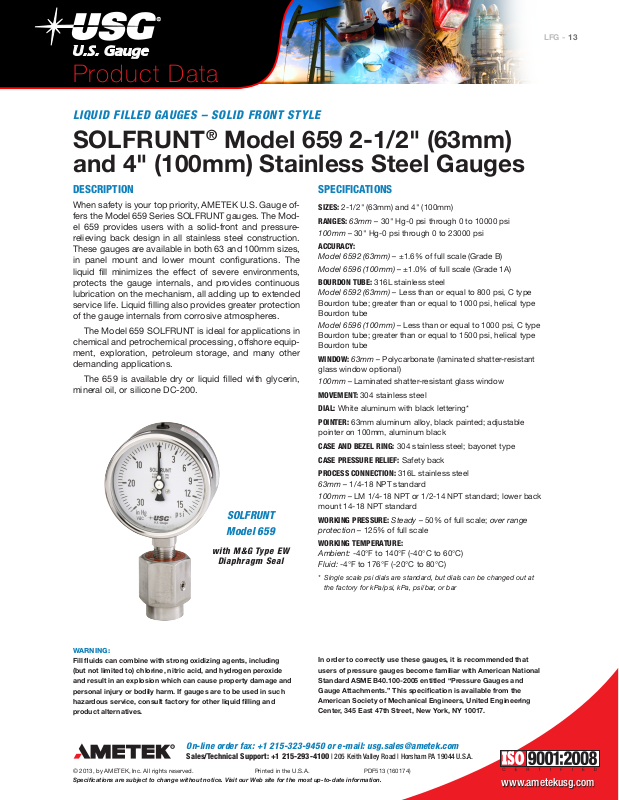

US Gauge 659 Data Sheet

Page 1
Product Data
LIQUID FILLED GAUGES – SOLID FRONT STYLE
SOLFRUNT® Model 659 2-1/2" (63mm) and 4" (100mm) Stainless Steel Gauges
13LFG -
DESCRIPTION
When safety is your top priority, AMETEK U.S. Gauge of­fers the Model 659 Series SOLFRUNT gauges. The Mod­el 659 provides users with a solid-front and pressure­relieving back design in all stainless steel construction. These gauges are available in both 63 and 100mm sizes, in panel mount and lower mount configurations. The liquid fill minimizes the effect of severe environments, protects the gauge internals, and provides continuous lubrication on the mechanism, all adding up to extended service life. Liquid filling also provides greater protection of the gauge internals from corrosive atmospheres.
The Model 659 SOLFRUNT is ideal for applications in chemical and petrochemical processing, offshore equip­ment, exploration, petroleum storage, and many other demanding applications.
The 659 is available dry or liquid filled with glycerin, mineral oil, or silicone DC-200.
SOLFRUNT Model 659
with M&G Type EW
Diaphragm Seal
SPECIFICATIONS
SIZES: 2-1/2" (63mm) and 4" (100mm)
RANGES: 63mm – 30" Hg-0 psi through 0 to 10000 psi
100mm – 30" Hg-0 psi through 0 to 23000 psi
ACCURACY:
Model 6592 (63mm) – ±1.6% of full scale (Grade B)
Model 6596 (100mm) – ±1.0% of full scale (Grade 1A)
BOURDON TUBE: 316L stainless steel
Model 6592 (63mm) – Less than or equal to 800 psi, C type Bourdon tube; greater than or equal to 1000 psi, helical type Bourdon tube
Model 6596 (100mm) – Less than or equal to 1000 psi, C type Bourdon tube; greater than or equal to 1500 psi, helical type Bourdon tube
WINDOW: 63mm – Polycarbonate (laminated shatter-resistant glass window optional)
100mm – Laminated shatter-resistant glass window
MOVEMENT: 304 stainless steel
DIAL: White aluminum with black lettering*
POINTER: 63mm aluminum alloy, black painted; adjustable
pointer on 100mm, aluminum black
CASE AND BEZEL RING: 304 stainless steel; bayonet type
CASE PRESSURE RELIEF: Safety back
PROCESS CONNECTION: 316L stainless steel
63mm – 1/4-18 NPT standard
100mm – LM 1/4-18 NPT or 1/2-14 NPT standard; lower back
mount 14-18 NPT standard
WORKING PRESSURE: Steady – 50% of full scale; over range protection – 125% of full scale
WORKING TEMPERATURE:
Ambient: -40°F to 140°F (-40°C to 60°C) Fluid: -4°F to 176°F (-20°C to 80°C)
* Single scale psi dials are standard, but dials can be changed out at the factory for kPa/psi, kPa, psi/bar, or bar
WARNING:
Fill fluids can combine with strong oxidizing agents, including (but not limited to) chlorine, nitric acid, and hydrogen peroxide and result in an explosion which can cause property damage and personal injury or bodily harm. If gauges are to be used in such hazardous service, consult factory for other liquid filling and product alternatives.
In order to correctly use these gauges, it is recommended that users of pressure gauges become familiar with American National Standard ASME B40.100-2005 entitled “Pressure Gauges and Gauge Attachments.” This specification is available from the American Society of Mechanical Engineers, United Engineering Center, 345 East 47th Street, New York, NY 10017.
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
www.ametekusg.com
Page 2
Product Data
Lower Mount (LM)
BLOW OUT
M
3-120º
LIQUID FILLED GAUGES – SOLID FRONT STYLE
SOLFRUNT® Model 659 2-1/2” (63mm) and 4” (100mm) Stainless Steel Gauges
14LFG -
Pressure Ranges
Ranges**
30" Hg-0
30" Hg-0-15
30" Hg-0-30
30" Hg-0-60
30" Hg-0-100
30" Hg-0-150
30" Hg-0-200
0-15 psi
0-30 psi
0-60 psi
0-100 psi
0-160 psi
0-200 psi
0-300 psi
0-400 psi
0-600 psi
0-1000 psi
0-1500 psi
0-2000 psi
0-3000 psi
0-5000 psi
0-10000 psi
0-15000 psi
0-23000 psi*
* Not available in 63mm
** Metric and dual scale dials are available. Please call Customer Service at
+1 215-293-4100 for more information
Dimensions
Dial
Sizes
63mm
100mm
Mounting Unit A D E F M
LM LM
LBM LBM
LM LM
LBM LBM
inches mm2.5
63.5
inches mm2.5
63.5
inches mm3.99
101.4
inches mm3.99
101.4
(Code A)
E
INCHES
(MM)
Lower Back Mount (LBM)
(Code N)
1.54
39.1
1.54
39.1
2.32
58.9
2.32
58.9
2.20
0.68
55.9
17.3– –
2.56
0.66
16.8
1.0
25.4– –
1.14
29.0
F
E
1.39
35.3
1.89
48.0
FILL PLUG
DISC
65.0
3.27
83.0
3.68
93.5
D
øA
D
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
3-M3 x 0.5
P.C.D. 75
øA
F
www.ametekusg.com
Page 3
Product Data
LIQUID FILLED GAUGES – SOLID FRONT STYLE
SOLFRUNT® Model 659 2-1/2" (63mm) and 4" (100mm) Stainless Steel Gauges
Spec Number Selection Chart – 63mm
Model 659 (63mm) Stem Mounting Front Flange Panel Mounting
Model Number 6592 Lower Mount, 1/4-18 NPT 6592 Lower Back Mount, 1/4-18 NPT
Bourdon Tube 316L Stainless Steel 316L Stainless Steel
Connection 316L Stainless Steel 316L Stainless Steel
Ranges* Spec No. Spec No.
0-30" Hg VAC 259000 259025
30"-0-15 psi 259001 259026
30"-0-30 psi 259002 259027
30"-0-60 psi 259003 259028
30"-0-100 psi 259004 259029
30"-0-150 psi 259005 259030
30"-0-200 psi 259006 259031
0-15 psi 259007 259032
0-30 psi 259008 259033
0-60 psi 259009 259034
0-100 psi 259010 259035
0-160 psi 259011 259036
0-200 psi 259012 259037
0-300 psi 259013 259038
0-400 psi 259014 259039
0-600 psi 259015 259040
0-1000 psi 259016 259041
0-1500 psi 259017 259042
0-2000 psi 259018 259043
0-3000 psi 259019 259044
0-4000 psi 259020 259045
0-5000 psi 259021 259046
0-6000 psi 259022 259047
0-10000 psi 259023 259048
0-15000 psi 259024 259049
15LFG -
* Metric and dual scale dials are available. Please call Customer Service at +1 215-293-4100 for more information.
Please add SR behind spec number when ordering if you need a shatter-resistant glass window.
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
www.ametekusg.com
Page 4
Product Data
LIQUID FILLED GAUGES – SOLID FRONT STYLE
SOLFRUNT® Model 659 2-1/2" (63mm) and 4" (100mm) Stainless Steel Gauges
Spec Number Selection Chart – 100mm
Model 659 (100mm) Stem Mounting Front Flange Panel Mounting
Model Number 6596 Lower Mount, 1/4-18 NPT 6596 Lower Mount, 1/2-14 NPT 6596 Lower Back Mount, 1/4-18 NPT
Bourdon Tube 316L Stainless Steel 316L Stainless Steel 316L Stainless Steel
Connection 316L Stainless Steel 316L Stainless Steel 316L Stainless Steel
Ranges* Spec No. Spec No. Spec No.
0-30" Hg VAC 359000 359029 359058
30"-0-15 psi 359001 359030 359059
30"-0-30 psi 359002 359031 359060
30"-0-60 psi 359003 359032 359061
30"-0-100 psi 359004 359033 359062
30"-0-150 psi 359005 359034 359063
0-15 psi 359008 359037 359066
0-30 psi 359009 359038 359067
0-60 psi 359010 359039 359068
0-100 psi 359011 359040 359069
0-160 psi 359012 359041 359070
0-200 psi 359013 359042 359071
0-300 psi 359014 359043 359072
0-400 psi 359015 359044 359073
0-600 psi 359016 359045 359074
0-1000 psi 359018 359047 359076
0-1500 psi 359019 359048 359077
0-2000 psi 359020 359049 359078
0-3000 psi 359021 359050 359079
0-5000 psi 359023 359052 359081
0-10000 psi 359025 359054 359083
0-15000 psi 359027 359056 359085
0-23000 psi 359028 359057 359086
16LFG -
* Metric and dual scale dials are available. Please call Customer Service at +1 215-293-4100 for more information.
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
www.ametekusg.com
