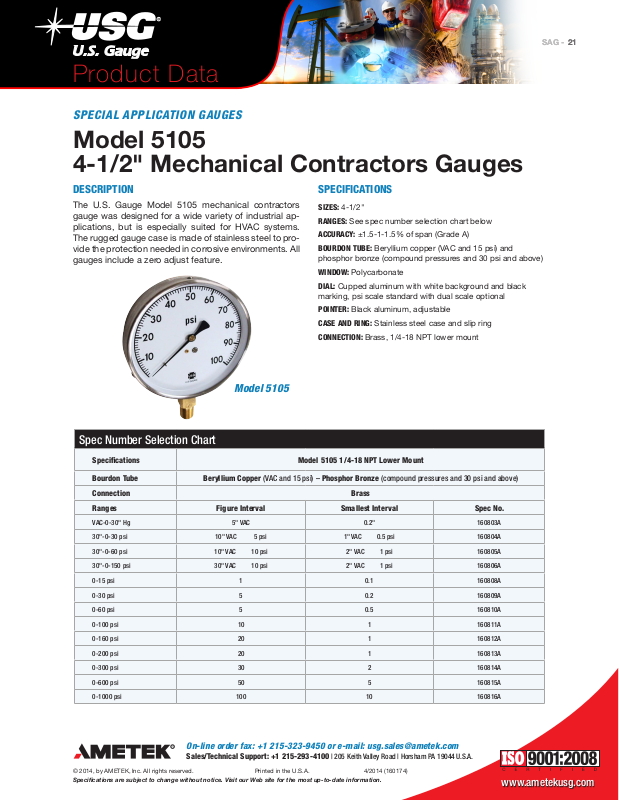

US Gauge 5105 Data Sheet

Product Data

SPECIAL APPLICATION GAUGES

Model 5105
4-1/2" Mechanical Contractors Gauges

21SAG - 21SAG -

DESCRIPTION

The U.S. Gauge Model 5105 mechanical contractors
gauge was designed for a wide variety of industrial ap­plications, but is especially suited for HVAC systems.
The rugged gauge case is made of stainless steel to pro­vide the protection needed in corrosive environments. All
gauges include a zero adjust feature.

SPECIFICATIONS

SIZES: 4-1/2"

RANGES: See spec number selection chart below

ACCURACY: ±1.5-1-1.5% of span (Grade A)

BOURDON TUBE: Beryllium copper (VAC and 15 psi) and

phosphor bronze (compound pressures and 30 psi and above)

WINDOW: Polycarbonate

DIAL: Cupped aluminum with white background and black

marking, psi scale standard with dual scale optional

POINTER: Black aluminum, adjustable

CASE AND RING: Stainless steel case and slip ring

CONNECTION: Brass, 1/4-18 NPT lower mount

Model 5105

Spec Number Selection Chart

Specifications Model 5105 1/4-18 NPT Lower Mount

Bourdon Tube Beryllium Copper (VAC and 15 psi) – Phosphor Bronze (compound pressures and 30 psi and above)

Connection Brass

Ranges Figure Interval Smallest Interval Spec No.

VAC-0-30" Hg 5" VAC 0.2" 160803A

30"-0-30 psi 10" VAC 5 psi 1" VAC 0.5 psi 160804A

30"-0-60 psi 10" VAC 10 psi 2" VAC 1 psi 160805A

30"-0-150 psi 30" VAC 10 psi 2" VAC 1 psi 160806A

0-15 psi 1 0.1 160808A

0-30 psi 5 0.2 160809A

0-60 psi 5 0.5 160810A

0-100 psi 10 1 160811A

0-160 psi 20 1 160812A

0-200 psi 20 1 160813A

0-300 psi 30 2 160814A

0-600 psi 50 5 160815A

0-1000 psi 100 10 160816A

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

© 2014, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. 4/2014 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
