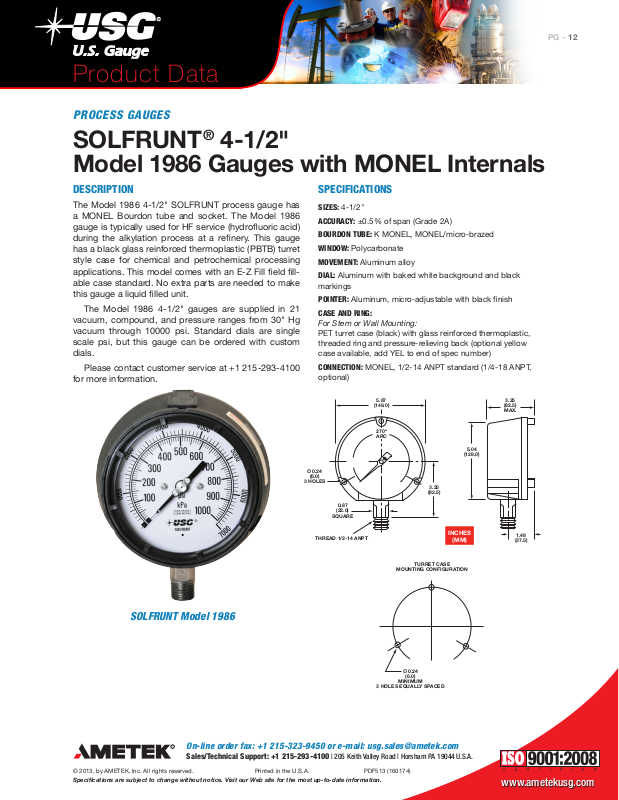

US Gauge 1986 Data Sheet

Product Data

5.87

3.25

3 HOLES EQUALLY SPACED

PROCESS GAUGES

SOLFRUNT® 4-1/2"
Model 1986 Gauges with MONEL Internals

12PG -

DESCRIPTION

The Model 1986 4-1/2" SOLFRUNT process gauge has
a MONEL Bourdon tube and socket. The Model 1986
gauge is typically used for HF service (hydrofluoric acid)
during the alkylation process at a refinery. This gauge
has a black glass reinforced thermoplastic (PBTB) turret
style case for chemical and petrochemical processing
applications. This model comes with an E-Z Fill field fill­able case standard. No extra parts are needed to make
this gauge a liquid filled unit.

The Model 1986 4-1/2" gauges are supplied in 21
vacuum, compound, and pressure ranges from 30" Hg
vacuum through 10000 psi. Standard dials are single
scale psi, but this gauge can be ordered with custom
dials.

Please contact customer service at [phone]
for more information.

SPECIFICATIONS

SIZES: 4-1/2"

ACCURACY: ±0.5% of span (Grade 2A)

BOURDON TUBE: K MONEL, MONEL/micro-brazed

WINDOW: Polycarbonate

MOVEMENT: Aluminum alloy

DIAL: Aluminum with baked white background and black

markings

POINTER: Aluminum, micro-adjustable with black finish

CASE AND RING:

For Stem or Wall Mounting:
PET turret case (black) with glass reinforced thermoplastic,
threaded ring and pressure-relieving back (optional yellow
case available, add YEL to end of spec number)

CONNECTION: MONEL, 1/2-14 ANPT standard (1/4-18 ANPT,
optional)

(149.0)

270º
ARC

5.04

(128.0)

ø0.24

(6.0)

3 HOLES

0.87

(22.0)

SQUARE

3.25

(82.5)

(82.5)
MAX.

THREAD 1/2-14 ANPT

MOUNTING CONFIGURATION

SOLFRUNT Model 1986

MINIMUM

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

TURRET CASE

ø0.24

(6.0)

INCHES

(MM)

1.48

(37.5)

www.ametekusg.com

Product Data

PROCESS GAUGES

SOLFRUNT® 4-1/2”
Model 1986 Gauges with MONEL Internals

Spec Number Selection Chart

Model Number 1986 1986

Bourdon Tube K MONEL K MONEL

Socket MONEL MONEL

Sizes 4-1/2” 4-1/2”

Connections 1/2” NPT 1/4” NPT

Ranges* Spec No. Spec No.

0-30” Hg VAC 170060K 175060K

30”-0-15 psi 170061K 175061K

30”-0-30 psi 170062K 175062K

30”-0-60 psi 170063K 175063K

30”-0-100 psi 170064K 175064K

30”-0-150 psi 170065K 175065K

30”-0-300 psi 270449K 275449K

0-15 psi 170066K 175066K

0-30 psi 170067K 175067K

0-60 psi 170068K 175068K

0-100 psi 170069K 175069K

0-160 psi 170070K 175070K

0-200 psi 170071K 175071K

0-300 psi 170072K 175072K

0-400 psi 170073K 175073K

0-600 psi 170074K 175074K

0-1000 psi 170075K 175075K

0-2000 psi 170529K 175529K

0-3000 psi 170530K 175530K

0-5000 psi 170531K 175531K

0-10000 psi 170532K 175532K

13PG -

NOTE: This table is not intended to be all inclusive of all possible configurations

* Metric and dual scale dials are available on all 1900 Series gauges. Please reference Metric and Dual Scale Dial part numbers in this section.

For yellow case option, please add YEL to the end of spec numbers above

For factory liquid filling please add LG for Glycerin or LS for Silicone to the end of the spec numbers above, for example 170060KLG
