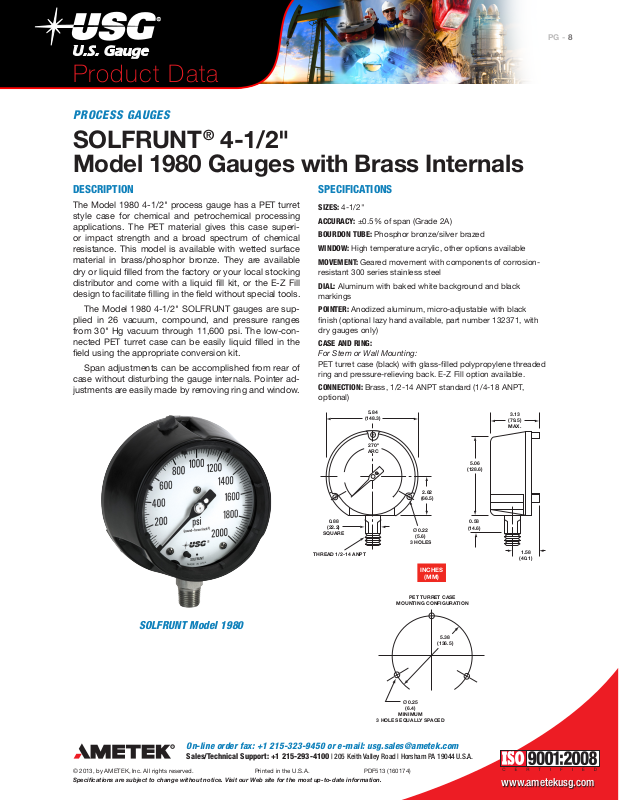

US Gauge 1980 Data Sheet

Page 1
Product Data
5.84
3 HOLES EQUALLY SPACED
THREAD 1/2-14 ANPT
PROCESS GAUGES
SOLFRUNT® 4-1/2" Model 1980 Gauges with Brass Internals
8PG -
DESCRIPTION
The Model 1980 4-1/2" process gauge has a PET turret style case for chemical and petrochemical processing applications. The PET material gives this case superi­or impact strength and a broad spectrum of chemical resistance. This model is available with wetted surface material in brass/phosphor bronze. They are available dry or liquid filled from the factory or your local stocking distributor and come with a liquid fill kit, or the E-Z Fill design to facilitate filling in the field without special tools.
The Model 1980 4-1/2" SOLFRUNT gauges are sup­plied in 26 vacuum, compound, and pressure ranges from 30" Hg vacuum through 11,600 psi. The low-con­nected PET turret case can be easily liquid filled in the field using the appropriate conversion kit.
Span adjustments can be accomplished from rear of case without disturbing the gauge internals. Pointer ad­justments are easily made by removing ring and window.
SPECIFICATIONS
SIZES: 4-1/2"
ACCURACY: ±0.5% of span (Grade 2A)
BOURDON TUBE: Phosphor bronze/silver brazed
WINDOW: High temperature acrylic, other options available
MOVEMENT: Geared movement with components of corrosion-
resistant 300 series stainless steel
DIAL: Aluminum with baked white background and black markings
POINTER: Anodized aluminum, micro-adjustable with black finish (optional lazy hand available, part number 132371, with dry gauges only)
CASE AND RING: For Stem or Wall Mounting: PET turret case (black) with glass-filled polypropylene threaded ring and pressure-relieving back. E-Z Fill option available.
CONNECTION: Brass, 1/2-14 ANPT standard (1/4-18 ANPT, optional)
(148.3)
270º ARC
5.06
(128.6)
3.13 (79.5) MAX.
0.88
(22.2)
SQUARE
SOLFRUNT Model 1980
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
2.62
(66.5)
ø0.22
(5.6)
3 HOLES
INCHES
(MM)
PET TURRET CASE
MOUNTING CONFIGURATION
5.38
(136.5)
ø0.25
(6.4)
MINIMUM
0.58
(14.6)
1.58
(40.1)
www.ametekusg.com
Page 2
Product Data
PROCESS GAUGES
SOLFRUNT® 4-1/2” Model 1980 Gauges with Brass Internals
9PG -
Spec Number Selection Chart
Model Number 1980
Bourdon Tube Phosphor Bronze
Socket Brass
Sizes 4-1/2"
Ranges* Spec No.
0-30" Hg VAC 150000
30"-0-15 psi 150001
30"-0-30 psi 150002
30"-0-60 psi 150003
30"-0-100 psi 150004
30"-0-150 psi 150005
0-15 psi 150006
0-30 psi 150007
0-60 psi 150008
0-100 psi 150009
0-160 psi 150010
0-200 psi 150011
0-300 psi 150012
0-400 psi 150013
0-600 psi 150014
0-1000 psi 150015
Spec Number Selection Chart
+
Part Description Part No.
Lazy Hand Lazy Hand 1980 132371
Fill Kit 1980 Series Bladder Design 150300
Fill Kit 1980 Series O-ring Design 150298
Panel Mount Kit
Panel Mount Kit for Flush
Mounting 1981, 1980 and 1929
047631
* Metric and dual scale dials are available on all 1900 Series gauges
Please reference Metric and Dual Scale Dial part numbers in this section
+
When ordering EZ Fill Option – use 170XXX (for 1/2-14 ANPT); use 175XXX (for
1/4-18 ANPT)
1/4-18 ANPT available – use 155XXX when ordering
For factory liquid filling please add LG for Glycerin or LS for Silicone to the end of the spec numbers above, for example 170000LG
