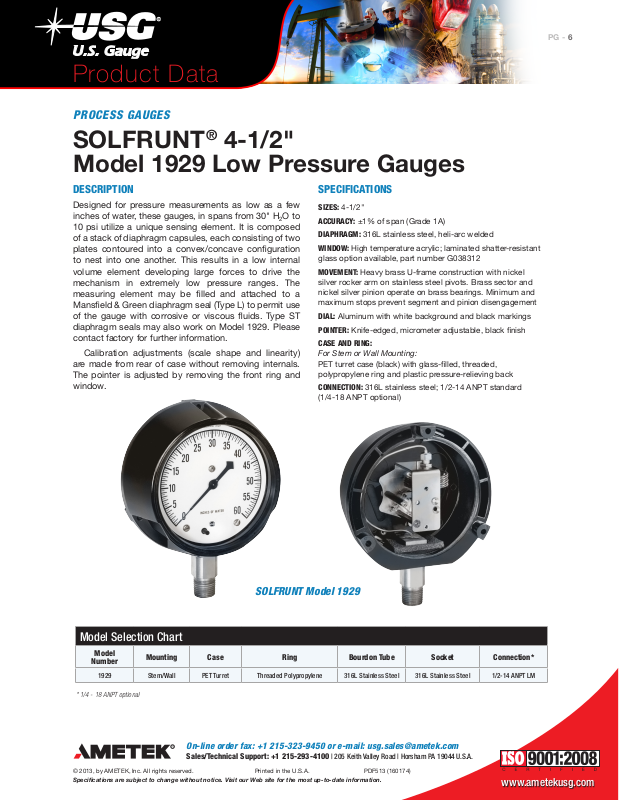

Product Data
PROCESS GAUGES
SOLFRUNT® 4-1/2"
Model 1929 Low Pressure Gauges
6PG -
DESCRIPTION
Designed for pressure measurements as low as a few
inches of water, these gauges, in spans from 30" H2O to
10 psi utilize a unique sensing element. It is composed
of a stack of diaphragm capsules, each consisting of two
plates contoured into a convex/concave configuration
to nest into one another. This results in a low internal
volume element developing large forces to drive the
mechanism in extremely low pressure ranges. The
measuring element may be filled and attached to a
Mansfield & Green diaphragm seal (Type L) to permit use
of the gauge with corrosive or viscous fluids. Type ST
diaphragm seals may also work on Model 1929. Please
contact factory for further information.
Calibration adjustments (scale shape and linearity)
are made from rear of case without removing internals.
The pointer is adjusted by removing the front ring and
window.
SPECIFICATIONS
SIZES: 4-1/2"
ACCURACY: ±1% of span (Grade 1A)
DIAPHRAGM: 316L stainless steel, heli-arc welded
WINDOW: High temperature acrylic; laminated shatter-resistant
glass option available, part number G038312
MOVEMENT: Heavy brass U-frame construction with nickel
silver rocker arm on stainless steel pivots. Brass sector and
nickel silver pinion operate on brass bearings. Minimum and
maximum stops prevent segment and pinion disengagement
DIAL: Aluminum with white background and black markings
POINTER: Knife-edged, micrometer adjustable, black finish
CASE AND RING:
For Stem or Wall Mounting:
PET turret case (black) with glass-filled, threaded,
polypropylene ring and plastic pressure-relieving back
CONNECTION: 316L stainless steel; 1/2-14 ANPT standard
(1/4-18 ANPT optional)
SOLFRUNT Model 1929
Model Selection Chart
Model
Number
1929 Stem/Wall PET Turret Threaded Polypropylene 316L Stainless Steel 316L Stainless Steel 1/2-14 ANPT LM
* 1/4 - 18 ANPT optional
© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)
Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.
Mounting Case Ring Bourdon Tube Socket Connection*
On-line order fax: +1 215-323-9450 or e-mail: usg.sales@ametek.com
Sales/Technical Support: +1 215-293-4100 | 205 Keith Valley Road | Horsham PA 19044 U.S.A.
www.ametekusg.com

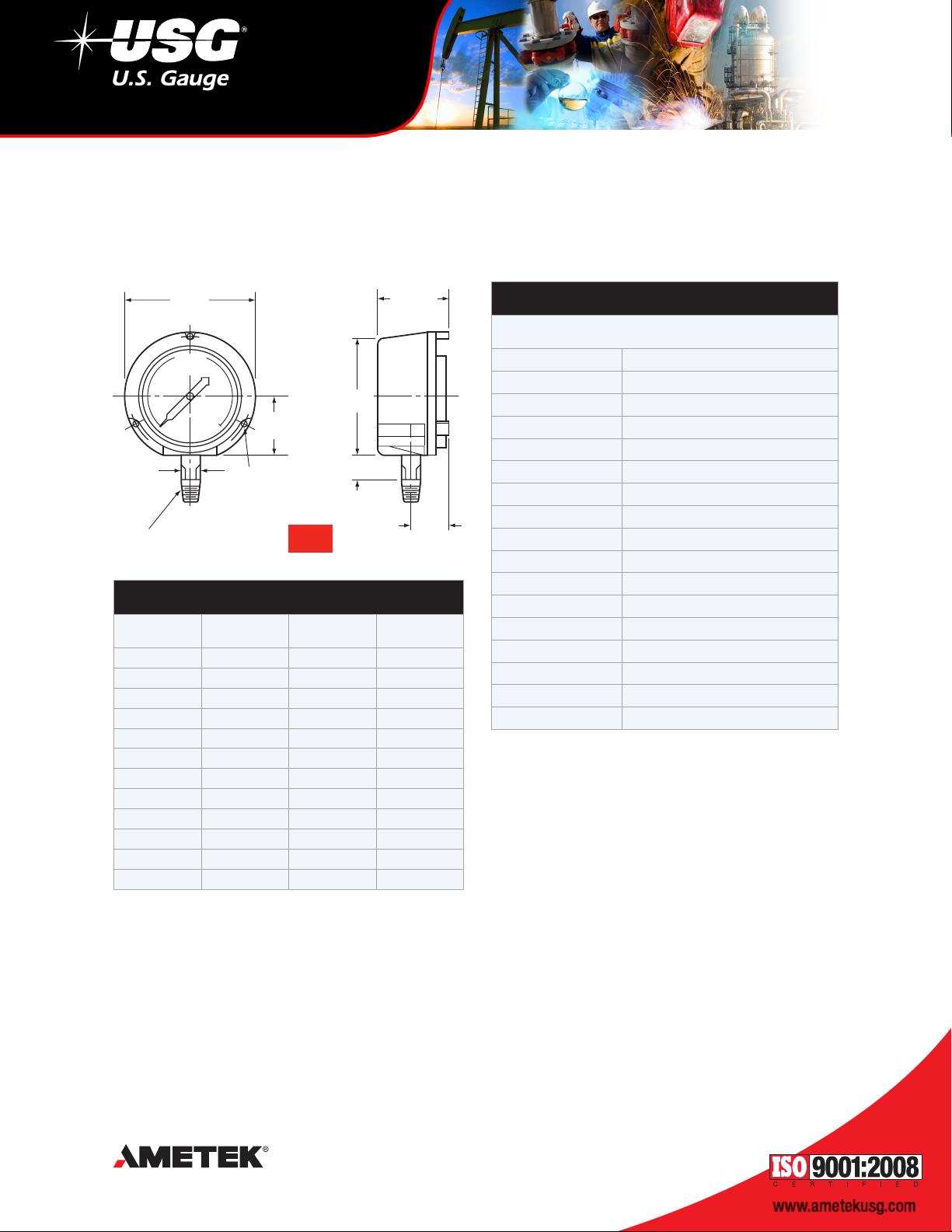

Product Data
3.13
PROCESS GAUGES
SOLFRUNT® 4-1/2"
Model 1929 Low Pressure Gauges
7PG -
5.84
(148.3)
270º
ARC
5.06
(128.6)
2.62
(66.5)
0.89
0.88
(22.2)
SQUARE
THREAD 1/2-14 ANPT
ø0.22
(5.6)
3 HOLES
INCHES
(22.6)
(MM)
Standard Dial Ranges
Maximum
Indication
0-30" H2O VAC 5 1 0.2
0-60" H2O VAC 5 1 0.5
15"-0-15" H2O 3 1 0.2
30"-0-30" H2O 5 1 0.5
60"-0-60" H2O 10 5 1
0-30" H2O 5 1 0.2
0-60" H2O 5 1 0.5
0-100" H2O 10 5 1
0-200" H2O 20 10 2
0-3 psi 0.5 0.1 0.02
0-5 psi 1 0.25 0.05
0-10 psi 1 0.5 0.1
Figure
Intervals
Intermediate
Graduations
Graduations
(79.5)
MAX.
1.58
(40.1)
Minor
Spec Number Selection Chart
SOLFRUNT 4-1/2" Low Pressure Gauges
Model Number 1929
Capsule 316L Stainless Steel
Socket 316L Stainless Steel
Sizes 4-1/2”
Ranges* Spec No.
0-30" H2O VAC 132789
0-60" H2O VAC 132790
15"-0-15" H2O 132872
30"-0-30" H2O 132787
60"-0-60" H2O 132788
0-30" H2O 132784
0-60" H2O 132785
0-100" H2O 132786
0-200" H2O 132795
0-3 psi 132791
0-5 psi 132792
0-10 psi 132793
* Metric and dual scale dials are available
1/4-18 ANPT available – use 133XXX when ordering
