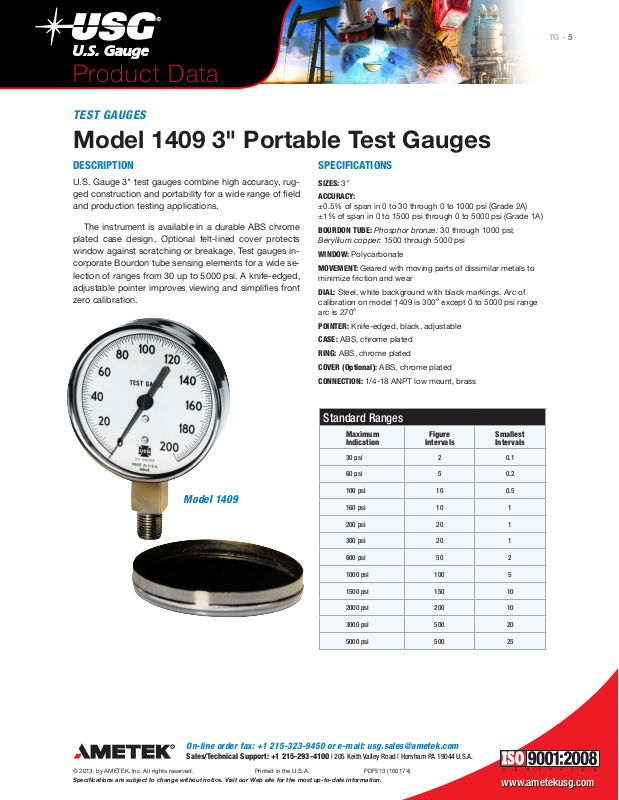

US Gauge 1409 Data Sheet

Product Data

TEST GAUGES

Model 1409 3" Portable Test Gauges

5TG -

DESCRIPTION

U.S. Gauge 3" test gauges combine high accuracy, rug­ged construction and portability for a wide range of field
and production testing applications.

The instrument is available in a durable ABS chrome
plated case design. Optional felt-lined cover protects
window against scratching or breakage. Test gauges in­corporate Bourdon tube sensing elements for a wide se­lection of ranges from 30 up to 5000 psi. A knife-edged,
adjustable pointer improves viewing and simplifies front
zero calibration.

Model 1409

SPECIFICATIONS

SIZES: 3"

ACCURACY:

±0.5% of span in 0 to 30 through 0 to 1000 psi (Grade 2A)
±1% of span in 0 to 1500 psi through 0 to 5000 psi (Grade 1A)

BOURDON TUBE: Phosphor bronze: 30 through 1000 psi;
Beryllium copper: 1500 through 5000 psi

WINDOW: Polycarbonate

MOVEMENT: Geared with moving parts of dissimilar metals to

minimize friction and wear

DIAL: Steel, white background with black markings. Arc of
calibration on model 1409 is 300º except 0 to 5000 psi range
arc is 270

POINTER: Knife-edged, black, adjustable

CASE: ABS, chrome plated

RING: ABS, chrome plated

COVER (Optional): ABS, chrome plated

CONNECTION: 1/4-18 ANPT low mount, brass

º

Standard Ranges

Maximum
Indication

30 psi 2 0.1

60 psi 5 0.2

100 psi 10 0.5

160 psi 10 1

200 psi 20 1

300 psi 20 1

600 psi 50 2

1000 psi 100 5

1500 psi 150 10

2000 psi 200 10

3000 psi 500 20

5000 psi 500 25

Figure

Intervals

Smallest
Intervals

On-line order fax: [phone] or e-mail: [e-mail]

Sales/Technical Support: [phone] | 205 Keith Valley Road | Horsham PA 19044 U.S.A.

© 2013, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. PDF513 (160174)

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information.

www.ametekusg.com

Product Data

A1

B2 MAX.

B1 MAX.

TEST GAUGES

Model 1409 3" Portable Test Gauges

Spec Number Selection Chart

6TG -

A2

F SQUARE

THREAD

INCHES

(MM)

COVER

W

C

Model 1409 Dimensions

Model Unit A1 A2 B1 B2 C F P W

1409 (3")

inches mm3.40

86.36

3.55

90.17

1.38

35.05

1.69

42.93

0.54

13.72

0.625

15.88

3.23

82.04

0.67

17.02

3" Portable
Test Gauges

P

Bourdon Tube

Model No. 1409

1/4-18 ANPT, Lower Mount

Phosphor Bronze

(30 psi through 1000 psi)

Beryllium Copper

(1500 psi through 5000 psi)

Connection Brass

Ranges Spec No.

0-30 psi 161947

0-60 psi 161948

0-100 psi 161949

0-160 psi 161950

0-200 psi 161951

0-300 psi 161952

0-600 psi 161953

0-1000 psi 161954

0-1500 psi 161955

0-2000 psi 161956

0-3000 psi 161957

0-5000 psi 161958
