Tip Sheet
1. snip top and bottom
flange at center
Parts and Components
May include some or all of the following
Compässo™ Standard
Suspension Trim System
Before beginning installation of the COMPÄSSO™ Standard Ceiling System, check the enclosed bill of materials to
ensure that all parts are present and undamaged. Read all installation instructions first and familiarize yourself
with the system’s components. This is extremely important because parts will become permanently damaged if
they are installed incorrectly! To help with identification, all parts are poly-bagged. This is to be used with IC464
General Installation Guide
R42
7
1
corner splice plate (bend 90)
72.43
R135
R63
3
11
69.50
10
finish face
9
field cut
finish face
77.72
43.24
R54
2
R81
Bill of Materials (BOM) and
Reflected Ceiling Plan
6
R47
65.80
finish face
37.15
4
11
field cut
11
field cut
8
79.97
R49
65.80
field cut
37.15
5
142
11
field cut
Suspension Trim—Straight
(available in 2-1/4", 4", 6", 8", 10", 12" widths)
Suspension Trim – Curved
(available in 2-1/4", 4", 6", 8", 10", 12" widths)
Splices C
Inside Corner Splice Plate
Inside corners are assembled from two
mitered sections of C
corner splice plate.
OMPÄSSO and one
4" Splice Plate and Temporary Splice Plates Attachment Clips
90° Outside Corner (4" x 4")
Outside corners are delivered with the
system as one piece, mitered and formed.
OMPÄSSO Temporary Splice
Temporary splices are used to keep the system together
when marking and cutting the grid to the appropriate lengths.
Temporary splices are made in the field by cutting permanent
splice plates in half.
1. snip top and bottom
flange at center
inside corner trim pieces
Inside Corner Trim Pieces
COMPÄSSO Permanent Splice
The permanent splice is 6" long and is used only after the grid is
cut and attached to a COMPÄSSO section. Permanent splices are
very difficult to remove once installed.
2. fold to desired
angle along crease
A. Snip splice.
B. Fold splice at 90 degrees. C. Assemble inside corner.
Tip Sheet
COMPÄSSO Standard Clip Installation
Technical Service
800 USG.4YOU

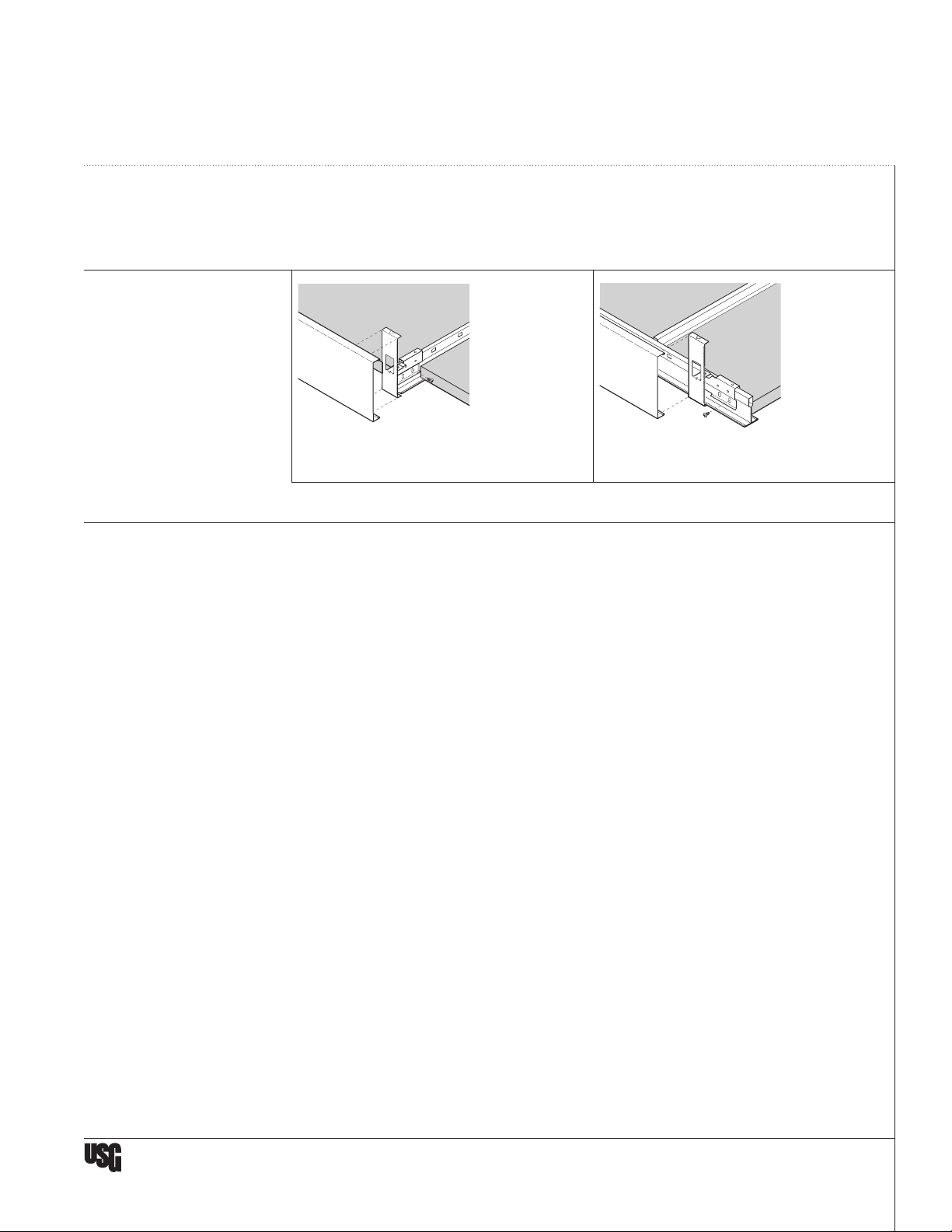

Install a COMPÄSSO clip on the end of each tee. First, slide the clip
onto the top of the grid…
Clip installation where COMPÄSSO island has perimeter grid.
Rotate clip 90 degrees and screw-attach to bulb of grid.
Snap into COMPÄSSO Trim.
Note: If a grid attachment clip occurs at a splice, the system is designed to accommodate both the splice and the attachment clip at the same point.
