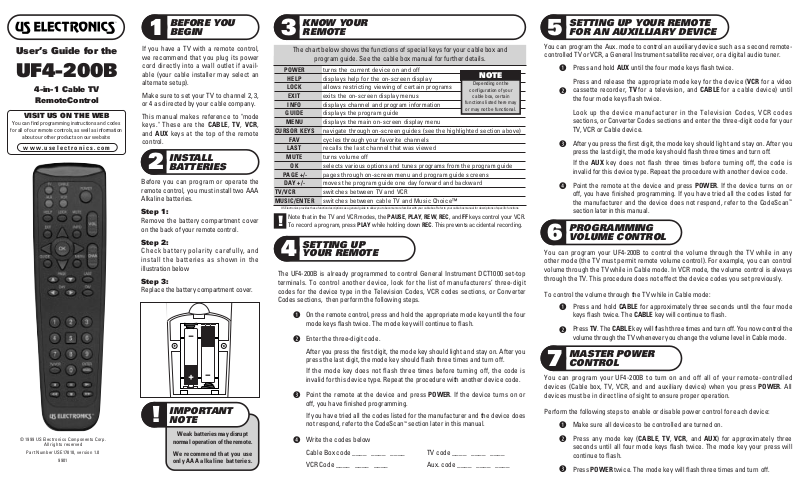

User’s Guide for the

UF4-200B

4-in-1 Cable TV

RemoteControl

If you have a TV with a remote control, we recommend that you plug its power cord directly into a wall outlet if available (your cable installer may select an alternate setup).

Make sure to set your TV to channel 2, 3, or 4 as directed by your cable company.

This manual makes reference to "mode keys." These are the

CABLE, TV, VCR, and AUX keys at the top of the remote control.

On the remote control, press and hold the appropriate mode key until the four mode keys flash twice. The mode key will continue to flash.

Enter the three-digit code.

After you press the first digit, the mode key should light and stay on. After you press the last digit, the mode key should flash three times and turn off.

If the mode key does not flash three times before turning off, the code is invalid for this device type. Repeat the procedure with another device code.

Point the remote at the device and press

POWER. If the device turns on or

off, you have finished programming.

If you have tried all the codes listed for the manufacturer and the device does not respond, refer to the CodeScan

™

section later in this manual.

Write the codes below

Cable Box code ____ ____ ____ TV code ____ ____ ____

VCR Code ____ ____ ____ Aux. code ____ ____ ____

BEFORE YOU BEGIN

Weak batteries may disrupt

normal operation of the remote.

We recommend that you use only AAA alkaline batteries.

Before you can program or operate the remote control, you must install two AAA Alkaline batteries.

Step 1:

Remove the battery compartment cover on the back of your remote control.

Step 2:

Check battery polarity carefully, and install the batteries as shown in the illustration below

Step 3:

Replace the battery compartment cover.

INSTALL BATTERIES

KNOW YOUR REMOTE

SETTING UP YOUR REMOTE

IMPORTANT NOTE

The UF4-200B is already programmed to control General Instrument DCT1000 set-top terminals. To control another device, look for the list of manufacturers’ three-digit codes for the device type in the Television Codes, VCR codes sections, or Converter Codes sections, then perform the following steps.

Press and hold

CABLE for approximately three seconds until the four mode

keys flash twice. The

CABLE key will continue to flash.

Press

TV. The CABLE key will flash three times and turn off. You now control the

volume through the TV whenever you change the volume level in Cable mode.

PROGRAMMING VOLUME CONTROL

You can program your UF4-200B to control the volume through the TV while in any other mode (the TV must permit remote volume control). For example, you can control volume through the TV while in Cable mode. In VCR mode, the volume control is always through the TV. This procedure does not effect the device codes you set previously.

To control the volume through the TV while in Cable mode:

Make sure all devices to be controlled are turned on.

Press any mode key (

CABLE, TV, VCR, and AUX) for approximately three seconds until all four mode keys flash twice. The mode key your press will continue to flash.

Press

POWER twice. The mode key will flash three times and turn off.

MASTER POWER CONTROL

You can program your UF4-200B to turn on and off all of your remote-controlled devices (Cable box, TV, VCR, and and auxiliary device) when you press

POWER. All

devices must be in direct line of sight to ensure proper operation.

Perform the following steps to enable or disable power control for each device:

www.uselectronics.com

VISIT US ON THE WEB

You can find programming instructions and codes

for all of our remote controls, as well as information

about our other products on our website:

POWER turns the current device on and off

HELP displays help for the on-screen display LOCK allows restricting viewing of certain programs

EXIT exits the on-screen display menus

INFO displays channel and program information GUIDE displays the program guide MENU displays the main on-screen display menu

CURSOR KEYS navigate through on-screen guides (see the highlighted section above)

FAV cycles through your favorite channels

LAST recalls the last channel that was viewed

MUTE turns volume off

OK selects various options and tunes programs from the program guide

PAGE +/- pages through on-screen menu and program guide screens

DAY +/- moves the program guide one day forward and backward TV/VCR switches between TV and VCR MUSIC/ENTER switches between cable TV and Music Choice™

The chart below shows the functions of special keys for your cable box and

program guide. See the cable box manual for further details.

US Electronics provides these function descriptions as a general guide to allow you to become more familiar with your cable box. Refer to your cable box manual for descriptions of specific functions.

NOTE

Depending on the

configuration of your

cable box, certain functions listed here may or may not be functional.

Note that in the TV and VCR modes, the PAUSE, PLAY, REW, REC, and FF keys control your VCR. To record a program, press PLAY while holding down REC. This prevents accidental recording.

Press and hold AUX until the four mode keys flash twice.

Press and release the appropriate mode key for the device (

VCR for a video cassette recorder, TV for a television, and CABLE for a cable device) until the four mode keys flash twice.

Look up the device manufacturer in the Television Codes, VCR codes sections, or Converter Codes sections and enter the three-digit code for your TV, VCR or Cable device.

After you press the first digit, the mode key should light and stay on. After you press the last digit, the mode key should flash three times and turn off.

If the

AUX key does not flash three times before turning off, the code is

invalid for this device type. Repeat the procedure with another device code.

Point the remote at the device and press

POWER. If the device turns on or off, you have finished programming. If you have tried all the codes listed for the manufacturer and the device does not respond, refer to the CodeScan

™

section later in this manual.

SETTING UP YOUR REMOTE FOR AN AUXILLIARY DEVICE

You can program the Aux. mode to control an auxiliary device such as a second remotecontrolled TV or VCR, a General Instrument satellite receiver, or a digital audio tuner.

UF4 200B manual • version 1.0 • page 2

US Electronics

™

, and CodeScan™are trademarks of US Electronics Components Corp.

All other trademarks are the property of their respective owners.

Admiral 034 Akai 032 • 070 Alba 113 A-Mark 120 Amstrad 033 Anam 041 • 120 • 121 AOC 005 • 006 • 019 • 020 • 195 Archer 120 Audiovox 120 Admiral 034 Bauer 111 Becrese see Hitachi Brockwood 195 Candle 006 • 022 • 023 • 195 Capehart 019 • 195 Circuit City 195 Citizen 006 • 016 • 022 • 023

024 • 025 • 026

Colortyme 195 Concerto 023 Contec 027 • 028 • 041 • 091 Craig 021 • 041 • 194 Curtis Mathes 006 • 203 • 016 CXC 041 Daewoo 005 • 024 • 026 • 029

030 • 031 • 032 • 219

Daytron 026 • 195 Dixi 032 • 088 • 120 Dumont 195 Electrohome 026 • 195 • 209 • 213 Elta 032 Emerson 026 • 027 • 028 • 033 • 034 • 035

037 • 038 • 039 • 040 • 041 • 122

195 • 220 • 999

Envision 006 EON see NEC

Etron 032 Fisher 042 • 090 Formenti 111 Fortress 105 Fujitsu 034 • 194 Funai 034 • 041 • 194 Futuretech 041 • 194 GE 003 • 008 • 009 • 015 • 040

143 • 044 • 130 • 190 • 195

Genexxa 113 Goldstar 005 • 023 • 026 • 045

046 • 088 • 195

Gradiente 211 Granada 195 Grand 195 Grundig 047 Hallmark 195 Hinari 034 Hitachi 023 • 026 • 048 • 049 • 050

051 • 052 • 053 • 054 • 055

126 • 202 • 213

Infinity 026 JBL 026 Jensen 056 JVC 057 • 058 • 059 • 060 Kenwood 006 Kloss 022 • 110 KTV 026 • 039 • 040 • 041 Kwasho 061 Linitron see Sharp Lloyd 195 Lloytron 026 Loewe 088 Logik 018 Luxman 023 LXI 003 • 023 • 026 • 090 • 095 • 117 • 125

Magnavox 006 • 020 • 024 • 025 • 026 • 027

066 • 068 • 069 • 110 • 210

Marantz 006 • 028 • 088 Matsui 018 Megatron 195 Logik 018 Memorex 018 • 032 • 090 • 195 Mitsubishi 004 • 005 • 070 • 071

072 • 123 • 195 • 207

MTC 005 • 006 • 016 • 023 • 031 • 195 NAD 002 • 117 • 195 National 197 NEC 005 • 006 • 007 • 017 • 023 • 127 Nikkai 112 • 113 • 118 Nikko 195 Nordmende 051 • 217 Onwa 041 Optonica 105 • 107 Orion 194 Osaki 112 Osume 091 Panasonic 008 • 009 • 010 • 011 • 012

026 • 074 • 075 • 197 • 200 • 206

PEC see Toshiba Penney 003 • 005 • 006 • 014

016 • 026 • 043 • 096

Performance See Sony Philco 005 • 006 • 024 • 025 • 068 • 110 Philips 026 • 088 Pioneer 002 • 048 • 051 • 076 Portland 005 • 026 Prima see Curtis Mathes Proscan 027 • 125 Proton 013 • 019 • 026 • 035 • 124 • 195 Pulsar 001 Pulser see Daewoo and Goldstar

NAD 002 • 117 • 195 Quasar 008 • 009 • 075 Radio shack 026 • 041 • 107 • 112 RCA 003 • 005 • 014 • 015 • 048 • 079 • 080

081 • 082 • 083 • 084 • 085 086 • 087 • 125 • 133 • 134

Realistic 090 Saba 051 Saisho 032 • 033 • 109 Sampo 006 • 109 Samsung 005 • 006 • 016 • 023 • 026 • 032

088 • 112 • 195 • 204 • 221

Sanyo 042 • 089 • 090 • 091 • 109 SBR 088 Schneider 088 Scott 026 • 034 • 037 • 041 • 093 Sears 003 • 023 • 034 • 042 •089 • 090

094 • 095 • 096 • 097 • 099 • 100 101 • 102 • 103 • 104 • 117 • 195

Sharp 026 • 091 • 105 • 106

107 • 108 • 128 • 129

Siemens 091 Signature 118 Solavox 112 Sony 000 • 109 • 119 • 122 Soundesign 025 • 041 • 195 Spectricon 020 • 120 Squareview 194 SSS 005 • 041 Supra 023 Supre-Macy 022 Sylvania 006 • 024 • 025 • 026

068 • 110 • 111

Symphonic 132 • 194 Tandy 105 • 113 Tatung 009

Technics 008 Techwood 023 Teknika 004 • 005 • 016 • 018 • 022

023 • 024 • 025 • 026 • 034

041 • 114 • 115

Teleavia 051 Telefunken 051 Teletech 032 Tera 013 Thomas 195 Thomson 051 Thomson-Projector 051 • 116 TMK 023 • 195 Toshiba 016 • 090 • 096 • 117 • 118 • 131 Tosonic 028 Totevision 026 Toyomenko 195 Universal 043 • 190 Vector Research 006 Victor 057 Video Concepts 070 Vidtech 005 • 195 Viking 022 Wards 005 • 006 • 015 • 018 • 024

025 • 027 • 034 • 043 • 066

107 • 119 • 190

White-Westinghouse 219 Yamaha 005 • 006 York 195 Zenith 001 • 018 Zonda 120

Digital Music Express 006 GI CFT2200/DCT1000 000 GI CFT2000 Series 001 GI DCR2000/3000 007 GI DCR4000 005 GI Sat. Mode 0 009

GI Sat. Mode 1 010 GI Sat. Mode 2 011 GI Sat. Mode 3 012 GI STARCOM Series 002 GI/Tocom 003 • 004 Primestar Mode 0 009

Manually turn ON power to the device you want to program the remote for (Cable Box, TV, or VCR).

Press and hold a mode key for approximately three seconds until the four mode keys flash twice. The selected mode key will continue to flash.

Press POWER. The mode key will stop flashing and remain on.

Point the remote control at the device.

Press and release the CURSOR UP key repeatedly and slowly. Each time you press the key, the remote sends the power-off command using a different device code. When the device turns off, the remote is programmed with a code that controls the device.

If you press the CURSOR UP key after the device has turned off, press the CURSOR DOWN key to return to the previous device code.

Test whether other functions operate using the remote control. If a primary function does not work, continue to press the CURSOR UP key to find another code that turns off the device. Then test the functions again.

When you are satisfied that all primary functions are working, press OK to lock in the code.

step 1

step 2

step 3

TELEVISION CODES

Action 140 Advantz 141 Adventura 088 Aiko 047 Aiwa 088 • 122 • 123 • 124 Akai 016 • 060 • 150 • 181 American 054 Audiovox 200 Broksonic 008 • 010 • 059 • 148 Calix 200 Canon 054 • 207 Capehart 046 Carver 065 CCE 047 • 089 Citizen 047 • 200 Colt 089 Craig 044 • 082 • 089 • 200 Curtis Mathes 051 • 054 • 060 Cybernex 079 Daewoo 034 • 046 • 047 • 126 • 127 Daytron 046 Dynatech 088 Electrohome 200 Electrophonic 200 Emerex 000

Emerson 005 • 006 • 007 • 008 • 009 • 010

011 • 047 • 059 • 067 • 088 • 090

160 • 163 • 164 • 200

Fisher 164 Funai 088 • 149 Garrard 149 GE 028 • 051 • 054 Goldstar 030 • 193 • 200 • 202 Go Video 057 • 058 • 120 Gradiente 175 Grundig 176 Harley Davidson 088 Harman Kardon 030 Harwood 011 • 089 Headquarter 081 HI-Q 082 Hitachi 032 • 037 • 040 • 041

060 • 118 • 177

Jensen 060 JVC 060 • 061 • 062 • 063 • 064 • 179 Kenwood 030 • 060 • 062 • 179 KLH 089 Kodak 054 • 200 Lloyd 088 Lloyd’s 160

Logik 089 LXI 088 • 200 Magnavox 027 • 033 • 054 • 065 • 144 • 180 Marantz 030 Marta 200 Matsushita 054 MEI 054 Memorex 033 • 054 • 066 • 081 • 082

083 • 085 • 088 • 200

MGA 067 Minolta 037 • 177 Mitsubishi 062 • 067 • 070 • 181 • 194 Motorola 054 • 085 Multitech 089 NEC 030 • 031 • 032 • 060 • 062 • 197 Nikko 200 Olympus 054 • 080 • 128 Optimus 085 • 200 • 205 Optonica 254 Orion 009 • 129 Panasonic 023 • 054 • 080 • 114 • 128 • 142

201 • 207 • 209 • 214 • 216 • 219

Penney 030 • 037 • 048 • 054 • 197 • 200 Pentax 037 • 177 Philco 054

Philips 054 • 065 • 144 • 143 • 254 Pilot 200 Pioneer 062 Portland 046 Protec 089 Pulsar 033 • 079 Quarter 081 Quartz 081 • 145 Quasar 023 • 054 Radio shack 149 • 200 Radix 200 Randex 200 RCA 027 • 028 • 029 • 037

051 • 130 • 177

Realistic 054 • 081 • 082

085 • 200 • 254

Ricoh 002 Runco 033 Samsung 034 • 079 Sanky 033 • 085 Sansui 044 • 032 • 060 • 082 Sanyo 081 • 082 • 083 • 146 Scott 008 • 010 • 034 • 059

067 • 090 • 212

Sears 037 • 048 • 054 • 081

Sears (cont.) 082 • 177 • 200 • 221 Sharp 085 • 254 Shintom 089 Sony 000 • 001 • 002 • 003 • 054 • 147 STS 037 Sylvania 054 • 065 • 067 • 144 • 180 Symphonic 149 Tatung 060 Teac 060 Technics 054 • 201 • 219 TMK 006 • 160 Toshiba 034 • 067 • 090 • 212 • 221 • 223 Totevision 200 Tronix 079 Vector 034 Vector Research 030 • 197 Video Concepts 034 • 068 • 197 Wards 027 • 037 • 054 • 082

085 • 089 • 090 • 254

White Westinghouse 088 XR-1000 054 XR-1001 089 Yamaha 030 Zenith 001 • 002 • 033

VCR CODES

If none of the codes listed for your Cable Box, TV, or VCR works, the CodeScan

™

method will allow you to cycle through all the available codes in the remote until you find the right Cable Box, TV, or VCR code.

CABLE AND AUXILLIARY CODES

RECALLING A DEVICE CODE

CODESCAN

™

The Cursor Up Key

Press a mode key until the four mode keys flash twice.

Press

HELP. The mode key flashes each of the three digits in the code. A

pause separates each digit. For example, three flashes represent the number

3. Rapid flashing represents 0.

Count and record the sequence of flashes to determine the three-digit code.

Perform the following steps to read the code currently set for a device. This is useful for retrieving a device code that was set using the CodeScan

™

method.
