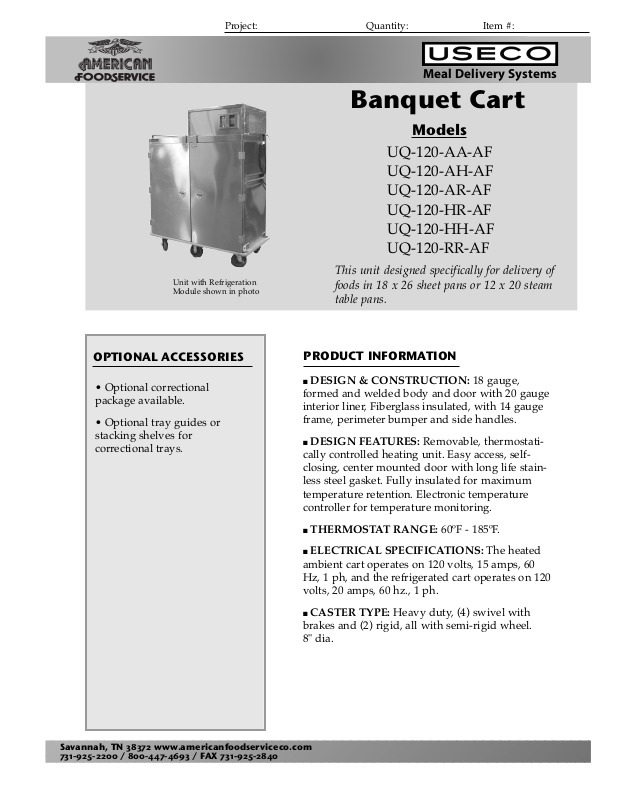

Useco UQ-120-AR-AF Specifications
Banquet Cart
UQ-120-AA-AF
UQ-120-AH-AF
UQ-120-AR-AF
UQ-120-HR-AF
UQ-120-HH-AF
UQ-120-RR-AF
This unit designed specifically for delivery of
foods in 18 x 26 sheet pans or 12 x 20 steam
table pans.
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
■ DESIGN & CONSTRUCTION: 18 gauge,
formed and welded body and door with 20 gauge
interior liner, Fiberglass insulated, with 14 gauge
frame, perimeter bumper and side handles.
■ DESIGN FEATURES: Removable, thermostati-
cally controlled heating unit. Easy access, selfclosing, center mounted door with long life stainless steel gasket. Fully insulated for maximum
temperature retention. Electronic temperature
controller for temperature monitoring.
■ THERMOSTAT RANGE: 60ºF - 185ºF.
■ ELECTRICAL SPECIFICATIONS: The heated
ambient cart operates on 120 volts, 15 amps, 60
Hz, 1 ph, and the refrigerated cart operates on 120
volts, 20 amps, 60 hz., 1 ph.
■ CASTER TYPE: Heavy duty, (4) swivel with
brakes and (2) rigid, all with semi-rigid wheel.
8" dia.
PRODUCT INFORMATION
Project: Quantity: Item #:
Models
• Optional correctional
package available.
• Optional tray guides or
stacking shelves for
correctional trays.
OPTIONAL ACCESSORIES
Meal Delivery Systems
Unit with Refrigeration
Module shown in photo
Banquet Cart, Heated, Insulated
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
UQ-120-AA-AF, UQ-120-AH-AF, UQ-120-AR-AF,
UQ-120-HR-AF, UQ-120-HH-AF, UQ-120-RR-AF
Due to continued product improvement, specifications are subject to change without notice. 4/01/10 USA
TECHNICAL SPECIFICATIONS
BID SPECIFICATIONS
Provide (1) model ___ Banquet cart.
Exterior body shall be constructed of 18 gauge stainless steel, formed and welded to form a smooth one-piece
unit. Interior liner shall be constructed of 20 gauge stainless steel with all corners coved for easy cleaning.
Joints and seams to be closed and sealed. The chassis shall be constructed of 14 gauge square frame material
reinforced with steel plate at all corners.
Door shall be double wall stainless steel construction with gasket and insulated.
Insulation shall be continuous wraparound fiberglass. Push handles shall be mounted on each end of cabinet.
Casters shall be heavy duty, 8" diameter semi-rigid, four swivel and two rigid. Heating assembly shall be
non-removable, AC with thermostatic control, calibrated from 60ºF to 185ºF. Perimeter bumpers shall be nonmarking vinyl mounted into a clincher-type channel.
Model
UQ-120
18 x 26 pans
or
12 x 20 pans
ELECTRICAL
Heated: 120V/60Hz/1ph
120 Volts, 15 Amps
Refrigerated: 120V/60Hz/1ph
10 Volts, 20 Amps
405
Weights (lbs.)
Net
Ship
Width
Depth
Height
440
62
311⁄2
66
