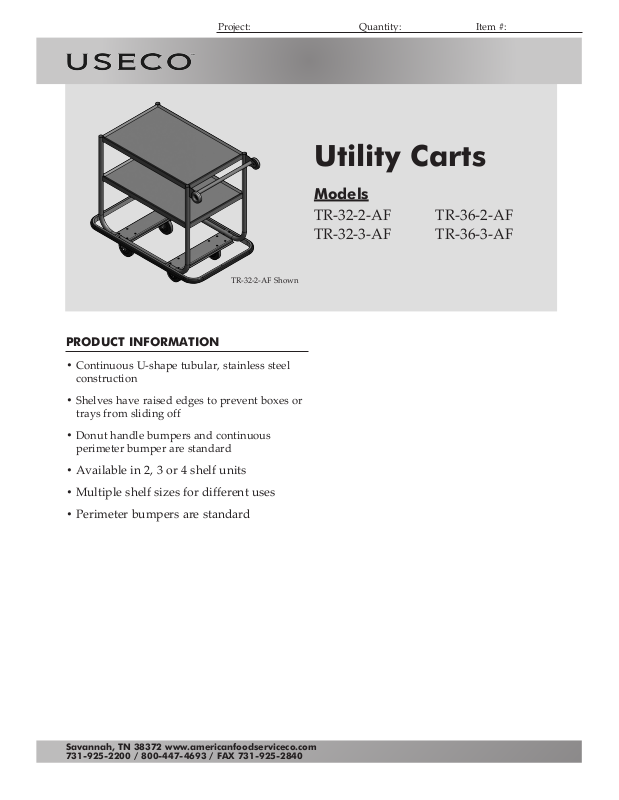

Useco TR-32-2-AF User Manual
Project: Quantity: Item #:
Utility Carts
Models
TR-32-2-AF TR-36-2-AF
TR-32-3-AF TR-36-3-AF
TR-32-2-AF Shown
PRODUCT INFORMATION
• Continuous U-shape tubular, stainless steel
construction
• Shelves have raised edges to prevent boxes or
trays from sliding off
• Donut handle bumpers and continuous
perimeter bumper are standard
• Available in 2, 3 or 4 shelf units
• Multiple shelf sizes for different uses
• Perimeter bumpers are standard
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
Utility Carts
TR-32-2-AF, TR-32-3-AF, TR-36-2-AF, TR-36-3-AF
Width
Width
TECHNICAL SPECIFICATIONS
Dimensions
Model
TR-32-2-AF
TR-32-3-AF
TR-36-2-AF
TR-36-3-AF
Shelf
W D H Size
411⁄4”
411⁄4”
441⁄4”
441⁄4”
251⁄4”
251⁄4”
29”
29”
36”
36”
36”
36”
BID SPECIFICATIONS
32” x 21”
32” x 21”
36” x 26”
36” x 26”
Shelf
Clearance
121⁄2”
10”
121⁄2”
10”
Height
Shipping
Weight
100 lbs.
108 lbs.
105 lbs.
114 lbs.
Provide (1) model ___________ Utility Cart.
Model TR-32-2-AF Tubular Utility Cart. Frame shall be 11⁄4” O.D. stainless steel tubing,
16-gauge wall. Two shelves 18-gauge stainless; all edges turned down 11⁄2”. Uprights capped
with stainless buttons. Mounted on four 5” casters, two fixed and two swivel.
Model TR-32-3-AF Tubular Utility Cart. Identical specifications to TR-32-2-AF except with
three shelves.
Model TR-36-2-AF Tubular Utility Cart. Identical specifications to TR-32-2-AF except larger
size.
Model TR-36-3-AF Tubular Utility Cart. Identical specifications to TR-36-2-AF except with
three shelves.
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
Due to continued product improvement, specifications are subject to change without notice. 2013 USA
