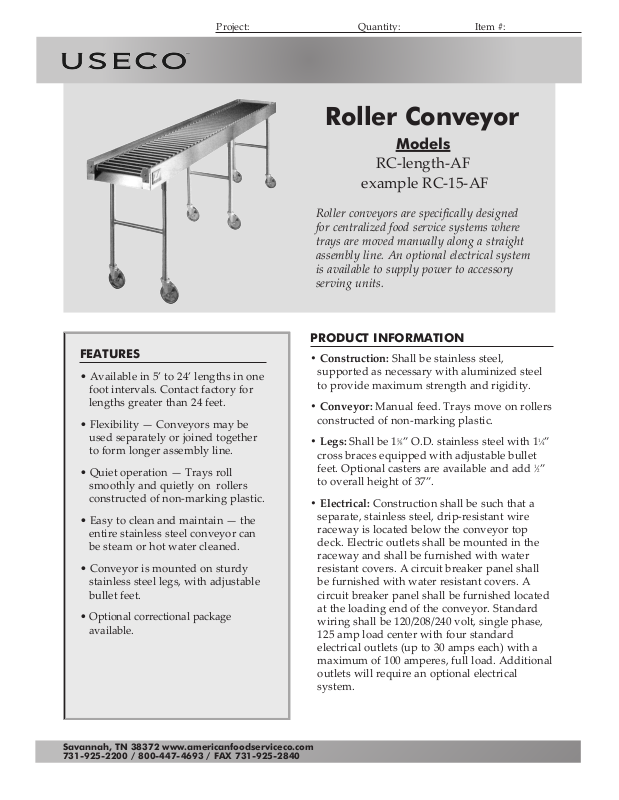

Useco RC-15-AF User Manual

Project: Quantity: Item #:

Roller Conveyor

Models

RC-length-AF

example RC-15-AF

Roller conveyors are specifically designed
for centralized food service systems where
trays are moved manually along a straight
assembly line. An optional electrical system
is available to supply power to accessory
serving units.

FEATURES

• Available in 5’ to 24’ lengths in one
foot intervals. Contact factory for
lengths greater than 24 feet.

• Flexibility — Conveyors may be
used separately or joined together
to form longer assembly line.

• Quiet operation — Trays roll
smoothly and quietly on rollers
constructed of non-marking plastic.

• Easy to clean and maintain — the
entire stainless steel conveyor can
be steam or hot water cleaned.

• Conveyor is mounted on sturdy
stainless steel legs, with adjustable
bullet feet.

• Optional correctional package
available.

PRODUCT INFORMATION

• Construction: Shall be stainless steel,

supported as necessary with aluminized steel
to provide maximum strength and rigidity.

• Conveyor: Manual feed. Trays move on rollers

constructed of non-marking plastic.

• Legs: Shall be 1

cross braces equipped with adjustable bullet
feet. Optional casters are available and add
to overall height of 37”.

• Electrical: Construction shall be such that a

separate, stainless steel, drip-resistant wire
raceway is located below the conveyor top
deck. Electric outlets shall be mounted in the
raceway and shall be furnished with water
resistant covers. A circuit breaker panel shall
be furnished with water resistant covers. A
circuit breaker panel shall be furnished located
at the loading end of the conveyor. Standard
wiring shall be 120/208/240 volt, single phase,
125 amp load center with four standard
electrical outlets (up to 30 amps each) with a
maximum of 100 amperes, full load. Additional
outlets will require an optional electrical
system.

5

⁄8” O.D. stainless steel with 11⁄4”

1

⁄2”

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

Roller Conveyor

RC-length-AF (RC-15-AF)

TECHNICAL SPECIFICATIONS

Dimensions

Model #

RC-05-AF
RC-06-AF
RC-07-AF
RC-08-AF
RC-09-AF
RC-10-AF

RC-11-AF

RC-12-AF
RC-13-AF
RC-14-AF

RC-15-AF

RC-16-AF
RC-17-AF

RC-18-AF

RC-19-AF
RC-20-AF
RC-21-AF
RC-22-AF
RC-23-AF
RC-24-AF

Approx. Shipping
W D H** Weight (lbs.)

5’
6’
7’
8’

9’
10’
11’
12’
13’
14’
15’
16’
17’
18’
19’
20’
21’
22’
23’
24’

18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”
18”

37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”
37”

260
302
344
386
428
470
512
554
596
638
630
652
674
696
718
740
762
784
806
828

BID SPECIFICATIONS

Model _______ Roller Conveyor. Overall
dimensions shall be __” wide x __” long x __” high.
All seams shall be continuously welded and
polished. Leg stands shall be 15⁄8” O.D. stainless
steel with 11⁄4” cross braces and have adjustable
bullet feet. Tray rollers shall be constructed of
non-marking plastic. Electric shall be separate in
a stainless steel drip-resistant wireway with water
resistant cover furnished on all outlets mounted in
the raceway.

OPTIONAL ACCESSORIES

• Three shelf starter station shelves on 8” spacing.
First and second shelves cut out for 12” x 20”
pans. (Pans not included.)

• Circuit breaker panel and electric raceway.

• Casters in lieu of legs with adjustable feet. Add

1

⁄2” to overall height.

• Optional correctional package available.

NOTE:

*For conveyors mounted on optional casters add suffix “C”
to model number. For optional electrical raceway add suffix
“E”.

**Height with casters is 371⁄2”.

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

Due to continued product improvement, specifications are subject to change without notice. 2013 USA
