USC LP2000 Operator's Manual

2011

LP2000 with Seed Wheel

Introduction

Introduction

Thank you for choosing USC, LLC for your equipment needs. We appreciate your
business and will work diligently to ensure that you are satisfied with your choice.

OVERVIEW

The purpose of this manual is to provide you with the basic information needed to
operate and maintain the LP2000. It does not hold USC, LLC liable for any
accidents or injuries that may occur.

OPERATOR RESPONSIBILITIES

As the purchaser/owner/operator of this equipment and control system, you have an
obligation to install, operate, and maintain the equipment in a manner that minimizes
the exposure of people in your care to any potential hazards inherent in using this
equipment. It is critical that the owner of this equipment:

 Has a clear and documented understanding of the process this machine is

being used in and of any resulting hazards or special requirements arising
from this specific application.

 Allow only properly trained and instructed personnel to install, operate, or

service this equipment.

 Maintain a comprehensive safety program involving all who work with this

machine and other associated process equipment.

 Establish clear areas of staff responsibility (e.g. operation, setup, sanita-

tion, maintenance, and repairs).

 Provide all personnel with necessary safety equipment.
 Periodically inspect the equipment to insure that the doors, covers,

guards, and safety devices are in place and functioning, that all safety in­structions and warning labels are intact and legible, and that the equip­ment is in good working order.

 In addition to the operating instructions, observe and enforce the applica-

ble legal and other binding regulations, national and local codes.

As the person with the most to gain or loose from working safely, it is important that
you work responsibly and stay alert. By following a few simple rules, you can
prevent an accident that could injure or kill you or a co-worker.

USC, LLCPage 2

LP2000 with Seed Wheel

 Do not operate, clean, or service this equipment until you have read and

understood the contents of this manual. If you do not understand the
information in this manual, bring it to the attention of your supervisor, or
call your local USC dealer for assistance.

 Any operator who is known or suspected to be under the influence of

alcohol or drugs should not be allowed to operate the equipment.

 Understand and follow the safety practices required by your employer and

this manual.

 PAY ATTENTION to what you and other personnel are doing and how

these activities may affect your safety.

 Failure to follow these instructions may result in serious personal

injury or death.

RECEIVING YOUR EQUIPMENT

As soon as the equipment is received, it should be carefully inspected to make
certain that it has sustained no damage during shipment and that all items listed on
the packing list are accounted for. If there is any damage or shortages, the
purchaser must immediately notify your USC dealer. Ownership passes to
purchaser when the unit leaves the USC, LLC. premises. The purchaser is
responsible for unloading and mounting all components of the equipment.

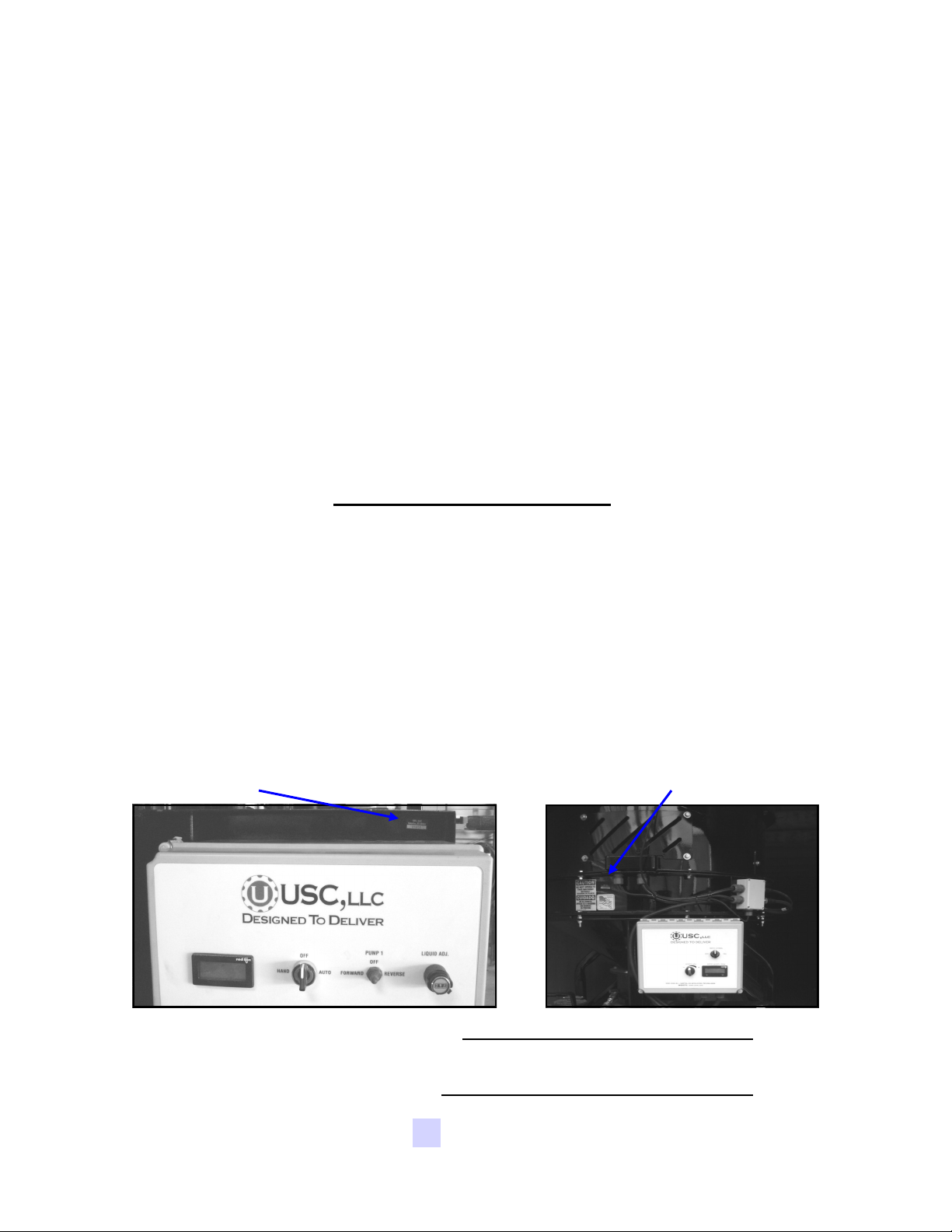

Document the serial numbers of the machine for future reference. The seed treater
serial number is located on the upper right corner of the main control panel
mounting bracket. And the seed wheel serial number is located under the front
guard.

Seed Treater Serial Number

Seed Wheel Serial Number

SEED TREATER SERIAL NUMBER:____________________________

SEED WHEEL SERIAL NUMBER:______________________________

USC, LLC Page 3

LP2000 with Seed Wheel

Table of Contents

Table of Contents

Section Contents Page #

Legend .................................................................................... 5

Section A Safety Instructions ................................................................. 6

Section B Installation ............................................................................ 14

Section C Mechanical Operation .......................................................... 18

System Overview ................................................................... 18

Supply Hopper ....................................................................... 19

Seed Wheel ............................................................................ 19

Atomizer Chamber ................................................................. 21

Rotating Drum ........................................................................ 21

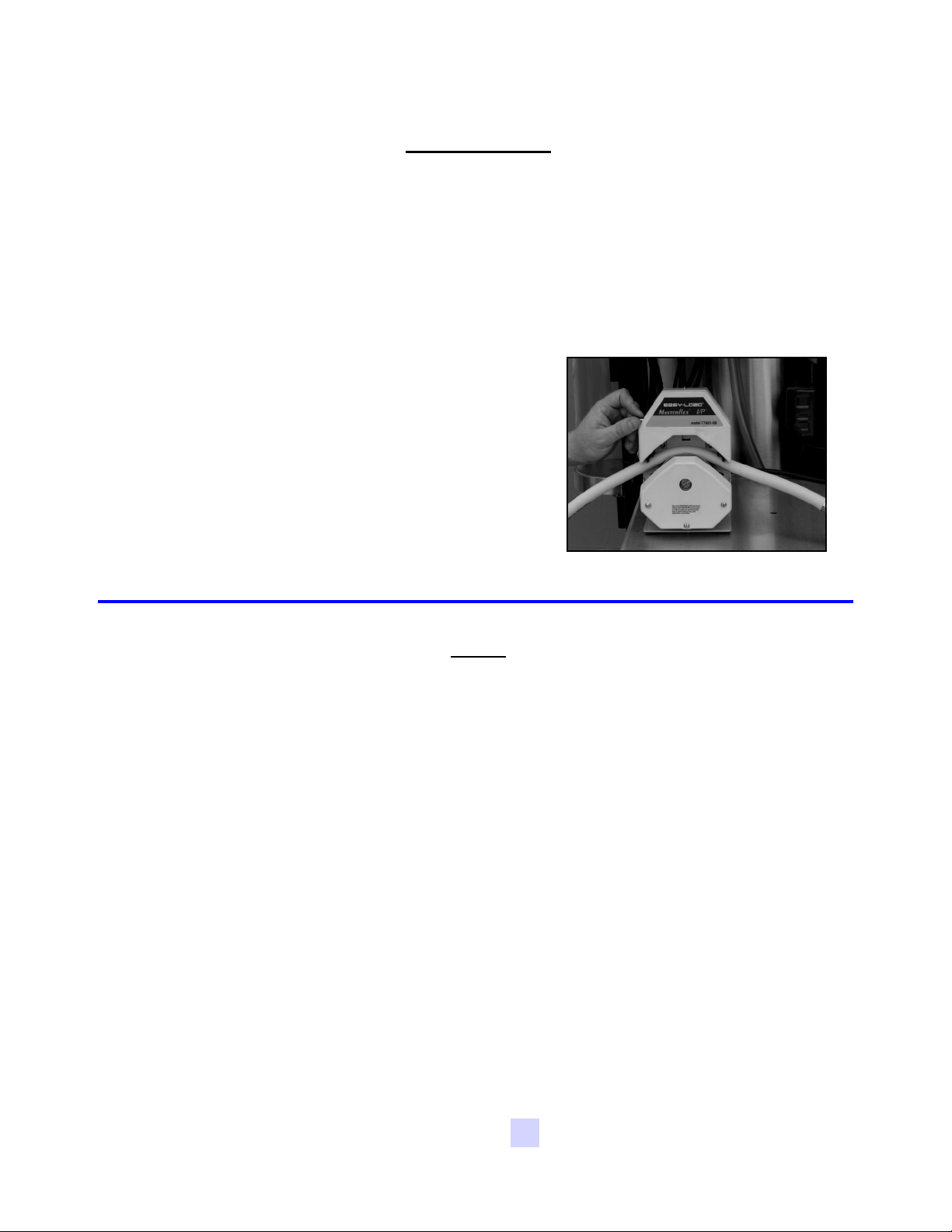

Pump #1 Liquid System ......................................................... 22

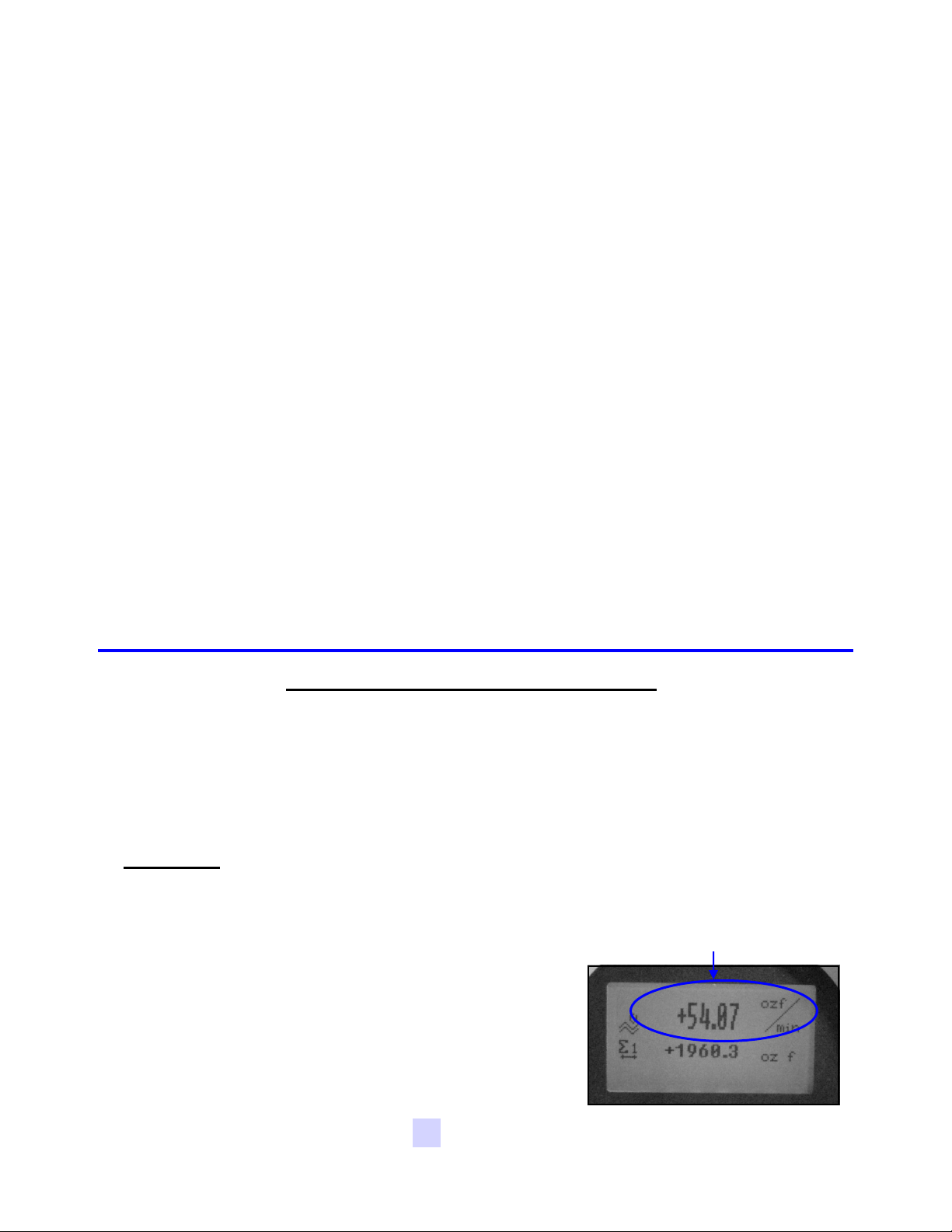

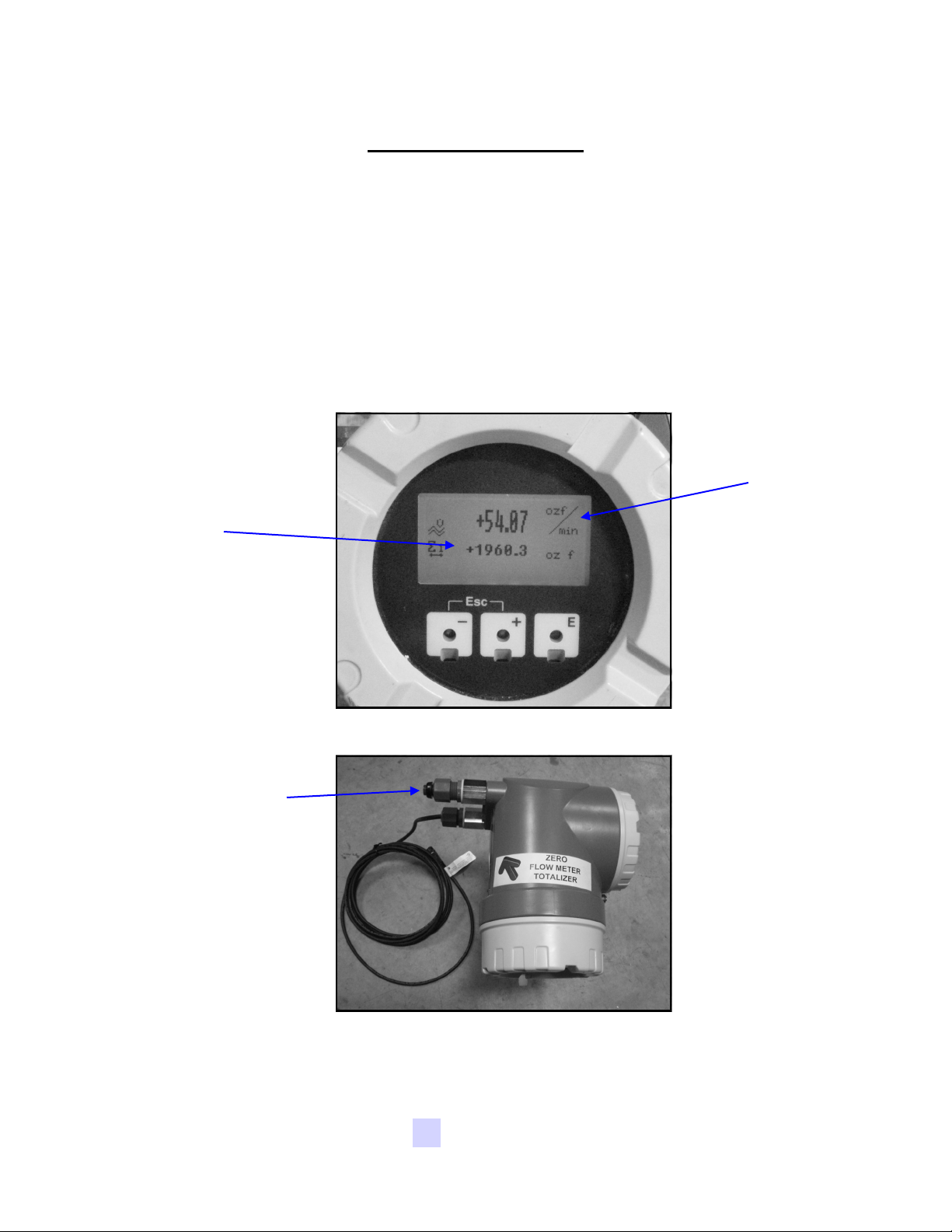

Flow Meter ............................................................................. 25

Pump #2 Liquid System ......................................................... 26

Section D Electrical Operation ............................................................. 28

Control Panel ......................................................................... 28

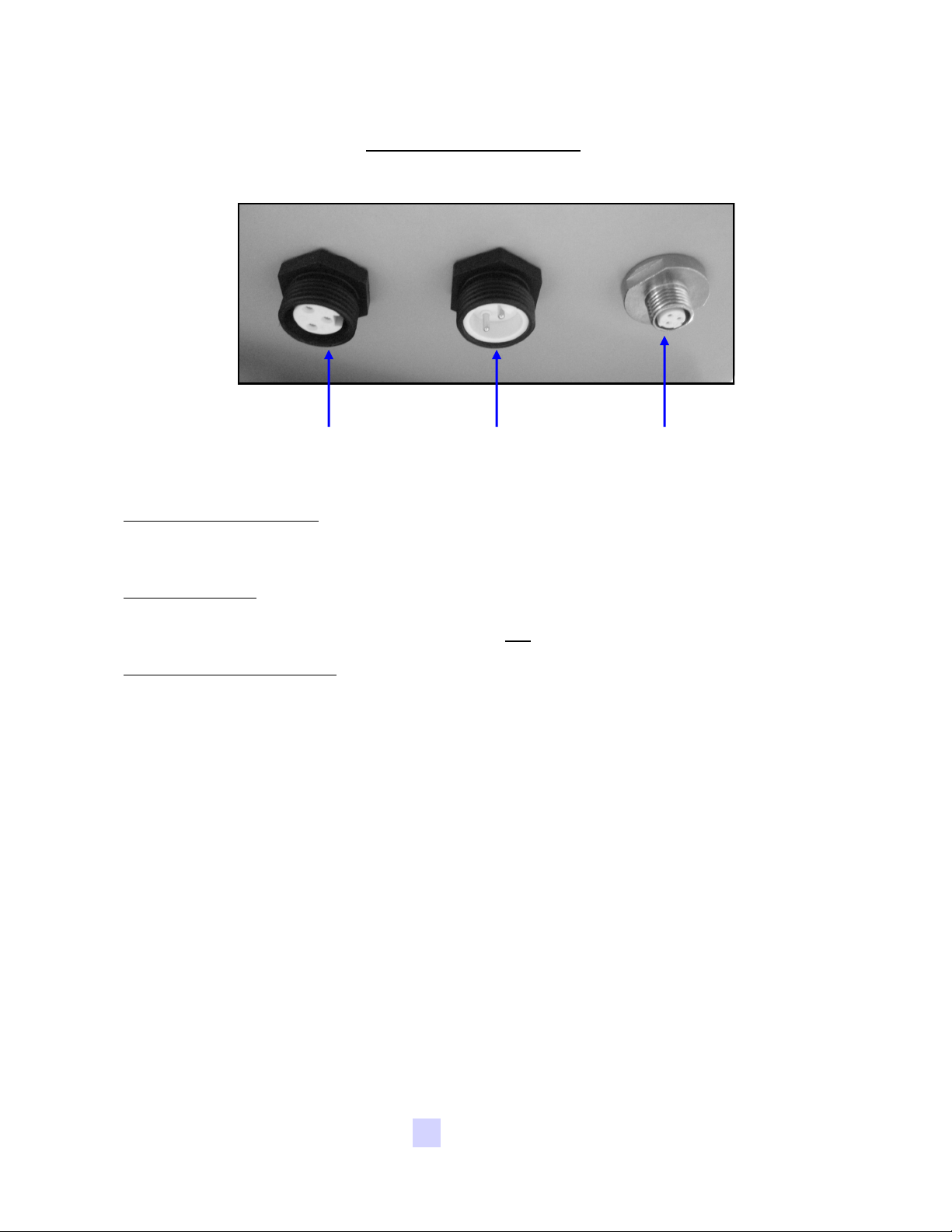

Bottom of Control Panel ......................................................... 30

Seed Wheel Control Panel ................................ ..................... 31

Section E Calibration ............................................................................ 34

Seed Flow Calibration ............................................................ 34

Using Seed Wheel Worksheet ............................................... 36

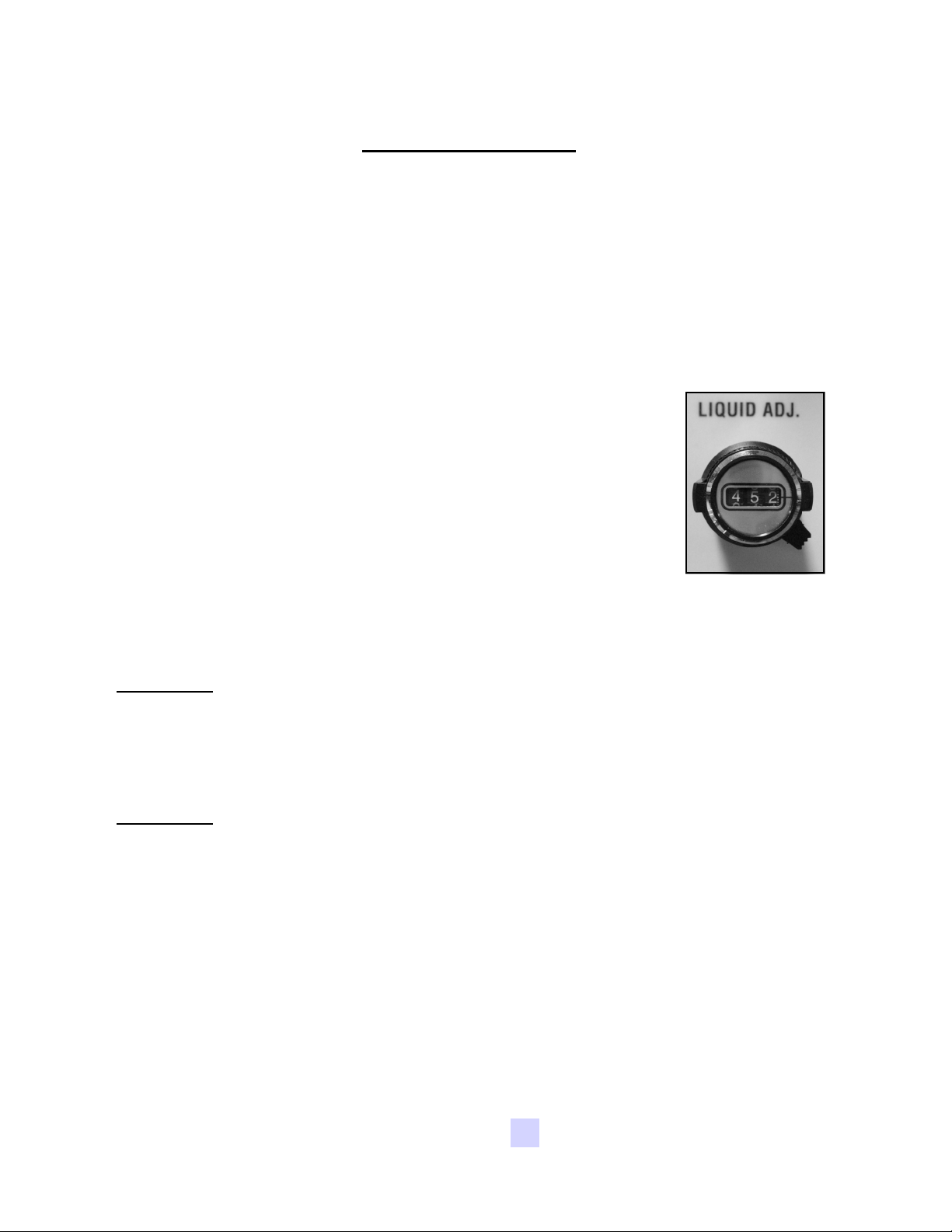

Pump 1 Calibration ................................................................. 38

Pump 2 Calibration ................................................................. 40

Pump Charts .......................................................................... 42

Treating Seed ......................................................................... 44

Section F Troubleshooting ................................................................... 50

Proximity Switch Adjustment Guide........................................ 53

Section G Maintenance ......................................................................... 54

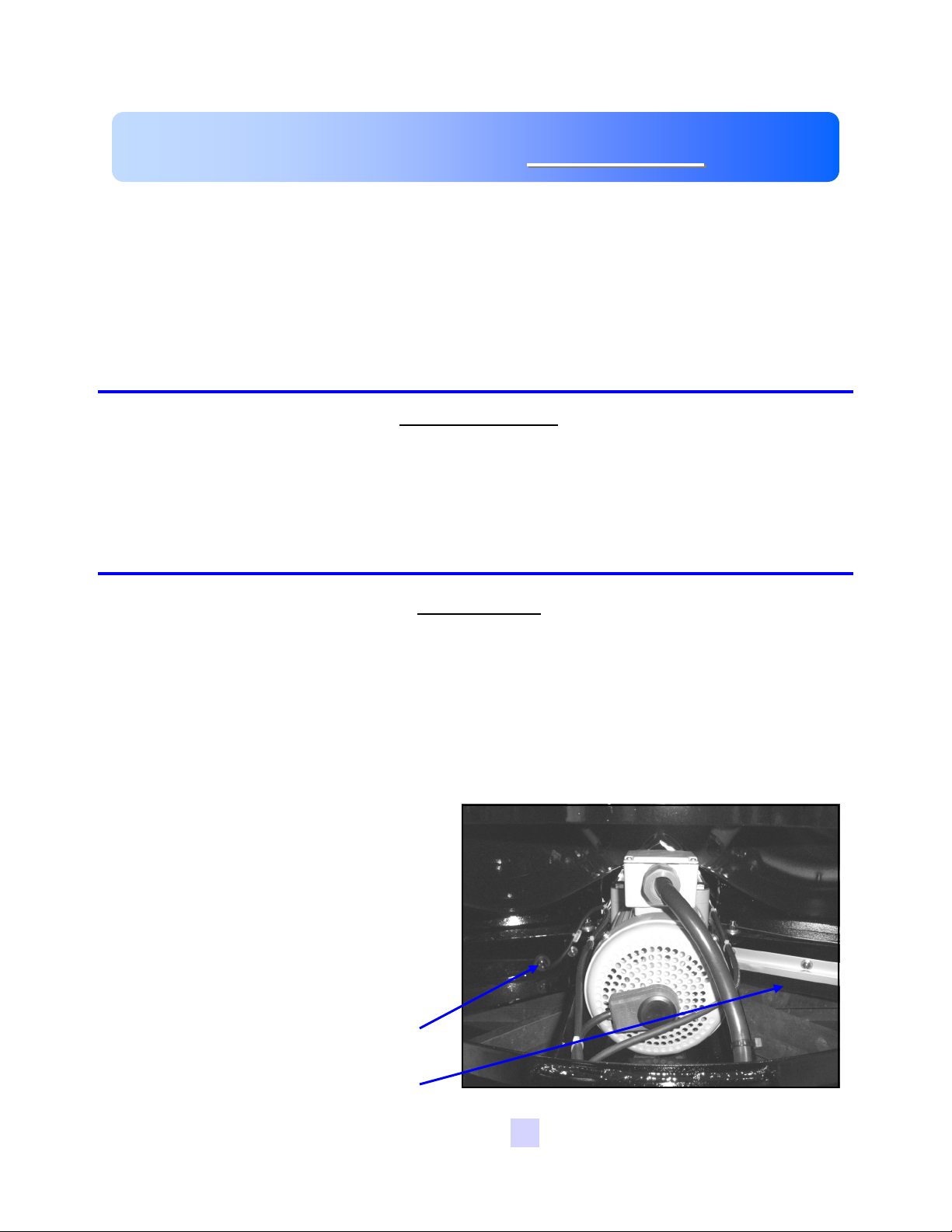

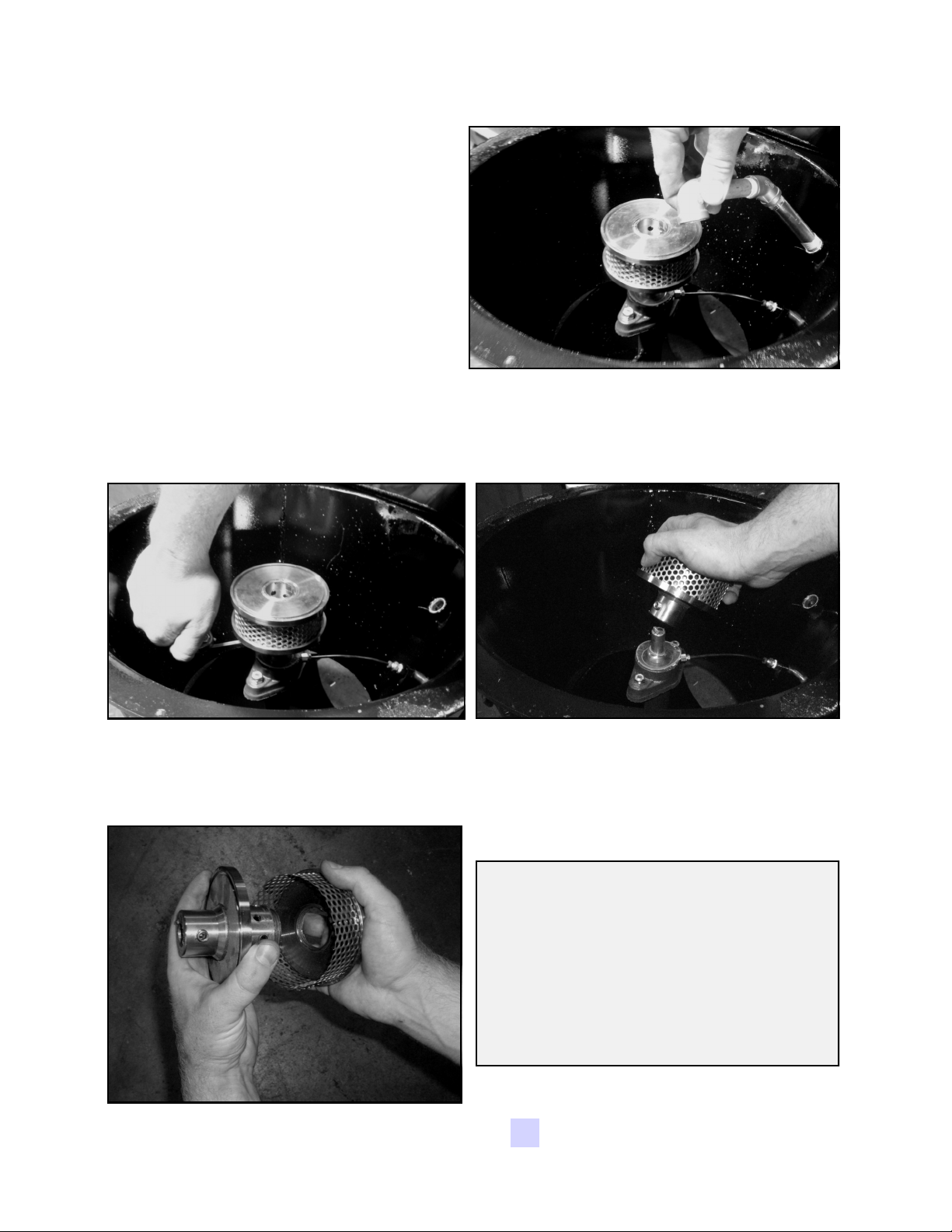

Removing Atomizer ................................................................ 56

Section H Storage .................................................................................. 60

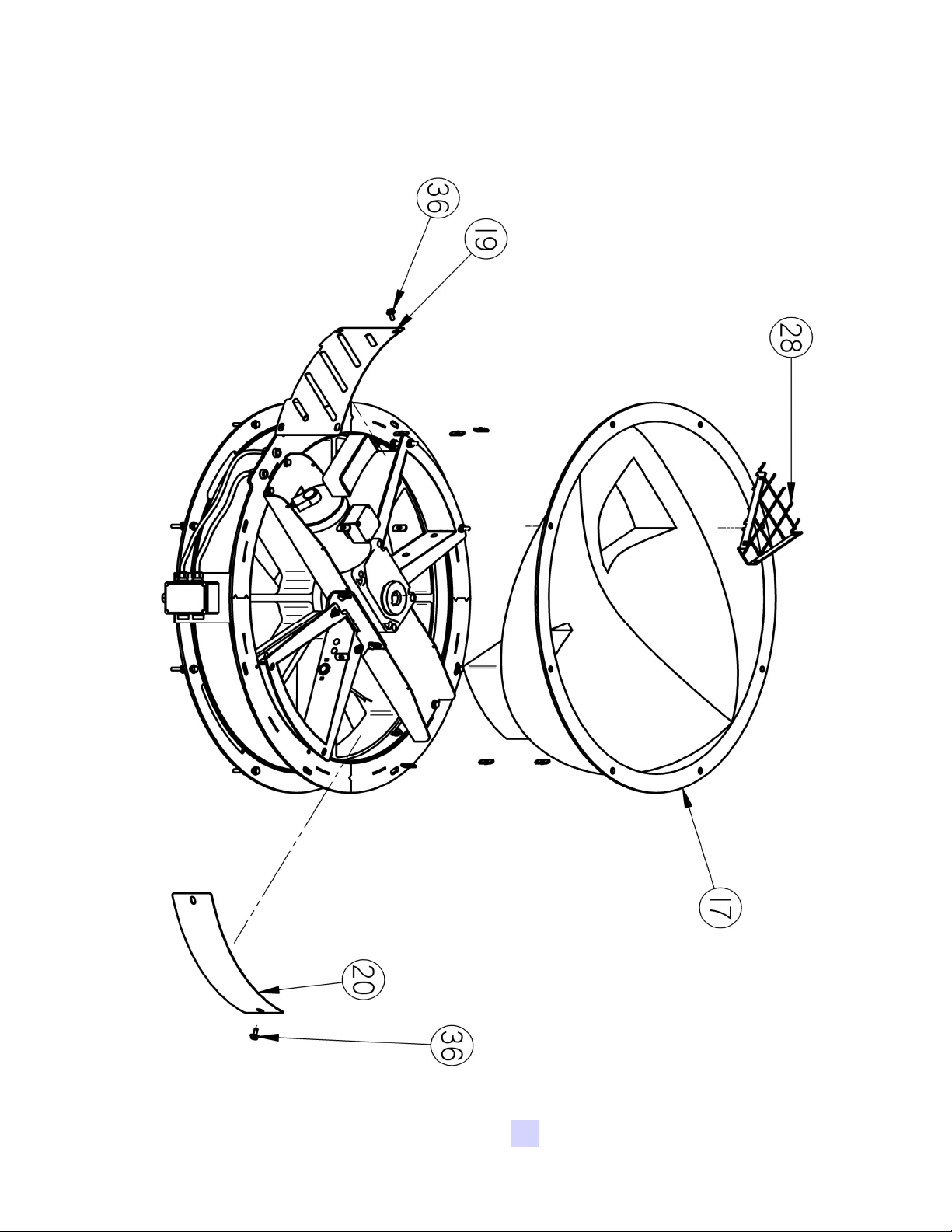

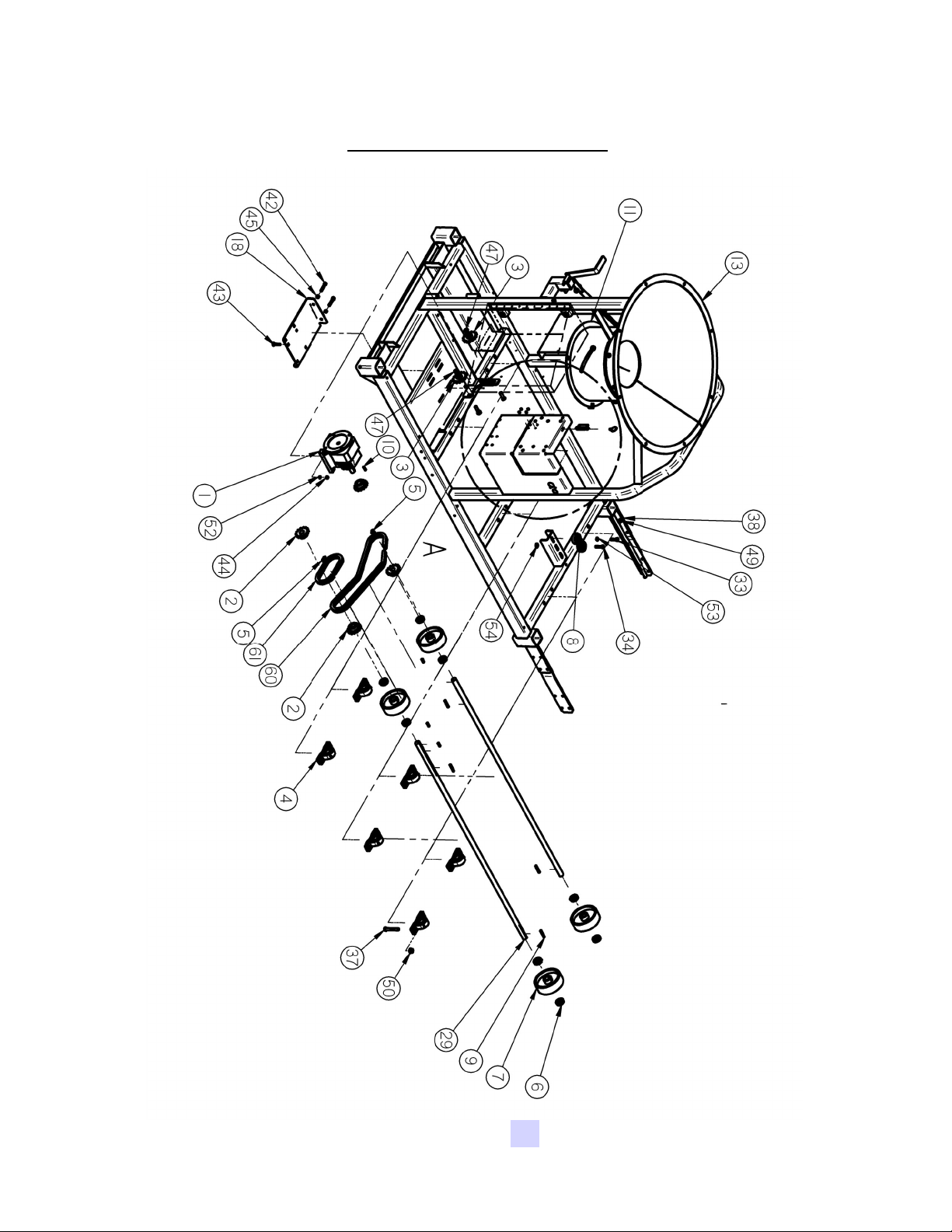

Section I Mechanical Drawings ........................................................... 63

Section J Limited Warranty .................................................................. 88

USC, LLCPage 4

LP2000 with Seed Wheel

Legend

Legend

Throughout this manual there are small icons located in the left margin. They
indicate special information that may apply to your seed treater model. As the
legend below indicates, there is 1 icon, each of which represent a different seed
treater setup. If you have a Cotton/Rice treater, please take note when one of
these pictures is shown because it provides pertinent information.

LEGEND

Represents information specific to treaters designed to treat
Cotton and Rice seed

USC, LLC Page 5

LP2000 with Seed Wheel

Section

Section

Safety Instructions

AA

Every year accidents in the work place maim, kill, and injure people. Although it
may be impossible to prevent all accidents, with the right combination of training,
operating practices, safety devices, and operator vigilance, the number of accidents
can be significantly reduced. The purpose of this section is to educate equipment
users about hazards, unsafe practices, and recommended hazard avoidance
techniques.

It is very important that operators and maintenance personnel understand the words
and symbols that are used to communicate safety information. Safety words, their
meaning and format, have been standardized for U.S. manufacturers and published
by the American National Standards Institute (ANSI). The European Community
(E.C.) has adopted a different format based on the International Standards Organi­zation (I.S.O.) and applicable machinery directives. Both formats are presented be­low. Graphic symbols are not standardized, but most manufacturers will use some
variation of the ones seen in this manual.

Safety Instructions

SAFETY WORDS AND SYMBOLS

Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury and/or
property damage.

Provides additional information that the operator needs to be
aware of to avoid a potentially hazardous situation.

USC, LLCPage 6

LP2000 with Seed Wheel

Mandatory Lockout Power Symbol. Disconnect, lockout,
and tagout electrical and other energy sources before inspect­ing, cleaning, or performing maintenance on this panel.

International Safety Alert Symbol. The exclamation point (!)
surrounded by a yellow triangle indicates that an injury hazard
exists. However, it does not indicate the seriousness of
potential injury. The exclamation point (!) is also used with the
DANGER, WARNING, and CAUTION symbols so the
potential injury is indicated.

Electrocution Hazard Symbol. This symbol indicates that
an electrocution hazard exists. Serious injury or death could
result from contacting high voltage.

International Electrocution Hazard. This symbol indicates
that an electrocution hazard exists. Serious injury or death
could result from contacting high voltage.

Mandatory Read Manual Action Symbol. (I.S.O. format)
This symbol instructs personnel to read the Operators Manual
before servicing or operating the equipment.

Mandatory Read Manual Action Symbol. This symbol
instructs personnel to read the Operators Manual before
servicing or operating the equipment.

Notice is used to notify people of important installation,
operation, or maintenance information which is not hazard
related.

USC, LLC Page 7

LP2000 with Seed Wheel

LOCKOUT / TAGOUT PROCEDURES

Lockout/Tagout is the placement of a lock/tag on an energy isolating device in
accordance with an established procedure. When taking equipment out of service
to perform maintenance or repair work, always follow the lockout/tagout procedures
as outlined in ANSI Z344.1 and/or OSHA Standard 1910.147. This standard

“requires employers to establish a program and utilize procedures for affixing appro-

priate lockout devices or tagout devices to energy isolating devices and to otherwise
disable machines or equipment to prevent unexpected energizing, start-up, or re­lease of stored energy in order to prevent injury to employees.”

CONTROLLED STOP

This is the stopping of machine motion by reducing the electrical command signal to
0 (zero) once the stop signal has been recognized.

HAZARD REVIEW

Electrocution Hazard

Electrocution accidents are most likely to occur during maintenance of the
electrical system or when working on or near exposed high voltage wiring.
This hazard does not exist when the electrical power has been discon­nected, properly locked, and tagged out.

Automatic Start Hazard

This seed treating system is usually controlled by an automated system
and may start without warning. Failure to properly disconnect, lockout, and
tagout all energy sources of remotely controlled equipment creates a very
hazardous situation and could cause injury or even death. PLEASE STAY
CLEAR AND BE ALERT.

USC, LLCPage 8

LP2000 with Seed Wheel

YOU are responsible for the SAFE operation and maintenance of your USC, LLC
Seed Treating System. YOU must ensure that you and anyone else who is going to
operate, maintain, or work around the Seed Treating System be familiar with the
operating and maintenance procedures and related SAFETY information contained
in this manual. This manual will take you step-by-step through your working day
and alert you to good safety practices that should be adhered to while operating the
Seed Treating System.

Remember, YOU are the key to safety. Good safety practices not only protect you,
but also the people around you. Make these practices a working part of your safety
program. Be certain that EVERYONE operating this equipment is familiar with the
recommended operating and maintenance procedures and follows all the safety
precautions. Most accidents can be prevented. Do not risk injury or death by
ignoring good safety practices.

 LP Series Seed Treater owners must give operating instructions to operators or

employees before allowing them to operate the machine, and at least annually
thereafter per OSHA (Occupational Safety and Health Administration) regulation

1928.57.

 The most important safety device on this equipment is a SAFE operator. It is the

operator’s responsibility to read and understand ALL Safety and Operating
instructions in the manual and to follow them. All accidents can be avoided.

 A person who has not read and understood all operating and safety instructions

is not qualified to operate the machine. An untrained operator exposes himself
and bystanders to possible serious injury or death.

 Do not modify the equipment in any way. Unauthorized modification may impair

the function and/or safety and could affect the life of the equipment.

 Think SAFETY! Work SAFELY!

GENERAL SAFETY

1. Read and understand the Operator’s Manual and all safety signs
before operating, maintaining, adjusting or unplugging the LP
Series Seed Treater.

2. Only trained persons shall operate the seed treater. An untrained
operator is not qualified to operate the machine.

3. Have a first-aid kit available for use should the need arise, and
know how to use it.

USC, LLC Page 9

LP2000 with Seed Wheel

4. Provide a fire extinguisher for use in case of an accident. Store in a
highly visible place.

5. Do not allow children, spectators or bystanders within hazard area of
machine.

6. Wear appropriate protective gear. This includes but is not limited to:

 A hard hat
 Protective shoes with slip resistant soles
 Protective goggles
 Heavy gloves
 Hearing protection
 Respirator or filter mask

7. Place all controls in neutral or off, stop motor, and wait for all moving
parts to stop. Then disable power source before servicing, adjusting,
repairing, or unplugging.

8. Review safety related items annually with all personnel who will be operating or
maintaining the LP Series Seed Treater.

OPERATING SAFETY:

1. Read and understand the Operator’s Manual and all safety signs before using.

2. Disconnect and disable electrical supply completely and wait for all moving parts
to stop before servicing, adjusting, repairing or unplugging.

3. Clear the area of bystanders, especially children, before starting.

4. Be familiar with the machine hazard area. If anyone enters hazard area, shut
down machine immediately. Clear the area before restarting.

5. Keep hands, feet, hair and clothing away from all moving and/or rotating parts.

6. Stay away from overhead obstructions and power lines during operation and
transporting. Electrocution can occur without direct contact.

7. Do not operate machine when any guards are removed.

8. Inspect welds and repair if needed.

USC, LLCPage 10

LP2000 with Seed Wheel

PLACEMENT SAFETY

1. Move only with the appropriate equipment

2. Stay away from overhead power lines when moving Seed Treating System.
Electrocution can occur without direct contact.

3. Be familiar with machine hazard area. If anyone enters hazard areas, shut down
machine immediately. Clear the area before restarting.

4. Operate the Seed Treater on level ground free of debris. Anchor the Seed
Treater to prevent tipping or upending.

Before placement of the Seed Treater, be sure that ground is
reasonably level. The Seed Treater may topple or work
improperly if the ground is too uneven, damaging the
equipment and/or causing personal injury.

MAINTENANCE SAFETY

1. Review the Operator’s Manual and all safety items before
working with, maintaining or operating the Seed Treating
System.

2. Place all controls in neutral or off, stop motors, disable power
source, and wait for all moving parts to stop before servicing,
adjusting, repairing or unplugging.

3. Follow good shop practices:
Keep service area clean and dry.

Be sure electrical outlets and tools are properly grounded.
Use adequate light for the job at hand.

4. Keep hands, feet, hair and clothing away from all moving and/or rotating parts.

5. Clear the area of bystanders, especially children, when carrying out any
maintenance and repairs or making any adjustments.

6. Before resuming work, install and secure all guards when maintenance work is
completed.

7. Keep safety signs clean. Replace any sign that is damaged or not clearly visible.

USC, LLC Page 11

LP2000 with Seed Wheel

SAFETY SIGNS

1. Keep safety signs clean and legible at all times.

2. Replace safety signs that are missing or have become illegible.

3. Replaced parts that displayed a safety sign should also display the current sign.

4. Safety signs are available from your Authorized Dealer.

How to Install Safety Signs:

 Be sure that the installation area is clean and dry.
 Be sure temperature is above 50
 Decide on the exact position before you remove the backing paper.
 Remove the smallest portion of the split backing paper.
 Align the sign over the specified area and carefully press the small portion

o

F (10oC).

with the exposed sticky backing in place.

 Slowly peel back the remaining paper and carefully smooth the remaining

portion of the sign in place.

 Small air pockets can be pierced with a pin and smoothed out using the

piece of sign backing paper.

Located on the USC equipment you will find safety labels.
Always be sure to read and follow all directions on the labels.

USC, LLCPage 12

LP2000 with Seed Wheel

Guards provided with USC Seed treater are to remain in place
during operation.

USC, LLC Page 13

LP2000 with Seed Wheel

Section

Section

Installation

BB

The following steps outline the initial set-up of your USC Seed Treating system:

Installation

HIGH VOLTAGE ~ Always disconnect the power source be­fore working on or near the control panel or lead wires.

HIGH VOLTAGE ~ Use insulated tools when making adjust­ments while the controls are under power.

Permanent installation may require additional electrical cords,
liquid hose, and air lines, since each installation is unique.

SET-UP

1. Clear the area of bystanders, especially small children, before moving.

2. Be sure there is enough clearance from overhead obstructions and power lines
or other equipment to move the machine into its working position.

3. Using a forklift, place the seed treater in the desired position on a level surface.

USC highly recommends that the seed treater be set up inside a
building or any covered structure to protect the machine from
weathering.

Seed Inlet

FRONT

REAR

Seed
Discharge

USC, LLCPage 14

LP2000 with Seed Wheel

4. Remove any boxes and the front leg from the drum of the treater.

5. Install the four legs provided and set up on a level surface, preferably concrete.
When all four legs are mounted in the same pin hole, the seed treater has a
slight slope to allow seed to travel through the machine. The pin holes are
approximately 2” apart.

If more slope is desired, the rear
legs can be dropped an additional
pin hole.

6. Anchor the seed treater in position to prevent
the machine from moving during operation.

7. Inspect machine thoroughly for screws, bolts,
fittings, etc. which may have come loose during
shipping.

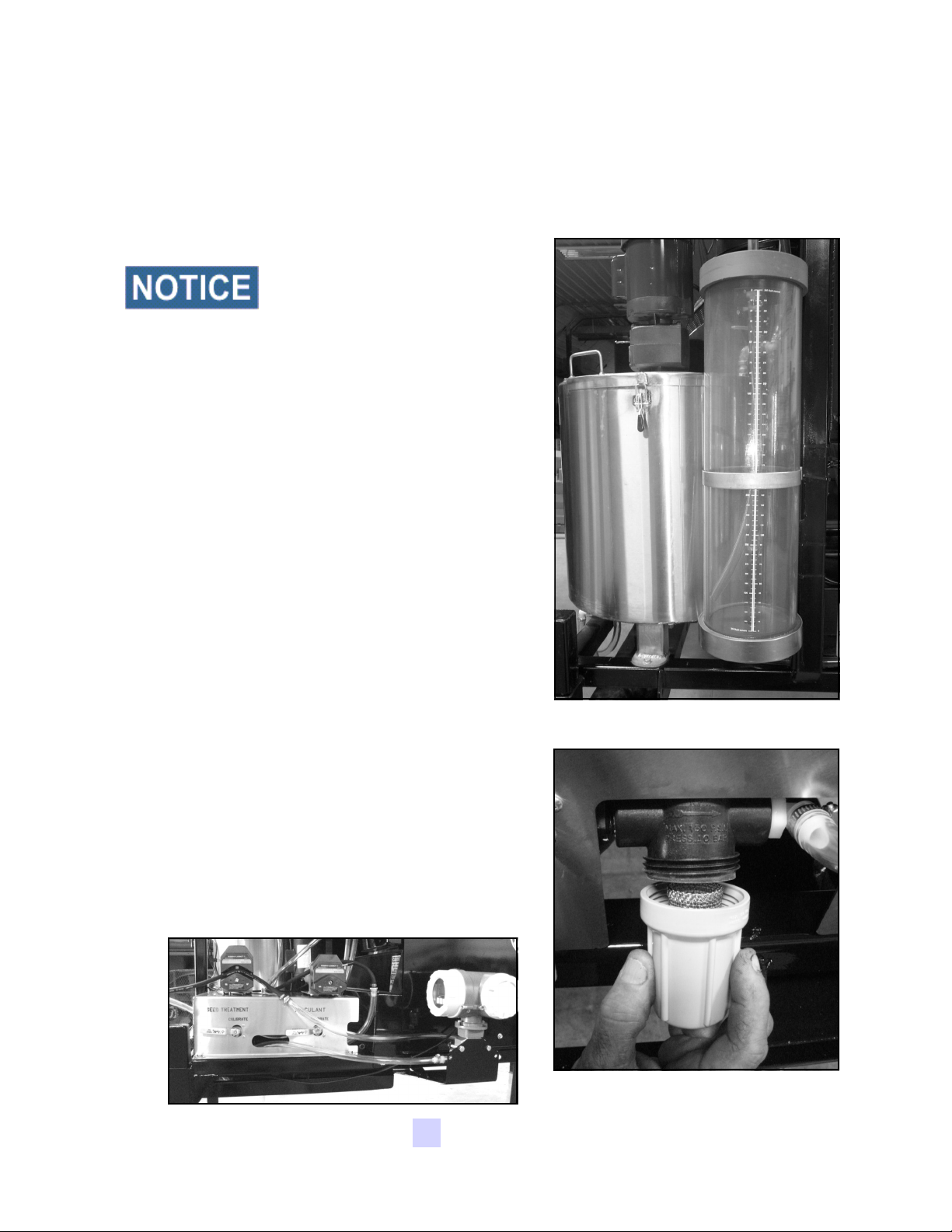

8. Remove the calibration tube from the box and
install on the left side of the control panel using
the pins. Once the calibration tube is set in
place, connect the two chemical lines.

9. Remove the filter body from the control panel
and install on the front of the treater. The filter
is shipped in the control panel to avoid damage
in shipping.

10. If the treater is utilizing a flow meter, the flow
meter will need to be installed. Remove the
flow meter from the box and mount it on the
right hand side of the seed treater (seed
picture below). Connect the front and back
tubing to the flow meter. After the flow meter
has been installed, connect the cord from the
flow meter to the receptacle (page 31) located
on the bottom of the seed treater control panel.

11. Check and tighten all hose connections.

Calibration Tube

Filter

USC, LLC Page 15

LP2000 with Seed Wheel

12. Connect any conveyors into the seed treater
control panel. Ensure that the conveyors
being used are the same power ratings as the
seed treater.

The starters and overloads
located in the seed treater panel
are rated for 5 HP motors. Do
NOT plug any conveyor into the
seed treater that exceeds 5 HP.

13. Have a certified electrician provide power to
the seed treating system. Provide convenient
shutdown switches and comply with local
electrical codes. The USC system must be
connected to the same electrical requirements
as specified in the main control panel on the
power requirement tag (right), or the electrical
schematic shipped with the piece of
equipment. This will power the USC system
except the seed wheel.

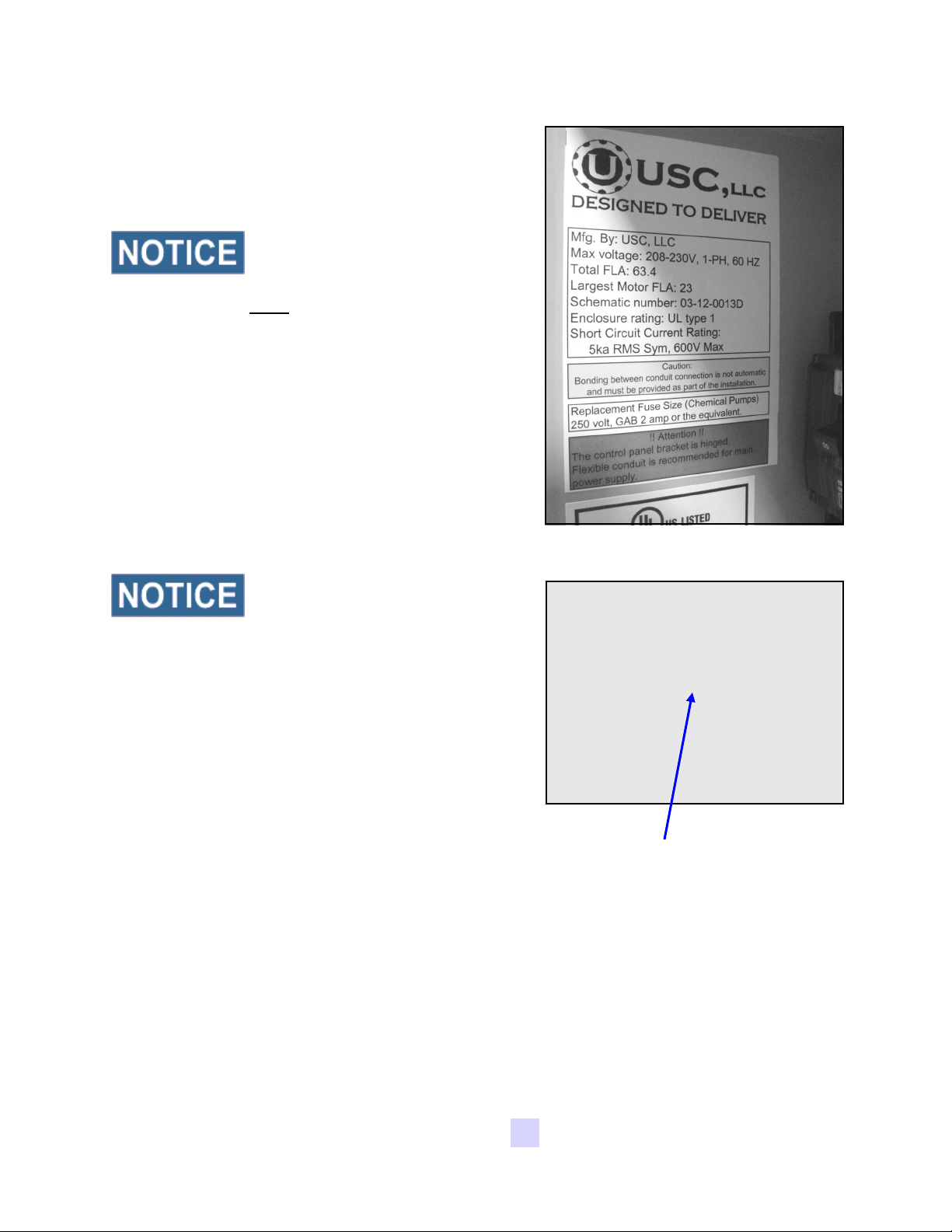

Power Requirements Tag

Control panel bracket is hinged
to allow access to the atomizer
chamber. Flexible conduit is
recommended for main power
supply .

14. Connect the Seed Wheel to a 120 volt power
source.

15. Open the adjustable seed gate to its most
wide open position. If the seed gate is not
open fully, seed flow will be diminished and
may even back up into the seed wheel.

16. Reverse the previous steps when removing
the machine from its working position.

Incoming Power Connected To

These Terminals

USC, LLCPage 16

LP2000 with Seed Wheel

NOTES

USC, LLC Page 17

Section

Section

CC

Seed Wheel

27-gallon
Mix Tank

LP2000 with Seed Wheel

Mechanical Operation

Mechanical Operation

SYSTEM OVERVIEW

Supply Hopper

Rotating
Drum

Calibration
Tube

Filter

Peristaltic Pump
(2-200 Pump Motor
& I/P Pump Head)

OR

Peristaltic Pump
(1/4 HP Leeson Pump
Motor, I/P Pump Head, &
Speed Reducer, )

Atomizer
Chamber

Conveyor

Outlets

Inoculant Tank
Bracket

Flow

Meter

Adjustable
Legs

USC, LLCPage 18

LP2000 with Seed Wheel

SUPPLY HOPPER

The supply hopper has a capacity of approximately 7 units of seed. The hopper
supplies seed to the atomizing chamber where seed first comes in contact with the
treatment.

The seed flow is controlled by the seed wheel. The adjustable seed gate is not
used when using the seed wheel. The seed gate should be set to its most wide

open position. Refer to “Section E: Calibration”, for instructions on calibrating and

setting the seed wheel.

Different seed types may be treated with this equipment. It is
imperative to note that re-calibration of the seed wheel will be
required with each new seed type.

The hopper is equipped with three proximity switches. The top proximity switch
controls the automatic start and stop of the inlet conveyor, so the supply hopper
does not overflow. This proximity switch is not used on Tower Units or when the
treater is being fed with an overhead hopper. The lower proximity switches, which
are located in the seed wheel, control the automatic shut-off of the pump(s). When
the seed wheel runs out of seed the pump(s) will automatically shut-off. Refer to

“Control Panel” in Section D, and Section F: Troubleshooting; “Proximity Switch

Adjustment Guide” for more in-depth information on these proximity switches.

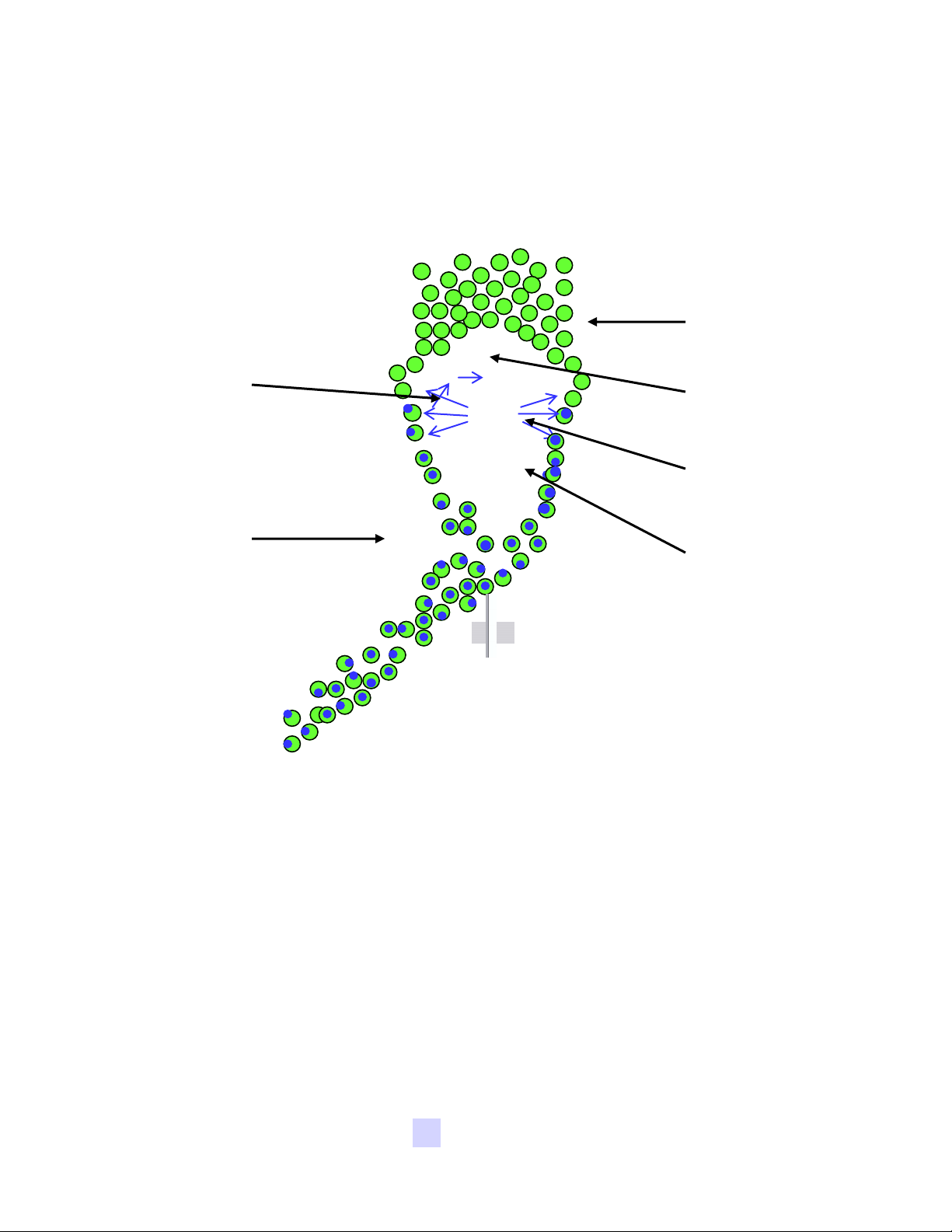

The distribution cone creates a curtain of seed which wraps around the atomizer
head, ensuring that every seed is applied with treatment. (see page 45)

SEED WHEEL

The Seed Wheel is designed to simplify and increase seed flow calibration accu­racy. A rotating wheel is driven by a variable speed motor, which is set prior to
treating the seed. This is mounted above the atomizer. The wheel consists of 8
identical pockets approximately 4 inches deep. As it rotates, the wheel captures a
certain amount of seed in each pocket. After the seed is caught, the wheel
continues rotation and dispenses the seed into the
atomizer chamber. With the constant turn of the
wheel, there is a consistent amount of seed always
sent through the
atomizer.

A cup is used to represent a certain percentage of
one of the wheels pockets. To calibrate the seed
flow, take a sample of the seed to be treated using
the cup and weigh it. From the weight of the seed
sample and by also knowing the RPM of the wheel,
you can determine how fast that seed type will pass
through the seed treater.

USC, LLC Page 19

LP2000 with Seed Wheel

The purpose of the seed wheel is to simplify calibration and make seed flow
calibration more accurate. The seed wheel saves time when switching to different
seed sizes and seed types, and can be mounted to most LP800 and LP2000
models.

(1) Openings
to Wheel

(2) Variable
Speed Motor

(6) Brush

(5) Opening

(3) Proximity
Switch

1. Openings to Wheel:

pockets.

This is where the seed is dispensed into the wheel

2. Variable Speed Motor:

your desired seed flow.

3. Proximity Switch:

switch on the seed treater is in the Automatic position. When seed is covering this
sensor and the pump switch is in Auto, the pump(s) will run. When seed is no
longer covering this sensor, the pump(s) will shut off.

Controls when the pump(s) turn on and off when the pump

(4) Seed

to Atomizer

Wheel

Drives the wheel and the speed can be adjusted to fit

USC, LLCPage 20

LP2000 with Seed Wheel

4. Seed Wheel Pocket:

Catches the seed as the wheel rotates. Approximately 7 to

9 pounds are held in each pocket, depending on the type and size of seed.

5. Opening to Atomizer:

This is where the seed is dispensed from the pockets into

the atomizer chamber.

6. Brush:

The brush levels off the top of each pocket as the wheel rotates to ensure

each pocket contains the same amount of seed.

ATOMIZER CHAMBER

12” hopper extension

The Atomizer chamber consists of a
patented design which disperses
treatment evenly to each seed. A motor
drives the atomizer head at approximately

1725 RPM’s. As treatment is being

pumped into the atomizer chamber, it
drops into the atomizer head. The
centrifugal force of the spinning head

Pump(s)
Proximity
Switch

forces the treatment to be sprayed out
through a screen covering in all 360
degrees. Meanwhile, seed flows down
out of the supply hopper, down on top of
the distribution cone which disperses the

Adjustable Seed

Gate Lever

seed down around the atomizer head.
(see page 45)

Atomizing
Chamber

Inlet conveyor
Proximity
Switch

ROTATING DRUM

The rotating drum accepts treated seed through the opening on the hopper end. As
seed passes through the length of the drum it is tumbled, producing accurate and
uniform seed coating. The seed then exits the seed treater out the discharge end
of the machine.

Never allow exposure of persons or clothing to the drive shaft,
idler wheels, or the drum during operation. Always have the
safety shields in place during operation.

USC, LLC Page 21

LP2000 with Seed Wheel

PUMP #1 LIQUID SYSTEM

The USC seed treater is equipped with a 27-gallon mix tank with an electric drive
liquid agitator to keep chemicals mixed and in suspension. The agitator should be
running at all times when treatment is present in the mix tank. The tank is equipped
with a shut-off, drain plug, and drain valve located on the bottom. The top of the
tank also includes 3 extra ports which the operator can use to direct fill into the tank
(see below).

Pump #1 liquid system is also equipped with a calibration tube, which is used to
determine the liquid flow rate. The calibration tube measures in ounces on a 0-340
scale. Three-way valves direct liquid from different areas to keep all liquid
contained.

USC, LLCPage 22

LP2000 with Seed Wheel

Pump #1 Liquid System utilizes a variable speed peristaltic pump and special
norprene pump tubing for liquid metering. Liquid will only come into contact with
the inside diameter of the pump tubing and not the pump. This allows for easy
cleanup and less maintenance of the pump.

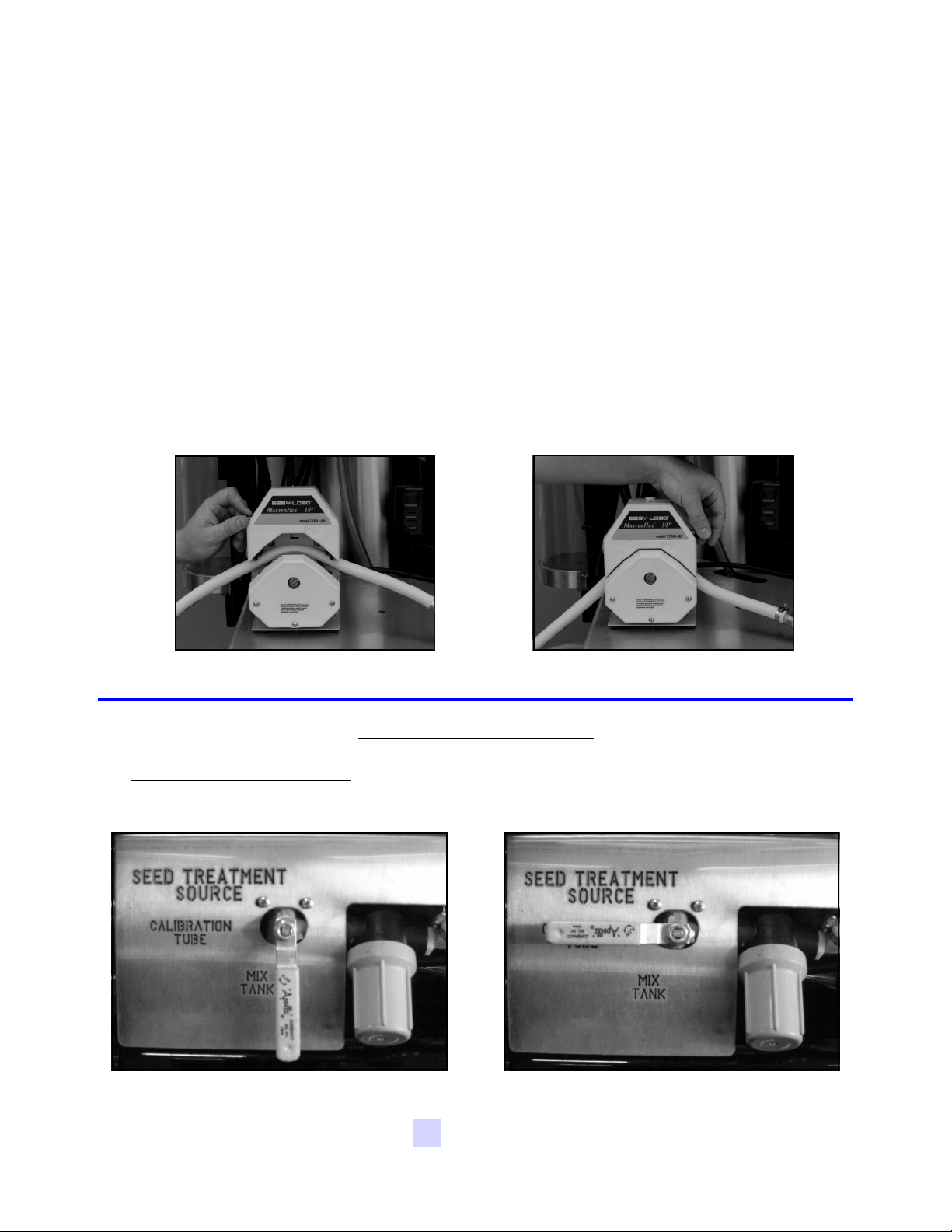

To open the pump head, turn lever to the left. Place pump tubing in pump head so
it fits inside the notches and above the rollers. Turn lever back to the right to close
the pump head, clamping the tubing inside the head. Wear or fatigue of the tubing
due to usage and compression is normal. When tubing becomes worn or liquid
rates begin to slow down, open the pump head and move the tubing to a different
position. When the entire piece of tubing becomes worn, simply replace with a new
section of tubing. When not using the machine for a few days or when storing,
open the pump head and remove the tubing to prevent any unnecessary
compression during the off-season.

Pump Head Open Pump Head Closed

Pump #1 Valves Explained

Seed Treatment Source:

This valve controls where pump #1 is drawing liquid

from.

Pump #1 Drawing from bottom of Mix

Tank

Pump #1 Drawing from bottom of

Calibration Tube

USC, LLC Page 23

LP2000 with Seed Wheel

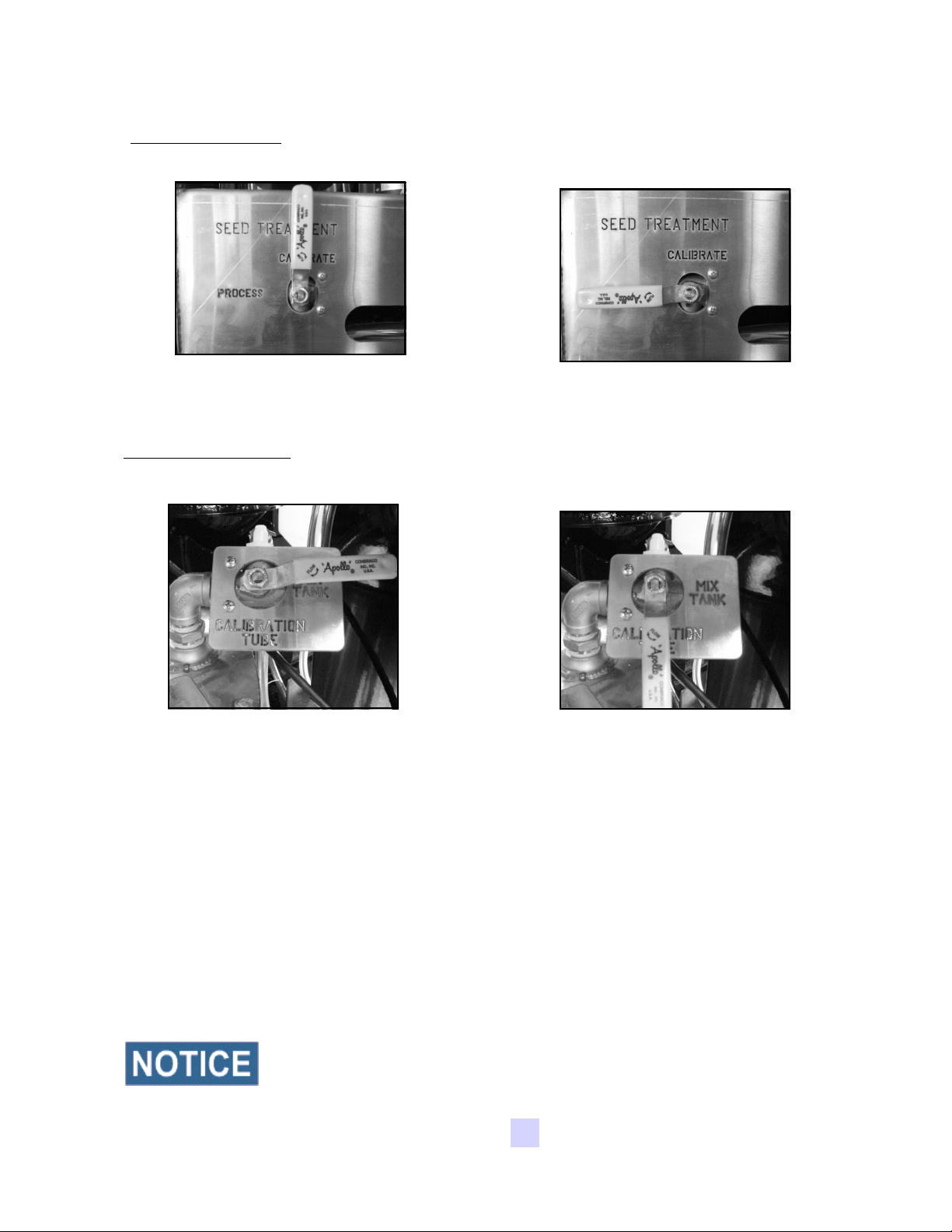

Seed Treatment:

This valve controls the direction of the liquid coming from

pump #1.

Pump #1 pumping liquid to valve on top

of mix tank.

Valve on Mix Tank:

This valve directs the liquid coming from the Calibrate side of

the Seed Treatment Valve.

Pump #1 pumping liquid to atomizer.

Used when treating seed.

Pump #1 pumping liquid into the top of

the mix tank when Seed Treatment Valve

is in Calibrate.

Pump #1 pumping liquid into the top of the

calibration tube when Seed Treatment

Valve is in Calibrate.

Proper calibration of the liquid system is critical to achieve a proper granular/
chemical mixture. Use the calibration procedure on page 38 to determine liquid
flow rate.

Emptying the remaining liquid can be done by using the reverse function on the
control panel. This will pump liquid back into the mix tank. Then drain the
remaining liquid into a suitable container. Clean water should be pumped through

the calibration tube and mix tank when finished.
Always dispose of chemical or diluted chemical according to your

local, state, and federal regulations.

Only you, the operator, can determine the length of time required
to completely rinse all chemical residue from the tank and plumb­ing system.

USC, LLCPage 24

LP2000 with Seed Wheel

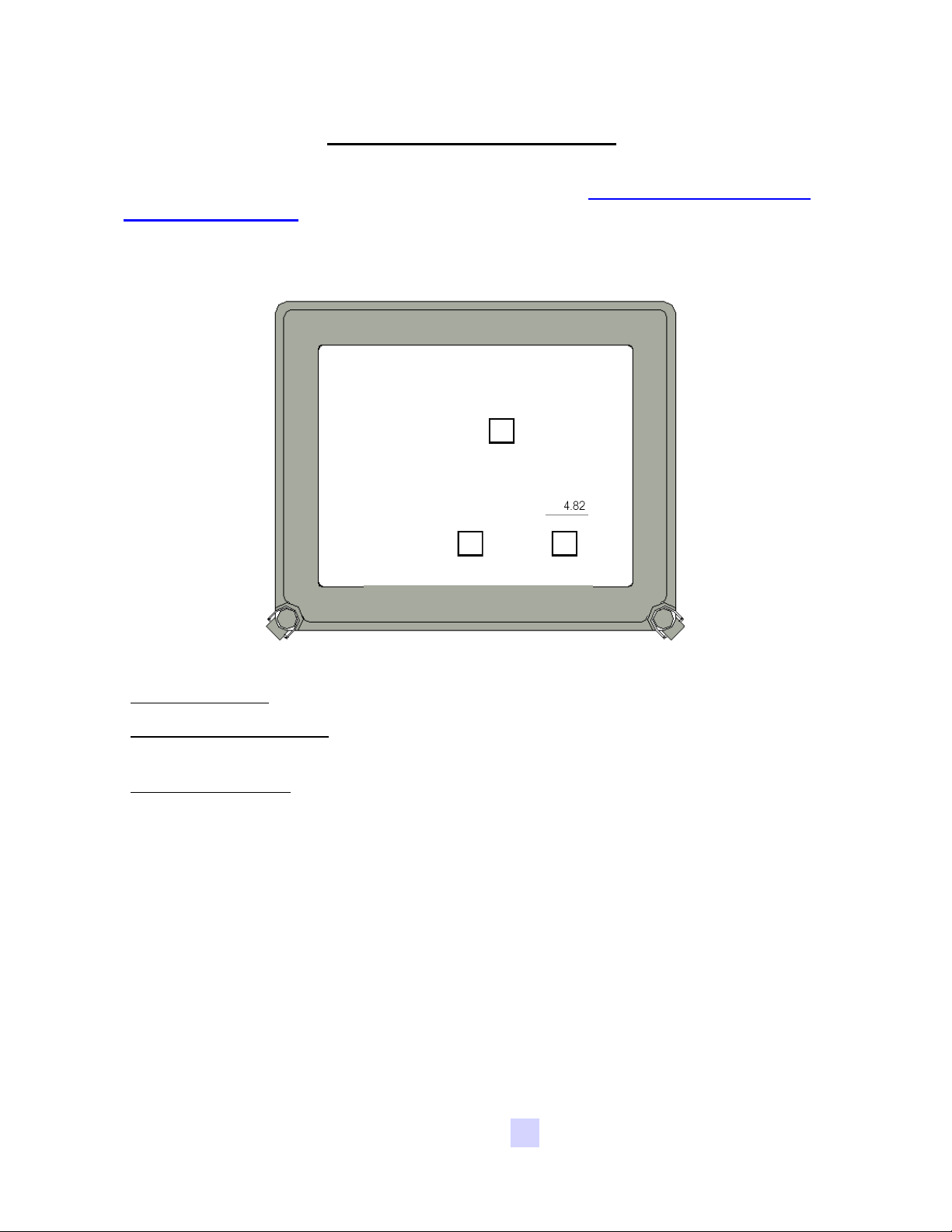

FLOW METER (optional)

The volumetric flow meter is programmed at USC to display ounces per minute and
total ounces. Metric units can also be displayed if specified during ordering. The
front part of the flow meter display is a touch screen. If you need to clean the
screen, be sure to disconnect power to the flow meter before cleaning. This will
avoid accidentally changing any parameters.

Ounces per Minute (ozf/min) and Total Ounces (ozf) are both displayed on the

same screen of the volumetric flow meter. To “Zero” out the total ounces used, you
simply push the “ZERO FLOW METER TOTALIZER” button located on the left side

of the flow meter.

Ounces

per

Minute

Total
Ounces

Zero Flow

Meter Totalizer

Button

USC, LLC Page 25

LP2000 with Seed Wheel

PUMP #2 LIQUID SYSTEM

The Pump #2 Liquid System or Inoculant Kit includes an additional variable speed
peristaltic pump, 2 three way valves, plumbing, and a 5 gallon poly tank. The pump
is tied to the pump #2 controls which are pre-wired into the main control panel. (see
page 40)

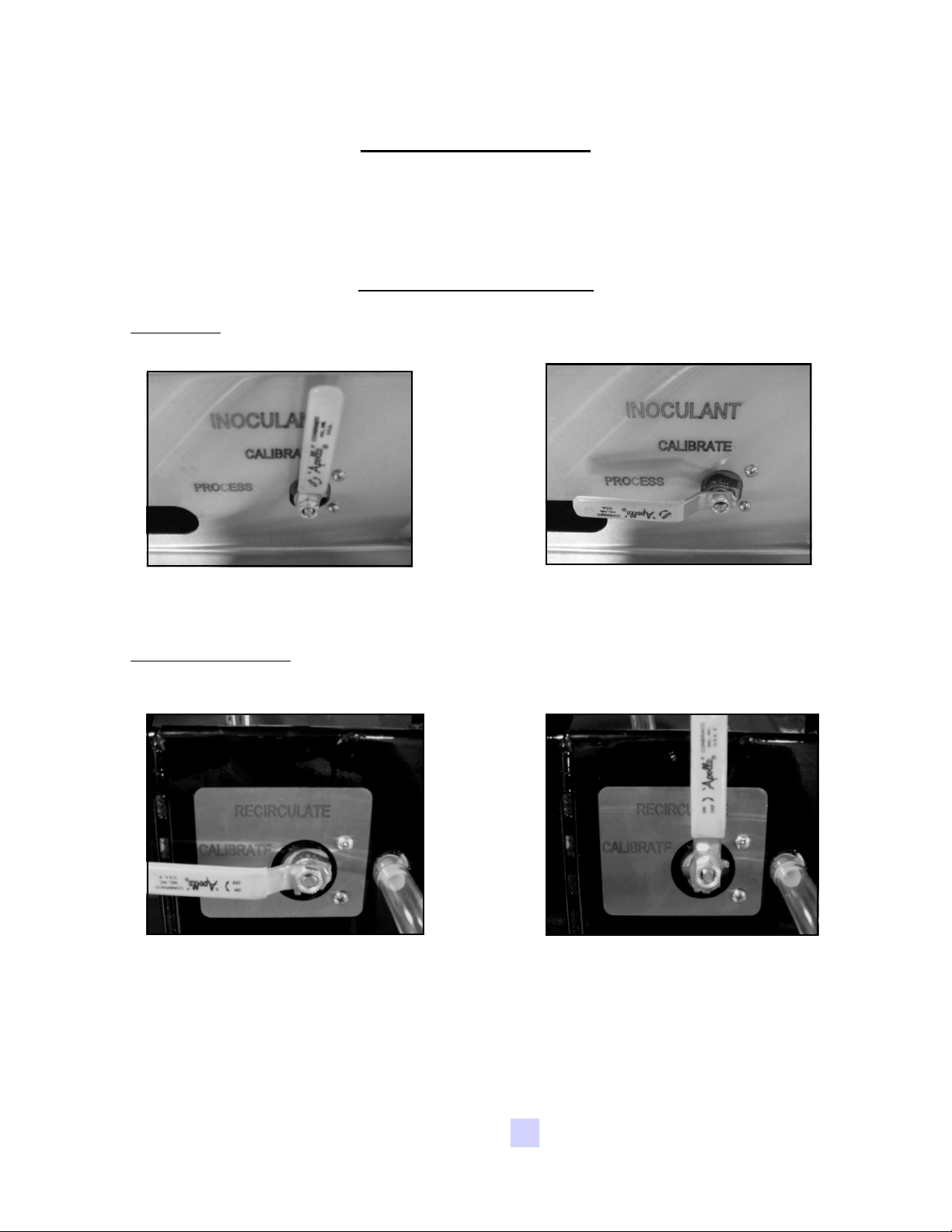

Pump #2 Valves Explained

Inoculant:

This valve controls the direction of the liquid coming from the tank.

Pump #2 Pumping Liquid to

Calibration Valve

Calibration Valve:

This valve directs liquid which comes from the calibrate side of

the Inoculant valve.

Directs liquid to the hose to the right of

the valve to check calibration

Pump #2 Pumping Liquid to

the Atomizer

Directs Liquid back into the top of the 5

gallon tank

USC, LLCPage 26

LP2000 with Seed Wheel

NOTES

USC, LLC Page 27

Section

Section

DD

LP2000 with Seed Wheel

Electrical Operation

Electrical Operation

HIGH VOLTAGE ~ Always disconnect the power source
before working on or near the control panel or lead wires.

HIGH VOLTAGE ~ Use insulated tools when making
adjustments while the controls are under power.

AUTHORIZED PERSONNEL only shall work on the control
panel. Never allow anyone who has not read and familiarized

themselves with the owner’s manual to open or work on the

control panel.

SEED TREATER CONTROL PANEL

Refer to the control panel and the electrical schematic for proper voltage and
amperage of the machine. All green switches will illuminate when activated. The
bottom row of switches are spring return to center. The control panel controls the
following functions:

6

1 3 4

5 7

2

6

8 9 10 11 12

USC, LLCPage 28

LP2000 with Seed Wheel

Controls Explained

1. Pump #1 Voltmeter:

Displays the DC voltage for pump #1. As pump #1 speed

is increased or decreased, this number will also increase or decrease.

2. Hand/Off/Auto Switch (for Pump #1 & #2):

This switch controls pump #1,
pump #2, and any device connected to the auxiliary port. This switch must be
activated before either pump will operate in forward or reverse.

 When this switch is placed in “Hand”, the pump(s) will run only when you have

turned the pump(s) switch to forward or reverse, and the speed has been
adjusted.

 When the switch is placed in “AUTO”, the pump(s)

will only run when the the proximity switches located
in the seed wheel are covered and the atomizer is
running. The proximity switches determine when
seed is present in the seed wheel. When the

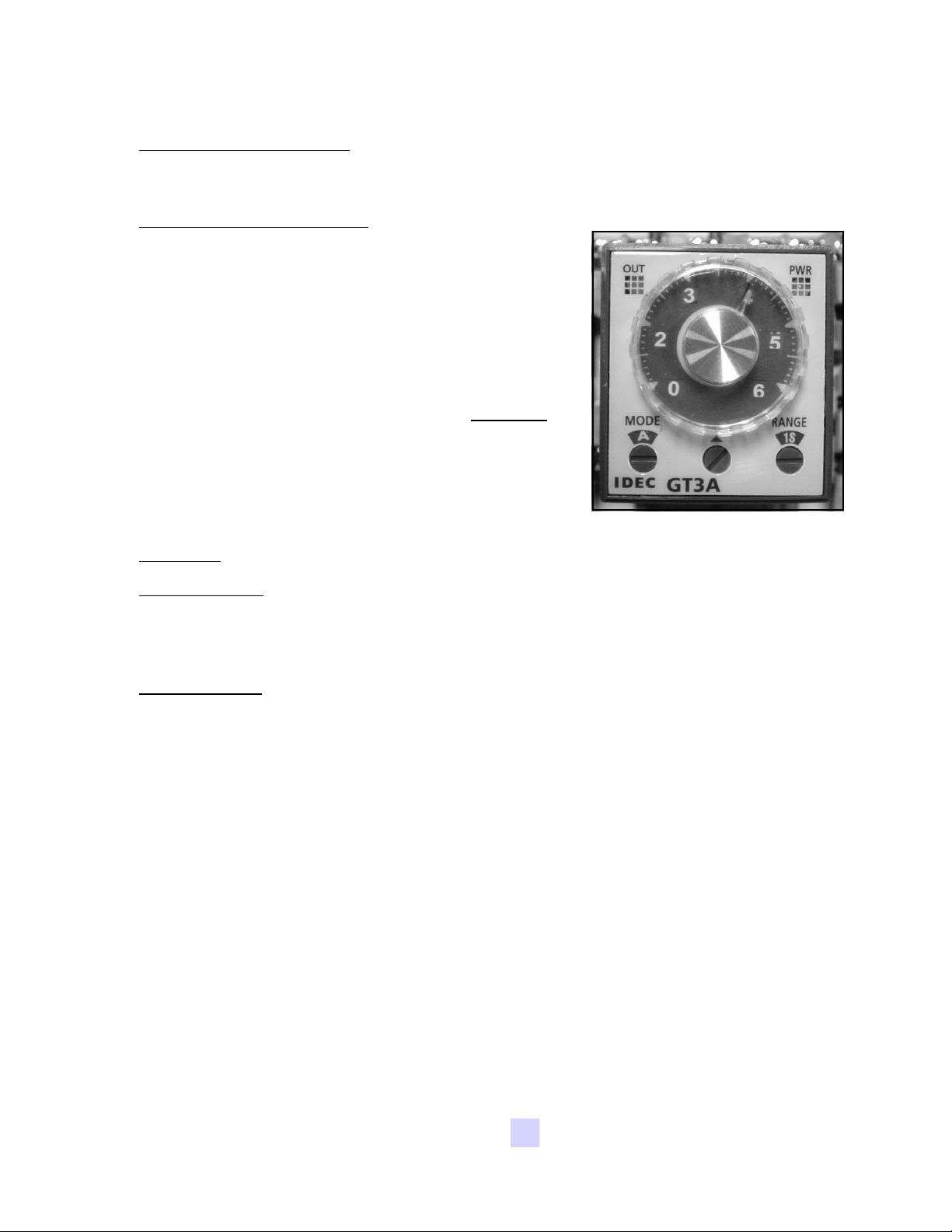

proximity switches do not detect seed, a timer relay
located inside the control panel will automatically
shut off the pump(s) a pre-determined amount of
time after the hopper has emptied. The timer relay
(right) located in the control panel is set to Mode “D”
and has an adjustable knob with settings from 0-6.
Each number represents the number of seconds
from the time the hopper empties until the pumps
will shut off. The time delay allows all seed that
passes through the atomizer to have equal coverage.

3. Pump #1 Direction:

This switch allows the operator to change the pump
direction between forward and reverse. It has a safety feature that will not allow the
operator to switch from forward to reverse or vice-versa without momentarily
stopping and releasing the switch in the center position.

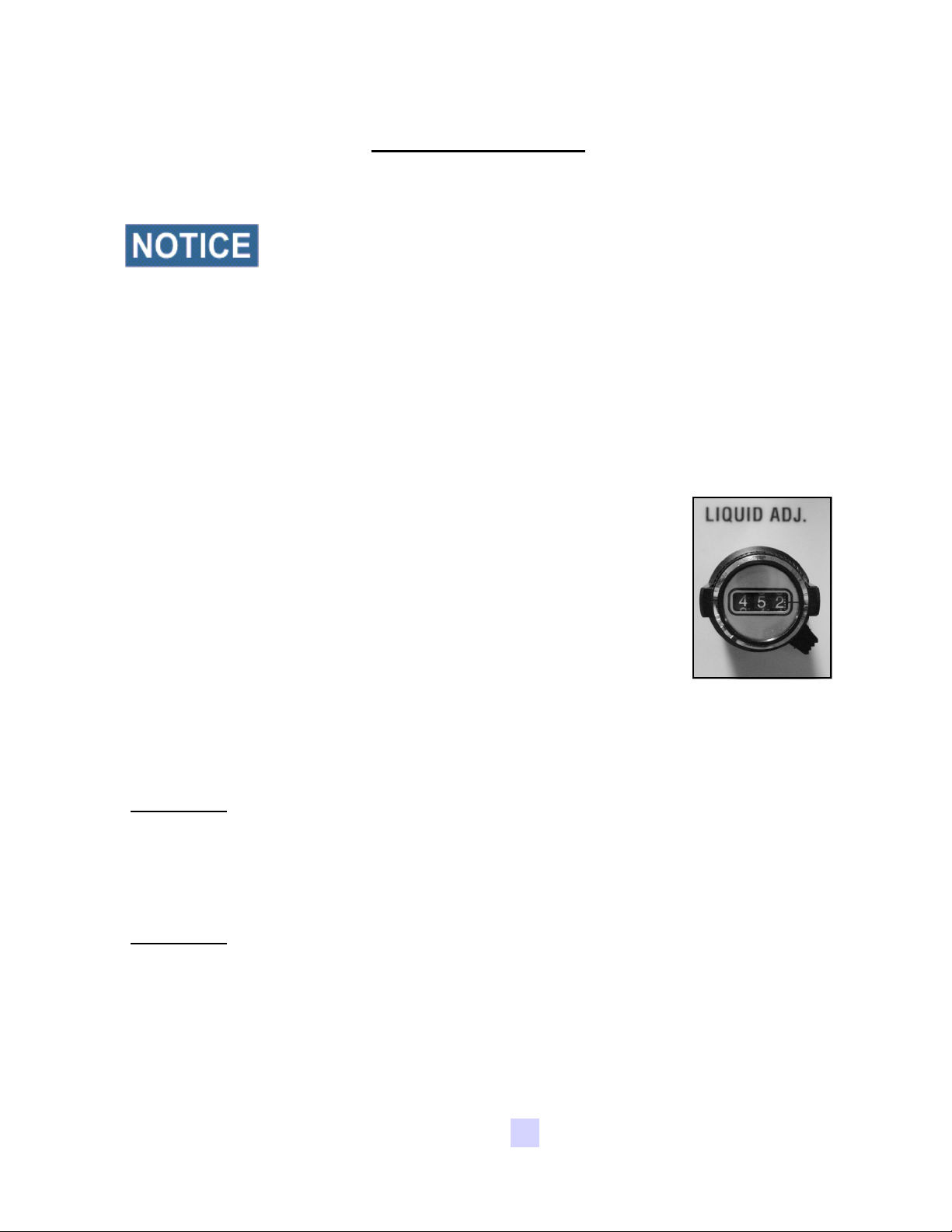

4. Liquid Adj. Pump #1:

This dial allows the operator to adjust the speed of pump
#1. The setting should be chosen in relation to the application rate for the treatment
being applied to the seed.

5. Pump #2 Voltmeter:

Displays the DC voltage for pump #2. As pump #2 speed

is increased or decreased, this number will also increase or decrease.

6. Pump #2 Direction:

This switch allows the operator to change the pump
direction between forward and reverse. It has a safety feature that will not allow the
operator to switch from forward to reverse or vice-versa without momentarily
stopping and releasing the switch in the center position.

USC, LLC Page 29

LP2000 with Seed Wheel

7. Liquid Adj. Pump #2:

This dial allows the operator to adjust the speed of pump
#2. The setting should be chosen in relation to the application rate for the treatment
being applied to the seed.

8. Inlet Conveyor Switch:

This switch controls the
inlet conveyor in conjunction with a timer relay. When
the switch is turned on, the conveyor will run until
seed covers the proximity switch mounted near the
top of the supply hopper, at which time the conveyor
will turn off automatically. The inlet conveyor will
remain off until seed has dropped below the proximity
switch. A timer relay (right) will turn the conveyor
back on after a pre-determined time. The timer relay
located inside the control panel is set to Mode “A” and
has an adjustable knob with settings from 0-6. Each
number represents the number of seconds from the
time the proximity switch is uncovered to when the
conveyor will turn back on. The time delay prevents
the conveyor from turning on and off too quickly.

9. Drum:

10. Atomizer:

This switch allows the operator to turn the drum on or off.

This switch allows the operator to turn the rotary driven atomizer on
or off for primary distribution of product on the seed. This switch must be turned on
before the seed treating process begins and before the pump(s) will operate in
“Auto”.

11. Mix Tank:

This switch allows the operator to turn the chemical mixer/agitator

on or off to allow for a perfectly mixed application of the seed treatment.

USC, LLCPage 30

LP2000 with Seed Wheel

Bottom of Control Panel

Atomizer

Receptacle

Atomizer Receptacle:

This receptacle is where the motor that runs the atomizer is

Auxiliary

Port

Flow Meter

Receptacle

plugged in to. The atomizer can be unplugged so it can be removed for service and
clean-up.

Auxilliary Port:

This port is will allow an additional liquid system or dry additive
feeder to tie in with the Automatic shut-off function. The Hand/Off/Auto switch will
control the secondary system. This port does not supply power to a secondary unit.

Flow Meter Receptacle:

If a flow meter is added to the machine, power is
supplied to meter through this receptacle. This receptacle is supplied on the control
panel regardless if the machine is pre-ordered with a flow meter. This will allow for
easy installation if a flow meter is added later.

USC, LLC Page 31

LP2000 with Seed Wheel

SEED WHEEL CONTROL PANEL

Refer to the control panel and the electrical schematic for proper voltage and
amperage of the machine. The control panel requires a 120V single-phase power

supply with neutral. The green switch is spring return to center. The control panel

controls the following functions:

1

3 2

1. Seed Wheel:

2. Speed Adjustment:

Allows the operator to turns the seed wheel on or off.

Controls the speed of the motor which drives the seed

wheel.

3. RPM Indicator:

Displays the RPM of the seed wheel. Maximum RPM of Seed

Wheel. Maximum RPM of Seed Wheel is 13.0.

USC, LLCPage 32

LP2000 with Seed Wheel

NOTES

USC, LLC Page 33

LP2000 with Seed Wheel

Section

Section

Calibration

EE

Calibration of both the seed flow and liquid portions of the equipment is necessary
for accurate treatment of seed.

The following steps illustrate how to calibrate the seed flow for a LP series seed
treater with seed wheel.

1. Set the empty seed calibration cup on the scale and zero the out the weight of
the cup.

2. Place the funnel and stand in the seed to be treated. This will help to avoid any
unnecessary clean-up while filling and leveling the top of the seed calibration
cup.

Calibration

If you prefer metric measurements, please refer to the conversion
chart on page 48.

SEED FLOW CALIBRATION

3. Place your hand under the bottom of the funnel and fill the funnel up with seed.

4. Place the calibration cup under the funnel stand and remove your hand from the
bottom of the funnel, and allow the cup to be filled. (figure 1)

5. After the cup has been filled, strike off the top of the calibration cup with a
straight edge. (figure 2)

Do not shake the cup.

6. Weigh the sample of seed. (figure 3)

A typical weight of the sample of seed will be anywhere between 2.8
to 4.0 lbs. Anything over or under this

7. Take the weight of the seed sample and use it in

the formula on page 35, or into the “Seed Wheel

Calibration 09-10” worksheet found on the USC
Seed Wheel Calibration CD.

range could be caused by not zeroing
out the weight of the cup, or the scale
may be set to the wrong units.

Seed Type Cup Percentage

CORN 0.38080
COTTON 0.38153
PEAS 0.38979
RICE 0.37936

8. At this time, ensure that the seed gate is set to its
most wide open position.

USC, LLCPage 34

SOYBEANS 0.38501
WHEAT 0.36527
OTHER 0.38029

LP2000 with Seed Wheel

Figure 1 Figure 2

Figure 3

SEED FLOW CALCULATIONS

The following steps illustrate how to determine the RPM for your desired seed flow
rate. Different seed types will fill the pocket differently. When figuring your seed flow
rate, be sure to use the chart below for the type of seed.

1. Determine a seed flow rate.
EXAMPLE: Desired Seed Flow Rate = 700 lbs./min.

2. Determine the number of pounds per wheel revolution which will be dispensed
through the seed wheel. This can be found by dividing the desired seed flow rate
by the number of pockets dispensed per revolution.
EXAMPLE: Seed Flow Rate = 700 lbs./min.
700 / 16 = 46.875 lbs.

43.75 lbs. per wheel revolution.

3. Find the weight of seed in each pocket. This can be done by taking a sample of the
seed to be treated (follow the steps on page 30). Divide the weight of the sample
by the Cup Percentage for the type of seed you are treating. Use the chart on
Page 28 to find the Cup Percentage.
EXAMPLE: Weight of seed in cup = 3.58
Cup Percentage for Soybeans =0.38501

3.58 / 0.38501 = 9.298

9.298 lbs. per wheel pocket.

4. Determine the RPM of the Seed Wheel to match your desired seed flow rate. Take
the lbs per wheel revolution and divide it by the lbs per wheel pocket. Then add in
a 0.04 factor to compensate for the drop in wheel RPM under a load of seed.

EXAMPLE: Pounds per wheel revolution = 43.75
Pounds per wheel pocket = 9.298

43.75 / 9.298 = 4.71

4.71 + 0.04 = 4.75

4.75 RPM is the number the seed wheel needs to be set

at to match your desired seed flow rate.

USC, LLC Page 35

LP2000 with Seed Wheel

USING SEED WHEEL WORKSHEET

The following steps illustrate how to use the seed wheel calibration worksheet found
on the CD in the back of this manual. The worksheet will simplify calibration of the

seed wheel. The worksheet uses “Excel format and is named: “Seed Wheel

Calibration 09-10”. Below is a screen shot of the actual worksheet.

A seed type to

be treated that

is not on the

list can be

typed into this

cell

Select Standard or Metric

Worksheet based on the

desired units of measurement

USC, LLCPage 36

LP2000 with Seed Wheel

1. Select the type of seed to be treated. EXAMPLE: SOYBEANS

2. Enter the total number of pounds to be treated. EXAMPLE: 2500

3. Enter in the weight of seed in the cup (follow the steps on page 34).
EXAMPLE: 3.58

4. Enter in the desired seed flow rate. This is a number that is determined by the
operator. Minimum seed flow rate is approximately 300 lbs per minute. The
maximum seed flow rate is 800 lbs per minute for an LP800 and 1900 lbs per
minute for an LP2000. EXAMPLE: 700

5. Enter in the ounces to be applied per hundred pounds(cwt). EXAMPLE: 5.00

6. Set the Seed Wheel RPM using the number in the orange colored cell found in the
same row as the seed type to be treated. EXAMPLE: 4.75

7. After the Seed Wheel RPM has been set, the first batch of seed can be treated.
Double check the accuracy by timing the first batch of seed as it passes through the
atomizer of the seed treater.

USC, LLC Page 37

LP2000 with Seed Wheel

PUMP #1 CALIBRATION

The following steps illustrate how to calibrate pump #1 on an LP series seed treater.
A stop watch will be needed in the calibration process.

If the seed treater is equipped with a flow meter, refer to the Flow
Meter operator’s manual for pump calibration instructions.

1. Lock down the pump tubing in the Pump #1 pump head (page 23) and set the
dial above the pump head to the “3” setting.

2. Premix enough liquid for the amount of seed you will be treating and pour into

the 27 gallon stainless steel tank. It’s always a good practice to mix up 20% ex-

tra slurry to help fill all the lines. Turn on the mix tank and allow liquid to mix.

3. Turn the “SEED TREATMENT SOURCE” valve to the “MIX TANK” position, the

“SEED TREATMENT” valve to the “CALIBRATE” position, and the valve on top

of the mix tank to “MIX TANK”.

4. Turn the pump #1 direction switch to “FORWARD”.

5. Turn the “Hand/Off/Auto” switch to the “Hand” position and set

the Pump #1 liquid adjust dial (right) to about “500” or half

speed. The liquid should begin re-circulating from the bottom of
the mix tank, through the pump, and back into the top of the mix
tank.

6. Allow pump to re-circulate liquid for approximately 15 minutes to
ensure all air has been removed from the liquid lines. This will
also help “break-in” the pump tubing, which is critical before
checking pump calibration.

7. After you have allowed the liquid to re-circulate you are ready to calibrate the
pump. Determine the number of ounces needed in one minute.

EXAMPLE: The seed treatment slurry rate is 4 ounces per cwt.
Seed Flow Rate = 12.24 cwt/min. x 4 oz./cwt. = 49 oz./min.
49 oz. is the rate the pump should be pumping in one minute.

8. Set the Liquid Adjustment Dial . You can use the chart on page 42 to find a
starting point.

EXAMPLE: The ounces needed in one minute = 49 oz/min. Assume we are

using a 2-200 Masterflex pump. An approximate starting point is 31.8
volts.

USC, LLCPage 38

LP2000 with Seed Wheel

9. Using the stop watch, determine the pump flow rate. Keeping the pump running,

position the valve on top of mix tank to “CALIBRATION TUBE”. When liquid

reaches 0 (zero) or an even number, begin timing for one minute. (see Figure 1,
below)

10. As soon as one minute is up, position valve on top of mix tank to “MIX TANK”.

Read the level on the side of the calibration tube (see Figure 2, below). This
number should equal the number of ounces needed to flow through the pump in
one minute. If the ounces needed per minute have not been met, re-adjust the
pump speed up or down accordingly and repeat steps 9 & 10 until the liquid flow
rate has been matched.

Figure 1

Liquid at 0 oz.

Figure 2

Liquid at 35 oz.

PUMP CALIBRATION WITH FLOW METER

The following steps illustrate how to calibrate a pump with a flow meter on an LP
series seed treater.

1. Follow steps 1 through 6 on page 38.

2. After you have allowed the liquid to re-circulate you are ready to calibrate the
liquid flow. Determine the number of ounces needed in one minute.

EXAMPLE: The seed treatment slurry rate is 5 ounces per cwt.
Seed Flow Rate = 10.8 cwt/min. x 5 oz./cwt. = 54 oz./min.
54 oz. is the rate the pump should be pumping in one minute.

3. Set the Liquid Flow Rate. Using the Liquid Adj. dial.

Flow Rate

Increase or decrease the pump speed until the
liquid flow rate has been matched.

4. Once the flow rate is set you can begin the seed
treating process. The flow rate can still be adjusted
during the treating process.

USC, LLC Page 39

LP2000 with Seed Wheel

PUMP #2 CALIBRATION

The following steps illustrate how to calibrate pump #2 on an LP series seed treater.
A stop watch and measuring cup will be needed in the calibration process.

1. Lock down the pump tubing in the Pump #2 pump head. (page 23)

2. Premix enough liquid for the amount of seed you are treating and pour into the 5

gallon poly tank. It’s always a good practice to mix up 20% extra slurry to help fill

all the lines.

3. Turn the “INOCULANT” valve to the “CALIBRATE” position, and position the
Calibration Valve to “RECIRCULATE”.

4. Turn the pump #2 direction switch to “FORWARD”.

5. Turn the “Hand/Off/Auto” switch to the “Hand” position and set

the Pump #2 liquid adjustment dial (right) to about “500” or half

speed. Liquid should begin circulating from the bottom of the
mix tank, through the pump, and back into the top of the tank.

6. Allow pump to re-circulate liquid for approximately 15 minutes to
ensure all air has been removed from the liquid lines. This will
also help “break-in” the pump tubing, which is critical before
checking pump calibration.

7. After you have allowed the liquid to circulate you are ready to calibrate the liquid
flow. Determine the number of ounces needed in one minute.

EXAMPLE: The seed treatment slurry rate is 5 ounces per cwt.
Seed Flow Rate = 12.24 cwt/min. x 5 oz./cwt. = 61.2 oz./min.

61.2 oz. is the rate the pump should be pumping in one minute.

8. Set the Liquid Adjustment Dial . You can use the chart on page 42 to find a
starting point.

EXAMPLE: The ounces needed in one minute = 61.2 oz/min. Assume we are

using a 2-200 Masterflex pump. A good starting point is approximately

33.9 volts.

9. Using the stop watch and measuring cup, determine the pump flow rate. Hold the
measuring cup under the calibration hose next to the Side Valve.

10. Keeping the pump running, position the Calibration Valve to “CALIBRATE”.
When liquid begin timing for one minute as soon as liquid begins flowing into the
measuring cup.

USC, LLCPage 40

11. As soon as one minute is up, position the Calibration Valve back to

“RECIRCULATE”. Read the level on the side of the measuring cup. This

number should equal the number of ounces needed to flow through the pump in
one minute. If the ounces needed per minute have not been met, adjust the
pump speed up or down accordingly and repeat steps 9,10, & 11 until the liquid
flow rate has been matched.

Calibration Valve Calibration Hose

LP2000 with Seed Wheel

Standard Data

Below are two charts that show the potential volts and oz./min of two different
pumps at different dial settings.

All calibrations were done using water. Numbers are not
exact; only use these numbers as a starting point or for
troubleshooting.

2-200 RPM Motor

& I/P Pump Head, with

Masterflex I/P 82 Pump Tubing

Volts OZ./Min.

10.0 12.7

14.1 19.3

18.2 25.8

22.3 32.4

26.3 39.0

30.4 45.5

34.5 52.1

38.6 58.7

42.7 65.2

46.8 71.8

50.8 78.4

54.9 84.9

1725 RPM Motor, 3.1:1 Reducer,

& I/ P Pump Head with

Masterflex I/P 82 Pump Tubing

Volts OZ./Min.

9.2 23.0

13.3 41.9

17.5 60.9

21.6 79.8

25.8 98.8

29.9 117.7

34.1 136.7

38.2 155.6

42.3 174.6

46.5 193.5

50.6 212.5

54.8 231.4

59.0 91.5

63.1 98.1

67.2 104.7

71.3 111.2

75.3 117.8

79.4 124.4

83.5 130.9

87.6 137.5

58.9 250.4

63.0 269.3

67.2 288.3

71.3 307.2

75.5 326.2

79.6 345.1

83.8 364.0

87.9 383.0

USC, LLCPage 42

LP2000 with Seed Wheel

Metric Data

Below are two charts that show the potential volts and ml./min of two different
pumps at different dial settings.

All calibrations were done using water. Numbers are not exact;
only use these numbers as a starting point or for
troubleshooting.

2-200 RPM Motor

& I/P Pump Head, with

Masterflex I/P 82 Pump Tubing

Volts ml./Min.

10.5 375

14.6 569

18.8 764

22.9 958

27.0 1,152

31.2 1,347

35.3 1,541

39.4 1,736

43.6 1,930

47.7 2,124

51.8 2,319

55.9 2,512

1725 RPM Motor, 3.1:1 Reducer,

& I/ P Pump Head with

Masterflex I/P 82 Pump Tubing

Volts ml./Min.

9.2 680

13.3 1,240

17.5 1,801

21.6 2,362

25.8 2,922

29.9 3,483

34.1 4,043

38.2 4,604

42.3 5,164

46.5 5,724

50.6 6,285

54.8 6,845

60.1 2,707

64.2 2,901

68.3 3,096

72.5 3,290

76.6 3,484

80.7 3,679

84.9 3,872

89.0 4,067

58.9 7,406

63.0 7,966

67.2 8,527

71.3 9,087

75.5 9,648

79.6 10,208

83.8 10,769

87.9 11,329

USC, LLC Page 43

LP2000 with Seed Wheel

TREATING SEED

1. Prime the line going to the atomizer by turning the Atomizer switch to “ON” and

turn the “SEED TREATMENT” valve to “PROCESS”. Next turn the pump
direction switch to “FORWARD” and the “Hand/Off/Auto” switch to “Hand”.

Liquid should begin pumping up to the atomizer. After the line has been primed,

turn the “Hand/Off/Auto” switch to “Auto”. Additional liquid can be pumped up

into the atomizer and into the drum to guarantee coverage of the first seed that
passes through the machine.

Do NOT pump liquid into the atomizing chamber when the atomizer is
“OFF”.

2. Position the “SEED TREATMENT SOURCE” valve to “MIX TANK”.
If you desire to check the total ounces used per batch of seed. Fill the

calibration tube with the amount needed for the batch of seed (about 10

ounces extra is a good practice). Then position the “SEED
TREATMENT SOURCE” valve to “CALIBRATION TUBE” and go on to

step 3.

3. Begin feeding seed into the seed wheel until the supply hopper is full. This will

ensure that the first pockets are full when the wheel is turned on. At this time,
ensure the seed gate on the seed treater is wide open.

4. Turn the switches to “ON” for the Drum, Atomizer, and any Conveyors being

used.

5. Turn the “Hand/Off/Auto” switch to the “AUTO” position and then turn the Seed

Wheel to “ON”, this will begin the seed treatment process.

You may notice the RPM will run at a lower RPM under the load of seed.
Do not adjust the RPM back up. The program already has figured in the
factor for the drop in RPM.

6. As you are treating the first batch of

seed, time the seed as it is begins
flowing out the atomizer chute (right).

7. Once all the seed has passed through

the seed wheel and atomizer, stop
timing. The pump(s) will automatically
shut off.

Begin timing when seed

starts flowing out this

chute

USC, LLCPage 44

LP2000 with Seed Wheel

The Illustration below shows how seed passes through the atomizing chamber.
The blue represents treatment being dispensed to the seed as it passes through
the chamber. After the seed passes through the atomizer, it goes into the drum
where the coating process is completed.

Seed Gate

Seed Treatment
Line

Inoculant Port

Distribution
Cone

Atomizer Head

Bearing

USC, LLC Page 45

LP2000 with Seed Wheel

8. If the actual time it takes to treat the batch of seed differs from the estimated

time shown in the spreadsheet, then use your mouse to click on the “CLICK
HERE” phrase. This will advance you to another screen where you will enter
the actual time (page 47).

Estimated Time to

treat the batch of

seed in total seconcs

Estimated Time to

treat the batch of

seed in minutes

Click the mouse button here if the
estimated time differs from the actual
time it took to treat the batch of seed.

USC, LLCPage 46

LP2000 with Seed Wheel

9. Enter the actual time in seconds that it took to run the batch of seed into the
formula on the following page. The actual time in minutes will display and a
Accuracy Rate Percentage will display.

EXAMPLE: Actual Time = 3:39 minutes or 219 seconds.

10. You will use the Accuracy Rate Percentage for that type of seed, and enter this
number into the Seed Wheel Factor cell on the main screen. Use your mouse
to click on the “SEED WHEEL CALIBRATION WORKSHEET, CLICK HERE”
phrase. This will send you back to the main screen.

USC, LLC Page 47

LP2000 with Seed Wheel

11. Enter the Accuracy Rate Percentage into the Seed Wheel Factor box that is in
the same row as the seed that is being treated. Because all seed wheel
pockets are slightly different in depth, this number is used to adjust your seed
wheel program to increase accuracy the next time you treat seed.

12. After you have entered in the Accuracy Rated Percentage, the RPM of the seed
wheel will have to be changed. This will allow you to maintain your desired seed
flow rate.

13. You will need to adjust the RPM on the seed wheel to the new RPM to maintain
the desired speed in pounds per minute. Be sure and save the file after
entering in the seed wheel factor.

Conversion Chart

1 ounce = 29.58 milliliters

1 gallon = 3.79 Liters

1 kilogram = 2.2 pounds

1 unit = 50 lbs or 22.73 kg

1 cwt = 100 lbs or 45.45 kg

USC, LLCPage 48

LP2000 with Seed Wheel

NOTES

USC, LLC Page 49

LP2000 with Seed Wheel

Section

Section

Troubleshooting

FF

Troubleshooting

Below is a table describing the most frequent problems and solutions with the USC
Seed Treater. For further assistance, contact your local USC dealer.

Problem Possible Cause Solution

Inlet Conveyor will not turn on. 1. Inlet Conveyor Proximity

Switch is activated.

2. Inlet Conveyor Proximity
Switch is too sensitive.

3. Overload is tripped

4. Conveyor is plugged into
wrong outlet on seed treater
panel.

Pump will not turn off in “AUTO”

when seed runs out.

Pump will not turn on in “AUTO” 1. Proximity Switch is not

1. Proximity Switch is dirty

2. Proximity Switch is set too
sensitive.

staying covered

2. Atomizer is not on

3. Proximity Switch is not
sensitive enough

1. Clean Proximity Switch

2. Adjust the inlet conveyor
Proximity Switch sensitivity by
turning the adjustment screw
counter-clockwise (page 53)

3. Hit reset button on Inlet
Conveyor Overload.

4. Check to make sure the inlet
conveyor is plugged into the
inlet conveyor receptacle.

1. Clean Proximity Switch

2. Adjust the pump Proximity
Switch sensitivity by turning
adjustment screw counter­clockwise (page 53).

1. Make sure Proximity Switch is
staying covered with seed

2. Turn on Atomizer. Atomizer
must be on to run pump #1
and #2 in Auto.

3. Adjust pump Proximity Switch
sensitivity by turning the
adjustment screw clockwise
(page 53).

Inlet conveyor won’t shut off

when hopper is full.

1. Seed is not hitting proximity
switch.

2. Proximity Switch is not set
sensitive enough.

3. Inlet Conveyor is plugged
into wrong receptacle.

USC, LLCPage 50

1. Make sure seed is hitting
Proximity switch.

2. Adjust the inlet conveyor
Proximity Switch by turning
the adjustment screw clock­wise (page 53).

3. Make sure Inlet Conveyor is
plugged inlet conveyor
receptacle.

LP2000 with Seed Wheel

Problem Possible Cause Solution

Pump is Fluctuating 1. Restriction in tubing

2. Tubing was not broken-in
properly before calibrating.

3. DC Pump circuit board is
going bad.

Pump will not turn on. 1. Blown Fuse

2. Bad HP Resistor

3. Bad DC Pump Board

Seed Calibration is fluctuating 1. Seed Treater surge hopper is

not staying full.

2. Restriction in the supply
hopper.

3. Build-up in the atomizing
chamber.

1. Flush tubing and check filter
for any restrictions.

2. Allow pump to recirculate for
15 minutes before checking
calibration.

3. Watch pump voltmeter for
any fluctuations. The pump
board may have to be
replaced.

1. Check fuses

2. Check HP Resistor

3. Change the DC Pump Board

Part #: (03-01-0007)

1. Make sure the supply hopper
is staying full. May have to
slow down seed wheel in
order to have a consistant
flow of seed.

2. Check supply hopper for any
debris, and remove.

3. Remove atomizing housing
and clean out any build-up of
material.

Drum is slipping and seed is
coming out the inlet side of the
drum.

Certain motors will not turn on. 1. Overload is tripped

1. Drum is wet

2. The seed treater is set too
level

3. Chains are too loose

2. Incoming power is incorrect
or has been disconnected.

3. Cord has been cut or is dis­connected.

USC, LLC Page 51

1. Dry off any moisture that may
have collected on the outside
of the drum.

2. Adjust the slope of the seed

treater to at least a 3” drop

from front to back. If desired,
more slope can be applied.

3. Check and tighten the drive
chains. Also check the chain
alignment.

1. Hit reset button on Overload
inside control panel

2. Test incoming power.

3. Check cord to motor.

LP2000 with Seed Wheel

Problem Possible Cause Solution

Seed Wheel will not turn on. 1. Incorrect incoming power.

2. Loose wire connection

3. VFD has a fault

Seed Wheel keeps shutting off 1. Seed Wheel drawing too

many amps.

2. Seed Wheel is binding.

3. Seed Wheel is incorrectly
mounted.

Chemical rates are off; I am
applying to much or not enough
chemical.

Seed is backing up into the seed
wheel

1. Pockets in seed wheel are
not staying full

2. Calculations are off

1. Seed gate on treater is
closed down

2. Seed wheel is turning too fast

3. Restriction above seed gate.

1. Check incoming power

2. Check all wire connections.

3. Check VFD for faults

1. Check motor amperage

2. Check to make sure nothing
is pressing down on the seed
wheel.

3. Loosen up the seed wheel
from the seed treater and
check again.

1. Ensure that the pockets are
staying full while treating.

2. Re-check calculations. If this
is the first batch treated, you
may have to adjust your
numbers in the formula.

1. Open seed gate wide open

2. Slow down the seed wheel to
accommodate your seed
treater

3. Remove restriction

Flow Meter is fluctuating 1. Pump is sucking air.

2. Restriction in the line.

3. Flow meter is not full of liquid

Flow Meter is reading too low or
too high.

1. Restriction in Flow Meter or
in line.

2. Air in treatment. This can
cause the flow meter to read
lower than calibrating it using
a measuring cup.

3. Seed flow has changed.

USC, LLCPage 52

1. Check and tighten all hose
connections.

1. Check filter to see if gasket is
missing or cracked.

2. Clean out filter and lines to
check for any debris.

3. The meter will fluctuate if
there is nothing pumping and
there is some liquid left in the
meter. Drain out liquid.

1. Flush the flow meter with
water or use compressed air
and blow air backwards
through the meter.

2. Check and tighten all hose
connections.

2. Check filter to see if gasket is
missing or cracked.

3. Recheck seed flow rate.

LP2000 with Seed Wheel

Problem 1. Possible Cause 2. Solution

Flow meter won’t turn on 1. Improper power going to flow

meter.

2. Loose connection.

Flow meter will not zero 1. Improper wiring

2. Wrong parameter
programmed into flow meter

PROXIMITY SWITCH ADJUSTMENT GUIDE

The proximity switches mounted in the
extension ring and in the seed wheel of the
seed treater detect when seed is present.

The proximity switch located in the extension
ring is used to automatically shut off the inlet
conveyor when the surge hopper is full. This
proximity switch is not present on Tower
systems.

The proximity switches mounted in the seed
wheel automatically shut off the pump(s)
when all seed has left the hopper.

Sometimes these proximity switches do not
properly work. This can be caused from wear,

Sensitivity Adjustment Screw

dust, or even moisture. The first step is to
clean the lens of the proximity switch. If this
does not solve the problem, the next step
would be to adjust the sensitivity of the
proximity switch.

Proximity Switch Screwdriver

1. Check incoming power to flow
meter.

2. Check connections inside the
control panel and inside the
flow meter.

1. Check wiring schematic

2. Check flow meter
parameters. Call local
dealer.

Using the small screwdriver provided inside the control panel, you can adjust the
proximity switch by turning the adjusting screw on the back of the proximity switch.

 Turn Clockwise to make the proximity switch more sensitive.
 Turn Counterclockwise to make the proximity switch less sensitive.

USC, LLC Page 53

LP2000 with Seed Wheel

Section

Section

Maintenance

GG

Proper maintenance of the USC seed treater is critical for peak performance,
reliability and accuracy of this system. The following is a guideline for the type of
maintenance and servicing that should be performed on this unit. Your environment
and uses may require additional maintenance and service beyond this list to assure
a reliable and safe unit. The operator of this unit has ultimate responsibility to
identify areas of concern and rectify them before they become a hazard or safety
issue. There is no substitute for a trained, alert operator.

 Inspect all welds and structural components on frame
 Check drum for bends, cracks and damage.

Maintenance

Do not put this unit into operation with any questionably
maintained parts. Poor performance or a hazard may occur.

DRIVE AND DRUM

 Remove shields to inspect bearings and tighten set screws.
 Inspect drive wheels for unordinary wear, and set screws for tightness.
 Inspect and adjust the Neoprene guide wheels located near back of drum.
 Tighten and lubricate chains.
 Inspect and re-align sprockets.

Remove these 2
guards to access
chains

Use this sprocket to
tighten chain

USC, LLCPage 54

LP2000 with Seed Wheel

PUMPS AND PLUMBING

 Check pump in forward and reverse.
 Check and adjust pump voltage
 Inspect brushes in motors.
 Make sure pump head opens and closes smoothly.
 Inspect tubing and valves.
 Tighten hose clamps and check filter.

ATOMIZER

 Remove atomizer from treater, grease bearing (40 hrs), and clean any build-up.
 Check for any play in the atomizer shaft.
 Make sure the atomizer spins smoothly.

Pump #1

Treatment Line

Atomizer Grease

Fitting

Pump #2

Treatment Line

USC, LLC Page 55

LP2000 with Seed Wheel

Removing Atomizer Housing

Below are instructions and pictures that illustrate how the atomizer is removed and
where the bearing is located.

1. Remove the two bolts that secure the control panel in place, and swing out the
control panel. The inoculant tank can also be swung open at this time.

Control
Panel

Inoculant
Tank

2. Release the red-handled clamp and remove the small shipping bolt. Also

loosen the two 5/16” bolts, located towards the front of the atomizer. This holds

the top atomizer flange tight against the adjustable seed gate flange (below
right).

Red-Handled Clamp

USC, LLCPage 56

LP2000 with Seed Wheel

3. Slide the atomizer straight back and drop down to access the atomizer head
and bearing (below). To completely remove the housing from the treater, unplug
the motor from the control panel and disconnect the treatment lines.

Removing Atomizer Head

Below are instructions and pictures that illustrate how the atomizer head is removed
and where the bearing is located.

1. Remove the small nipple that leads down into the atomizer head. The nipple is
threaded only into the 90 degree elbow fitting.

Small nipple 90 degree elbow

USC, LLC Page 57

LP2000 with Seed Wheel

2. Remove the rest of the plumbing in
one piece. A wrench may be used
to loosen the plumbing.

3. Use a 3/16” allen wrench and loosen the set screw located on the bottom of the
atomizer head. Next remove the head from the shaft.

4. The atomizer head is threaded together. Unscrew the head for better access to
cleaning.

USC, LLCPage 58

LP2000 with Seed Wheel

MIX TANK

 Check motor.
 Check for any play in the mix tank shaft.
 Check valves, fittings, and plug on bottom of tank.

CONTROL PANEL

 Check and tighten wire connections.
 Check starters and overloads.
 Check timers and relays.
 Check the front of the panel; switches, voltmeter, potentiometer, etc.
 Inspect fuses and breakers.
 Check and set the proximity switches.

SEED WHEEL

 Inspect all welds and structural components for bends, cracks and damage.
 Remove shields to inspect wheel, brushes and proximity switches.
 Use compressed air to blow out any seeds and excess build-up that may

have occurred during operation.

 Inspect RPM indicator.

SEED WHEEL CONTROL PANEL

 Check and tighten wire connections.
 Check starters and overloads.
 Check timers and relays.
 Check the front of the panel: switches and RPM indicator.
 Inspect breakers.
 Check and set the proximity switches.
 Check the VFD .

USC, LLC Page 59

LP2000 with Seed Wheel

Section

Section

Storage

Storage

When storing the USC seed treater for long periods of time, the following procedure
must be followed to reduce the chance of rust, corrosion and fatigue of the treater.
You can also use these steps when storing the machine for the winter.

A dust mask and protective rubber gloves shall be used when
cleaning the machine.

SUPPLY HOPPER

1. Clean out the supply hopper of any debris (compressed air can be used).

2. Wipe the proximity switches clean.

3. Tarp or cover the hopper to keep out any unwanted pests.

HH

SEED WHEEL

1. Disconnect Power

2. Remove shields from the seed wheel and remove any debris or build-up.
Compressed air can be used to blow out any foreign material.

3. Re-connect power and run seed wheel to help remove any additional debris.
Compressed air can be used to blow out any foreign material.

4. Check brushes (below)

5. Wipe off and clean the lens of the
proximity switches (below).

6. Disconnect Power and mount all
guard back in place.

7. Tarp or cover the seed wheel to
keep out any dirt or unwanted
pests.

Proximity Switch

Brush

USC, LLCPage 60

LP2000 with Seed Wheel

ATOMIZER CHAMBER

1. Remove and clean the atomizer housing.

2. Remove the atomizer head and stainless steel plumbing. The atomizer head is
removed by removing the stainless steel plumbing and then loosening the set
screw found on the bottom side of the atomizer head. The atomizer head can
then be disassembled (below), for easier cleaning. It is threaded together and
can simply be unscrewed.

3. Reinstall the atomizer head and plumbing. Grease the bearing and spin the
atomizer head a few times to ensure all grease has been worked into the
bearings.

ROTATING DRUM

1. Remove the shields and clean out any seed that may have fallen underneath the
drum.

2. Lubricate the chain to keep from corroding in storage.

USC, LLC Page 61

LP2000 with Seed Wheel

LIQUID SYSTEM

1. Make certain the inside of the tank is completely drained of chemical residue and
thoroughly flush the inside of the tank with clean water.

2. Remove and clean the filter.

3. Pump clean water through all areas of the plumbing including the mix tank,
calibration tube, and valves.

4. Open all drain points, valves, and filter to let as much of the liquid drain as
possible.

5. If the seed treater will be exposed to possible
freezing temperatures, the final flush of the
system should be made with an non freezable
liquid. Or use compressed air to blow the lines
out from any moisture.

6. Release pump head (right) and remove tubing to
prevent any unnecessary wear.

FINAL

1. Store the machine inside a protective building to keep it from being exposed to
the weather.

2. Disconnect power to the machine.

USC, LLCPage 62

LP2000 with Seed Wheel

Section

Section

Mechanical Drawings

Mechanical Drawings

The following pages show the parts of your seed treater. Please have the part number
ready when ordering parts.

SOME PARTS FOR COTTON/RICE TREATERS ARE DIFFERENT.
IF YOU HAVE A COTTON/RICE SEED TREATER, LOOK FOR THE
COTTON SYMBOL IN THE PARTS LIST BEFORE ORDERING.

II

Item Page #

Mechanical Drawings & Parts List ............................................................................... 64

Electric Control Panel & Parts ..................................................................................... 88

USC, LLC Page 63

LP2000 with Seed Wheel

LP2000 Drum Drive & Guards

USC, LLCPage 64

LP2000 with Seed Wheel

LP2000 Drum Drive & Guards

USC, LLC Page 65

LP2000 with Seed Wheel

LP2000 Drum Drive & Guards

USC, LLCPage 66

LP2000 with Seed Wheel

LP2000 Drum Drive & Guards Parts List

Item # PART # Title Qty

1 01-01-0101 GBOX IL 56C 16.2:1 GR B1 FOOT MNT 1
2 01-02-0093 SPROCKET, 50BS14H, 1" BORE 4
3 01-02-0095 SPKT 17 T 50P .500 ID IDLER 2
4 01-03-0036 BRG PLW 1.00ID STSC SEALED 6
5 01-04-0005 #50 CNTG LINK 2
6 01-05-0008 SHAFT CLR 1.00ID SPLIT 8
7 01-06-0002 WHL DRV 6 X 2 X 1.00ID .250KWY 4
8 01-06-0004 WHL GUIDE .375ID X 2.50 X .875 NPRN 2

9 01-10-0003 KEY .250 X 2.00 CS 4
10 01-10-0004 KEY .250 X 1.00 CS 4
11 04-05-0002 ASSY BOLT ON ADJ CHAMBER LP2000 1
12 05-02-0004 WDMT, LP2000 DRUM 1
13 05-03-0141 WDMT FRAME LP800/LP2000 1
14 05-03-0144 CHUTE ADAPTER LP2000 2
15 05-03-0422 WDMT DSCHG CHUTE SUPP BRKT LP2000 1
16 05-04-0012 WDMT FLOW SLV ROD END TUBE 1
17 05-04-0023 WDMT FLOW SLV HNDL LP2000 1
18 05-04-0067 WDMT DRUM DRV ADJ PLT 1
19 05-06-0013 WDMT DRUM GRD LP800/LP2000 1
20 05-07-0018 ASSY END CHUTE DOOR CS 1
21 05-07-0049 WDMT,END CHUTE LP2000 1
22 05-10-0150 GRD DRUM INLET LOWER 1
23 05-10-0156 CHAIN GEAR GUARD 1
24 05-10-0875 GRD DRUM SIDE LP800/LP2000 2
25 05-10-0877 GRD DRUM EXT LP2000 1
26 05-10-1899 GRD DRM BTTM LP2000 EXT 1
27 05/10/2366 GRD DRUM BTM RIGHT 1
28 05/10/2367 GRD DRUM BTM LEFT 1
29 05-11-0003 DRIVE SHAFT, 60" 2
30 05-11-0029 CPLG QCK CONNECT MACH 1

USC, LLC Page 67

LP2000 with Seed Wheel

LP2000 Drum Drive & Guards Parts List

Item # PART # Title Qty

31 05-11-0034 ROD FLOW STOP ADJ - 10" 1

32 06-01-0006 BOLT .250-20 X .750 ZP GR5 8

33 06-01-0018 BOLT .375-16 X 1.50 ZP GR5 5

34 06-01-0019 BOLT .375-16 X 1.75 ZP GR5 1

35 06-01-0025 BOLT .500-13 X 1.50 ZP GR5 1

36 06-01-0026 BOLT CRG .500-13 X 2.00 ZP GR5 1

37 06-01-0029 BOLT .500-13 X 3.25 ZP GR5 12

38 06-01-0053 BOLT .375-16 X 1.25 ZP GR5 4

39 06-01-0054 BOLT .500-13 X 1.75 ZP GR5 1

40 06-01-0102 BOLT .313-18 X 1.25 ZP GR5 1

41 06-01-0124 BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 43

42 06-01-0137 BOLT .375-16 X 2.00 ZP GR5 FULL THRD 2

43 06-01-0172 BOLT CRG .313-18 X 1.75 ZP GR5 4

44 06-02-0002 NUT FULL .313-18 ZP GR5 5

45 06-02-0003 NUT FULL .375-16 ZP GR5 2

46 06-02-0015 NUT JAM .500-20 ZP GR5 1

47 06-03-0004 NUT,LOCK, .500-13 ZP SS NYLON INSERT 2

48 06-03-0006 NUT NYL LOCK .438-14 ZP GR5 1

49 06-03-0014 NUT,LOCK, FLG .375-16 ZP SERRATTED 10

50 06-03-0015 NUT,LOCK, FLG .500-13 ZP SERRATTED 13

51 06-04-0001 WSHR LOCK SPLT .250 ZP 8

52 06-04-0002 WSHR LOCK SPLT .313 ZP 4

53 06-04-0003 WSHR LOCK SPLT .375 ZP 1

54 06-05-0004 WSHR FLAT .375 ZP 1

55 06-10-0018 36" DIA BRUSH SEAL 2

56 06-12-0008 CLVS .500-20 X .500 1

57 06-12-0009 PIN CLIP SPRING .500 1

58 06-12-0011 RIVET POP .188 X .750 GRIP SS 4

59 06-12-0018 SPRING BOLT CHAIN RELEASE 1

60 13-05-0156 #50 CHAIN 84LINKS 1

61 13-05-0157 #50 CHAIN -- 32 LINKS 1

USC, LLCPage 68

LP2000 with Seed Wheel

LP2000 Atomizer

USC, LLC Page 69

LP2000 with Seed Wheel

LP2000 Atomizer Parts List

Item # PART # Title Qty

1 01-03-0002 BRG FLG MNT .625ID 3.875 BASE 1
2 01-07-0027 CPLG CLPN .625 X .625 SPLT CS 1
3 01-11-0002 FTTG GRS STGHT .125 PTF 1
4 02-03-0039 TBG .125 OD POLYE COMP 1
5 02-06-0007 ELBOW, .375-18 NPT, 45 DEG. SS 1
6 02-06-0008 FTTG 90 DEG .375NPT FM SS 1
7 02-06-0010 FTTG 90 DEG .500HB X .500NPT ML NYL 1
8 02-07-0002 FTTG NIP .375 NPT X 1.50 TBE SS 1

9 02-07-0005 PIPE, .375-18 NPT STRAIGHT, 3.500 SS 1
10 02-07-0020 NIPPLE, 3/8-18 NPT X 3.00 SS 1
11 02-08-0006 FTTG STGHT .500HB X .375NPT ML NYL 1
12 02-16-0038 FTTG PUSH .125 OD X .125 NPT ML 1
13 02-16-0039 FTTG COMP .125 OD X .250-28 1
14 04-02-0003 ASSY ATMZR HEAD STD 1
15 05-03-0037 WLDMT,ATOMIZER CHUTE LP2000 1
16 05-10-0360 DISC STD ATMZR HEAD CVR 1
17 05-10-0366 LP2000 ATMZR EXT CHUTE FOR BRUSH 1
18 05-10-0805 DISK ATOMIZER MOTOR 1
19 05-10-2462 SEAL RBBR .625 FLG BRG 1
20 05-10-2816 LP2000 MTR GUARD FLEX CPLG 1
21 06-01-0069 BOLT, .500-13 X 1 UNC ZP GRADE 5 2
22 06-01-0102 BOLT .313-18 X 1.25 ZP GR5 2
23 06-01-0124 BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 4
24 06-01-0138 BOLT, FLG .315-18 UNC ZP GRADE 5; 3/4" LG 3
25 06-03-0019 NUT LOCK FLG .3125-18 ZP GR5 2
26 06-04-0004 WSHR LOCK SPLT .500 ZP 2
27 06-05-0001 WASHER, FLAT .250 2
28 06-05-0005 WSHR FLAT .500 ZP 2
29 09-02-0004 ATWK LBL GRS 40HRS 1
30 11-07-0077 ROD, .625 DIA., SS - 14 3/8" 1

USC, LLCPage 70

LP2000 with Seed Wheel

LP2000 27 Gallon Mix Tank

USC, LLC Page 71

LP2000 with Seed Wheel

LP2000 27 Gallon Tank Parts List

Item # PART # Title Qty

1 01-01-0039 GBOX IL 61.8:1 56C OTP 56C INP 1

2 01-07-0015 CPLG CLPN .625 X .750 X 1.50OD SS 1

3 02-02-0006 .500-14 NPT X 2-WAY VALVE 1

4 02-02-0006 VLV BALL .500 NPT 2WAY BRSS 1

5 02-02-0007 .500-14 NPT 3-WAY VALVE 1

6 02-05-0028 FTTG .500 NPT DBL THD PPE BULKHEAD 4

7 02-06-0010 FTTG 90 DEG .500HB X .500NPT ML NYL 4

8 02-06-0017 1/2-14 NPT,SL 90 DEG. BP 1

9 02-07-0009 FTTG NIP .500 NPT X 1.75 TBE BLK 1
10 02-07-0010 PIPE, .500-14 NPT SCH.40, 2.0 304 SS 1
11 02-07-0015 FTTG NIP .500 NPT X 6.00 TBE SS 1
12 02-14-0001 FTTG PLUG SQHD .500 NPT SS 1
13 02-14-0002 1/2-14 NPT,PLUG BP 3
14 05-03-0028 WDMT,CHEM. TANK BASE 1
15 05-03-0029 WDMT,REMOVABLE TOP 27 GAL 1
16 05-04-0005 WDMT,CHEMICAL MIXING TANK ARM 1
17 05-04-0011 WDMT,MIDDLE STIR ARM 1
18 05-10-0799 STIR PAD, NEOPRENE RUBBER 2
19 05-10-2080 LBL TRTR MIX TANK 1
20 05-11-0041 ROD, .625 SS - 19 1/4" LONG 1
21 06-01-0042 BOLT, .375-16 X .750 18-8 SS 6
22 06-01-0051 BOLT .250-20 X 1.00 SS 316 6
23 06-01-0083 BOLT .313-18 X 1.00 SS 18-8 4
24 06-03-0007 NUT,LOCK, .250-20 316 SS NYLON INSERT 6
25 06-03-0019 NUT LOCK FLG .3125-18 ZP GR5 4
26 06-04-0008 WSHR LOCK SPLT .375 SS 18-8 6
27 06-05-0002 WSHR FLAT .250 X .625OD SS 18-8 6
28 06-06-0008 SCRW MACH 10-24 X .250 PHLP PHD ZP 2
29 06-10-0001 SEAL,CHARCAOL TANK 1

USC, LLCPage 72

LP2000 with Seed Wheel

LP2000 Seed Treater

USC, LLC Page 73

LP2000 with Seed Wheel

LP2000 Seed Treater Parts List

Item # PART # Title Qty

1 01-01-0011 MTR .1HP 2-200RPM 90VDC 1
2 02-01-0004 PUMP HEAD PRST MF IP 200RPM 1
3 02-05-0003 FTTG CPLG .500 HB NYL 2
4 03-10-0051 SENS PROX 24-240 AC AB 875CPG8N18A2 2
5 03-12-0013 L-SERIES PANEL - STANDARD 1
6 03-20-0002 KIT 220 1PH CNTL 1
7 04-01-0009 ASSY ATMZR LP2000 STD 1
8 04-03-0001 ASSY, 27gal. CHEMICAL TANK LP2000 1

9 05-05-0001 WDMT ADJ TREATER LEG 4
10 05-07-0008 WDMT INLET HOPP EXT 1
11 05-10-0362 PLT HOPP EXT VIEW 3
12 05-10-0806 BRKT PUMP MNT LP800/LP2000 SS 1
13 06-01-0006 BOLT .250-20 X .750 ZP GR5 10
14 06-01-0012 BOLT .313-18 X 1.00 ZP GR5 2
15 06-01-0024 BOLT .500-13 X .750 ZP GR5 4
16 06-01-0090 SCRW MACH 10-32 X .750 ZP PHLP RND 4
17 06-01-0124 BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 20
18 06-01-0189 BOLT, FLG .375-16 UNC ZP GRADE 5; 1-1/4" LG 8
19 06-02-0001 NUT FULL .250-20 ZP GR5 9
20 06-03-0002 NUT NYL LOCK .313-18 ZP GR5 2
21 06-03-0013 NUT,LOCK, FLG .250-20 ZP SERRATTED 1
22 06-03-0014 NUT,LOCK, FLG .375-16 ZP SERRATTED 8
23 06-04-0001 WSHR LOCK SPLT .250 ZP 9
24 06-05-0001 WASHER, FLAT .250 9
25 06-05-0017 WSHR FLAT #10 ZP 4
26 06-07-0006 CLMP HOSE .500 TO .906 X .313W ZP 5
27 06-09-0002 PIN CLIP HITCH 3.063 SIZE 9 ZP 4
28 06-09-0005 PIN CLVS .500 X 3.50 PLN 4
29 13-04-0005 ASSY,CALIBRATION TUBE, 10,000 ML 1
30 13-05-0023 HOSE .500 YEL MF 20IN 4

USC, LLCPage 74

LP2000 with Seed Wheel

LP2000 Seed Treater Parts List

Item # PART # Title Qty

31 13-05-0027 HOSE .500 RNT 24IN 1
32 13-05-0027 HOSE .500 RNT 24IN 1
33 13-05-0039 KIT VLV ST SOURCE 1
34 13-05-0040 KIT VLV ST PROCESS 1
35 13-11-0009 ASSY BASE LP2000 TRTR 1

LP2000 Inoculant Kit (Pump #2)

USC, LLC Page 75

LP2000 with Seed Wheel

LP2000 Inoculant Kit (Pump #2)

USC, LLCPage 76

LP2000 with Seed Wheel

LP2000 Inoculant Kit (Pump #2) Parts List

Item # PART # Title Qty

1 01-01-0011 MTR .1HP 2-200RPM 90VDC 1
2 02-01-0004 PUMP HEAD PRST MF IP 200RPM 1
3 02-02-0007 .500-14 NPT 3-WAY VALVE 1
4 02-02-0007 VLV BALL .500 NPT 3WAY BRSS 1
5 02-03-0005 .5 RNT TUBING 14" LG 1
6 02-03-0005 .5 RNT TUBING 20" LG 1
7 02-03-0005 .5 RNT TUBING 20" LG 1
8 02-03-0005 .5 RNT TUBING 47" LG 1

9 02-03-0005 .5 RNT TUBING 52" LG 1
10 02-05-0003 FTTG CPLG .500 HB NYL 2
11 02-06-0010 FTTG 90 DEG .500HB X .500NPT ML NYL 9
12 05-10-2820 PLT, LBL INOC VALVE 1
13 06-01-0010 BOLT .313-18 X .750 ZP GR5 6
14 06-01-0012 BOLT .313-18 X 1.00 ZP GR5 2
15 06-03-0002 NUT NYL LOCK .313-18 ZP GR5 2
16 06-04-0002 WSHR LOCK SPLT .313 ZP 6
17 06-05-0003 WSHR FLAT .313 ZP 6
18 06-06-0008 SCRW MACH 10-24 X .250 PHLP PHD ZP 2
19 06-06-0029 SCRW MACH 10-24 X .375 PHLP PHD ZP 2
20 06-07-0006 CLMP HOSE .500 TO .906 X .313W ZP 13
21 07-02-0016 TNK 5GAL 5.00 LID X .500 PLAS RECT 1
22 13-05-0023 HOSE .500 YEL MF 20IN 4
23 N/A TUBE FROM PUMP HEAD KIT 1

USC, LLC Page 77

LP2000 with Seed Wheel

USC, LLCPage 78

LP2000 with Seed Wheel

USC, LLC Page 79

LP2000 with Seed Wheel

USC, LLCPage 80

LP2000 with Seed Wheel

USC, LLC Page 81

LP2000 with Seed Wheel

USC, LLCPage 82

LP2000 with Seed Wheel

Item Number USC Part Number Description Quantity

1 01-01-0096 GMTR RA .50 HP 11RPM 3PH HLLW SHAFT 1

2 03-05-0042 TMNL BARRIER STRIP IDEAL 89-608 1

3 03-06-0039 RECP 4PL ML PIN HBMS04501 1

4 03-06-0059 RECP 8PL ML PIN HBMS08501 1

5 03-07-0063 CORD 4COND 16AWG SHLD V16016 ALPHA 1

6 03-08-0134 LPCG503 ARLINGTON 1/2NPT RANGE:.100/.300 1

7 03-08-0138 CONN CG PLAS 0.5NPT .375-.750 5

8 03-10-0051 SENS PROX 24-240 AC AB 875CPG8N18A2 2

9 03-10-0086 RTRY PULSE GEN PU-40E WITH CBL 1

10 03-11-0081 ENCL 4.5X3X2 POLY HOF Q1286PCD 1

11 05-03-0164 WDMT SEED METER BODY EXTEN 1

12 05-03-0169 WDMT SEED METER EXTENSION 1

13 05-03-0232 WDMT SMW UPPER BRG BRKT 1

14 05-03-0240 WDMT SMW BRSH PCKT 2

15 05-04-0049 WDMT SEED WHEEL SHAFT NUT 1

16 05-07-0196 MOLDED SEED WHEEL INSERT 1

17 05-07-0197 HPPR SMW DUAL DSCHG ROTO-MLDD 1

18 05-07-0203 MOLDED SEED WHEEL INSERT TOP 1

19 05-10-0890 CVR #1 SEED METER 2

20 05-10-0891 CVR #2 SEED METER 2

21 05-10-0893 PLATE SUPPORT SEED METER STEEL 1

22 05-10-1213 SUPP BTM BRG UHMW SEED METER 1

23 05-10-1306 PAD SEED WHL FOAM RBBR FLOATING 1

24 05-10-1392 BRKT SMW BRSH PCKT HLDR 2

25 05-10-1426 14GA WEAR SPLATE HALF 2

26 05-10-1449 PLT SMW CTR HUB WIPER 2

27 05-10-1588 PLT SHAFT CLIP SMW 1

USC, LLC Page 83

LP2000 with Seed Wheel

Item Number USC Part Number Description Quantity

28 05-10-1872 GRD SMW INLET HOPP PCKT 2

29 05-10-1876 RING PERIMETER SEED WHEEL SS 2

30 05-10-2166 CVR TEST 2

31 05-10-3316 SMW PROX SW HOLDER 2

32 05-11-0075 DRIVE SHAFT 1.4375 SHAFT 1

33 06-01-0091 SRCW, PAN HD, 10-32 X 1.25 ZP 1

34 06-01-0106 BOLT .500-13 X 5.50 ZP GR5 4

35 06-01-0122 BOLT, CARRIAGE, .250-20x.75 G5 ZP 18

36 06-01-0124 BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 32

37 06-01-0189 BOLT, FLG .375-16 UNC ZP GRADE 5; 1-1/4" LG 8

38 06-01-0204 BOLT, FLG .375-16 UNC ZP GRADE 5; 2-1/2" LG 8

39 06-02-0034 NUT 8-32 K-LOCK ZP 4

40 06-02-0071 .375-16 FLANGE TOP LOCKNUT G5 ZP 4

41 06-03-0013 NUT,LOCK, FLG .250-20 ZP SERRATTED 22

42 06-03-0014 NUT,LOCK, FLG .375-16 ZP SERRATTED 36

43 06-03-0015 NUT,LOCK, FLG .500-13 ZP SERRATTED 4

44 06-03-0019 NUT LOCK FLG .3125-18 ZP GR5 4

45 06-05-0004 WSHR FLAT .375 ZP 10

46 06-06-0004 SCRW MACH 8-32 X .500 PHLP RDHD ZP 4

47 06-06-0046 SCRW .313-18 X 2.0 ZP FLAT HD PHLP 4

48 06-06-0070 SCRW MACH .375-16 X 1.50 SH FLHD BO 4

49 06-09-0023 PIN CTTR .188 X 2.00 ZP 1

50 06-10-0019 SEAL BRSH 12.75 OAL 1IN EXP LG 2

51 06-10-0020 12 IN LG BRUSH HOLDER 2

52 06-12-0021 SPCR .192ID X .3125OD X .500 LG ZP 1

53 06-14-0013 .375-16 THD RD CS 4

54 11-13-0004 KEYSTOCK 3/8 X 3/8 CS 1

USC, LLCPage 84

LP2000 with Seed Wheel

USC, LLC Page 85

LP2000 with Seed Wheel

Item # PART # Title Qty

1 03-12-0039 PNL CNTL MNL ST SW 1
2 03-19-0020 SCL 6.5 X 6.5 10 LBS 1
3 05-03-0248 WDMT CAL CUP FILL FRM 1
4 05-07-0119 LP800 SEED WHEEL FLOW BALANCER 1
5 05-10-1059 SEED WHEEL PANEL MOUNT PLATE 1
6 05-10-2463 SEAL BETWEEN FLANGES SMW TO TRTR 4
7 05-11-0123 FUNNEL SMW CALB CUP FILL 1
8 06-01-0090 SCRW MACH 10-32 X .750 ZP PHLP RND 4

9 06-03-0014 NUT,LOCK, FLG .375-16 ZP SERRATTED 8
10 06-05-0017 WSHR FLAT #10 ZP 4
11 07-02-0008 CUP MEASURE 64OZ SS GRADUATED 1
12 13-04-0065 ASSY SEED METER LX2000 1

USC, LLCPage 86

LP2000 with Seed Wheel

Electric Control Panel Parts List

An electrical wiring diagram is located in the control panel of the seed treater at the
time of shipment. The diagram located in the panel shows the exact electrical sche­matic for that model of seed treater. If you have any questions about the diagram,
please call your local USC dealer.

1

1 2 3 4

1

5 5 5 5 5

3

4

Item Number Part Number Part Description Quantity

1 03-01-0008 DC VOLTMETER 2
2 03-10-0008 3-POSITION PANEL SWITCH, MAINTAIN 1
3 03-10-0001 FORWARD-BRAKE-REVERSE SWITCH 2

4 07-01-0001 COUNTING DIAL 2
5 03-10-0055 3-POSITION PANEL SWITCH, SPRING RETURN TO

CENTER

4 to 5

USC, LLC Page 87

LP2000 with Seed Wheel

Section

Section

Limited Warranty

Limited Warranty

USC, LLC, (Manufacturer) warrants its seed treating equipment as follows:

1. Limited Warranty: Manufacturer warrants that the Products sold hereunder will be free
from defects in material and workmanship for a period of 12 months from date of shipment. If
the Products do not conform to this Limited Warranty during the warranty period, Buyer shall
notify Manufacturer in writing of the claimed defects and demonstrate to Manufacturer
satisfaction that said defects are covered by this Limited Warranty. If the defects are properly
reported to Manufacturer within the warranty period, and the defects are of such type and
nature as to be covered by this warranty, Manufacturer shall, at its expense, furnish
replacement Products or, at Manufacturer’s option, replacement parts for the defective
products. Shipping and installation of the replacement Products or replacement parts shall be
at the Buyer’s expense.

2. Other Limits: THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EX-
PRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Manufacturer
does not warrant against damages or defects arising from improper installation (where
installation is by persons other than Manufacturer), against defects in products or components
not manufactured by Manufacturer, or against damages resulting from such non-Manufacturer
made products or components. Manufacturer passes on to the Buyer the warranty it received
(if any) from the maker of such non-Manufacturer made products or components. This
warranty also does not apply to Products upon which repairs and/or modifications have been
effected or attempted by persons other than pursuant to written authorization by Manufacturer.
Manufacturer does not warrant against casualties or damages resulting from misuse and/or
abuse of product(s), acts of nature, effects of weather, including effects of weather due to
outside storage, accidents, or damages incurred during transportation by common carrier.

3. Exclusive Obligation: THIS WARRANTY IS EXCLUSIVE. The sole and exclusive
obligation of Manufacturer shall be to repair or replace the defective Products in the manner
and for the period provided above. Manufacturer shall not have any other obligation with
respect to the Products or any part thereof, whether based on contract, tort, strict liability or
otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise,
shall Manufacturer be liable for incidental, special, or consequential damages.

4. Other Statements: Manufacturer’s employees or representatives’ oral or other written
statements do not constitute warranties, shall not be relied upon by Buyer, and are not a part
of the contract for sale or this limited warranty.

5. Return Policy: Approval is required prior to returning goods to USC, LLC. A restocking fee
will apply.

6. Entire Obligation: This Limited Warranty states the entire obligation of Manufacturer with
respect to the Products. If any part of this Limited Warranty is determined to be void or illegal,
the remainder shall remain in full force and effect.

JJ

USC, LLCPage 88
