US Balance US-RUSH200g User Manual

Capacity

200g

Readability

0.01g

Units

g/gn/dwt/ct

Tare range

Tare full capacity

Auto off

60 seconds

Operation temperature

50-86F

Power

2 x AAA Batteries (Included)

Dimensions

6.5” x 4.8” x 0.8”

Key function

ON/OFF : turn the scale On and off
MODE : Change the weighing unit
TARE : Zero the scale
CAL : Calibration
NUMBERS : 0-9
M : Price input and memory
K : Selection gold purity
DEL : Clearing price from memory

Display

LCD Display with blue backlight

2- SPECIFICATION

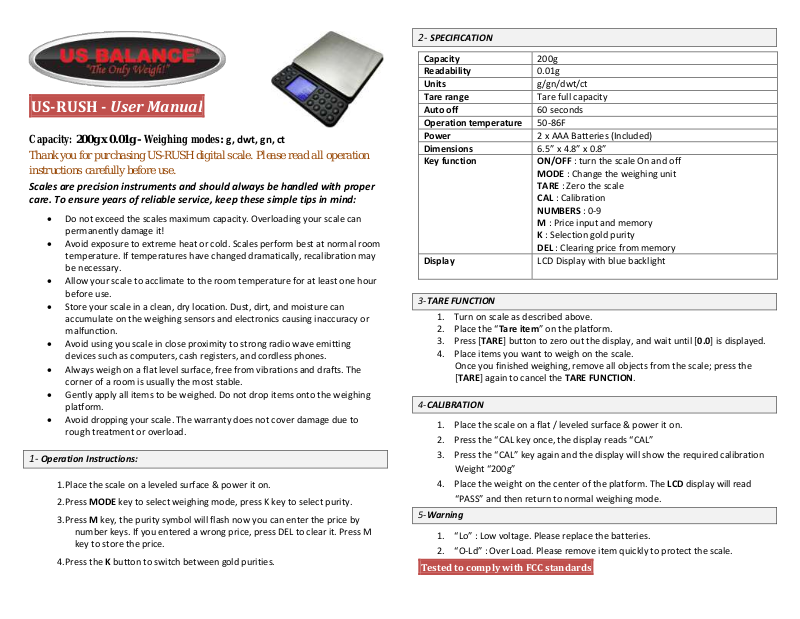

US-RUSH - User Manual

Capacity: 200g x 0.01g - Weighing modes: g, dwt, gn, ct

Thank you for purchasing US-RUSH digital scale. Please read all operation
instructions carefully before use.

Scales are precision instruments and should always be handled with proper
care. To ensure years of reliable service, keep these simple tips in mind:

 Do not exceed the scales maximum capacity. Overloading your scale can

permanently damage it!

 Avoid exposure to extreme heat or cold. Scales perform best at normal room

temperature. If temperatures have changed dramatically, recalibration may
be necessary.

 Allow your scale to acclimate to the room temperature for at least one hour

before use.

 Store your scale in a clean, dry location. Dust, dirt, and moisture can

accumulate on the weighing sensors and electronics causing inaccuracy or
malfunction.

 Avoid using you scale in close proximity to strong radio wave emitting

devices such as computers, cash registers, and cordless phones.

 Always weigh on a flat level surface, free from vibrations and drafts. The

corner of a room is usually the most stable.

 Gently apply all items to be weighed. Do not drop items onto the weighing

platform.

 Avoid dropping your scale. The warranty does not cover damage due to

rough treatment or overload.

1- Operation Instructions:

1. Place the scale on a leveled surface & power it on.

2. Press MODE key to select weighing mode, press K key to select purity.

3. Press M key, the purity symbol will flash now you can enter the price by

number keys. If you entered a wrong price, press DEL to clear it. Press M
key to store the price.

4. Press the K button to switch between gold purities.

3-TARE FUNCTION

1. Turn on scale as described above.

2. Place the “Tare item” on the platform.

3. Press [TARE] button to zero out the display, and wait until [0.0] is displayed.

4. Place items you want to weigh on the scale.

Once you finished weighing, remove all objects from the scale; press the
[TARE] again to cancel the TARE FUNCTION.

4-CALIBRATION

1. Place the scale on a flat / leveled surface & power it on.

2. Press the “CAL key once, the display reads “CAL”

3. Press the “CAL” key again and the display will show the required calibration

Weight “200g”

4. Place the weight on the center of the platform. The LCD display will read

“PASS” and then return to normal weighing mode.

5-Warning

1. “Lo” : Low voltage. Please replace the batteries.

2. “O-Ld” : Over Load. Please remove item quickly to protect the scale.

Tested to comply with FCC standards
