USA SSC KS series User Manual

IP HIGH SPEED DOME













CAMERA

USER





















MANUAL

www.USA‐SSC.com

V

1.0

Catalogue

1 Precautions 1

2 Product Overview 2

3 Web Browse Operation Guide 6

4 OSD Menu Operation Guide 35

5 Appendixes 55

1

1 Precaution

● please read this manual carefully before the installations and operations.

● Transportation Security

No heavy stress, violent vibration or water splash are allowed during transportation, storage. The
unit should be transported in separated packing. In shipments of distributor and delivery of
maintenance, any damages caused by integral packing are not covered by warranty.

● Installation

Avoid heavy stress and violent vibration during installation. Don’t touch the camera cover directly

by hand. When connecting the power source, please follow all electric safety standards and only
use the power supply designated for this device. Keep the video and control signal in a decent

distance from high voltage devices and cable. Don’t apply power to camera before finishing the

installation.

● Internal Environment
Keep metal and inflammable material away from camera body to avoid fire short circuit and
damage. Please prevent all liquids material from entering the camera. If this occurs, please shut
down the power and pull out the plug-in. Then please inform the technical personnel immediately.

● Electrical Safety
The video image would be interfered when the camera is installed near Television, radio
transmitter, voltage changer and audio amplifier.

● Camera Protection
Avoid shooting very bright objects directly into the camera’s CCD (such as the sun or light fittings)

and avoid fixating the camera lens on bright static object for long time, as it will cause Irreparable

damage to the camera’s CCD.

● Cleaning Method

Please don’t use abrasive and violent detergent to clean the camera. Please choose dry fabric and

neutral detergent. And please use lens paper to clean the lens.

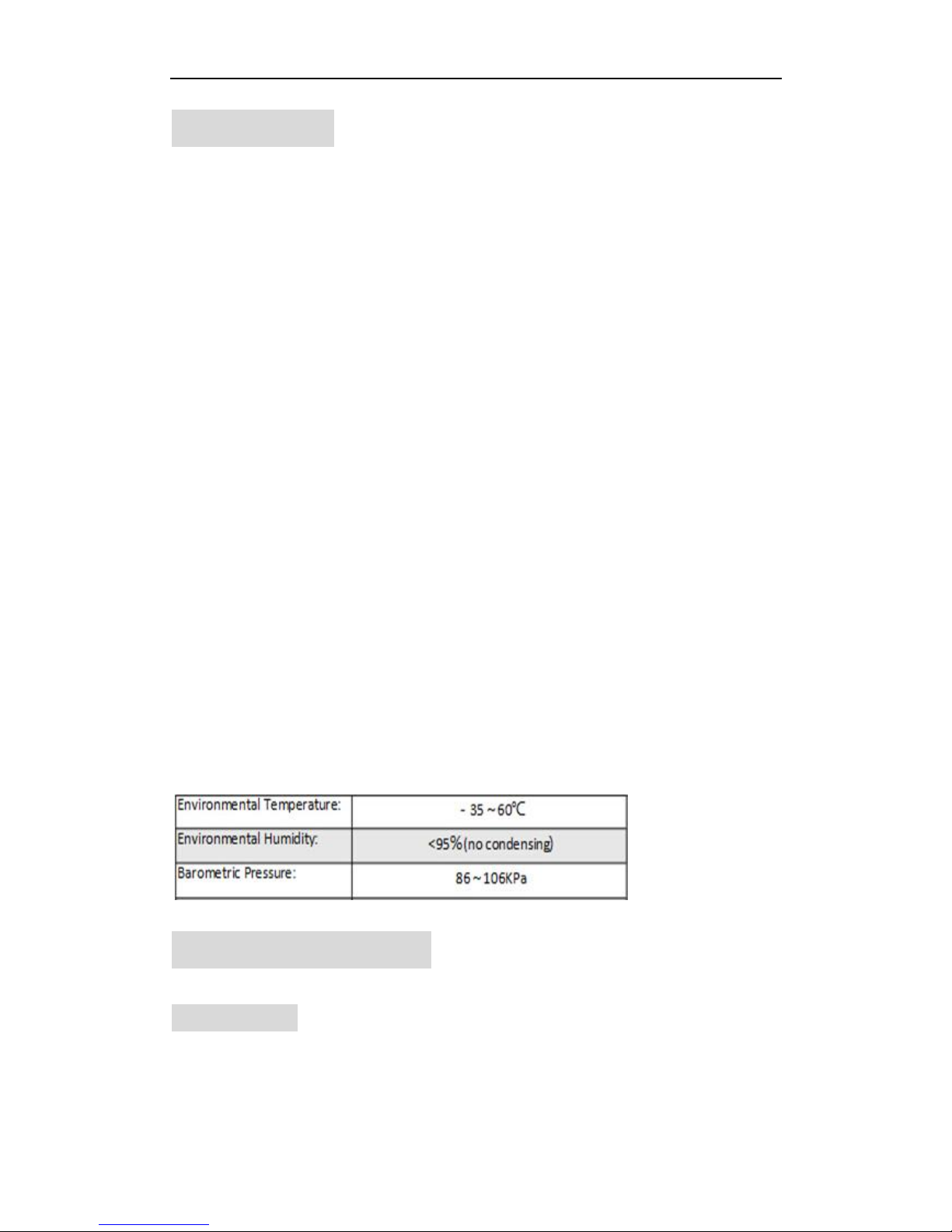

● please use our production under the following environmental standards:

2 Product Overview

2.1 Features

2.1.1 Special Features

●High Definition

H.264 compression algorithm, save the network bandwidth and hard disk storage space, aspect

2

ratio of 16:9 and 4:3 adjust at will; h. 264 main profile levels and M - JPEG video streaming can
be output at full frame speed. Support for dynamic coding parameters adjustment

●Fix/Veri-focus/Automatic focusing
With 20 x optical zoom, more than 20 times digital zoom and autofocus function, not only can
provide an ideal field of vision, but also can realize perfect automatic focus

●Double stream free switch
Support the double stream, choose the main stream or sub stream according to different
application.

●Supported protocols

Support TCP/IP、PPPoE、DDNS、FTP、UPNP 、Onvif,etc

●Voice intercom function
Support Voice intercom

●Alarm function
Support the local and network linkage signal; Provide area, mobile sensitivity detection alarm,
regional block alarm

●ROI function
Stream concentration makes the drawing region clearer, suitable for condition of the lack of
stream.

●OSD function
Support camera picture character superposition

●Power-down memory storage function
Camera stays on some location meeting for time limit before power-down, when camera is
power-on, it will back to the former location before power -down

2.1.2 Function Introduction

• Stepless speed changes, auto zoom/speed matching

• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 360o/S (high speed IR speed dome)

• Pan 0.5o~35o, Tilt 0.5o~35o, Preset: 35o/s (for Vari-speed IR dome)

• Auto object track with zoom in/out and motion detection (Auto Track Model)

• Timing actions for 7 days of programmable schedule

• Built-in Semi-conductor heater & digital temperature sensor

• PWM cooling fan vari-speed temperature control

• Reserved network interface and space for network module

• Pan Tilt accuracy +/- 0.1o, 256preset positions

• 8 cruising tracks, each cruising track has 32 presets

• 4 pattern tours, 10 Mins memory, 500 programmable instructions

3

• Multi-Protocol through RS485 or coaxial cable.

• 8 auto scan with use-defined left and right boundaries and settable scan speed

• 8 Privacy Zones with defined English camera title

• Auto Compatible PELCO_P, PELCO_D compatible

• Guard Location: the dome will rotate back to preset position after a period of vacant time

• Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions

• Soft Address Function: the use can set up the dome address without uninstall the dome

2.1.3 Integrated Super Speed PTZ Rotator

• Delicate stepping motor, stable, sensitive and accurate

• 360° Pan and 90° Tilt range (auto-flip) without blind area

• Stepless speed change, auto zoom/speed matching

• Near / far IR Light auto matches camera zoom in/out

2.1.4 All-weather outdoor design

●IP66 Protection standard

●TVS 3000V Protection standard

In this section, the text describes the main functions of the infrared PTZ camera and its
implementation of general principles, not involving the specific operation method. Generally
manufacturer’s operation manual shall prevail, in some cases there will be some special
requirements and operation method, please contact the dealer to obtain the necessary
information.

● Preset Position Set up and Call Up
In the Preset function the camera stores the current pan/tilt angle, zoom and other position
parameters in its memory. When necessary the camera recalls these parameters and adjusts the
camera to a particular position. The user can store, recall and clear the presets easily and promptly
by using the keyboard controller. The camera can store up to 256 presets.

● Auto Scan
Users can set up the left and right boundaries by control keyboard. Then camera can scan
between these boundaries. It supports up to 8 groups of scanning paths.

● Cruising Track
The preset position can be programmed to be recalled in a set of sequences. This sequence
can be set to let the camera scan from one position to the next in a cycle at a set speed. This

feature is called the “auto cruise”. The cruise sequence and dwell time of each preset can be set. It

supports up to 8cruising tracks, each cruising track with 32 presets.

● Pattern Tour
Camera can memorize 600S running path or 500 programmable instructions. When start pattern
tour, camera will move automatically according recorded action path. It supports 4 groups of
pattern tours.

4

2.2 Technique Parameter

Technical Data

Power Supply:

DC12V+10% 50W

Decoder:

Built-in

Manual Speed:

Pan:0.01o～360 o/S, Tilt: 0.01o～120 o/S (high speed)
Preset Speed:

360 o/S (high speed) / 100o/S (Mid-speed)

Pan Angle:

360o continuous pan rotation

Tilt Angle:

90o(Auto Flip)

Number of Preset:

256

Preset Accuracy:

+0.1o

Alarm input/output:

4input,2 output

Auto Scan:

8 auto scan tracks, user-defined left and right boundaries and scan speed

Auto Cruising:

8 cruising tracks, each cruising tracks has 32 preset positions,
user-defined dwell time

Pattern Tour:

4 patterns, up to 500 instructions per pattern

Guard Location:

The dome will rotate back to preset position after a period of vacant time.

Operating Humidity:

0～90%

Operating Temp:

-35 oC +60oC

2.3 OSD Menu operation

● Call up OSD menu

Call Preset 95 to enter the main OSD menu; call Preset 96 to close the OSD menu or

Select “Exit”

● Confirm

The “Left "and “Right "button is controlled by PTZ can change the required item, and the
changed item is the confirmed one without further confirmation. You can directly click “Up"

and “Down" button to go on your further operation. When setting the left and right boundary for

scan and pattern, you can click the “Focus Far" for confirmation.

● Cancel

The “up” and “down” button controlled by PTZ carry out the request for Further action;
meanwhile, it carries out the “Cancel” order for last operation.

5

3 Web Browse Operation Guide

3.1 Common Operations

Factory settings：
IP speed dome camera is a kind of network equipment, you need configure network IP

address, gateway and other information reasonably, and camera with default IP address in factory,
and user could change it according to their requirement.

Default IP address：192.168.0.99

Subnet mask：255.255.255.0

Gateway：192.168.0.1

WEB port：8000

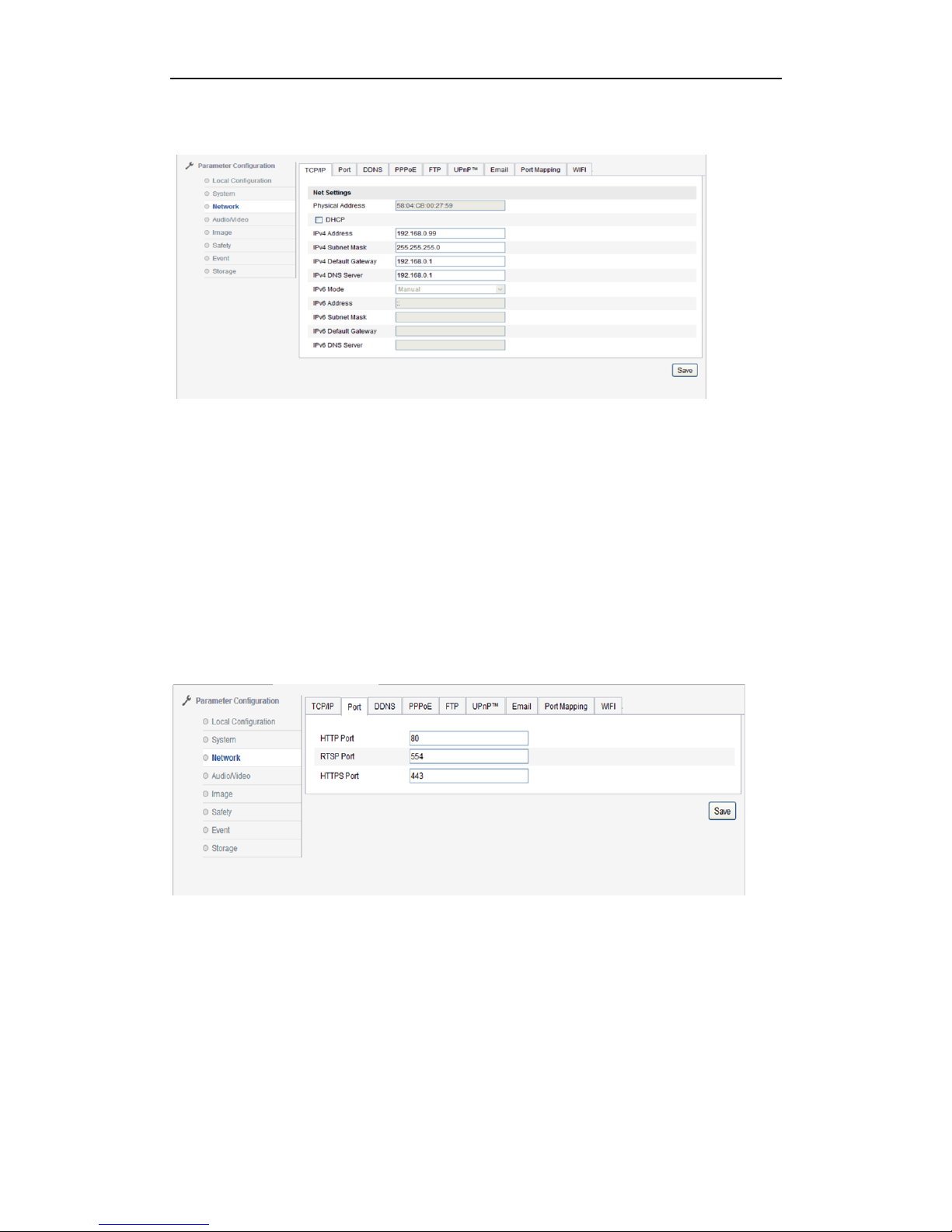

Network parameters

Take the example of Windows XP operating system. Make sure the IP address in network
parameters of the user computer is in accordance with the one of the camera, they are in same
segment, the IP address in the same LAN cannot be the same, otherwise, it will interfere with
each other, causing the equipment couldn't operate normally.

After setting IP address, you could test whether it has been connected between the computer and
the camera by using the PING order from clicking the “start”-”run" button in the bottom left
corner. The format of the command: ping 192.168.0.99

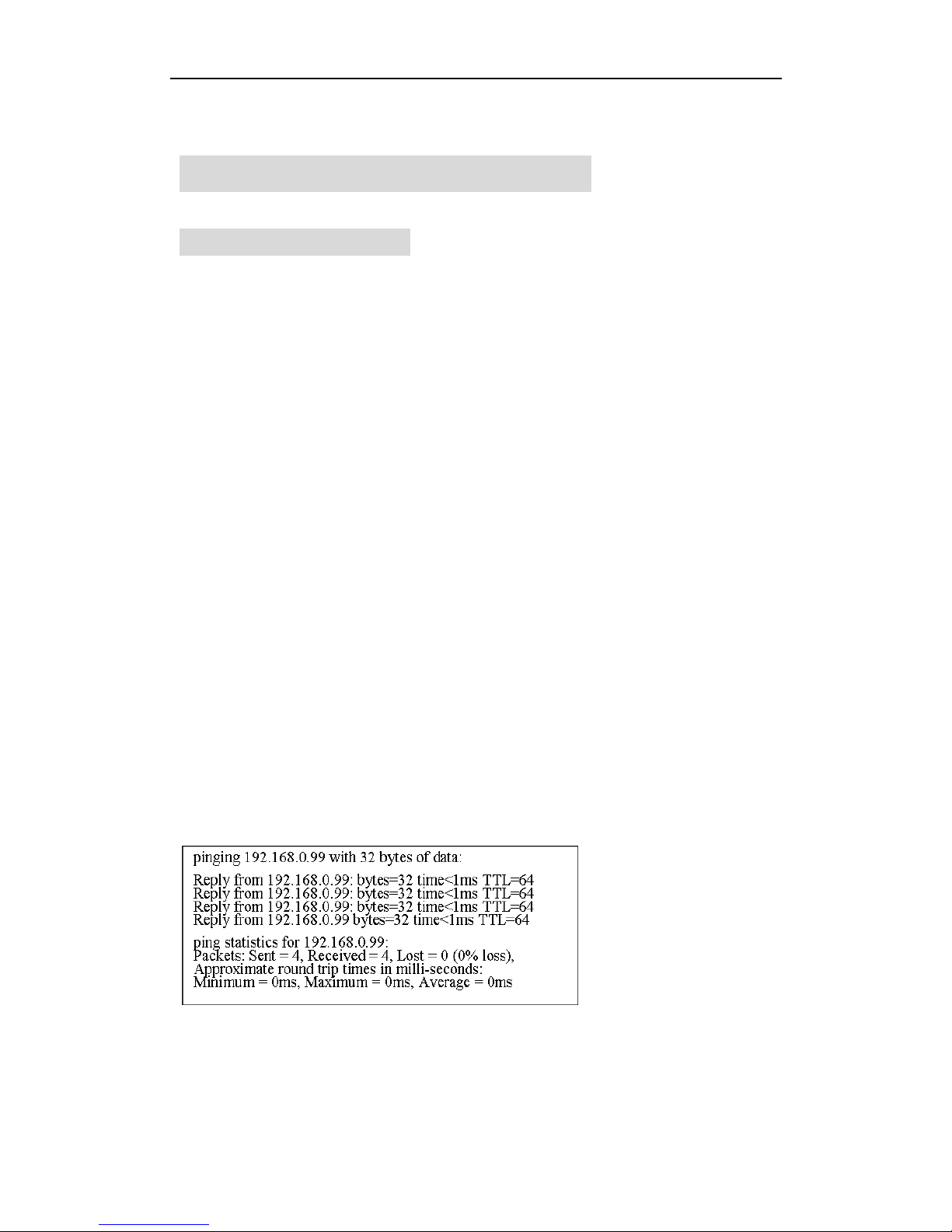

If the screen shows like this:

6

As the picture shown above, it indicates that it has been successfully connected between the

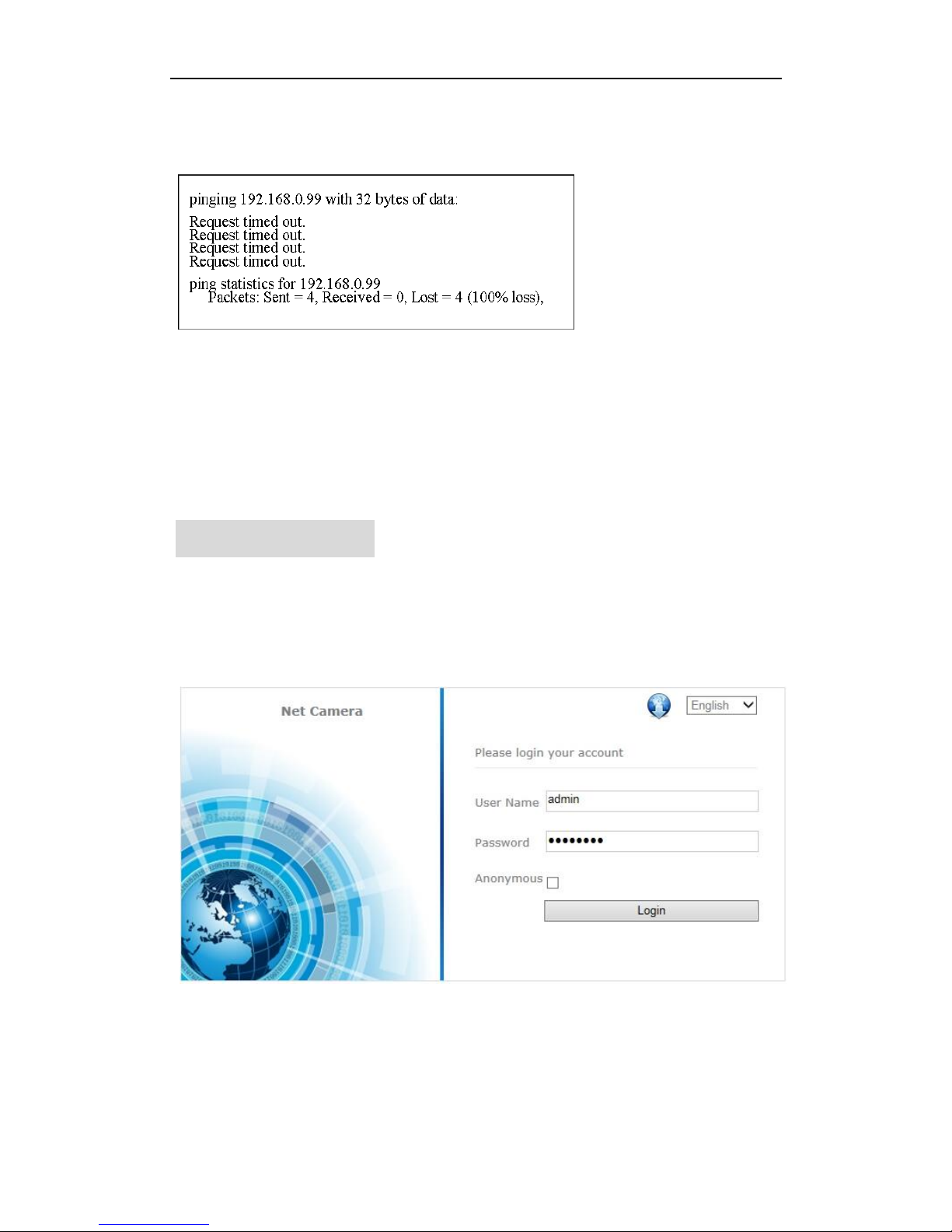

computer and the camera. However, if the screen shows like this:

It indicates equipment is failure to install, you could check from the following aspects:

● If hardware connection is correct

● If computer TCP/IP is in the same segment as the camera

● If network forbid ping order, please connect network administrator

3.2 Web Login

3.2.1 Login

Enter IP address (default: 192.168.0.99) to open the interface, dialog box as follows comes out:

◆ user name：admin

◆ password：admin

Picture 2.2.1-1 login interface

7

◆ Port：Default 8000

3.2.2 Download playing component

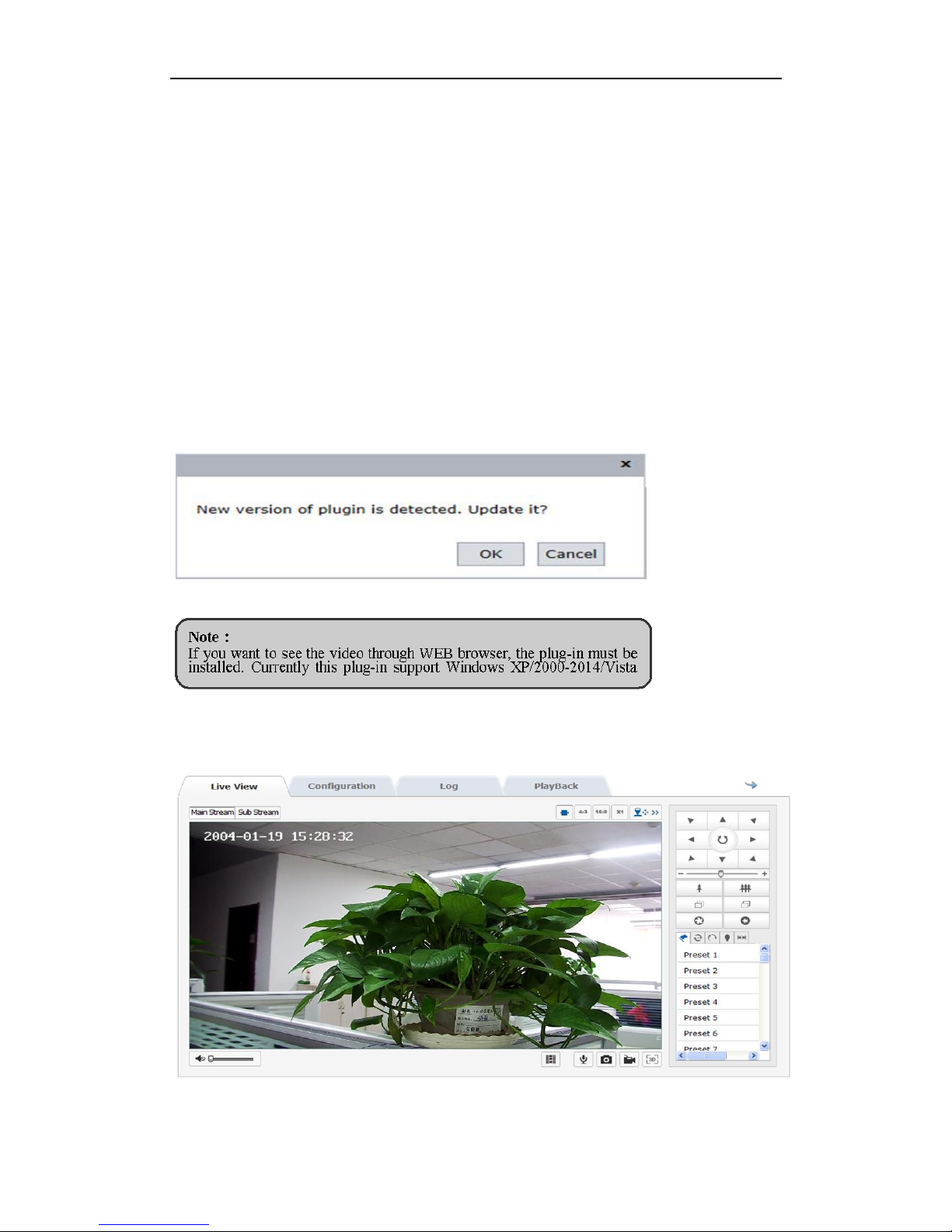

After you logged in, if the WEB browser indicates it is the first time of visiting or plug-in

reminds you of the update of the new version. （See 3.2.2-1). Double-click this plug-in and it
will remind you of the downloading process. Or you can double-click the icon at the top-right

corner of the login interface. Double-click the downloaded WebPluginInstaller.exe and start
install the playing plug-in for WEB browser, then confirm its installation as well as clicking the
“Next "button until finished. You need to return to the WEB browser screen and refresh the
display if you want to run this plug-in after installment, then you can watch the video.

The IP address again to the login screen after you have installed the plug-in and then input user
name, code, and then click the “login "button to enter the “preview "screen. See picture 3.2.3-1

Picture 3.2.3-1 Preview screen

Picture 3.2.2-1 Plug-in installation

8

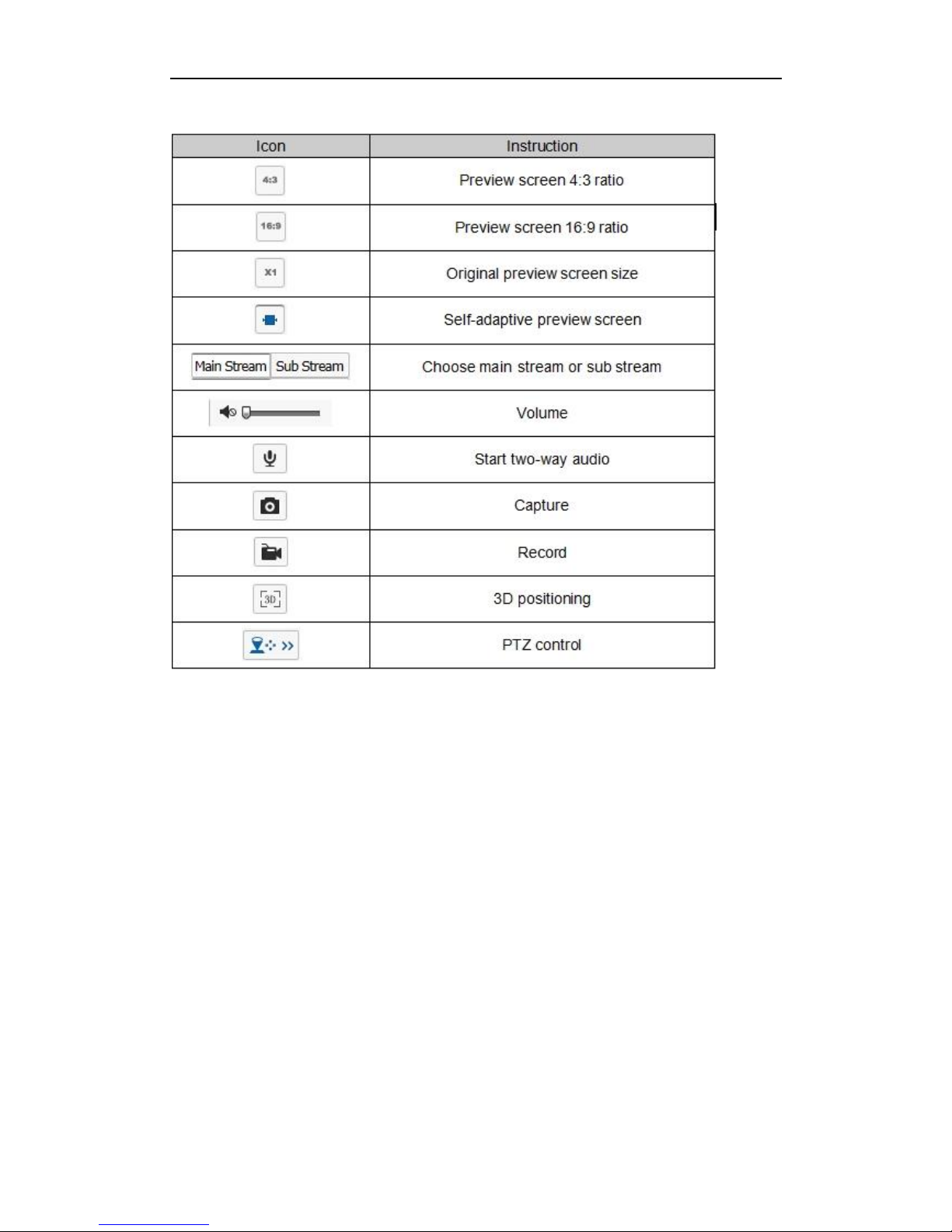

Sheet 3.2.3-2 Preview screen information

9

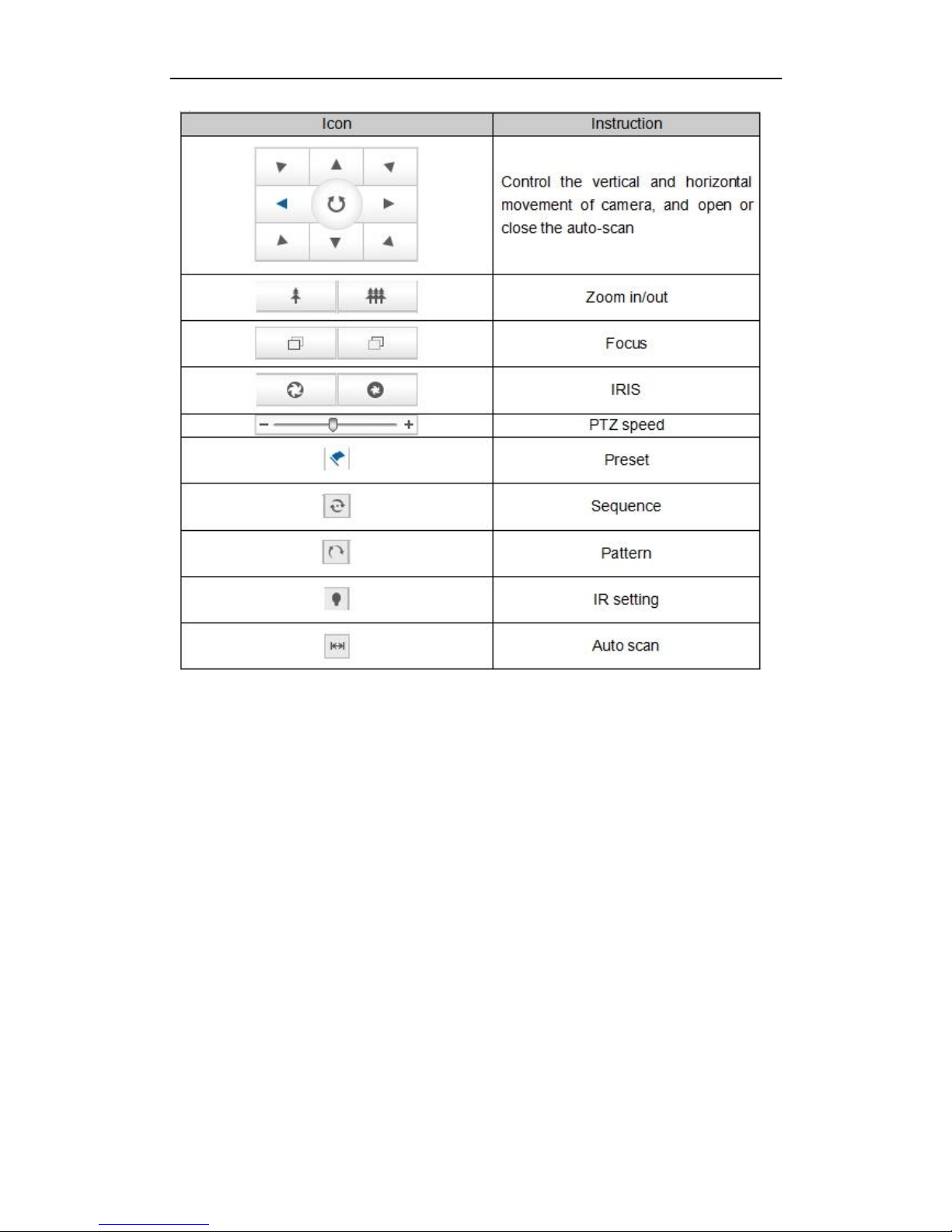

Sheet 3.2.3-3 PTZ control screen information

In the preview screen, you can control the preview, video recording, snapshot, intercom and
the on/off of the sound. The size of the image can be adjusted according to the needs of the user to
set its original size; we have “4:3””16:9”or “self-adaptation "mode. Preview code stream can be
set as “main stream” ”sub stream". See 3.2.3-2
Click “camera "can open the control screen of the camera. See 3.2.3-3

Operation methods for preset position

10

1. Enter the screen of setting preset position, and it will show the current preset position.

2. Setting preset position: select the number of preset position, and then operate the control
panel of the camera, when the camera scene moves to the place you want to set, then click the
“save "key to save this preset position.

3. Call the preset position: click “call "and the set preset position can be called.

4. Delete preset position: click “delete” can clear the information of preset position.

5. Special function preset position: this kind of preset position can be called, but it cannot be
modified or deleted.

Operation methods for pattern scanning

1. Enter the pattern scan screen, and it shows the current pattern scan path. See 3.2.3-5

2. Start recording the scanning: click start to record the pattern scan, and control the movement
of the camera by the control panel.

3. Stop recording scanning: click save to save the scanning path.

4. Start and stop the pattern scan: click start to start the pattern scan, and click the stop key to
stop the pattern scan.

5. Delete the pattern scan: click delete key to delete the pattern scan.

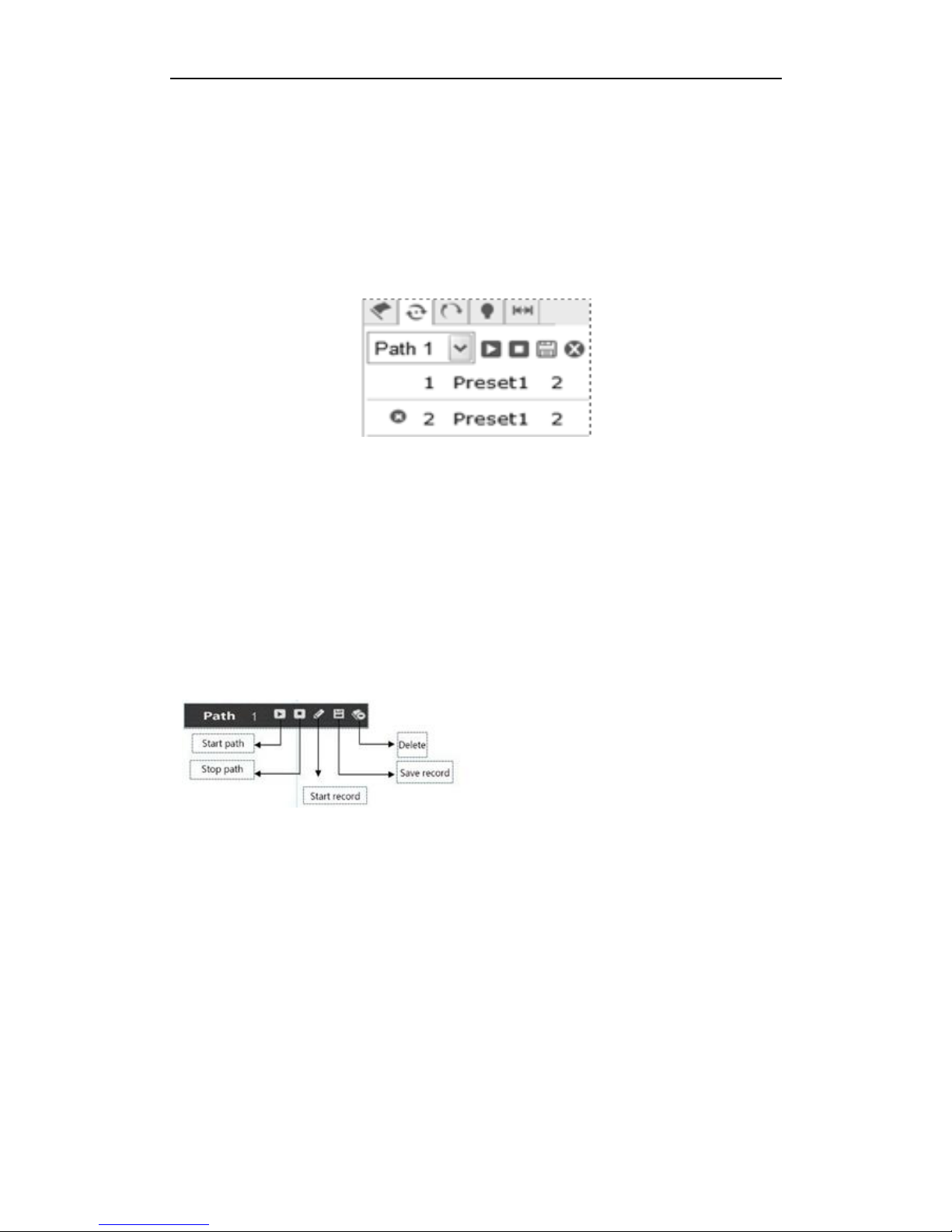

Picture 3.2.3-5 Pattern settings

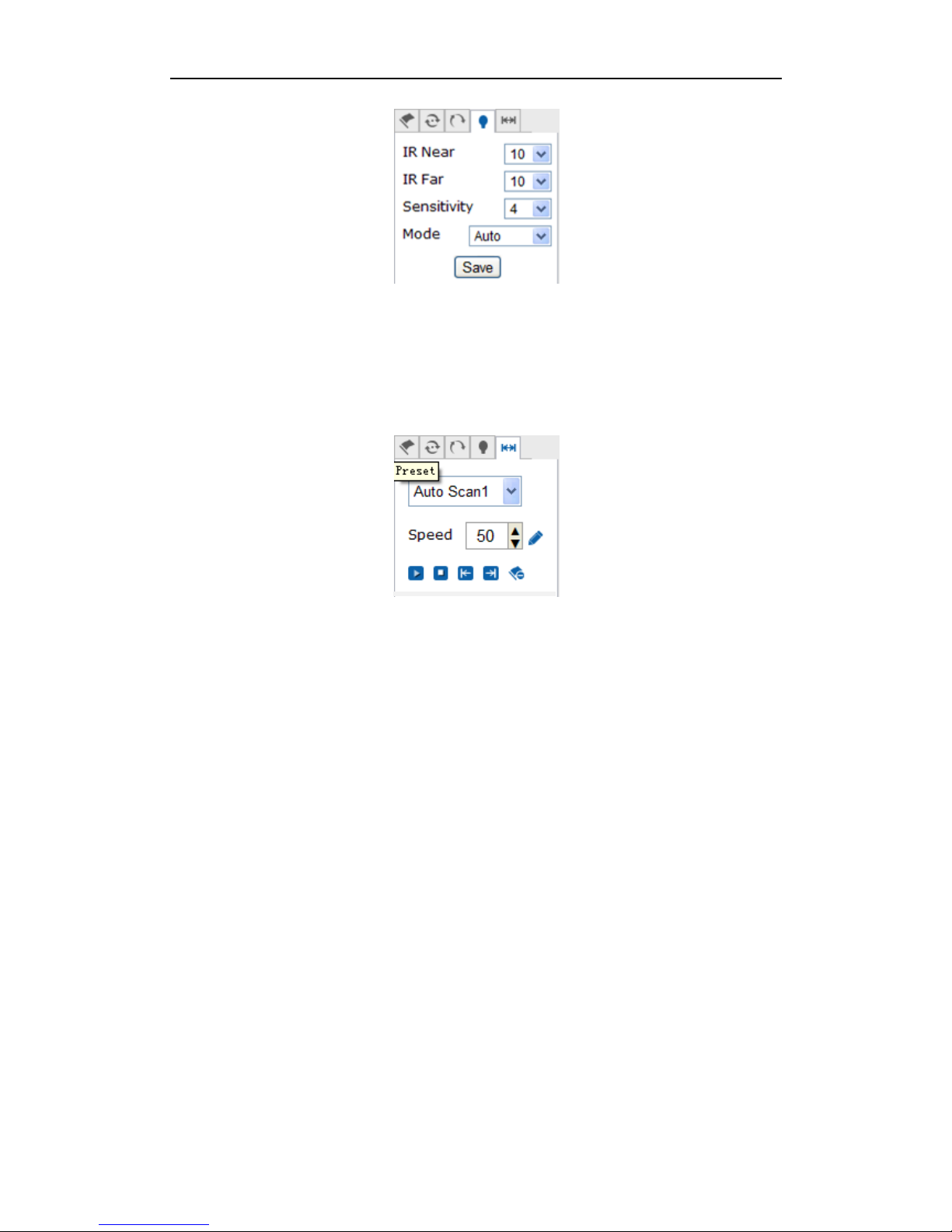

Operation methods for IR LED

Enter the IR LED setting screen, user can set the power of the low beam lights as 1~10 gear,
the power of high beam lights, low beam lights compensation, enable illumination, IR status
setting. See 3.2.3-6

Picture 3.2.4 Sequence settings

11

Picture 3.2.3-6 IR LED Setting Screen

Auto scanning setting
Enter the auto scan screen, user can set scan speed, left boundary, right boundary, start scanning,
stop scanning. Auto scanning include 8 scanning paths. See3.2.3-7

Picture 3.2.3-7 Auto scans settings

1. Scanning speed: from 1~100, the larger the gap between numbers, the more evident the effect.

2.The left boundary and right boundary of scanning: first make the camera to stop and then click
the left boundary, and make the camera to stop and then click the right boundary, finally click
the start key and the camera will move in the range of the left and right limit, and click the stop
to stop the movement.

3. Other auto scanning path is as the same as the above setting methods

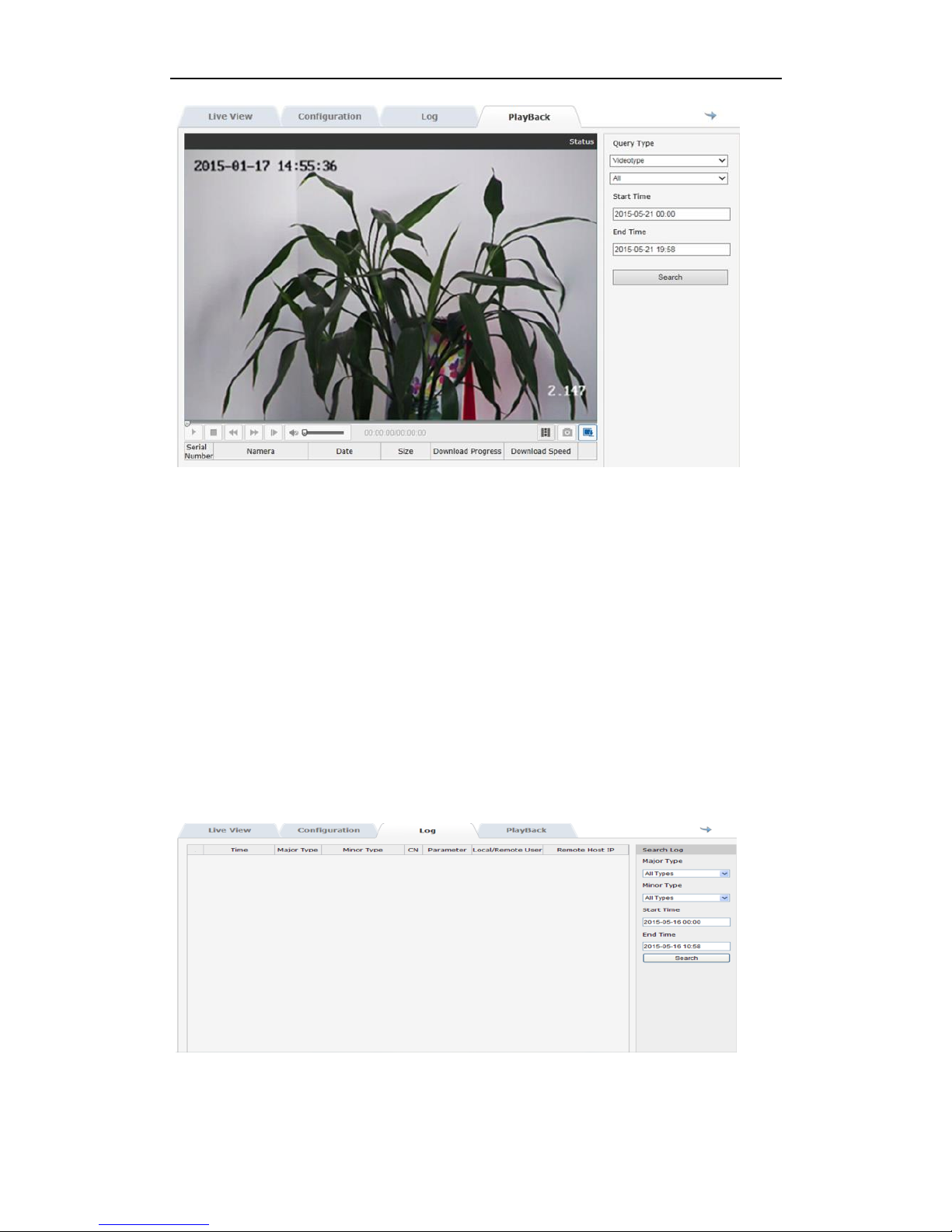

3.2.4 Playback

Click “playback” to enter the video searching playback screen. Playback screen can inquire,

playback and download effective video saved in the SD card of the camera.
Select the inquire type, start and end time, click the “search "key, and the eligible video files will
be displayed in the right box. Select it and double-click it to open, so the video files can be
playback. See 3.2.4-1.

12

Picture 3.2.4-1 video playback

Note: playback function can be used under the circumstance when the camera is with SD

card. If the camera has SD card, using it for the first time you must click the “storage "key

to initialize the SD card and setting the video-recording plan.

3.2.5 Log
Click “log” key to enter the log inquiring screen. Log screen can search, show and output the log
information stored in SD card of the camera.
Select the type of the log, and set the start and end time of the log-search. And click the search
key, and all the eligible log information will be displayed in the list. See 3.2.5-1. And click the
“save” key, you can save the log information to your local computer.

Picture 3.2.5-1 log record screen

13

3.2.6 Parameter Configuration

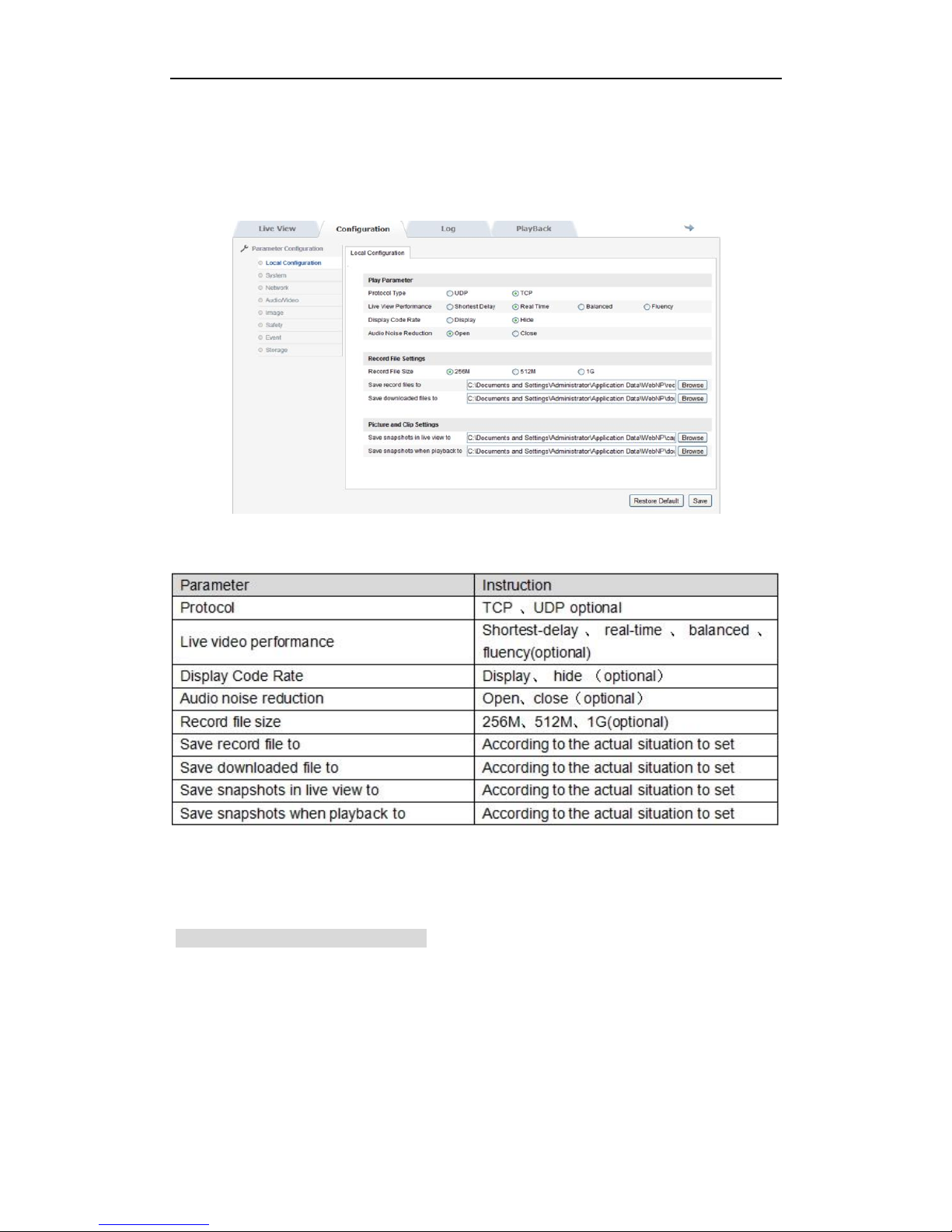

Click “configuration”, enter configuration interface. Configuration—local configuration as
picture 3.2.6-1, each item instruction as picture 3.2.6-2

Picture 3.2.6-1

3.2.6-2 configuration information

SYSTEM → DEVICE INFORMATION

In Device Information screen, users can set Device Name、Model、Serial No.、Firmware Version、

Encoding Version、Number of Channels、 Number of HDDs、Number of Alarm input and output.
See picture 3.2.6-3

14

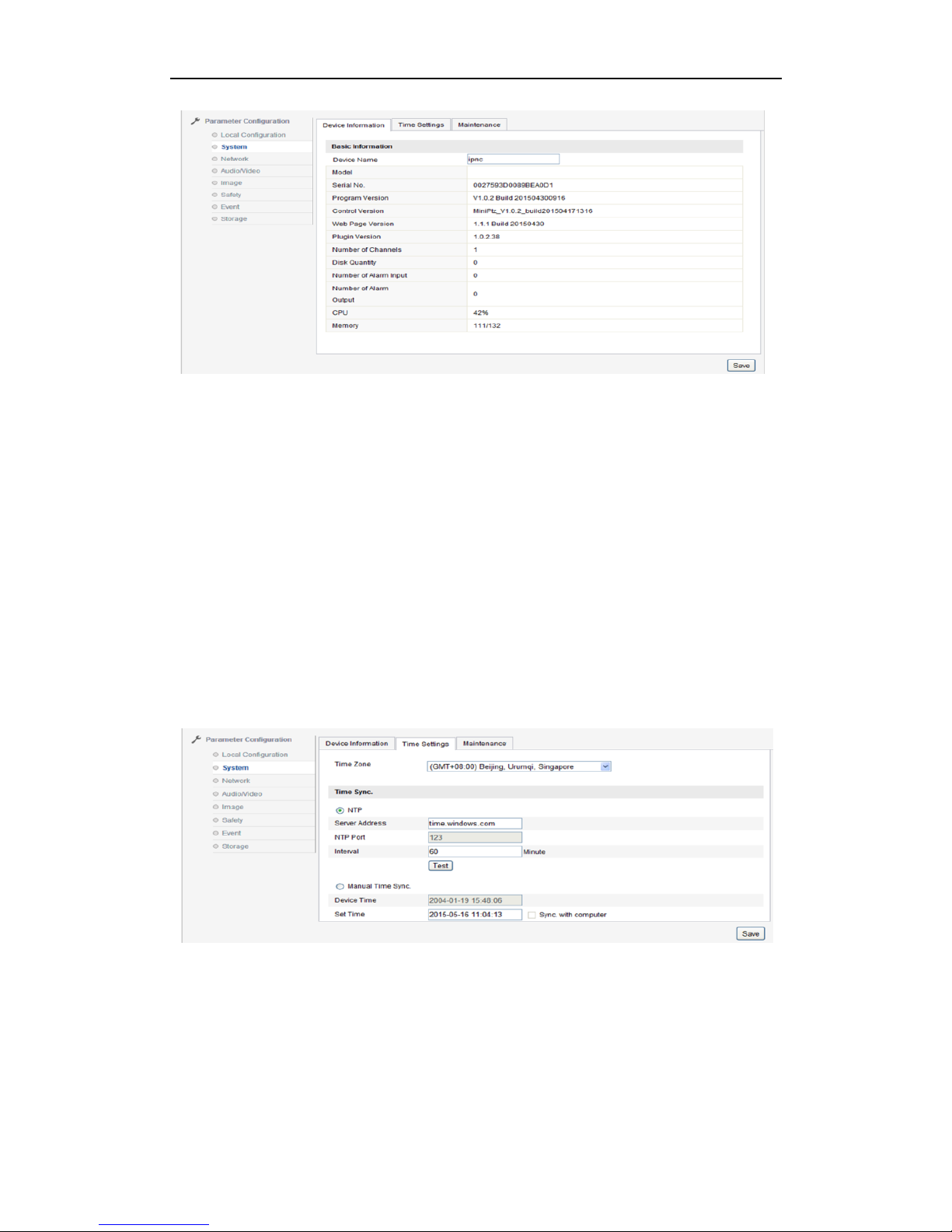

Picture 3.2.6-3 device information

System→Time settings

In the Time Settings screen, time sync is operational. “Time Zone” shows the current IP

camera’s time zone, and that can be set according to the actual situations. For “Time Sync”, set

NTP server address、NTP port、Internal, the device will be time sync every once in a while
according to the setup. For “Manual Time Sync”, set time and check “Sync with computer time”,

and then the time of the camera syncs with the local PC. After changing some parameters and
click “save “to save the corresponding settings. See picture 3.2.4

Note：NTP port number is unchangeable

Picture 3.2.6-4 Time settings

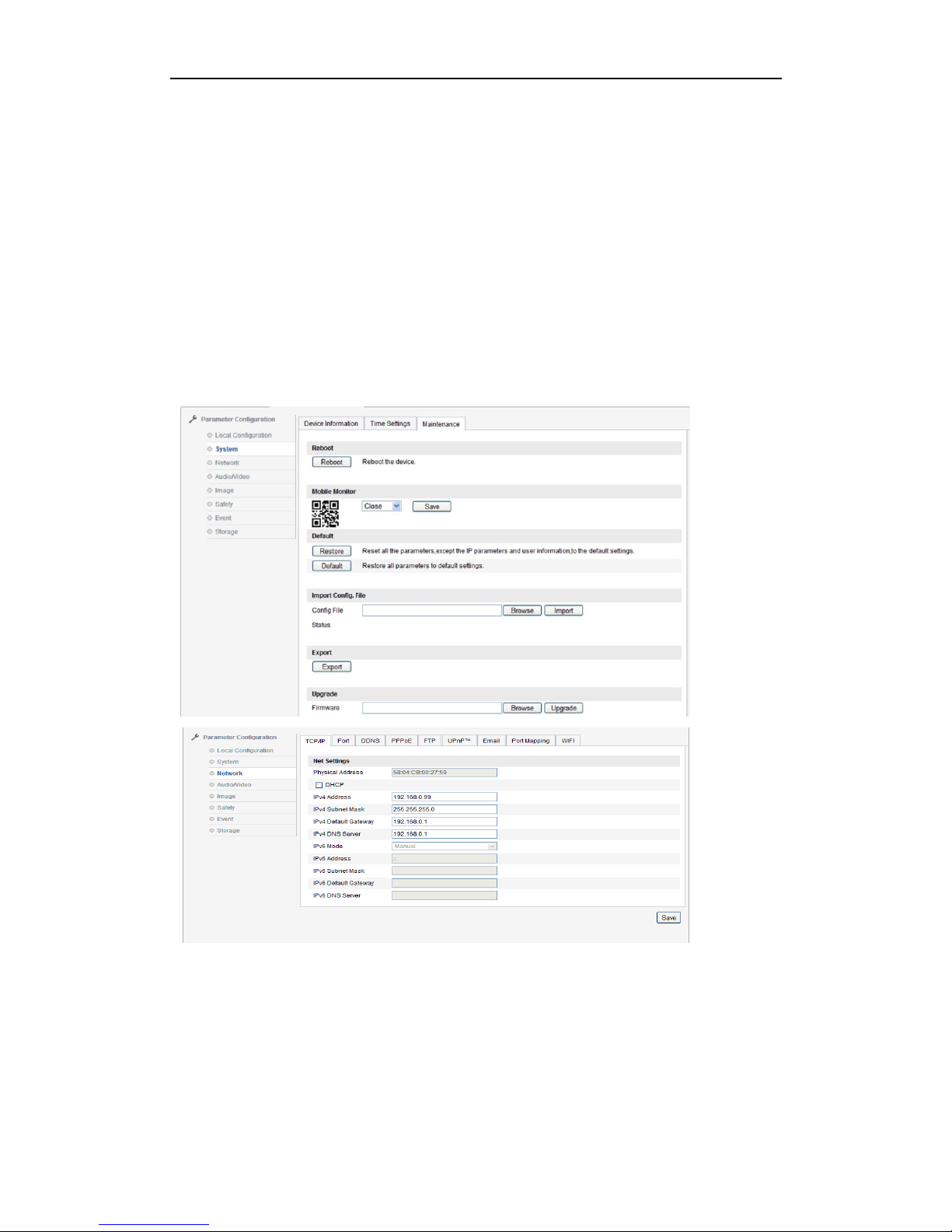

System→Maintenance
Enter system maintenance interface, See picture 3.2.6-5

15

Click“reboot”reboot the device。Click“restore”restore device parameter , easily restore the

other parameters except IP address, subnet mask, gateway, 8000 port number, DNSS address and

user name management information. Click “Default” will completely restore device parameter to

default setting. Parameter import could lead to configuration file; parameter export could lead to
configuration file. (Click then will show hint of after 59 seconds will automatically go to login
interface)
Click “browse”, choose local upgrade file or upgrade catalogue, then click “upgrade” to upgrade

device version. “Status” shows the current upgrade progress, after the upgrade is complete, you

will be prompted to upgrade successfully

Note: The upgrading process will be 1 to 10 minutes; please don't disconnect the Power to
the device during the process. The device reboots automatically after upgraded.

Picture 3.2.6-5 System maintenance interface

Network →TCP/IP
In “TCP/IP” screen, users can set “IPv4 Address”,“IPv4 Subnet Mask”,“IPv4 Default
Gateway”,"IPv4 DNS Server""IPv4 mode". Ticking “auto", the device will obtain IP address

16

automatically. After changing some parameters you can click to save the corresponding settings.
See picture 3.2.6-6

Picture 3.2.6-6 TCP/IP interface

System→port

“Port” screen includes: “HTTP Port” （the default is 80）、 “RTSP Port”（the default is 554）、

“HTTPS Port”(the default is 443).Through network access the device, users can set

corresponding port as needed. After modifying the parameters, click to save the settings. See
picture 3.2.6-7

Note： Reboot the IP camera after modifying the parameters.

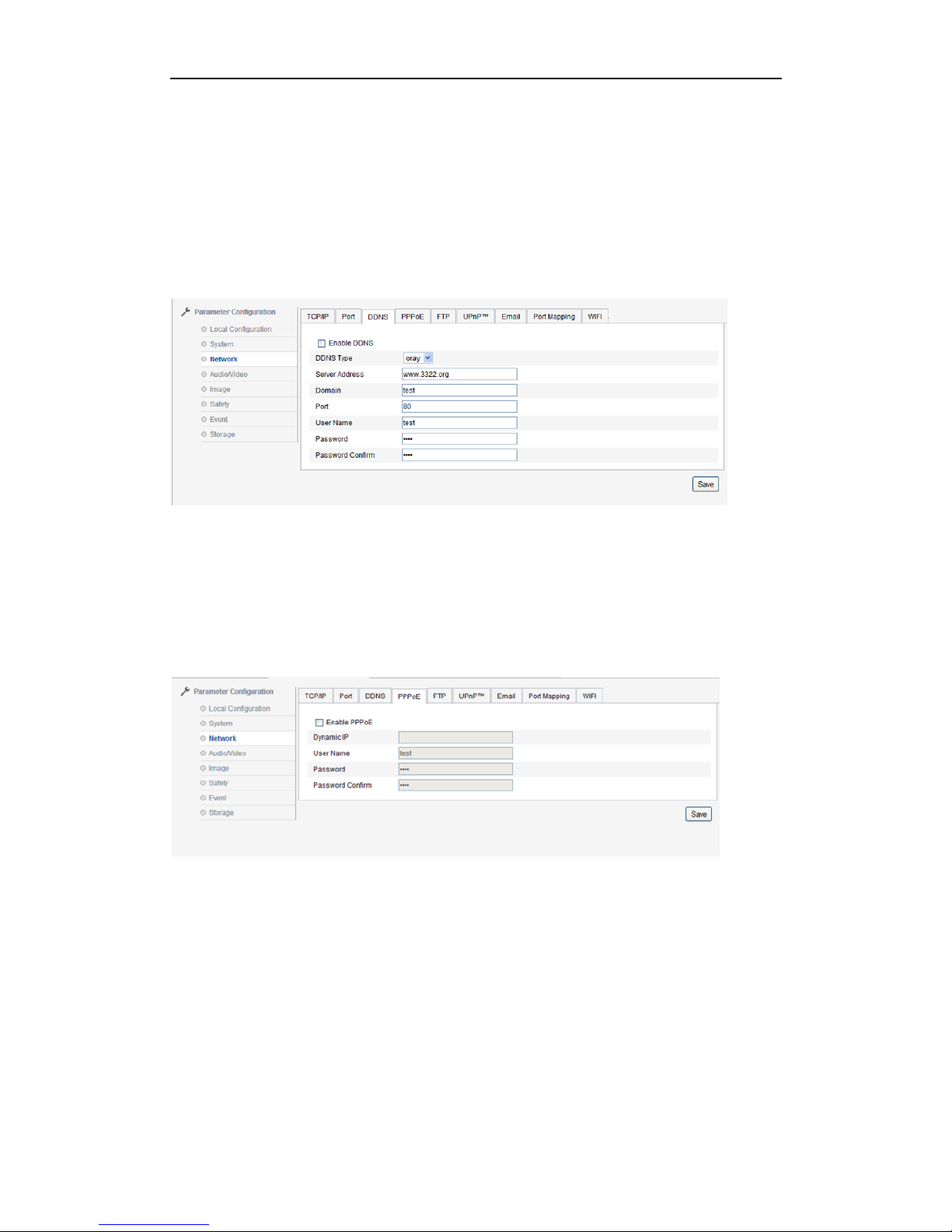

Network →DDNS

Picture 3.2.6-7 port configuration screen

Enter DDNS setting screen，indicates enable DDNS function。DDS Type includes “Oray” or

“Noip”。See picture 3.2.6-8

17

Oray need to fill Server address, default open, server address is DNS server address software
operator, domain is the one which user apply for in software operator website, port can be set
according to configuration, user name and password is which user registered.

Noip operation is same as Oray.

After modifying related parameter, need to click “save” to save settings

Picture 3.2.6-8

Network →PPPoE

Tick“enable PPPoE” indicates PPPoE function。Input PPPoE user name and PPPoE password，
click“save”restart, camera will gain a public IP address.

After modifying related parameter, need to click “save” to save settings. See picture 3.2.6-9

Picture 3.2.6-9 PPPoE configuration

Note：PPPoE configuration enable default gateway is invalid；Parameter in network settings is
modified, need to reboot device.

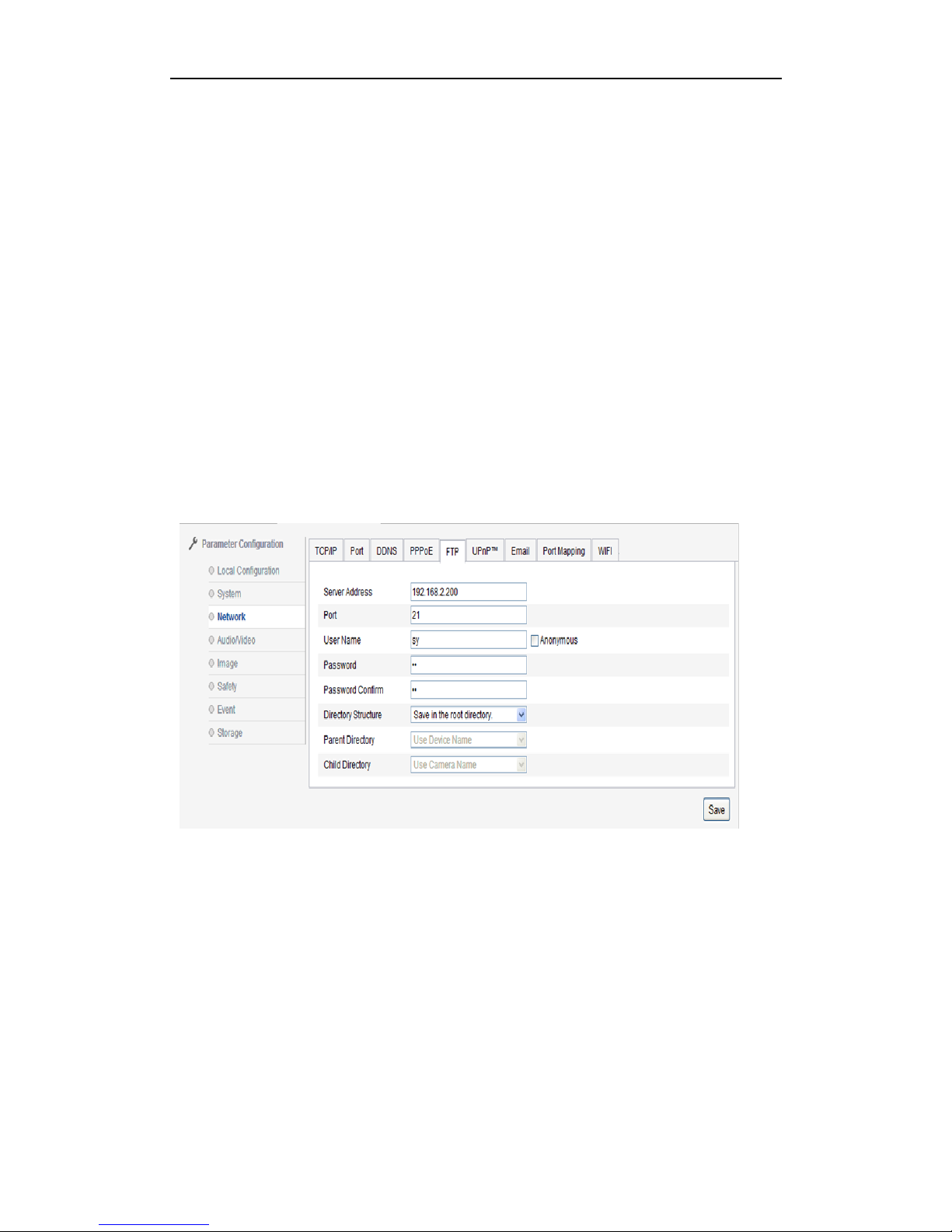

Network→FTP

By setting FTP parameter, user could upload snapshot file to FTP server. See picture

3.2.6-10

18

Server address, port is the corresponding ones in FTP server. Directory structure could be

set save path of file, “save in the root directory”, “save in the parent directory”, “save in the child
directory”, choosing parent directory including “use device name", "use device number” “use
device IP address”, child directory includes “use camera name", "use camera number”

After modifying related parameters, need to click “save" to save settings

Note：PPPoE configuration enable default gateway is invalid；Parameter in network settings is
modified, need to reboot device.

Network→FTP

By setting FTP parameter, user could upload snapshot file to FTP server. See picture 3.2.6-10
Server address, port is the corresponding ones in FTP server. Directory structure could be
set save path of file, “save in the root directory”, “save in the parent directory”, “save in the child

directory”, choosing parent directory including “use device name", "use device number” “use
device IP address”, child directory includes “use camera name", "use camera number”

After modifying related parameters, need to click “save" to save settings

Picture 3.2.6-10 FTP setting

Network→UpnP

19

UPnP enable，this function could make device automatically found in LAN. For a camera
in internal network, UpnP function could make gateway or router auto port mapping, Camera

could map monitored network port from the gateway or router to a internal network device,
gateway or router network firewall module began to open this port to other computers on the
Internet. Users don't need to do port mapping in router, the precondition is that the router
supports UPnP, and open this function. See picture 3.2.6-11

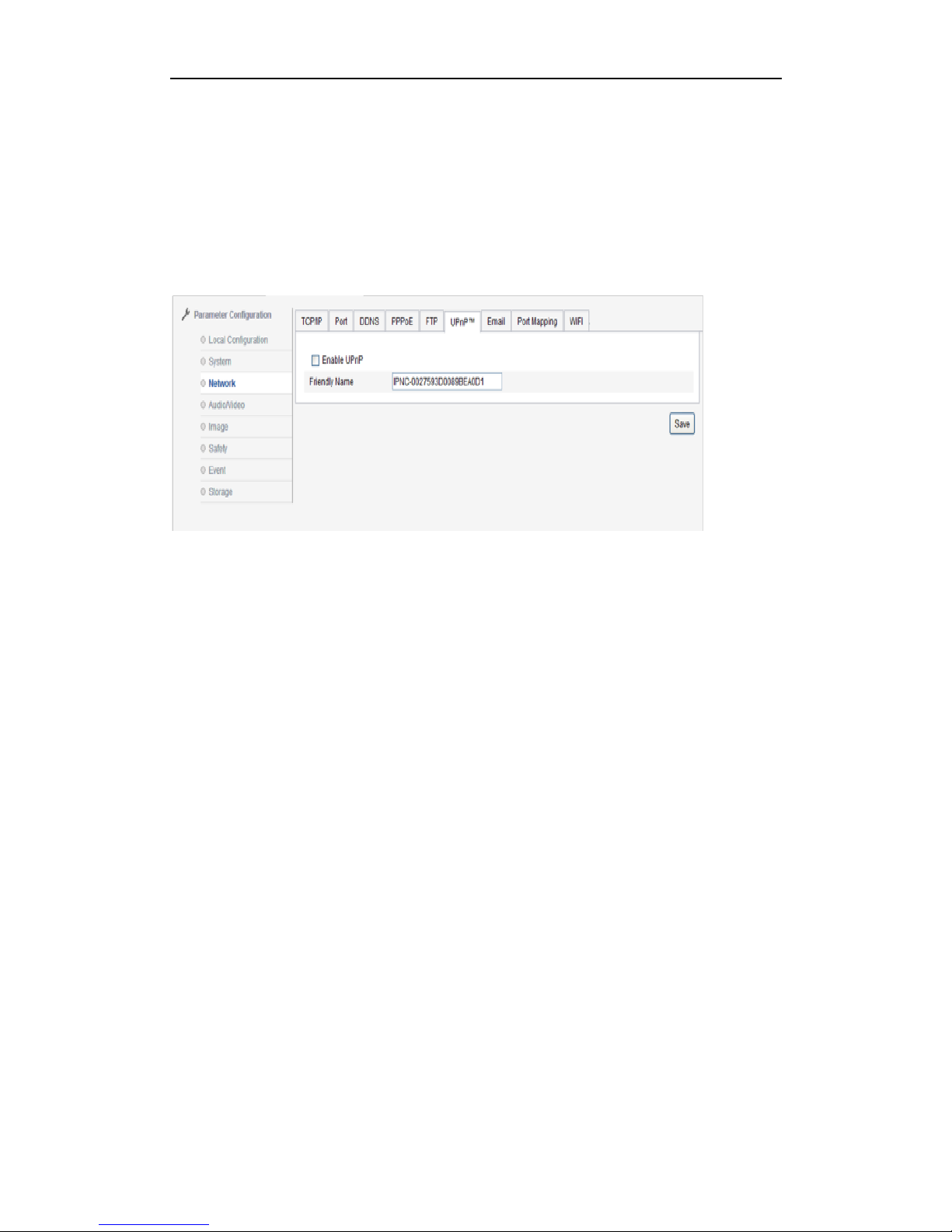

Picture 3.2.6-11 UPnP configuration

Network →Email

Enter email setting, fill sender , sender address, SMTP server, SMTP port 、Tick start
SSL or authentication, user name, password and password confirm, receiver, receiver address,

see picture 3.2.6-12

Note：Sender/receiver name could not be in Chinese, QQ mailbox port number is 25, other
mailbox is 465, at the same time enable SSL, and user name is same as sender’s name.

20

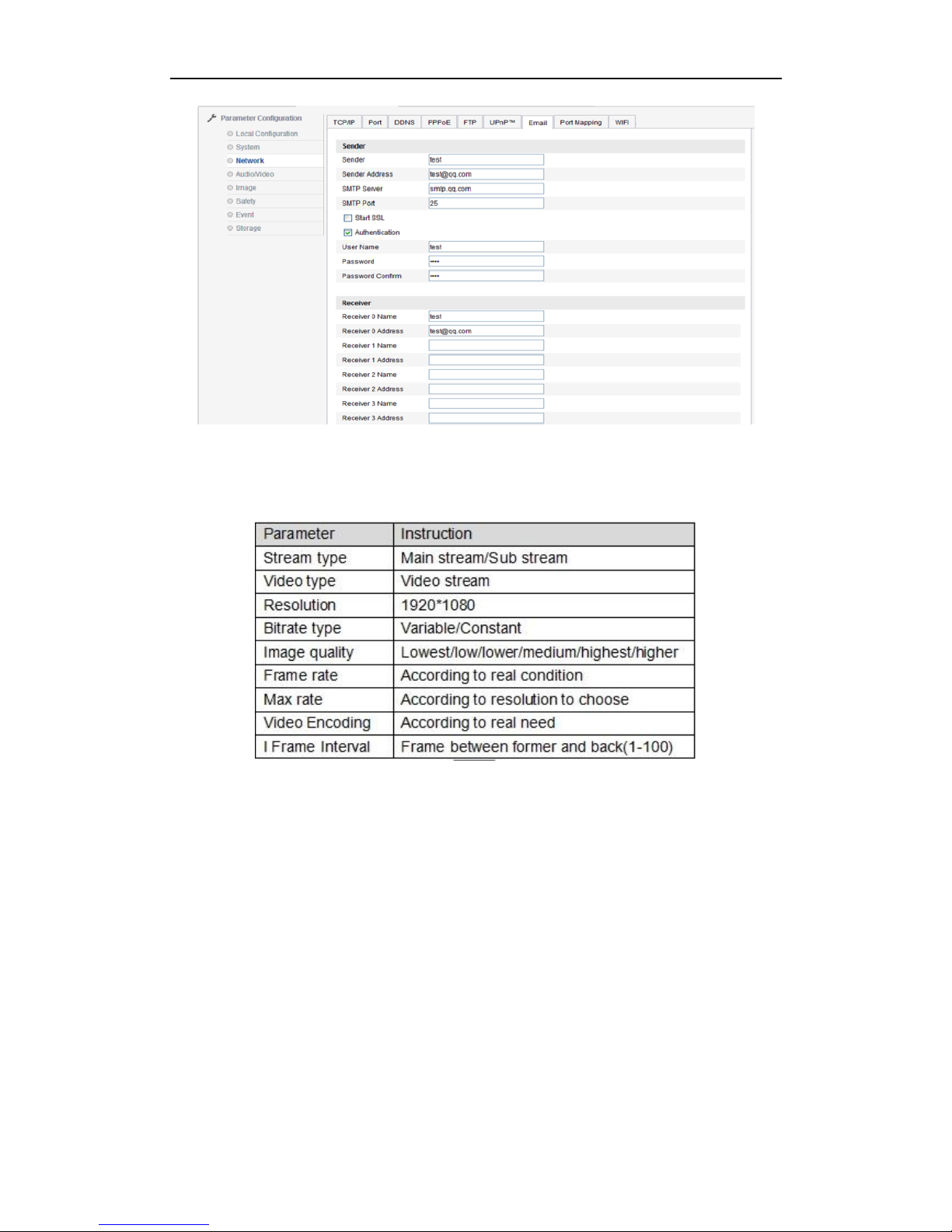

Picture 3.2.6-12 Email

Sheet 3.2.6-16 Video configuration instruction

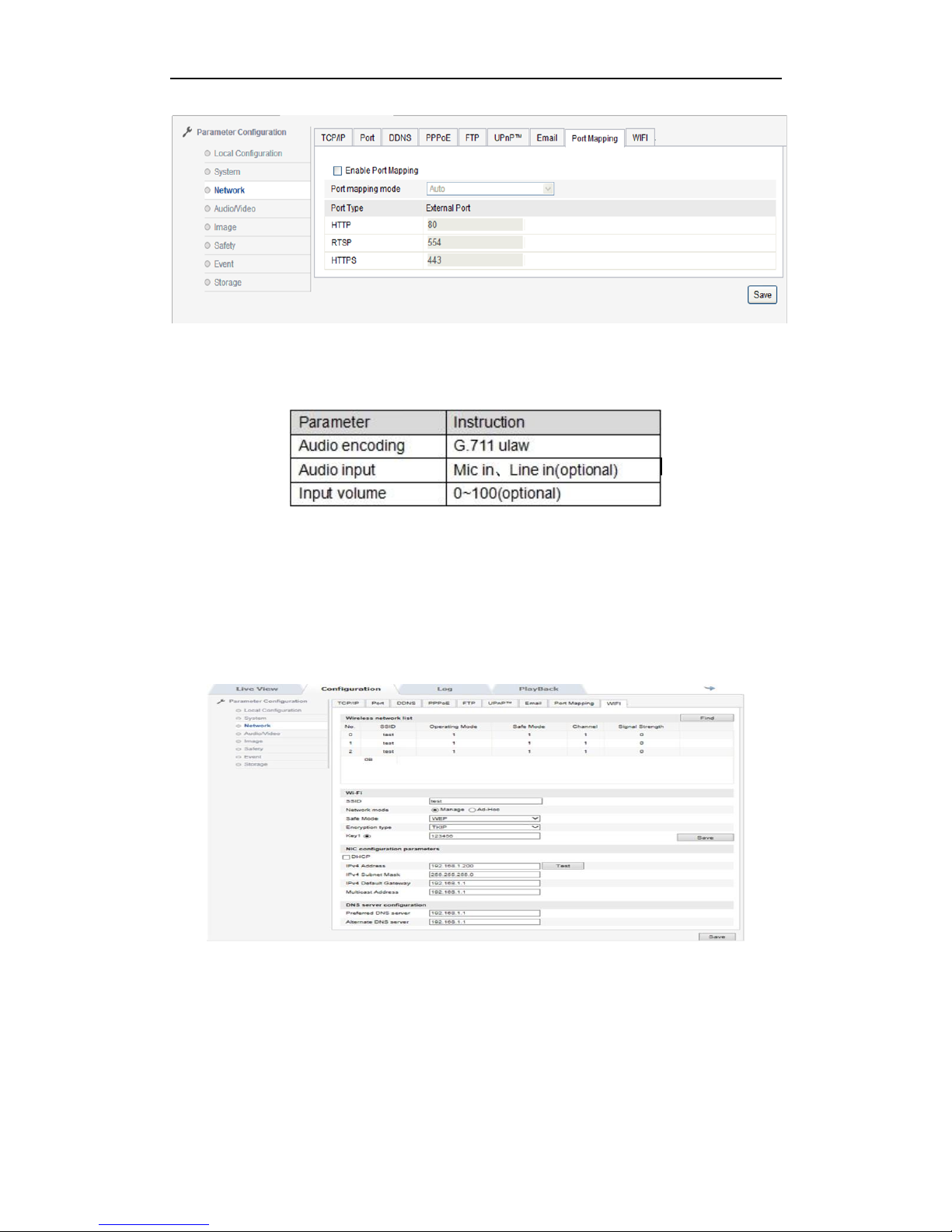

Network →Port Mapping
By starting port mapping to open port, see picture 3.2.6-13

21

Sheet 3.2.6-17 audio settings

Picture 3.2.6-17 audio parameter instruction

Network →WIFI

Enable WIFI insert，set related parameter to finish WIFI insert, see picture 3.2.6-14

Picture 3.2.6-14 WIFI settings

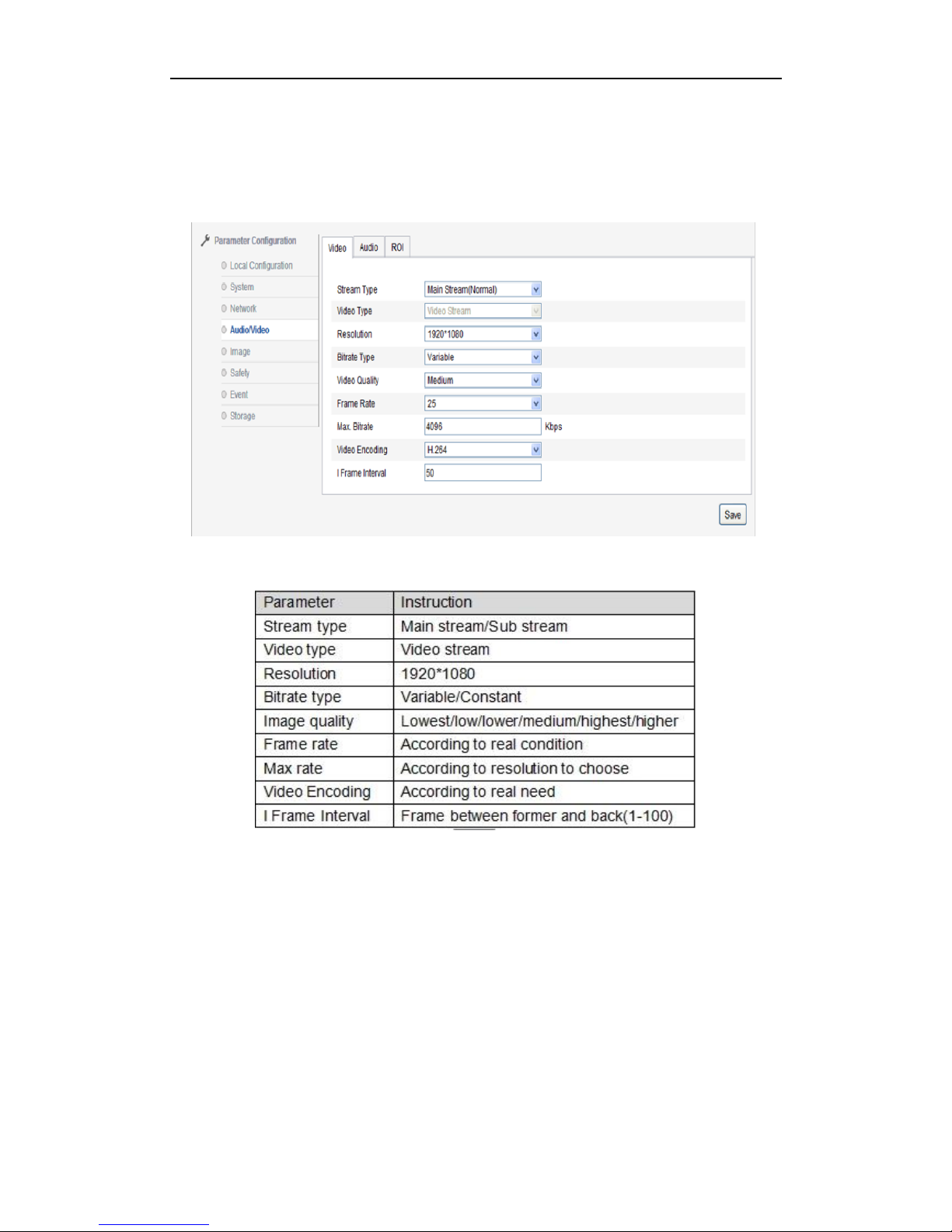

Audio/Video→Video

22

Enter video setting screen, user could set camera scream, resolution and bitrates type
and other parameters. See picture 3.2.6-15, video settings detailed information, see picture

3.2.6-16.

Picture 3.2.6-16 Video setting

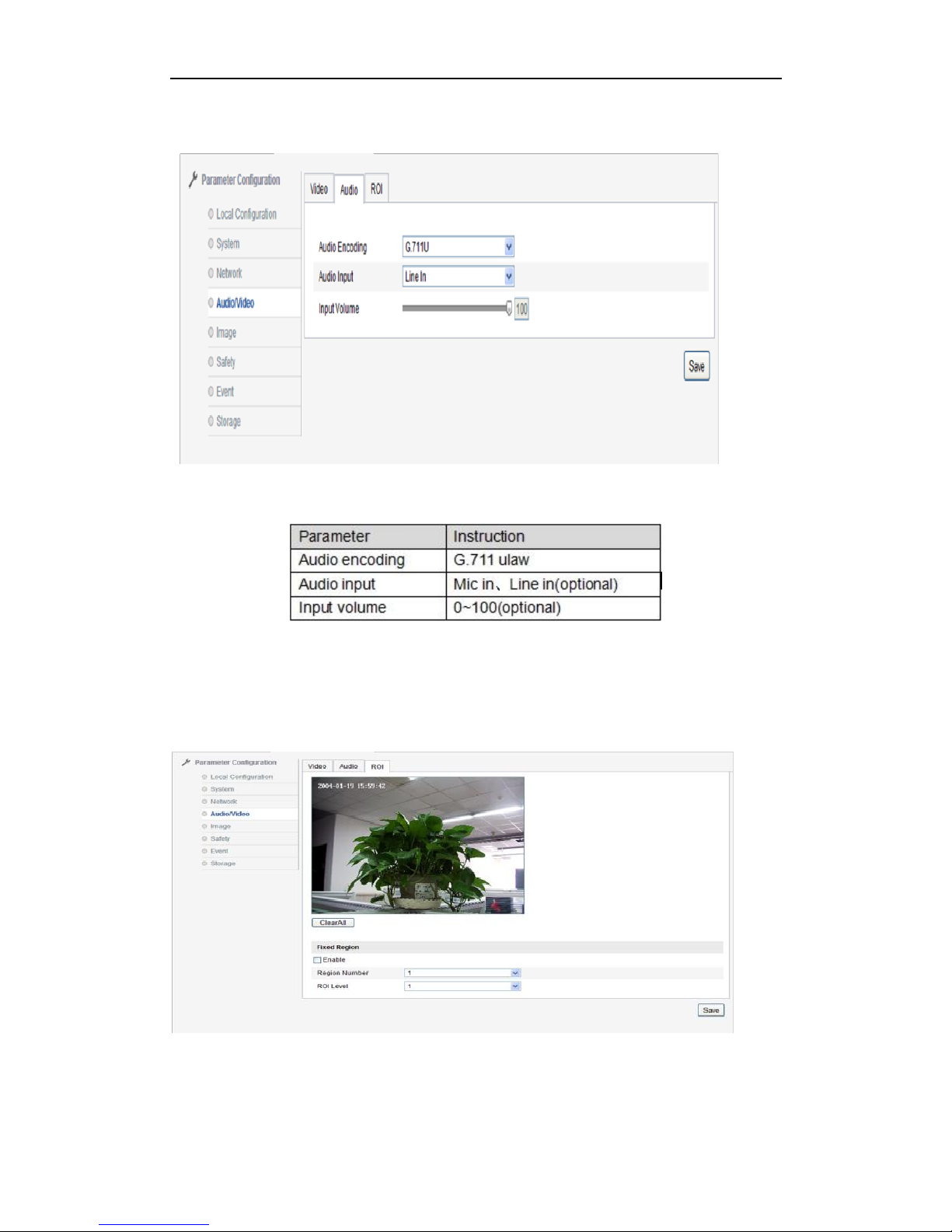

Audio/Video→Audio
In audio configuration, “audio encoding" version is the only kind named “G.711U”.According
to different model, hardware is different, “audio input" type: Line in and Mic in, if user use
active pickup, choose Line in option, if for passive microphone, choose Mic in. “Input
volume”is input source gain control value, the default value is 50, user could adjust 1-100
according to the actual volume needs

After modifying related parameter, need to click [save] to save settings. Audio configuration
interface, see picture 3.2.6-17, audio configuration parameter shows in picture 3.2.6-17-1

23

Note: after modifying audio encoding, please reboot the device.

Picture 3.2.6-17 Audio setting

Audio/Video→ROI

Stream concentration makes the drawing region clearer, suitable for condition of the lack of

stream

Picture 3.2.6-18 ROI

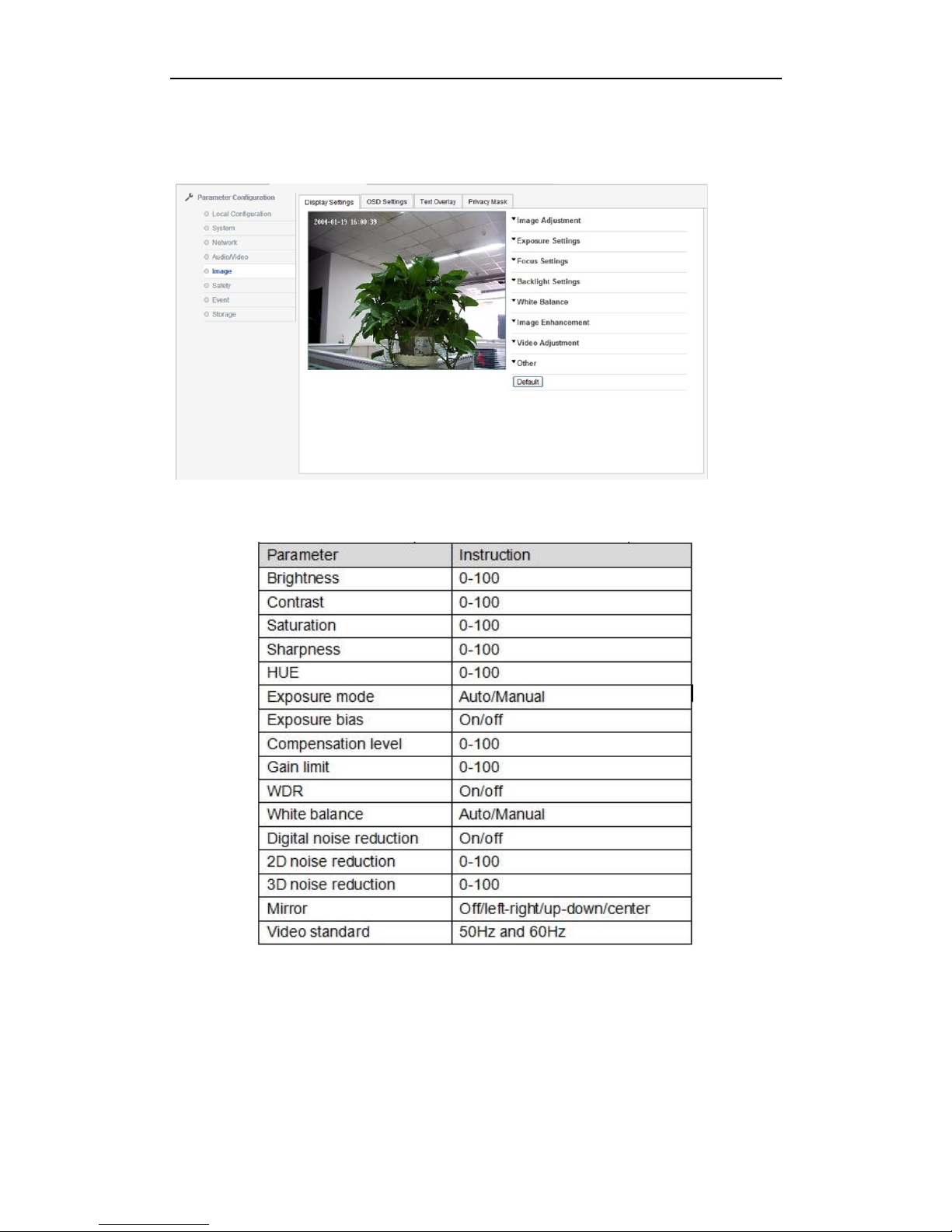

Image→Display

24

Enter image configuration interface, see picture 3.2.6-19, image configuration illustration
see sheet 3.2.6-20

Picture 3.2.7-19 Display settings

Sheet 3.2.6-20 Image parameter

“Sharpness ": the higher, the image edge is clearer, while it could not be said the higher the
sharpness, the better image quality, high sharpness can make the picture looks distorted.

"Focus mode:" in "auto" mode, device automatic focus according to the monitoring scene

25

changing. Semi-automatic", focus one time after control PTZ and zoom, if focus clearly, even

scene change, camera will not focus again. “Manual”: through preview interface to focus clearly.

“Min. Focus distance”: the distance from lens to scene is nearer than the one of setting, camera

could not focus clearly.

“Exposure mode”: auto/manual; Iris; shutter, only exposure bias open, the compensation level

could be adjustable.

“Video standard”: 50Hz, 60Hz (optional). Video standard modify for adapting to part of camera,
after modifying, device need to reboot, when user choose 50Hz, real-time frame is 25frame/sec, if
for 60Hz, real-time frame is 30frame/sec.

“Mirror”: direction of symmetry includes "left/right”, “up/down”, center, video adjustment option,
it is used to switch symmetry direction of image.

“WDR”: On/Off

“White balance”：Auto/MWB

“Digital noise reduction”: it is used to adjust rank of noisy point in image, at the same time, it also

reduce the detail of image.

“Default”: click default, all the parameter in this display setting box will come back to factory

default value.

Note: All the option in configuration of camera is all the model option, Real camera model only
has part of option, please take reference for specific camera model. If you modify some parameter,
please reboot camera.

Image→OSD menu setting
User could set channel name according to their needs, display name, date or not. Time format:
24-hour time system/12-hour time system. Date
format:“ XX-XX-XXXX( month-day-year ) ”,“ XXXX-XX-XX( year-month-day ) ”,“XX-XX-X
XXX(day-month-year)”,“XXXX year XX month XX day”,“XX month XX day XXXX

year”,“XX day XX month XXXX year”optional。
After modifying parameter, need to click “save" to save settings. See picture 3.2.6-21

26

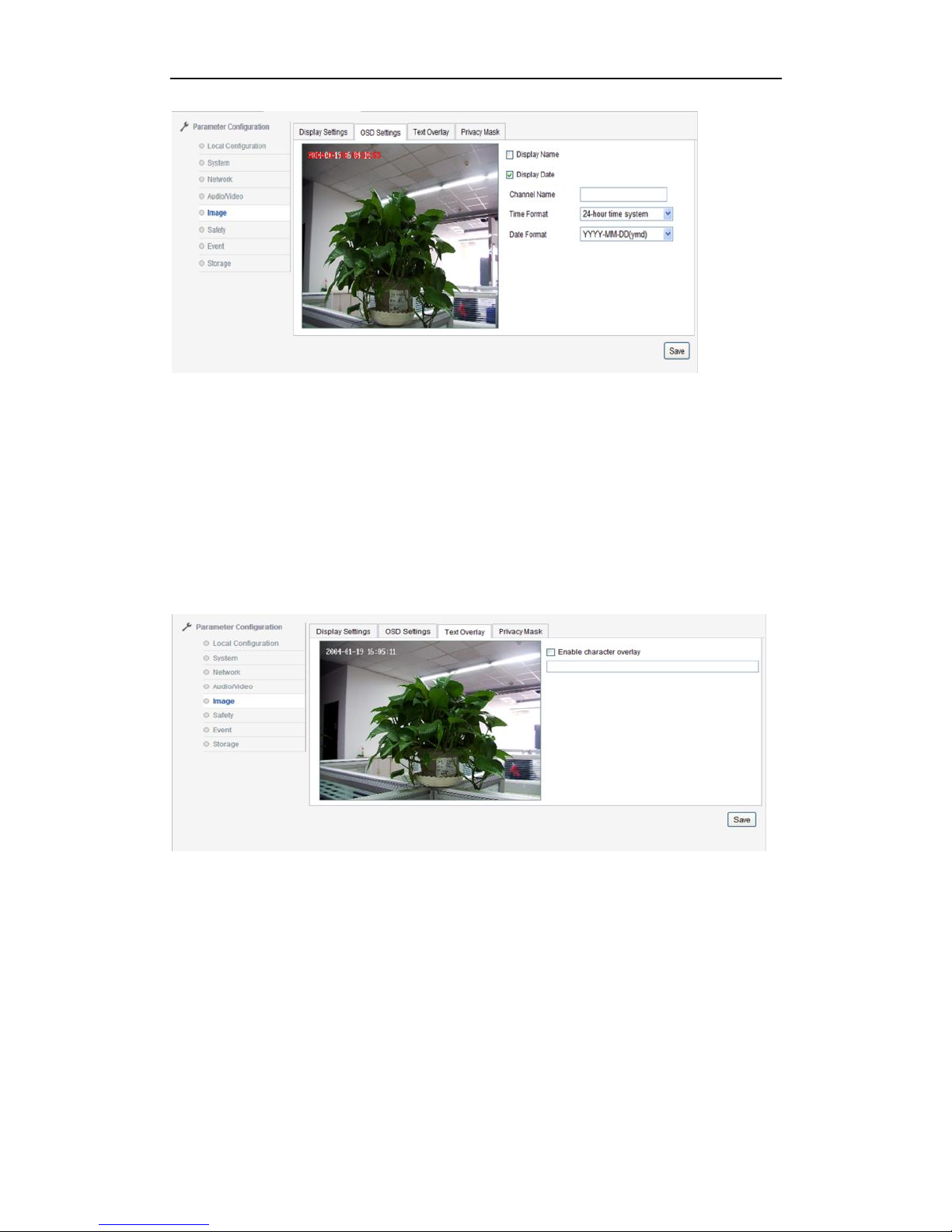

Picture 3.2.6-21 OSD Settings

Image→Text Overlay

Camera supports text overlay in the image, at most supports 40 characters content, see picture

3.2.6-22.
Input character in the box, then tick corresponding character number, then user could
preview the input character. Through drag the mouse to choose displaying location which shows
the character, click “save”, then character will show in the image.

Picture 3.2.6-22 Text Overlay

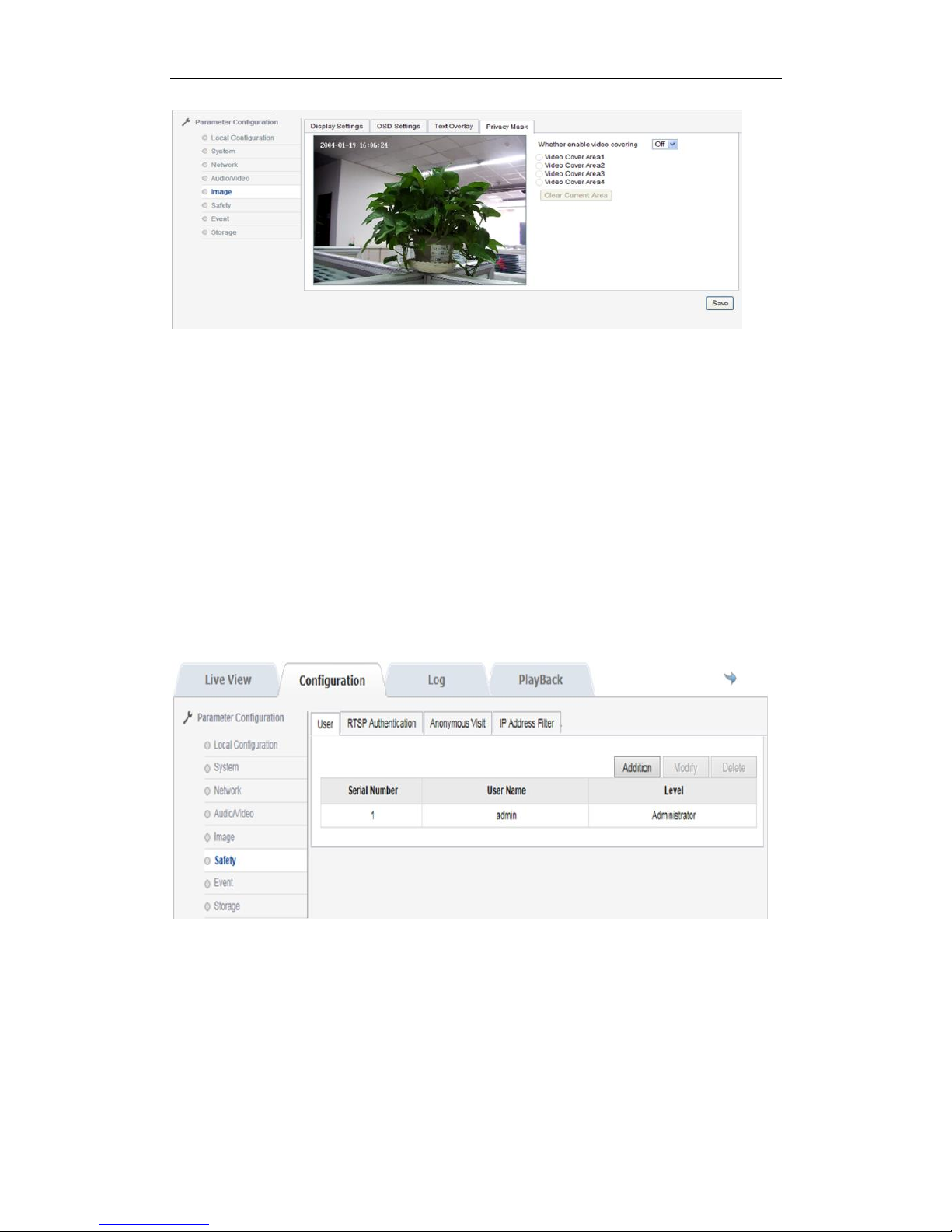

Image →Privacy mask
User enable privacy mask, then according to their needs to set it, at most 4 area settable. See
picture 3.2.6-23

27

Picture 3.2.6-23 Privacy Mask

Safety → User
Enter Safety configuration interface, user could set user information, present administrator
“admin”, user could create other user according to needs, at most 8 users. See picture 3.2.6-23
User addition: click “addition”, camera will display addition box, input user name,
password, “user level”: administrator, user, observer. Then click ok. See picture 3.2.6-24

User modify：Choose user name you want to modify, click “modify" to enter interface, in
this box, user need to modify “user name", "password”, See picture 3.2.6-25

Delete user: choose the user name which you want to delete, it will come out dialog box, click
confirm to delete the user.

28

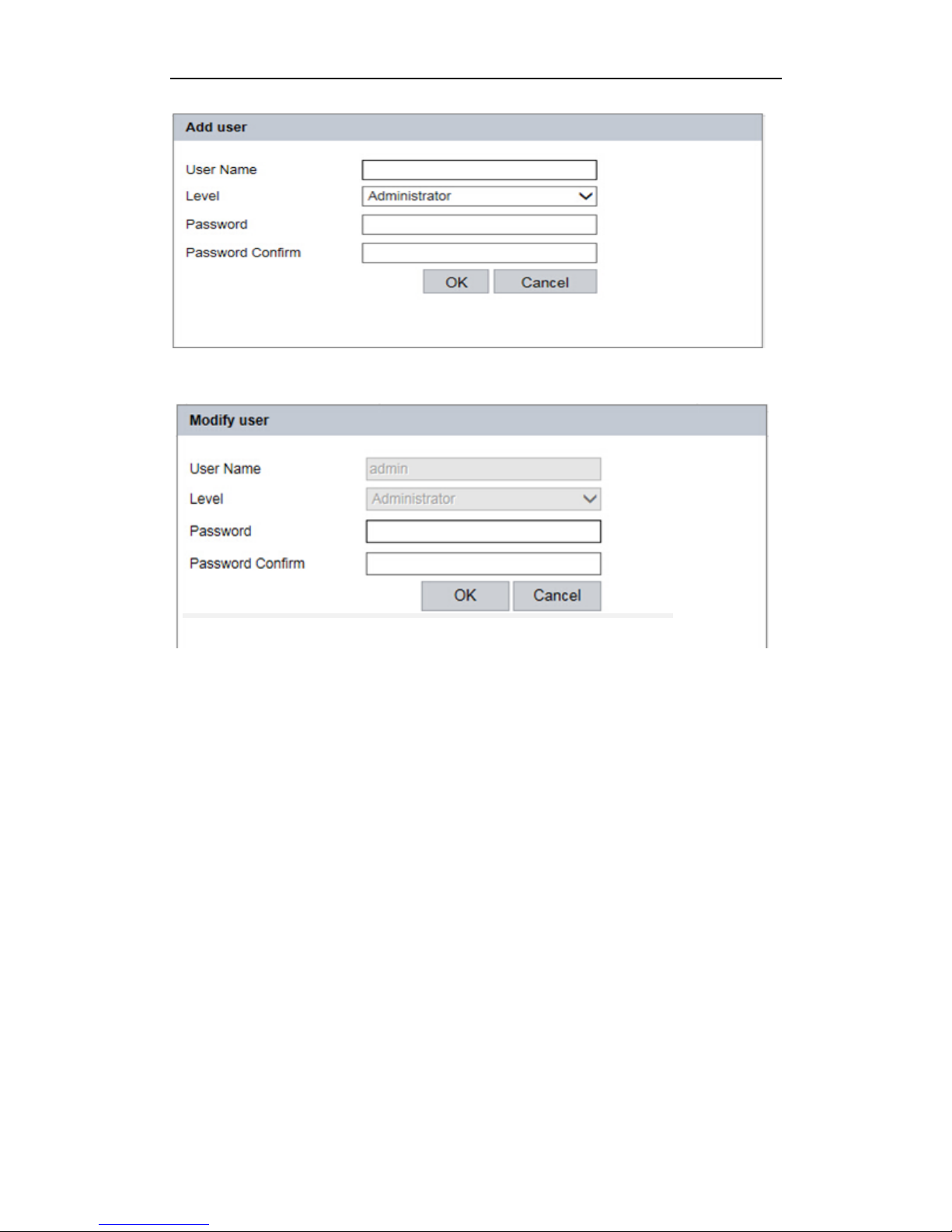

Picture 3.2.6-24 Addition

Picture 3.2.6-25 Modify user

Security→RTSP Authentication
The authentication is “disable” or “basic” as optional.

“Disable”: close RTSP authentication.
“Basic”: enable RTSP authentication and need to carry the authentication information when send

RTSP require to the IP camera at the moment.
After modifying the parameters, click to “save” the settings. See Picture 3.2.6-26

29

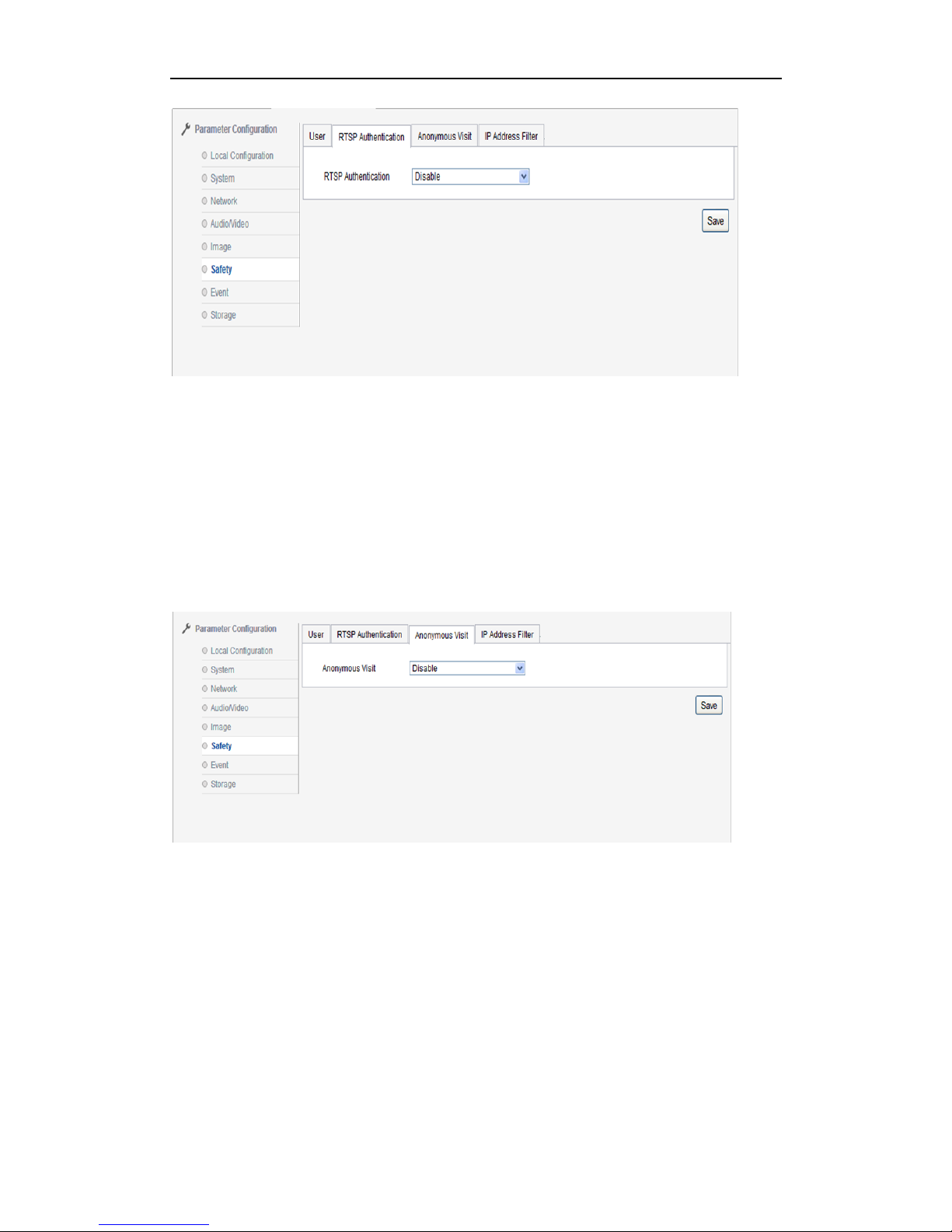

Picture 3.2.6-26 RTSP Setting screen

Security →Anonymous visit

Anonymous visit could choose “enable” and”disable”, choosing enable will allow user

anonymous login camera web interface.
Enable anonymous visit function, open camera web interface visit interface, login window will
come out “anonymous”option

Tick “anonymous”, then click [login] button, user could login directly.

Anonymous visit only preview video, could not enter playback, log and configuration interface.
See picture 3.2.6-27

Picture 3.2.6-27 Anonymous visit

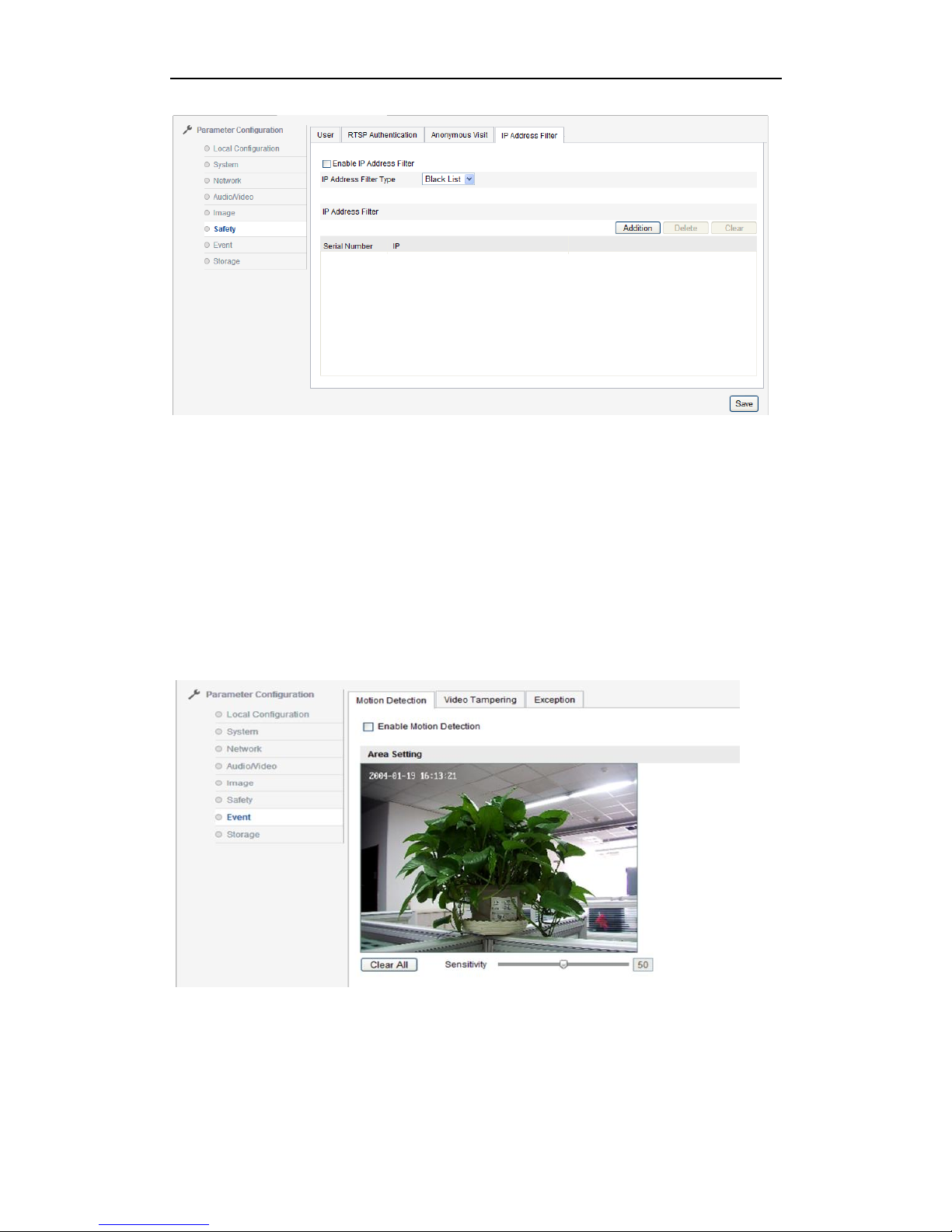

Security→IP address filter

User could tick “enable IP address filter” key to start the function.
“IP address filter type ”include “black list”, “white list”, white list means the added IP address
allow to visit the camera, black list means its forbidden User could click [Addition] to add
new IP address, after addition, user could click [modify], [delete] and [clear] to operate IP address.
See picture 3.2.6-28

30

Picture 3.2.6-28 IP address Filter

Event→Motion detection
Area setting: click mouse left key and drag it, then release mouse left key, this will finish
drawing area. When user finishes drawing all area, you can set arming schedule and linkage
method.

Click “Clear all”, will clear all drawing area.
Tick “enable motion detection" means start IP camera motion detection function. See picture

3.2.6-29
Sensitivity: 0-100 settable

Picture 3.2.6-29 Motion Detection

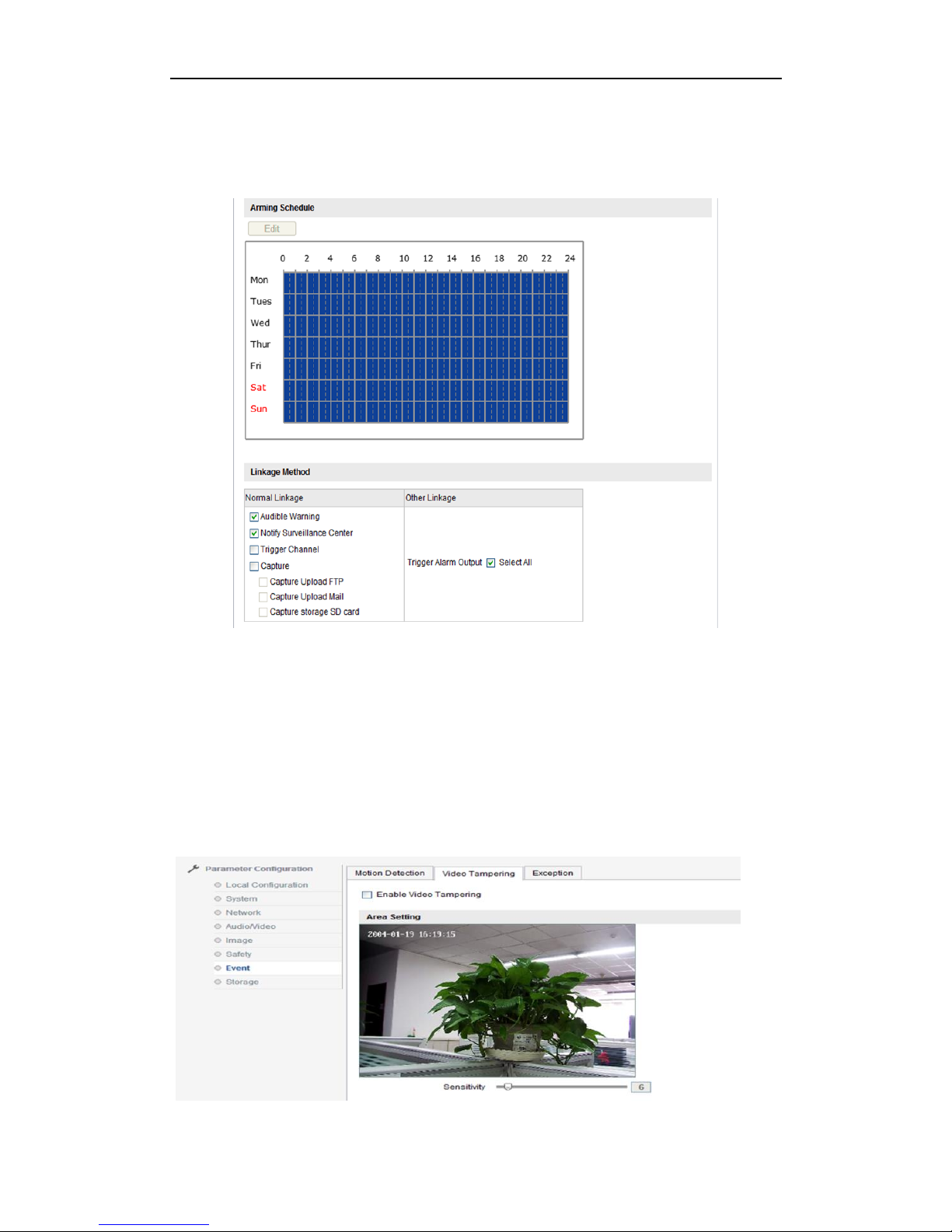

“Arming schedule” shows the arming time of the current motion detection.
Click [edit] could edit the arming schedule, could set arming schedule for the whole week or some
day in a week.

31

User could set start time and end time specific for 4 periods per day, see picture 3.2.6-30

Picture 3.2.6-30 Arming Schedule/Linkage Method

After finishing parameter setting, click [confirm] key to save the settings.

Event→Video Tampering
Tick “enable video tampering" indicates start IP camera video tampering, see picture 3.2.6-31

Area Setting: default the whole screen
Sensitivity: 0-100 settable
After related parameter revised, need to click [save] to save related settings.

Picturer3.2.6-31 Video Tampering

32

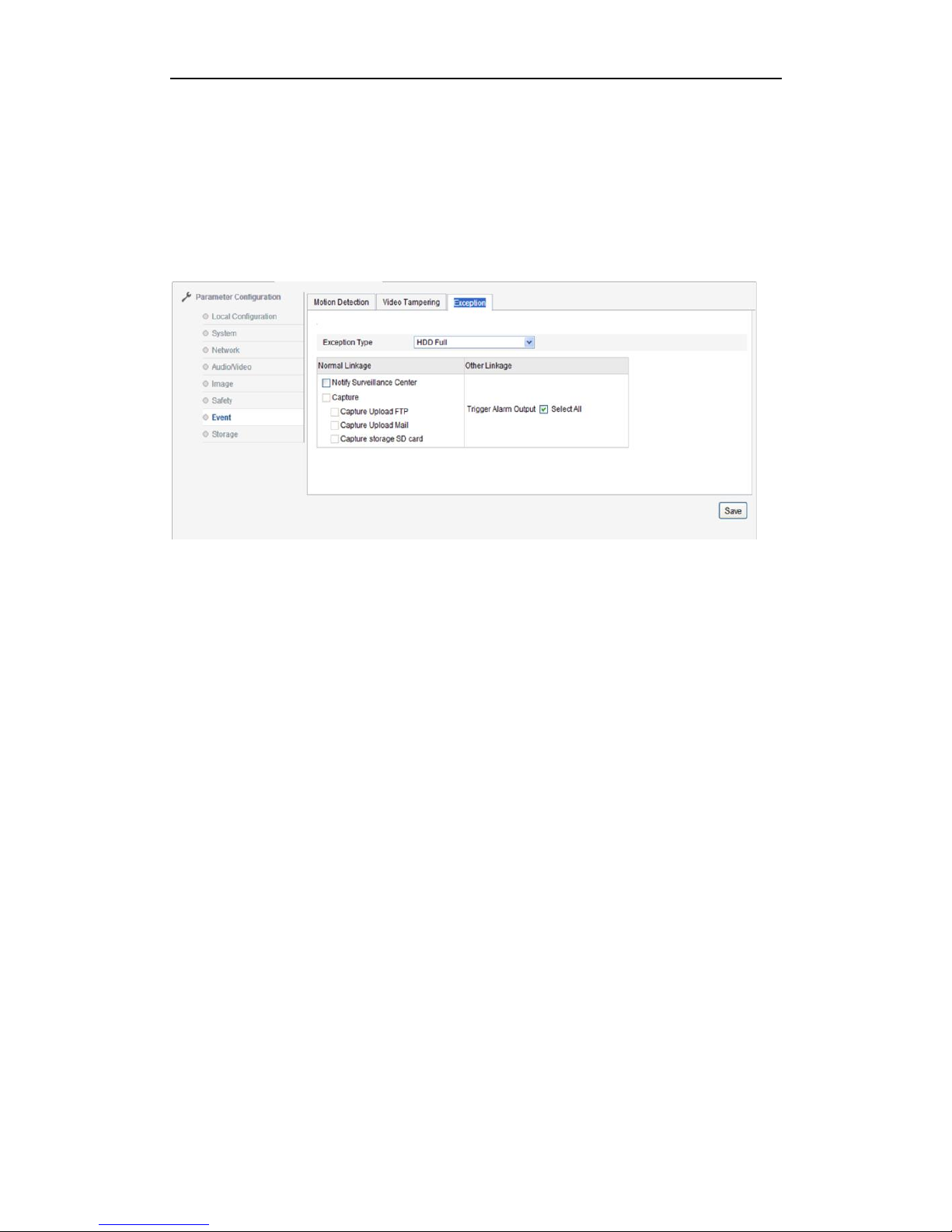

Event→Exception
“Exception Type” includes ”HDD FULL ”,”HDD Error”, ”Network Disconnected”, ”IP address
conflict”
“Normal Linkage” includes “Notify surveillance Center”, “Capture”
“Other Linkage” includes corresponding alarm output channel.

After modifying related parameter, need to click [save] to save settings.

Picture 3.2.6-32 Exception

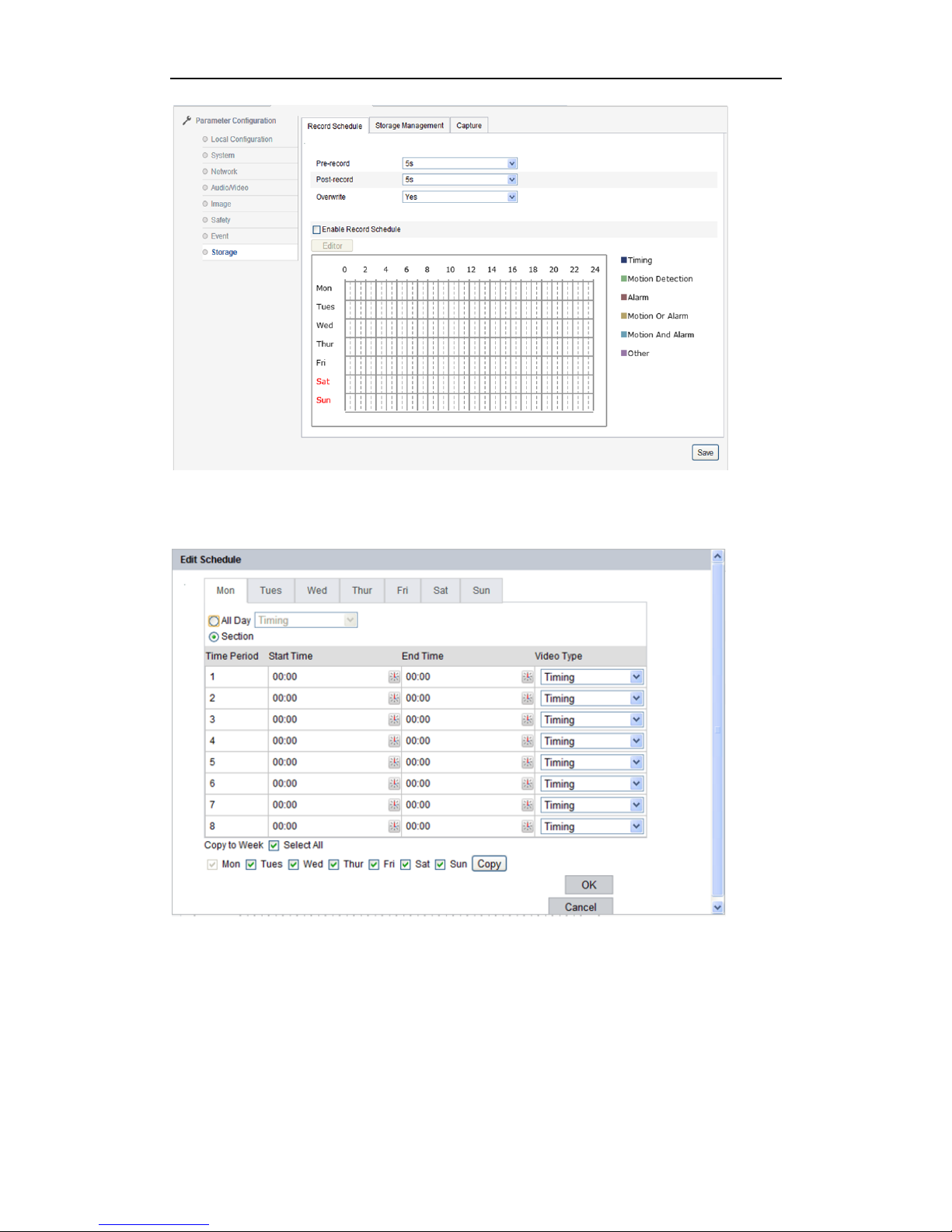

Storage→Record Schedule
Tick “enable record schedule”, click “Editor" could edit record schedule, appoint record
period and choose type. See picture 3.2.6-33. For edit schedule, see picture 3.2.6-34
Record time includes “all day”, “section”, if choose “section”, user could choose time period
specifically, supports 4 record period settings.
Record Type includes “Timing”, ”Motion Detection”, ”Alarm”, ”Motion Or Alarm”, ”Motion
and Alarm”, ”Other”.
Pre-record is the advanced record time before starting of record, 0-3sec (optional) and not
limit.
Post-record is the delayed time of record, 5sec-10min (optional)
After modifying related parameter, need to click “confirm” to save settings
Note: Overwrite is measured according to 2Mbps, the bigger scream you choose, the shorter, he
pre-record time is.

33

Picture 3.2.6-33 Record schedule

Picture 3.2.6.-34 Edit Schedule

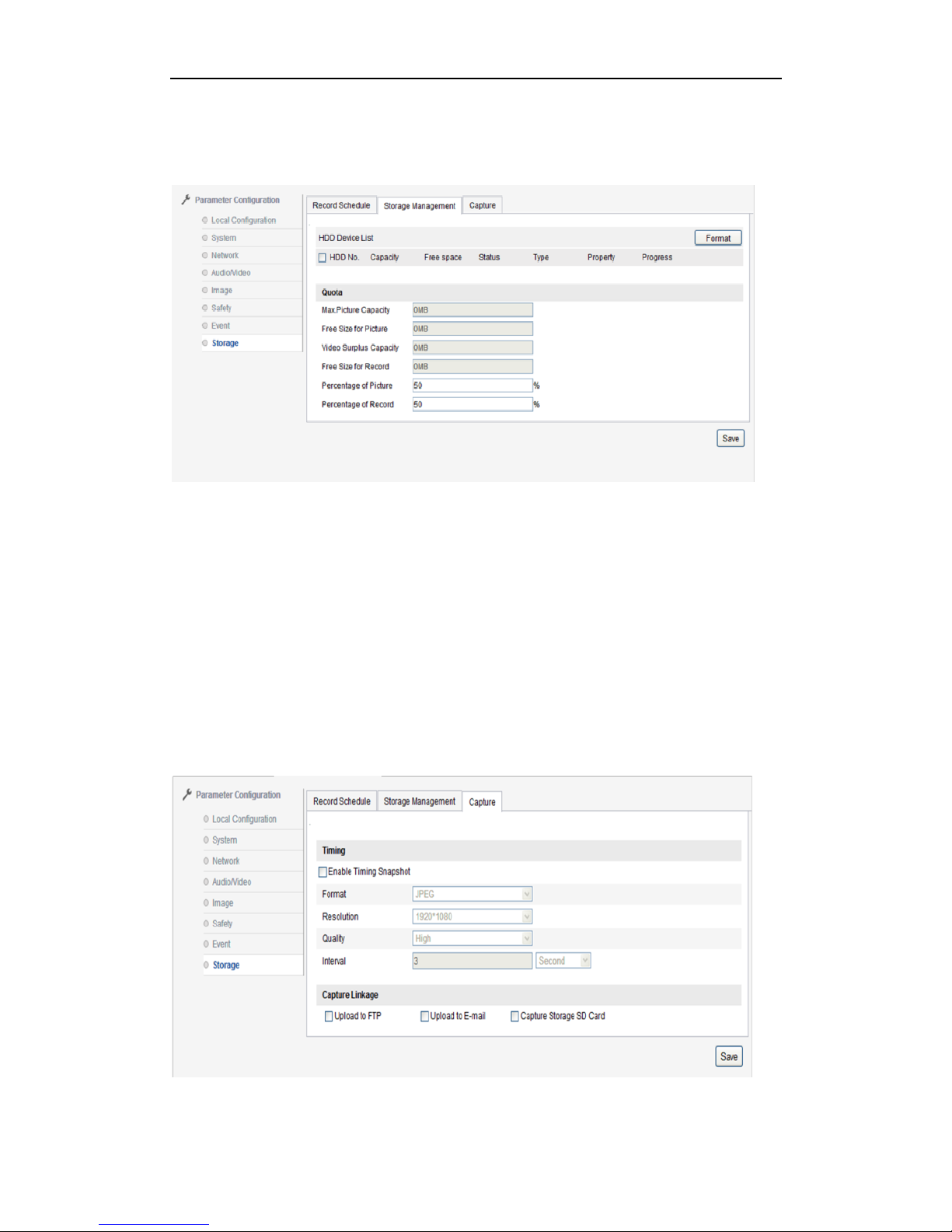

Storage→Storage Management
Storage management is used to view the status and the capacity of the storage medium, and
carry out format operation on the storage medium. Tick the inserted TF card, click the "format",
will make the TF card format. As picture 3.2.6-35 shows
"HDD No." shows the serial number of the storage medium. "Capacity”: shows the total
capacity of a storage medium. "Free space", shows remaining space of a storage medium. ”Status”:

34

shows the current status of the storage medium. "Format”: format operation of the storage
medium.

Picture 3.2.6-35 Storage management

Storage→Capture
Through parameter configuration setting capture parameter, capture way is only for timing
snapshot. As picture 3.2.6-36 shows

“Format" could support JPEG format snapshot, “Resolution" is present main stream’s resolution.
“Quality" could choose High/Middle/Low

“Interval" could set according to interval, unit: “millisecond”, ”second”, ”minute”, ”hour”, ”day”

(optional), interval range 1-604800 millisecond.
After related parameter modify, click [save] to save settings.

Picture 3.2.6–36 Capture

35

4 OSD MENU FUNCTION

The user can check the dome system information as required.
The system information includes: Dome ID, dome address, baud
rate, protocol, temperature, voltage, alarm information, dome title,
version, date, time, and temperature scale.

Use the following steps to display the System Information screens:

1) Move the cursor to “INFORMATION”.

2) Click IRIS + to enter, the INFORMATION screen opens.

3) Click up or town to select the item.

4) Click IRIS + to confirm the setup of each item.

INFORMATION

VERSION:
VR220T-138
TEMPERATURE:32 oC
VOLTAGE:
12v
BACK
EXIT

MAIN MENU

[LANGUAGE]

INFORMATION
DOME
SETTINGS
MOTION
RESTART

36

LANGUAGE

MAIN MENU

LANGUAGE: ENGLISH

INFORMATION
DOME SETTINGS
MOTION
RESTART
FACTORY DEFAULT

The language for the on-screen menus is Selectable. To change the

display language: Click IRIS + to enter and click up or down button to
select.
All on-screen menus are changed to the selected language.

LANGUAGE
CHINESE]
BACK
EXIT

LANGUAGE

37

IR LED

The user can open and close the IR LED manually and set up the IR
LED work mode under this OSD mean. (Suitable for speed dome with
IR Led):

1) CONTROL MODE:

AUTO

IR LEDs turn on or off automatically according
to light conditions

TIMING

LED is adjusted according to Open and Close
Time.

OPEN

IR LED forcedly open

CLOSE

IR LED forcedly close

CAMERA

IR LED status (Open/Close) will be
synchronized with Camera day and night
switching

2) SENSITIVIRY:

Here the user can manually set the sensitivity from 1-5. The smaller the
number is, the lower light of the environment will be when the IR LED
on.

3) NEAR POWER COMPENSATION: set the near power

compensation at 10%、20%、30%、40%、50%，when near power
opens, far power opens according to the power setting.

4) AUTO CONTROL: When it is on, the IR LED will turn its power
consumption to the standby status which will effectively extend the
service life of IR LEDs. And under this mode, when objects appear in
the screen, the IR LED will turn its power consumption back to the
normal status.

AUTO CONTROL

STANDBY POWER:50%
DELAY :10SEC
SENSITIVITY:MID

BACK EXIT

DOME SETTINGS

<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

IR LED

CONTROL: AUTO

SENSE : ----【-】-›4∣6
NEAR POWER: 100%

FAR POWER: 100%
COMPENSATION: 0%
AUTO CONTROL: OFF
<AUTO CONTROL>

38

WIPER

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

EXIT

WIPER SETTINGS

NUMBER: 03
SPEED: MID
AUX ON: AUX1
RESET
ACTIVATE

BACK EXIT

DOME SETTINGS

<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>

BACK EXIT

The user can make adjustment for the wiper under this menu
(suitable for wiper-equipped dome)

1) Numbers: Move the cursor to “NUMBER” and click IRIS + to
enter the setup of Wiper Number. Click the up or down button to
select number (1-10), and then click IRIS + to confirm.

2) Speed: Move the cursor to “SPEED” and IRIS + to enter the

setup of Wiper speed. Click the up or down button to select
“HIGH”,“MID ”OR “ LOW”, then click IRIS + to confirm.

3) Reset: Move the cursor to “RESET” and click IRIS + to reset
wiper.

4) Activate: Move the cursor to “ACTIVATE” and click IRIS + to

ACTIVATE wiper. Activate the wiper.

Note: Calling the preset number of 71 can also enable the wiper.

39

IDLE

User could set idle by OSD menu, can set idle action and
time.

1. Action
Click up/down key to “action”, click left/right key
enter setting mode, click left/right key to choose idle
action, action include: no action, preset 1, auto scan, auto
cruse, pattern, click up/down key to operate next
operation.

2. Delay
Click up/down key to “delay”, click left/right enter
setting mode, click left/right key to enter setting mode,
click left/right key to operate time choice—1min,
5min,10min, click up/down key for next step.

MAIN MENU
LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

EXIT

DOME SETTINGS
<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>
BACK
EXIT

IDLE ACTION

TIME: 30 SEC
ACTION: NONE

BACK
EXIT

40

ALARM

The dome system has 4alarm inputs and 2 alarm output.

(Optional function). When an alarm is received, an input signal
to the dome triggers the user defined action (such as presets,
patterns, etc.), and at meantime the alarm output signals is
activated.
ALARM NO.: Move the cursor to ALARM NO. Click Iris + to
enter and click up or down button to select the alarm input no.
(Channel 1 and Channel 2)

INPUT STATE: Set the alarm contact status. There are two
input states, OPEN and CLOSE.

ALARM MODE:

OFF

Alarm function is deactivated.

ON

Alarm function is activated.

AUTO

AUTO Alarm function will be activated and
deactivated between START TIME and STOP
TIME.

ACTION: Set the alarm action:

NONE

(default) No action

PRESET

Dome goes to preset. (Default as Preset 1)

SCAN

Dome starts auto scan (Default as Auto Scan 1)

SEQ

Dome runs auto cruise (Default as Auto Cruise 1)

PATTER
N

Dome runs pattern (Default as Pattern 1)

ALARM OUT: Move the cursor to ALARM OUT. Click IRIS +
to enter and click up or down button to select alarm output
channels among “OFF” “OUTPUT1” “OUTPUT2” “ALL”,
which is used to set linkage alarm output switch after receiving
effective alarm input signals.
RESET DELAY: Move the cursor to the ALARM OUT. Click
IRIS + to enter and click up or down button to select reset delay

among “10SEC” “30SEC” “1MIN” “5MIN” “10MIN”.Which

means the
Time of the speed dome from detecting alarm signals to alarm
reset and return to normal. The setting is valid under AUTO
ALARM MODE.

MAIN MENU
LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

EXIT

DOME SETTINGS

<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>

BACK EXIT

ALARM SETTING

ALARM NO. : 1
CONTACT: N/O
ALARM MODE: OFF
ACTION: NONE
ALARM OUT: OFF
RESET DELAY: 10 SEC

BACK EXIT

41

AUX

The user can set up the auxiliary output to trigger other devices

from an alarm or a controller.

Move the cursor to AUX and click IRIS＋to enter and click up or
down button to select “ON” “OFF”, then click IRIS + to confirm.

DOME SETTINGS
<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>

BACK EXIT

ADVANCED
<AUX>
<SOFT LIMIT>
<DOME SPEED>
<POWER ON ACTION>
<TILT ANGLE>

BACK EXIT

AUX

AUX1: OFF
AUX2: OFF

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

42

SOFT LIMIT

ADVANCED

<AUX>
<SOFT LIMIT>
<DOME SPEED>
<POWER ON ACTON>
<TILT ANGLE>

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

DOME SETTINGS

<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>

LIMIT SETTING

SOFT LIMIT: ON
<LEFT LIMIT>
<RIGHT LIMIT>
LIMIT DELETE

The user can set up the soft limit to define the left and right
boundaries for the pan movement.
SOFT LIMIT: Move the cursor here and click IRIS + to enter. Click
the up or down button to select “ON” or “OFF” to enable or disable
this function.
LEFT LIMIT: Move the cursor here and click IRIS + to enter. to
control the PAN movement of the dome to a defined position for the
left limit. Click IRIS + to confirm.

RIGHT LIMIT: Move the cursor here and click IRIS + to enter to
control the PAN movement of the dome to a defined position for the
right limit. Click IRIS + to confirm.

LIMIT DELETE: Move the cursor here and click IRIS + to delete
all the settings.

43

DOME SPEED

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

ADVENCED

<AUX>
<SOFT LIMIT>
<DOME SPEED>
<POWER ON ACTION>
<TILT ANGLE>

BACK EXIT

DOME SETTINGS

<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>

DOME SPEED SETTING

DOME SPEED :180°/S

To make a selection of the dome speed, the user can enter this menu
to set up.
Move the cursor to DOME SPEED and click IRIS + to enter to
select the dome speed when doing the pan movement.
Move the cursor to BACK/EXIT and click IRIS + to run the
command of BACK or EXIT.

44

POWER ON ACTION

DOME SETTINGS

<IR LED>

<IDLE>
<ALARM>
<ADVANCED>

<OTHERS>

BACK

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

POWER ON ACTION

POWER ON ACTION: NONE

BACK EXIT

ADVANCED
<AUX>
<SOFT LIMIT>
<DOME SPEED>
<POWER ON ACTION>
<TILT ANGLE>

BACK EXIT

The user can define the dome action when power on, Move the
cursor to POWER ON ACTION and click IRIS + to enter the mode
of setup.

NONE

(default) No action

PRESE
T

Dome goes to preset. (Default as Preset 1)

SCAN

Dome starts auto scan (Default as Auto
Scan 1)

SEQ

Dome runs auto cruise (Default as Auto
Cruise 1)

PATTE
RN

Dome runs pattern (Default as Pattern 1)

45

TILT ANGLE

TILT ANGLE SETTINGS

TILT ANGLE: 0

BACK

EXIT

DOME SETTINGS

<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>

ADVANCED

<AUX>
<SOFT LIMIT>
<DOME SPEED>
<POWER ON ACTION>
<TILT ANGLE>

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFUALTS

The user can set up the tilt angle under the menu of TILT ANGLE.
Move the cursor to “TILT ANGLE” and click IRIS + to the setup of
tilt angle. Click the up or down button to select the angle and click the
IRIS + to confirm.

46

OTHERS

DOME SETTINGS

<IR LED>
<WIPER>
<IDLE>
<ALARM>
<ADVANCED>
<OTHERS>
BACK EXIT

OTHERS

TEMP MODE: AUTO
AUTO FLIP: ON
STOP TIME: 30 SEC
MENU OFF TIME: 5 MIN
<DISPLAY>
<AZIMUTH ZERO>

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFUALTS

The user can set up TEMP MODE, INTERNAL FAN, PRESET
FREEZE, and STOP TIME. MENU OFF TIME and NORTH ZERO here
under the menu of “OTHERS”

TEMP MODE: To set up the control mode of dome fans and heaters. It
includes three modes of AUTO, FAN HIGH SPEED and FAN LOW
SPEED.

AUTO FLIP: When the camera tilts downward and goes just beyond the
vertical position, the camera will rotate 180 degrees. The user can click
IRIS + to enter and choose to turn on/off this function.

MENU OFF TIME: To set up the time that OSD menu be off when no
operations. Options include 1/2/5/10 min.

AZUIMUTH ZERO: To set up the due north of the dome (pan 0º)
Move the cursor here and click IRIS + to enter. Click the up or down
button to control the dome to pan 0º and click IRIS + to confirm.

47

PRESET

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFUALTS

MOTION

<PRESET>
<SCAN>
<SEQUENCE>
<PATTERN>
<AUTO TRACKING>

BACK EXIT

SCAN

SCAN NO. : 1
START
<LEFT LIMIT>
<RIGHT LIMIT>
SCAN SPEED: 20

BACK EXIT

The dome supports 220 presets. Please check the following steps to
set up a preset.

1) PRESET NO.: Move the cursor here and click IRIS + to enter

the setup of Preset Number. Click the up or down button to
select a preset number (1-64 and 100-255) and click IRIS + to
confirm.

2) TITLE: Move the cursor here and click IRIS + to enter the setup

of Preset Title. Check the detailed above in DOME TITLE
settings.

3) <SET>: Move the cursor here and click IRIS + to enter. Move

the dome to a defined position as preset point and click IRIS + to
save the preset position.

4) CALL: Move the cursor here and click IRIS + to call up the

current preset.

5) DELETE: Move the cursor here and click IRIS + to delete the

current preset.

6) SPEED: Move the cursor here and click IRIS + to set up the

preset call up speed of LOW, MID and HIGH.

48

AUTO SCAN

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFUALTS

MOTION

<PRESET>
<SCAN>
<SEQUENCE>
<PATTERN>
<AUTO TRACKING>

BACK EXIT

SCAN

SCAN NO. :1
START
<LEFT LIMIT>
<RIGHT LIMIT>
SCAN SPEED: 20

BACK EXIT

The dome supports 8 groups of auto scan. Please check the following
steps to set up a scan.

1) SCAN NO.: Move the cursor here and click IRIS + to enter the

setup of SCAN Number. Click the up or down button to select a
preset number (1-8) and click IRIS + to confirm.

2) TITLE: Move the cursor here and click IRIS + to enter the

setup of SCAN Title. Check the detailed above in DOME TITLE
settings.

3) <LEFT LIMIT>: Move the cursor here and click IRIS + to

enter. Move the dome to a defined position as left limit and click
IRIS + to save this left boundary.

4) <RIGHT LIMIT>: Move the cursor here and click IRIS + to

enter. Move the dome to a defined position as right limit and
click IRIS + to save this right boundary.

5) START: Move the cursor here and click IRIS + to start the

current scan.

6) SCAN SPEED: Move the cursor here and click IRIS + to set up

the scan speed ranging 1-30.

49

AUTO CRUISE (SEQUENCE)

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

EXIT

MOTION

<PRESET>
<SCAN>
<SEQUENCE>
<PATTERN>
<AUTO TRACKING>

BACK

EXIT

SEQUENCE

SEQ NO. : 1
START
<SEQUENCE SET>

INTERVAL：005

DELETE
BACK

EXIT

SEQUENCE

- - - ----- - -

------

- - - ----- - -

------­ADD：01 DEL

BACK
EXIT

The dome supports 8 groups of auto cruise and each cruise supports 32
presets. . Please check the following steps to set up cruise.

1) SEQ NO.: Move the cursor here and click IRIS + to enter the setup

of Sequence Number. Click the up or down button to select a preset
number (1-8) and click IRIS + to confirm.

2) TITLE: Move the cursor here and click IRIS + to enter the setup of

Sequence Title. Check the detailed above in DOME TITLE Settings.

3) <SEQUENCE SET>: Move the cursor here and click IRIS +

To enter. Move the cursor to EDIT and click IRIS + enter
Edit mode of sequence. Move the left and right button to
Select each item.

a) When the < > is on the item NO., move the up or down button

to select the Serial NO. Of the preset in a sequence. There are
up to 32 presets in each sequence.

b) When the < > is on the item PRESET, move the up or down

button to select the preset NO. That the user wants to add in the
sequence.

c) When the < > is on the INTERVAL, move the up or down

button to select the interval time between each preset.

d) When the < > is on the last item, move the up or down button to

select edition mode as “INS (insert)”, “ok” and “delete”.

Click IRIS + when selecting INS to insert the settings into the position
of current Serial No.
Click IRIS + when selecting OK to override the settings of
Current Serial No.
Click IRIS + when selecting delete to delete the settings

of the Current Serial No.

Click IRIS + to save all the setting and click IRIS CLOSE to exit.

4) DELETE/START: Move the cursor here and click IRIS + to

delete/start the current sequence.

50

PATTERN TOUR

MAIN MENU

LANGUAGE: ENGLISH
<SYSTEM

INFORMATION>

<DISPLAY SETUP>
<DOME SETTINGS>
<CAMERA>
<MOTION>
RESTART
FACTORY DEFAULTS

MOTION

<PRESET>
<SCAN>
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<MOTION DETECT>
<AUTO TRACKING>

PATTERN

PATTERN NO. :1
TITLE: PATTERN 1
START
<SET>
DELETE

BACK EXIT

The dome supports 4 pattern tours and each pattern cover at most 10
Minutes of 500 commands. Please check the following steps to set up
a pattern.

1) PATTERN NO.: Move the cursor here and click IRIS + to

enter the setup of Pattern Number. Click the up or down button
to select a pattern number (14) and click IRIS + to confirm.

2) TITLE: Move the cursor here and click IRIS + to enter the

setup of Pattern Title .Check the detailed above in DOME
TITLE settings.

3) <SET>: Move the cursor here and click IRIS + to enter. Click

the dome up/down/left/right, make the zoom in/out and click
IRIS + to save the pattern tour.

4) START: Move the cursor here and click IRIS + to start the

current pattern tour.

5) DELETE: Move the cursor here and click IRIS + to delete the

current pattern tour.

51

AUTO TRACKING

MOTION

<PRESET>
<SCAN>
<SEQUENCE>
<PATTERN>
<ZONES>
<TIMING ACTION>
<MOTION DETECT>
<AUTO TRACKING>

BACK EXIT

AUTO TRACKING

SENSITIVITY: MID
TARGET: MID
ZOOM MATCH: OFF
AUX: OFF
ENABLE: OFF
<TRACKING SCENE
SET>

BACK EXIT

TRACKING SCENE SET

<TRACKING SCENE
SET>
DELETE
RETURN DELAY:
10SEC

BACK

EXIT

MAIN MENU

LANGUAGE:ENGLISH
< INFORMATION>
<DISPLAY SETUP>
<DOME SETTINGS>
<CAMERA>
<MOTION>
RESTART
FACTORY DEFAULTS

EXIT

Under the auto tracking mode, the dome will auto track the moving
objects entering the scene. When the object is moving out of the scene,
the dome will return to a preset position as defined after the defined
time.

SENSITIVITY: The user can set up the auto tracking sensitivity under
this menu. When set as LOW, the dome will do auto tracking when
obvious object entering the screen. When set as HIGH, the dome will
do auto tracking when small object moving into the screen. Move the
cursor there and click the IRIS + to enter. The options include: LOW,
MID and HIGH.

TARGET: To set up the size of the tracking object. The options include
Large. MID and SMALL.

AUX: If set “ON” here, the object auto tracking will activate alarm aux
output at the same time. Click IRIS + to enter to select “ON” or “OFF”

ZOOM MATCH: Under the auto tracking model, if turn on the
function of ZOOM MATCH, the dome will do zooming in and out
during auto tracking to keep the right proportion between the object and
background. Move the cursor there and click the IRIS + to enter. And
click the up or down to select the optical zoom.

ENABLE: Move the cursor here and click IRIS + to enter to select
“ON” or “OFF” to enable or disable this function.

52

RESTART

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>
<MOTION>
RESTART
FACTORY DEFAULTS

EXIT

WARNING

ARE YOU SURE……

OK CANCEL

TRACKING SCENE SET: Here the user can set up the scene that the
dome will get back to when finishing the action of auto tracking. Move
the cursor here and click IRIS + to enter. Move the dome to the wanted
scene and click IRIS + to confirm.

DELETE: Move the cursor here and click IRIS + to delete the return
scene.

RETURN DELAY: To set up the time that dome will waiting to return
to this scene.

RESTART:The dome allows the user to reset its settings remotely under
this menu.
Move the cursor here and click IRIS + to enter.
Select “OK” or “CANCEL” to continue the reset or cancel the reset.

53

FACTORY DEFAULTS

MAIN MENU

LANGUAGE: ENGLISH
< INFORMATION>
<DOME SETTINGS>

<MOTION>

RESTART

FACTORY DEFAULTS

WARNING

ARE YOU SURE…..

FACTORY DEFAULTS will allow the user to recover all the
setting to factory default setting.

Move the cursor here and click IRIS + to enter. Select “OK”
or “CANCEL” to continue the reset or cancel the reset.

54

5 APPENDIXES

Lighting protection and Anti-surge

This product USES the gas discharge tube of TVS diode and protection circuit, can
effectively prevent the 3.0 kV following transient lightning and surge lamp all types of pulse
signal to the damage of equipment. But, for outdoor installation according to the actual situation
on the premise of guarantee the electrical safety to do the necessary protective measures:
Signal transmission line must be with the high voltage equipment goods between high voltage
cable to keep a distance of at least 50 meters

Choose as far as possible outside wiring along the roof line
For open field must adopt sealing pipe buried wiring way, and the steel pipe by one-point

earthing, absolutely forbidden by wiring overhead way
In strong thunderstorms or high induction voltage region (e.g., high voltage transformer
substation), must be taken to add extra high power lightning protection equipment and installation
of lightning rod and other measures
Lightning protection and grounding design of outdoor installation and wiring must be combined
with the construction of lightning protection requirements into consideration, and conform to the
requirements of relevant national standards and industry standards.
The system must be equipotential grounding. Grounding device must meet the system
anti-interference and electrical safety requirements, and shall not be short term or mixed with
strong power grid zero line. System separate grounding, grounding resistance is not greater than
4Ω.
